Tripp Lite PDUMNH20HV PDU Monitored 208V-240V 20A C13 8 Outlet L6-20P Horizontal 1URM

ITEM #: TRL-PDUMNH20HV MFG #: PDUMNH20HV

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Tripp Lite
Free Shipping with $49 Minimum Order

List Price:

$668.30

Our Price:

$467.00

Add to Wish ListLeasing Options
Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup
    Report Lower PriceLarge Quantity Quote

    PDUMNH20HV - Overview

    Tripp Lite single phase Monitored PDU / Power Distribution Unit offers real-time remote monitoring of voltage, frequency and load levels via built-in network connection. PowerAlert interface supports custom notification of user-specified remote conditions via email, secure web, SNMP, Telnet or SSH interface. PDU lighted digital display enables visual monitoring of PDU output current to prevent circuit overloads as additional equipment is added. Offers reliable rackmount multi-outlet power distribution from any protected UPS, generator or mains input power source. High quality design includes rugged all-metal housing and secure rackmount installation with included mounting accessories.

    • Features:

      • 20A single phase 200/208/230/240V Monitored Power Distribution Unit / PDU (agency derated to 16A continuous)

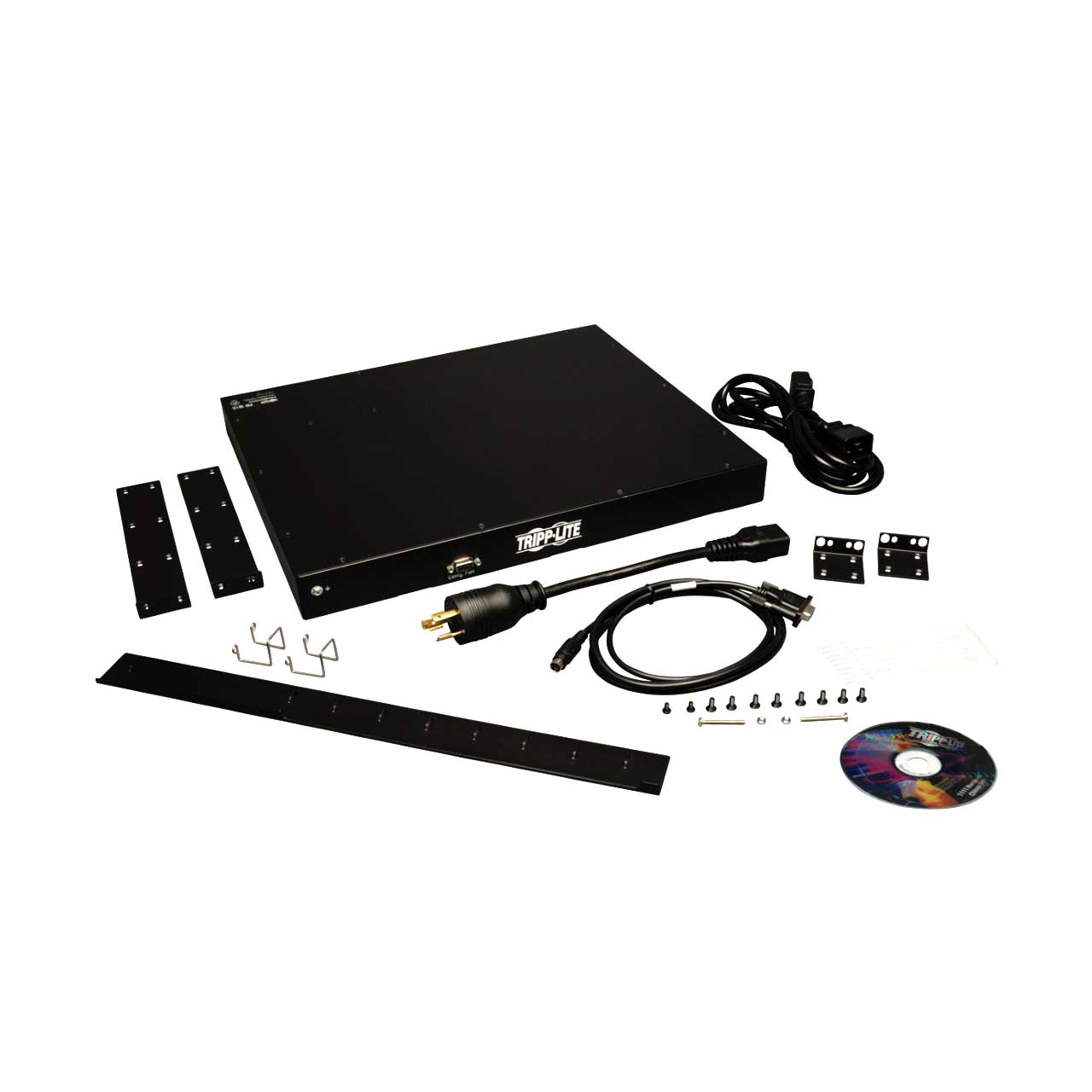

      • C20 inlet; 8.5ft / 2.6m C20 cable and NEMA L6-20P plug adapter included
      • 1U horizontal rackmount installation

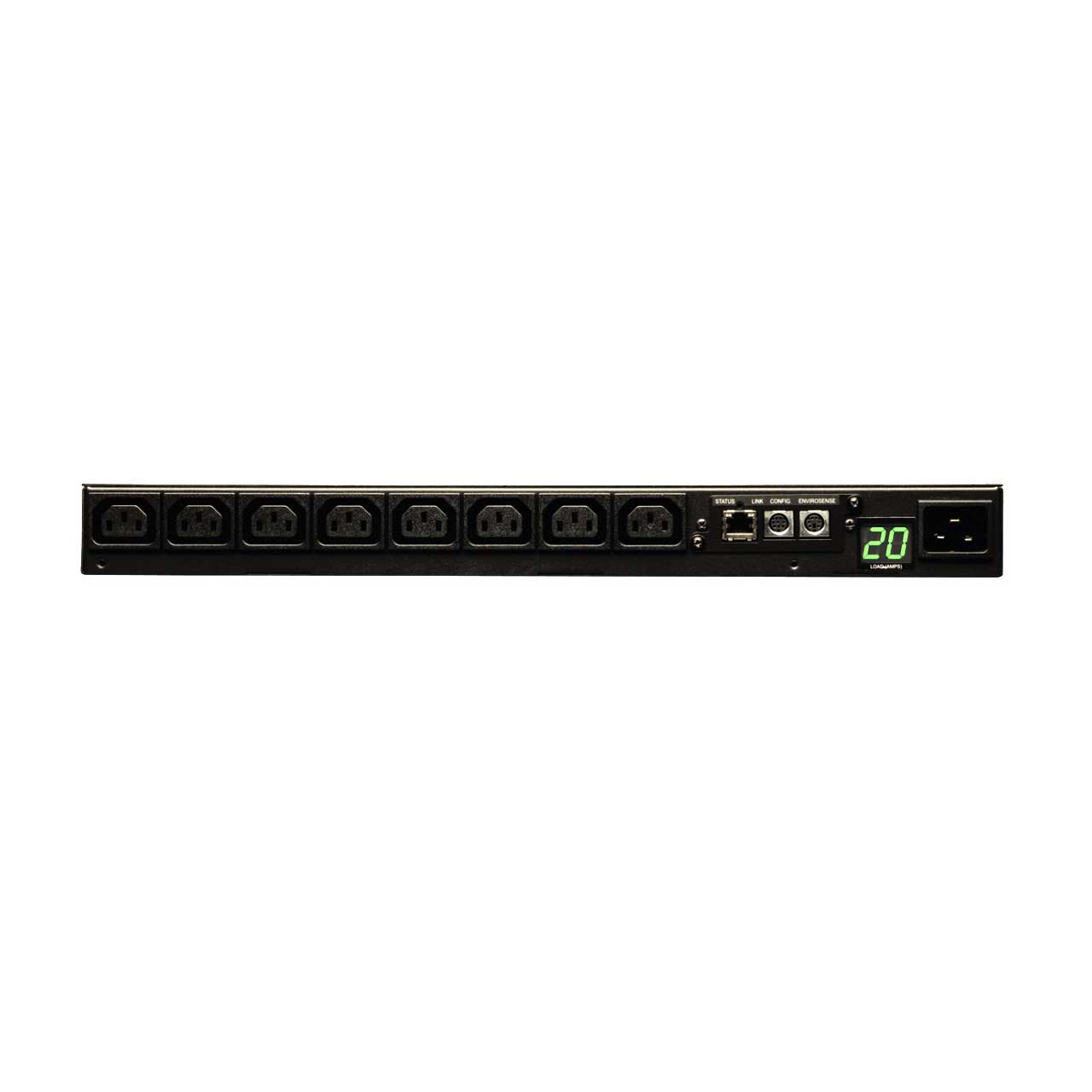

      • 8 C13 outlets
      • Lighted display reports output power consumption in amps


    • Specifications:

      • Style 1U horizontal rackmount
      • PDU Type Monitored
      • Output Capacity Details 3.33kW (208V), 3.52kW (220V), 3.68kW (230V), 3.84kW (240V), 3.2kW (200V); 20A maximum (Agency de-rated to 16A continuous)
      • Frequency Compatibility 50 / 60 Hz
      • Output Receptacles (8) C13
      • Output Nominal Voltage 200-240V nominal, single phase
      • Overload Protection n/a
      • Outlet Type C13
      • PDU Input Voltage 200; 208; 220; 230; 240
      • Recommended Electrical Service 20A 208/240V; 16A 230V
      • Maximum Input Amps 20
      • PDU Plug Type NEMA L6-20P; IEC-320 C20
      • Input Cord Length (ft.) 8.5
      • Input Cord Length (m) 2.6
      • Input Phase Single-Phase
      • Front Panel LCD Display Digital meter reports PDU output current in amps
      • Switches n/a
      • LED Indicators n/a
      • Shipping Dimensions (hwd / in.) 9 x 6 x 20.75
      • Shipping Dimensions (hwd / cm) 22.9 x 15.2 x 52.7
      • Shipping Weight (lbs.) 13.5
      • Shipping Weight (kg) 6.1
      • Unit Dimensions (hwd / in.) 1.75 x 17.5 x 14.8
      • Unit Dimensions (hwd / cm) 4.4 x 44.4 x 37.6
      • Unit Weight (lbs.) 9
      • Unit Weight (kg) 4.1
      • Material of Construction Metal
      • Form Factors Supported 1U horizontal rackmount in 2 or 4 post racks
      • PDU Form Factor Horizontal (1U, 2U, etc)
      • Storage Temperature Range 5 to 122F (-15 to 50C)
      • Relative Humidity 5 to 95% non-condensing
      • Operating Elevation (ft.) 0-10,000
      • Operating Elevation (m) 0-3000
      • SNMP Compatibility Pre-installed SNMPWEBCARD provides remote monitoring via web, Telnet, and SNMP management systems
      • TAA Compliant Option TAA Compliant Version Available - Order Tripp Lite PDUMNH20HVTAA
      • Certifications Tested to UL 60950-1 (USA, Canada), CE (International), Class A (Emissions), NOM (Mexico), RoHS compliant
      • Product Warranty Period (Worldwide) 2-year limited warranty


    • GTIN:

      0037332160928
