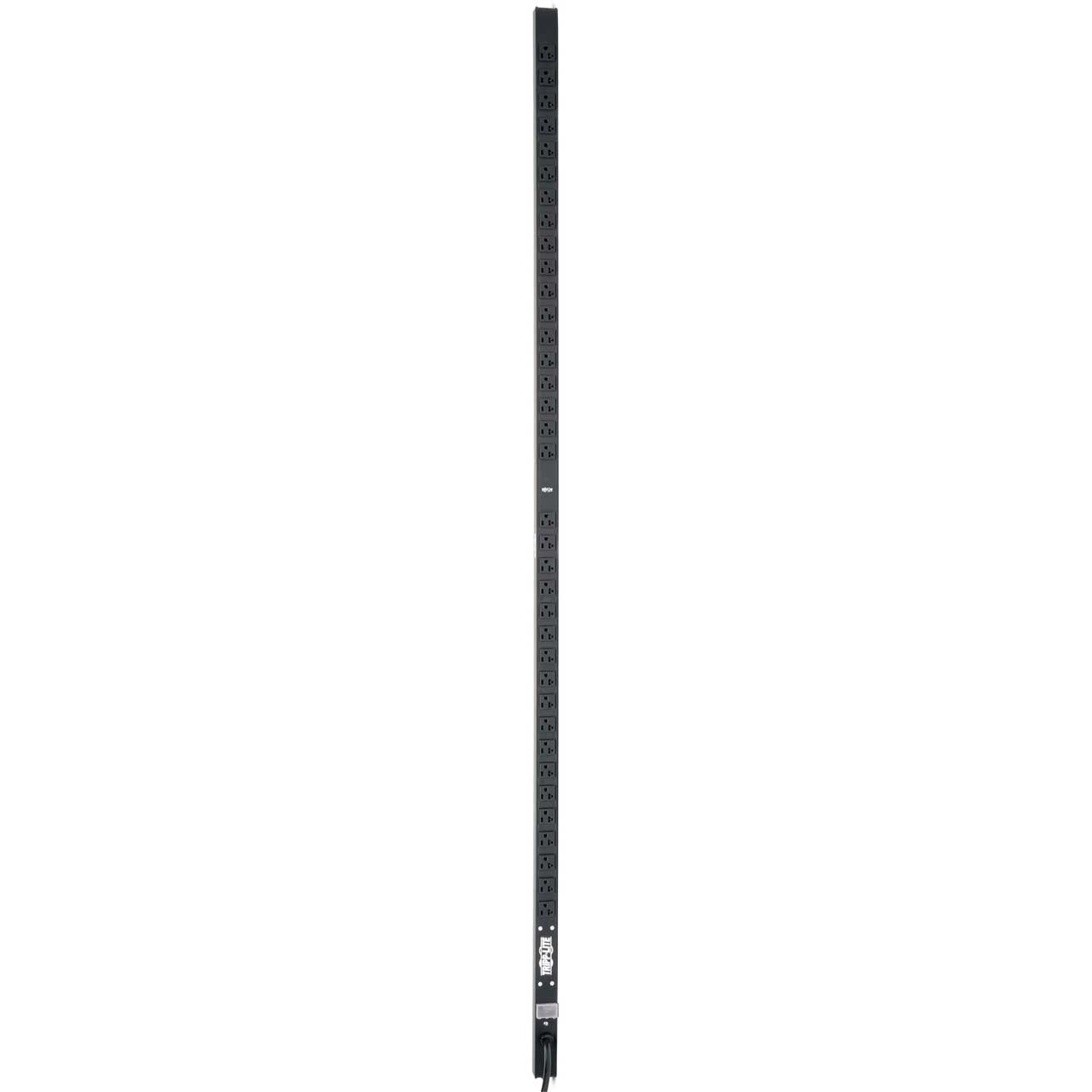

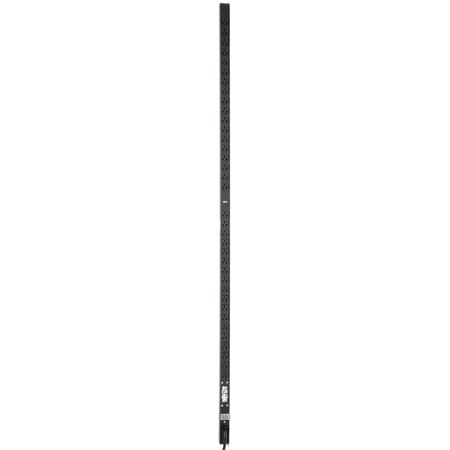

Tripp Lite PDUV20-72 PDU Basic 36 5-15/20R L5-20P 5-20P Adapter 1.9kW - 15 Foot Cord/72 Inch 0U Rack

ITEM #: TRL-PDUV20-72 MFG #: PDUV20-72

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

List Price:

$310.76

Our Price:

$230.00

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup
  • Shipment of this item is subject to a separate oversized-package carrier surcharge.


PDUV20-72 - Overview

Single-Phase 120V PDU Distributes Network-Grade Power to Multiple Loads
This Tripp Lite PDUV20-72 PDU basic PDU is an ideal no-frills unit for networking, telecom, security, audio/video and sound reinforcement applications. Recommended for small to mid-sized data centers, computer rooms and network closets, the PDUV20-72 features 36 NEMA 5-15/20R outlets for connecting equipment. A 15-foot cord with L5-20P input plug (and included 5-20P adapter) connects to your facility's AC power source, generator or protected UPS system to distribute power to connected loads.

Up-to-Date Safety Features Protect Your Vital Equipment

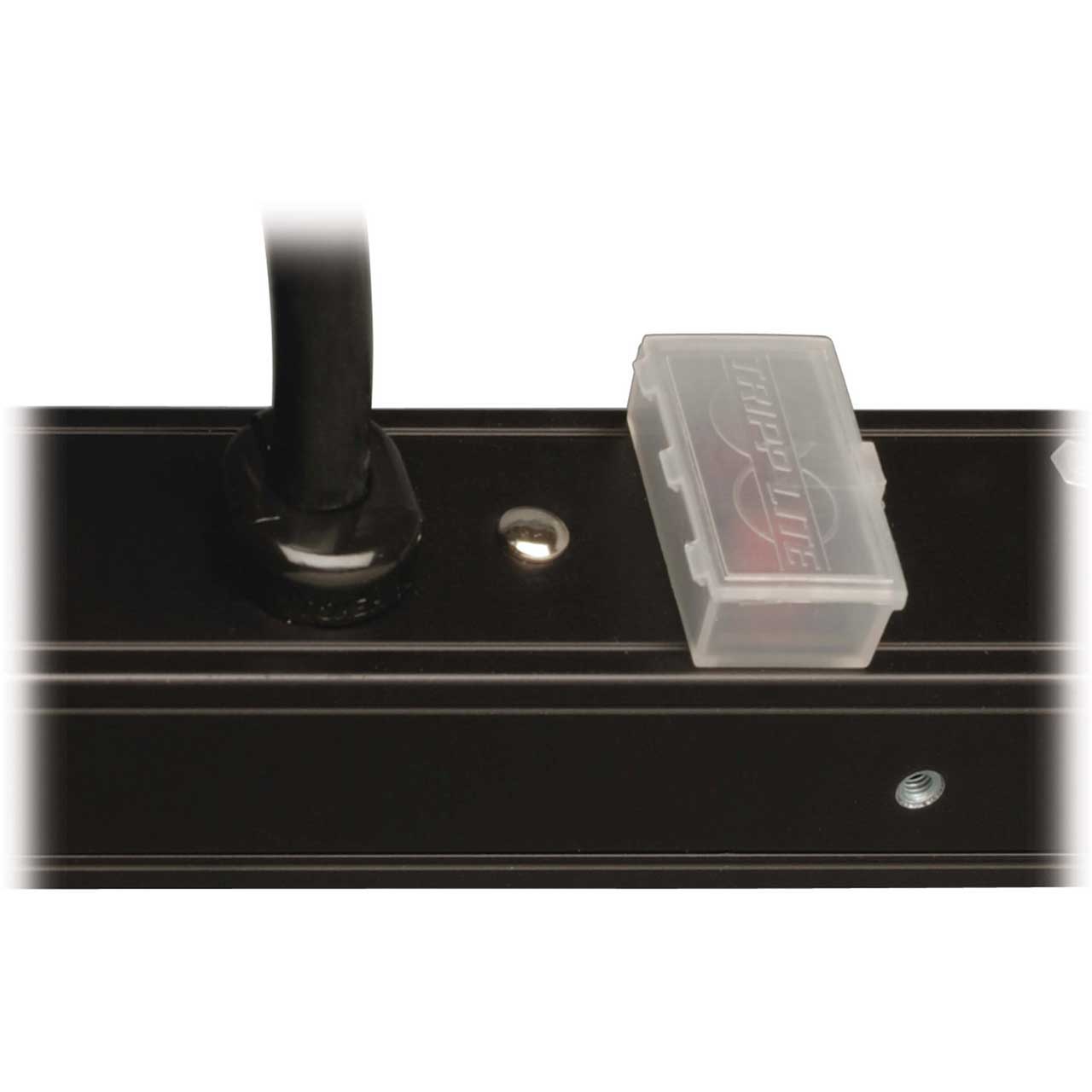

A lighted on/off switch is protected by a transparent plastic cover to help prevent an accidental shutdown that could lead to costly downtime. A 20A circuit breaker protects connected components from dangerous overloads.

Versatile Installation Options Give You Plenty of Choices
The 72-inch 0U PDU mounts vertically in an EIA-standard 19-inch rack using the included toolless mounting buttons or the included mounting clips and hardware. You may also use the clips to secure the PDU to a wall, counter or other flat, secure surface. Bolt-down retention brackets keep power cords organized and your rack free of clutter.

Typical Applications
Deliver network-grade power to high-density equipment in networking, telecom, security, audio/video and sound reinforcement applications

  • Features:

    • Ideal no-frills PDU for telecom, security, audio/video and other network applications

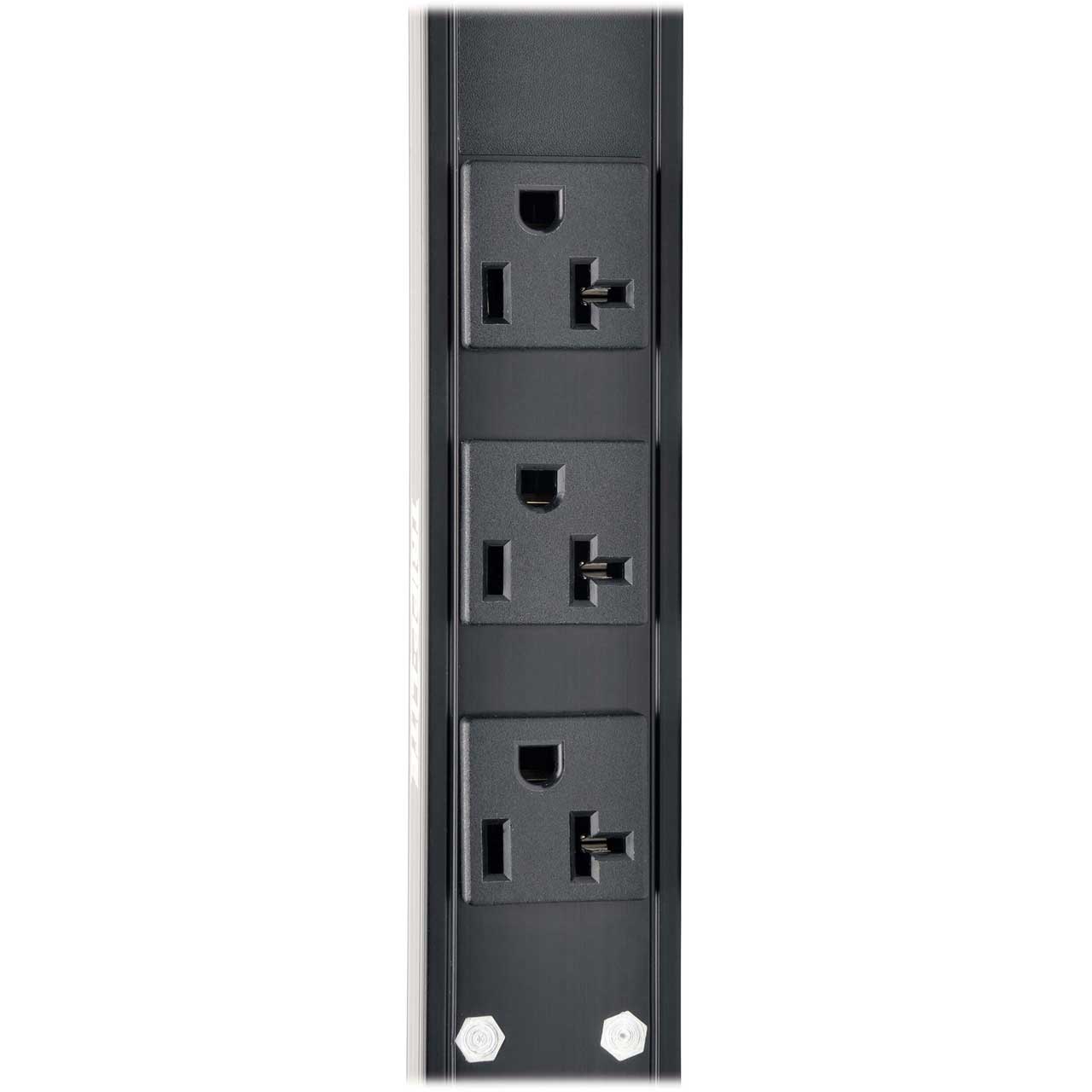

    • 36 NEMA 5-15/20R outlets distribute AC power to connected equipment
    • Lighted power switch with protective cover helps prevent accidental shutdowns
    • 15 ft. cord with L5-20P input (and 5-20P adapter) connects to AC power source
    • 72 in. 0U PDU with included mounting brackets installs in rack or under counter
    • 2-year limited warranty

  • Specifications:

    • PDU Input Voltage: 100; 120; 127
    • Recommended Electrical Service: 20A 120V
    • Maximum Input Amps: 20
    • Maximum Input Amps Details: Agency de-rated to 16A continuous
    • PDU Plug Type: NEMA 5-20P; NEMA L5-20P
    • Input Phase: Single-Phase
    • Input Cord Length (ft.): 15
    • Output Capacity Details: 2.03kW (127V), 1.92kW (120V), 1.6kW (100V) / 20A total capacity (Agency de-rated to 16A); 16A max per outlet
    • Frequency Compatibility: 50 / 60 Hz
    • Output Receptacles: (36) 5-15/20R
    • Output Nominal Voltage: 100; 120; 127
    • Overload Protection: 20A circuit breaker
    • Switches: Lighted on/off switch with integrated transparent saftey cover
    • Form Factors Supported: Vertical
    • Material of Construction: Aluminum
    • PDU Form Factor: Vertical (0U)
    • Shipping Dimensions (hwd / in.): 2.40 x 6.65 x 75.79
    • Unit Dimensions (hwd / in.): 72.47 x 1.64 x 1.5
    • Unit Weight (lbs.): 6.14
    • Storage Temperature Range: -30°C to +50°C (-22°F to +122°F)
    • Certifications: Tested to UL 60950-1 (USA); CSA (Canada), RoHS Compliant
    • Certification Details: Series Number (s) AG-00DD; Safety Standards (Canada) CAN/CSA-C22.2 No. 60950-1:2007 (2nd Ed) +A1:2011 +A2:2014; Safety Standards (U.S.) UL60950-1:2007 (2nd Ed)+A1 R10.14; FCC/ICES Compliant CLASS A; NOM; RETIE

  • Item Includes:

    • 1x PDUV20-72 1.9kW 120V Single-Phase Basic PDU
    • 1x L5-20P to 5-20P input plug adapter
    • 1x Plug retention brackets with installation hardware
    • 1x Rack-mounting hardware
    • 1x Owner's manual

  • GTIN:

    0037332255822
