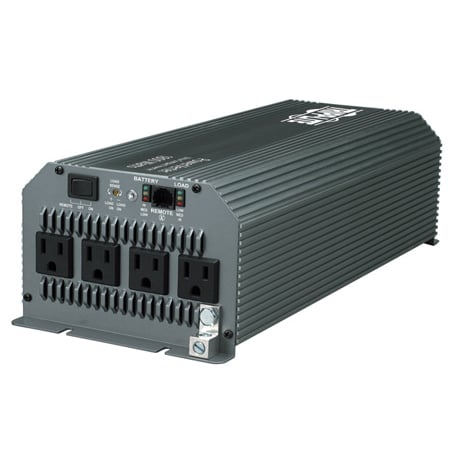

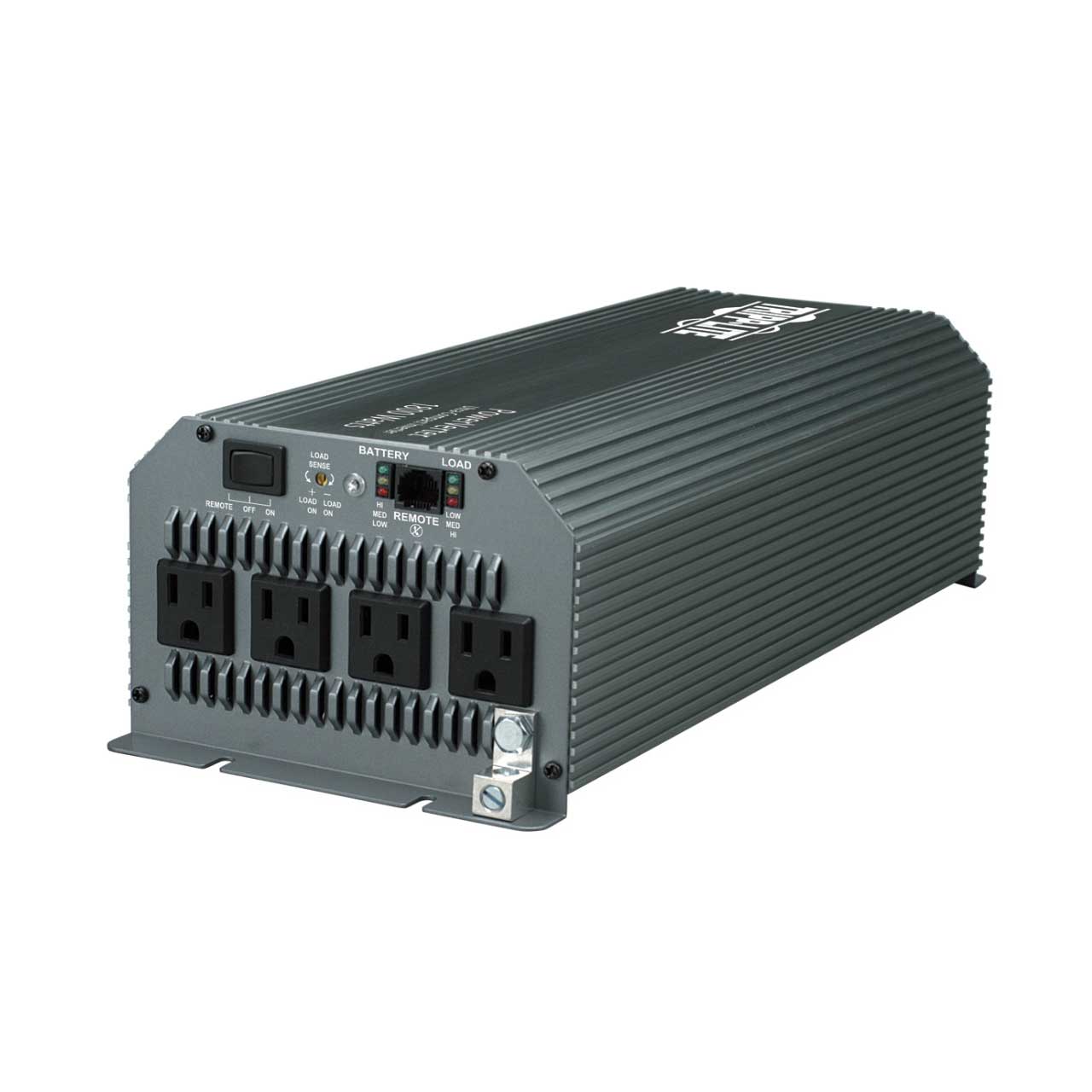

Tripp Lite PV1800HF Compact Inverter 1800W 12V DC to AC 120V 5-15R 4 Outlet

ITEM #: TRL-PV1800HF MFG #: PV1800HF

Primary Image
Free Shipping with $49 Minimum Order

List Price:


Our Price:


Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup

    PV1800HF - Overview

    Utilize your vehicle's battery to efficiently power office equipment on the road or power tools at a work site. Continuously supplies up to 1800 watts of 120V AC power to 4 AC outlets from any 12V battery or automotive DC source. Includes a set of nut-and-bolt style DC terminals for simple installation. Compact, lightweight metal case design is among the smallest, most rugged inverters available at this power level. NOTE: To protect against high current draw that may occur during inverter failure, a fuse link rated at 250a should be positioned no more than 18" from the PV1800HF's battery in the positive line.

    • Features:

      • Converts DC power into 3000 watts of continuous 120V AC power
      • 15- and 20-amp outlets provide 120V AC power
      • Includes "Battery Saver" low voltage alarm/shutdown
      • Heavy-duty DC input terminals assure solid connection to battery. Dual connections provide high wattage to support heavy equipment loads.
    • Specifications:

      • Style Compact
      • Frequency Compatibility 60 Hz
      • Output Receptacles (4) 5-15R
      • Output (Watts) 1800
      • Continuous Output Capacity (Watts) 1800
      • Peak Output Capacity (Watts) 3600
      • Output Nominal Voltage 120V
      • Output Voltage Regulation Maintains PWM sine wave output voltage of 115 VAC (+/- 8 VAC)
      • Output Frequency Regulation 60 Hz (+/- 3 Hz)
      • Overload Protection Automatic overload protection shuts down inverter system in the event of overloads.
      • Recommended Electrical Service Requires 12VDC input source capable of delivering 200A for the required duration (when used at full capacity). For automotive applications, professional hardwire installation with 250A battery system fusing is recommended.
      • Maximum Input Amps / Watts Full continuous load - 200A at 12VDC, No load - 2.7A at 12VDC, Shutdown
      • Input Connection Type Set of 2 DC bolt-down wiring terminals. User supplies cabling; minimum gauges for full load operation: 0 (16 ft max), 00 or 2/0 (20 ft max)
      • Voltage Compatibility (VDC) 12
      • DC System Voltage (VDC) 12
      • Audible Alarm Dual-function alarm indicates overload conditions or low DC input voltage of 10.5V or less.
      • Shipping Dimensions (hwd / in.) 5.25 x 7.75 x 17.25
      • Shipping Dimensions (hwd / cm) 13.34 x 19.69 x 43.82
      • Shipping Weight (lbs.) 8
      • Shipping Weight (kg) 3.6
      • Unit Dimensions (hwd / in.) 4 x 6 x 15
      • Unit Dimensions (hwd / cm) 10.16 x 15.24 x 38.1
      • Unit Weight (lbs.) 7.25
      • Unit Weight (kg) 3.3
      • Cooling Method Fan
      • Material of Construction Aluminum/sheet metal
      • Form Factors Supported Mounting slots enable permanent placement of inverter on any horizontal surface (see manual for additional mounting information)
      • Relative Humidity 0-95% non-condensing
      • Remote Control Capability Yes
      • TVSS Grounding Grounding lug grounds the inverter to vehicle or earth ground; user supplies cabling
      • Product Warranty Period (Worldwide) 1-year limited warranty
    • GTIN:
