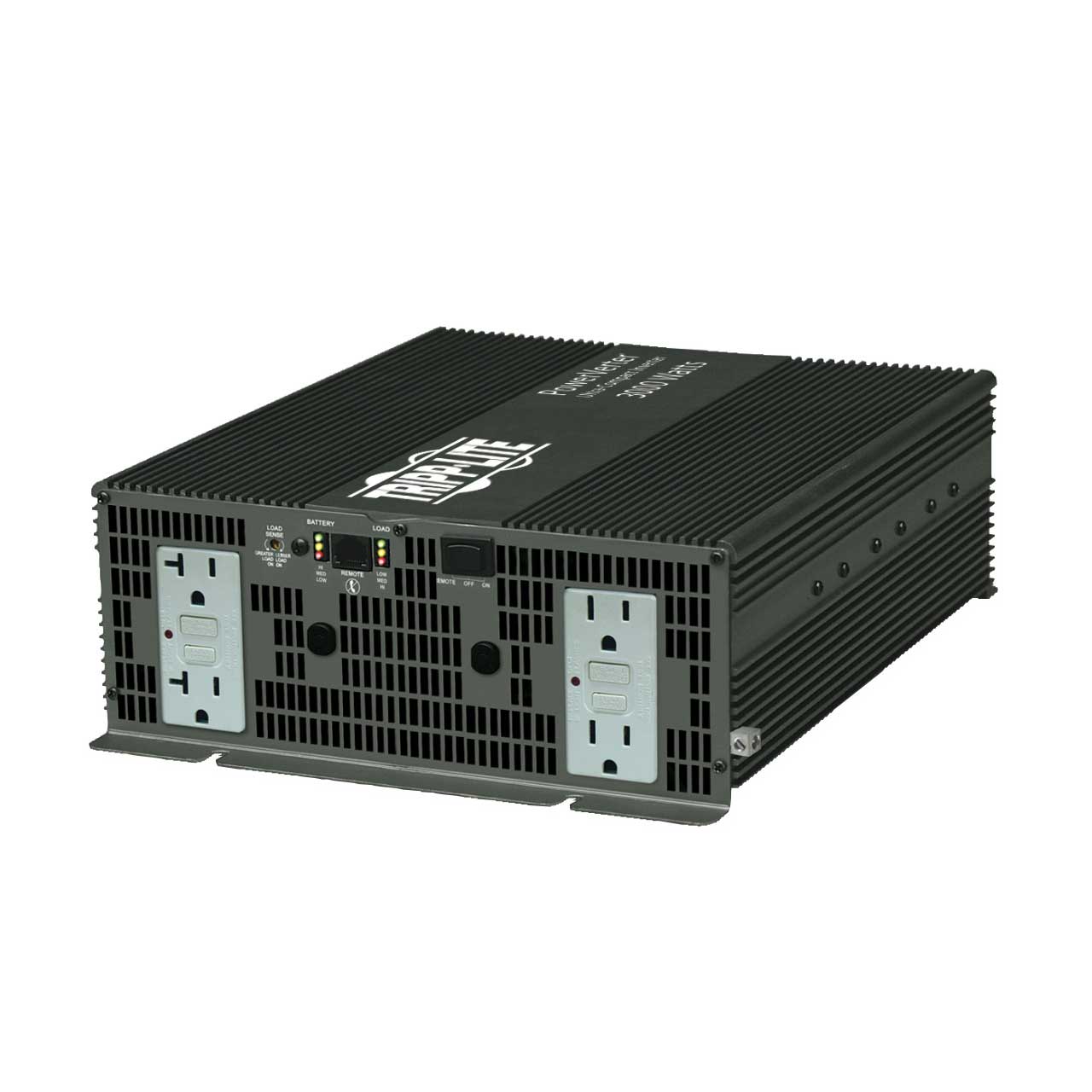

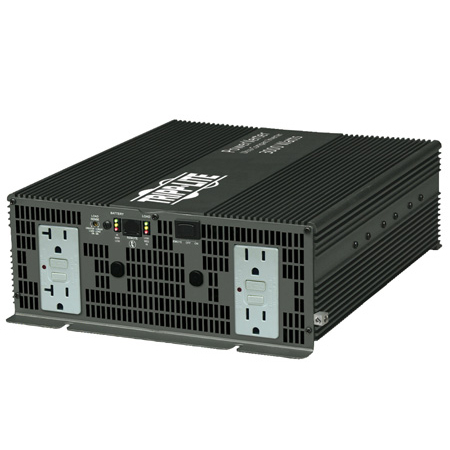

Tripp Lite PV3000GFCI 3000W PowerVerter Plus Heavy-Duty Inverter with 4 GFCI Outlets

ITEM #: TRL-PV3000GFCI MFG #: PV3000GFCI

Primary Image
Free Shipping with $49 Minimum Order

List Price:

$1,456.00

Our Price:

$979.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


    PV3000GFCI - Overview

    Utilize your vehicle's battery to efficiently power office equipment on the road or power tools at a work site with Tripp Lite's PV3000GFCI. Continuously supplies up to 3000 watts of 120V AC power to 4 AC GFCI protected outlets from any 12V battery or automotive DC source. Includes a PV remote and 25 feet of cable. Heavy-duty, compact metal case design is among the smallest, most rugged inverters available at this power level. Conforms to OSHA 1926.404 (b) (1) (ii)

    Please Note: To protect against high current draw that may occur during inverter failure, two fuse links rated at 250a each should be positioned no more than 18" from the PV3000GFCI's battery in each positive line.

    • Features:

      • Converts DC power into 3000 watts of continuous 120V AC power
      • 15- and 20-amp outlets provide 120V AC power
      • Includes "Battery Saver" low voltage alarm/shutdown
      • Heavy-duty DC input terminals assure solid connection to battery. Dual connections provide high wattage to support heavy equipment loads.
      • Operating mode switch controls inverter operation.
      • Remote control jack provides optional remote monitoring and control (when used with FREE, included LED/switch module)
      • Remote Control LED/Switch Module controls and monitors your inverter from virtually anywhere within your vehicle with use of included extra-long cable. Allows multiple mounting options, including behind or below a dashboard or compartment. Features daisy-chain capability
      • Battery charge level LEDs indicate the approximate charge level (high/medium/low) of connected batteries
      • Connected load level LEDs indicate the approximate wattage load level (high/medium/low) of connected equipment
      • Sturdy extruded aluminum case stands up to the toughest work environments
      • Battery conservation charge dial conserves battery power by setting the low-load level at which the inverter automatically shuts off

    • Specifications:

      • Output
      • Nominal Output Voltage(s) Supported: 120V
      • Frequency Compatibility: 60Hz
      • Output Receptacles: 4x 5-15R
      • Pure Sine Wave Output: No
      • Output (Watts): 3000
      • Continuous Output Capacity (Watts): 3000
      • Peak Output Capacity (Watts): 6000
      • Output Voltage Regulation: Maintains PWM sine wave output voltage of 115 VAC (±8 VAC)
      • Output Frequency Regulation: 60Hz (±3Hz)
      • Overload Protection: Automatic overload protection shuts down inverter system in the event of overloads. Output is protected by 2 built-in 20A circuit breakers (each controlling power to 2 outlets). Inverter and electrical system are further protected via set of 6 40A automotive input fuses.

        Input
      • Recommended Electrical Service: Requires 12VDC input source capable of delivering 286A for the required duration (when used at full capacity). For automotive applications, professional hardwire installation with 500A battery system fusing is recommended.
      • Maximum Input Amps: 286
      • Maximum Input Amps Details: Full continuous load - 286A at 12VDC, No load - 2.6A at 12VDC, Shutdown / load sense mode - less than 500 milliamps
      • Input Cord Length Details: User supplies cabling. Minimum gauges for full load operation: 0 (10 ft max), 00 or 2/0 (13 ft max), Twin 00 using 4 conductors (26ft)
      • Voltage Compatibility (VDC): 12

        Battery
      • DC System Voltage (VDC): 12

        User Interface, Alerts & Controls
      • Switches: 3 position rocker switch enables on/off power control, plus remote setting which enables inverter to be remotely powered on or off when used in conjunction with included APSRM4 module.
      • Audible Alarm: Dual function alarm indicates overload conditions or low DC input voltage of 10.5V or less.

        Physical
      • Shipping Dimensions (HxWxD): 11.10" x 4.20" x 16.00"
      • Shipping Weight: 16.50lbs
      • Unit Weight: 12.2lbs
      • Cooling Method: Fan
      • Material of Construction: Aluminum/sheet metal
      • Form Factors Supported: Mounting slots enable permanent placement of inverter on any horizontal surface (see manual for additional mounting information)
      • Relative Humidity: 0% - 95% non-condensing
      • Operating Temperature: 32°F -104°F (0°C - 40°C

    • Item Includes:

      • PV3000GFCI Inverter
      • Remote control LED/switch module (APSRM4)
      • 25-ft. remote cable
      • Warranty information
      • Instruction manual

    • Warranty:

      • 1 Year Limited Warranty

    • GTIN:

      0037332146595
