Tripp Lite SMART1500RM2UN 1500VA 1350W UPS Smart LCD Rackmount AVR 120V USB DB9 SNMP 2URM

ITEM #: TRL-S1500RM2UN MFG #: SMART1500RM2UN

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

List Price:

$1,905.98

Our Price:

$1,234.00

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup


    SMART1500RM2UN - Overview

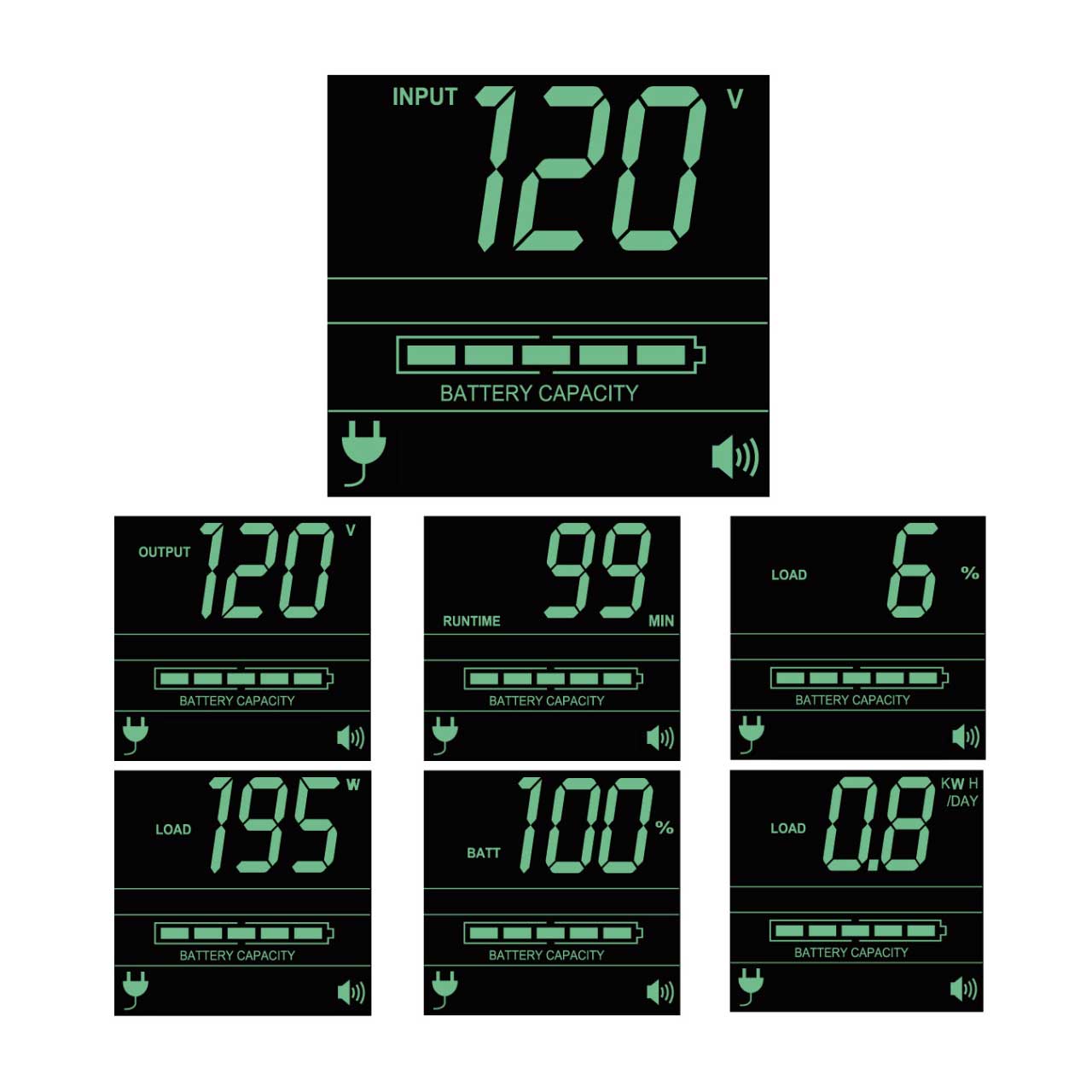

    Tripp Lite SmartPro Line Interactive UPS with enhanced LCD interface offers network-grade power protection for critical server, network and telecommunications equipment. Line Interactive Uninterruptible Power Supply (UPS) with built-in Auto-Voltage Regulation (AVR) actively corrects brownouts and overvoltages back to usable levels while maintaining a full battery charge in case of power failure. Interactive LCD interface reports UPS operating mode, detailed UPS and site-power data, plus enables a variety of UPS setup and configuration options. Super-fast switchover from line to battery power occurs within milliseconds to maintain operation of connected equipment without interruption or reboot. 95% line-mode efficiency offers reduced heat emissions and operating costs. Network management interfaces support communications via USB, RS-232 and Pre-installed SNMPWEBCARD network interface. HID-compliant USB port enables integration with built-in power management and auto shutdown features of Windows and Mac OS X. Network communications ports enable detailed monitoring of equipment load levels, self-test data and utility power conditions. Includes PowerAlert monitoring software and complete cabling. Switched output load banks enable scheduled and real-time remote reboot and load shedding of select outlets. Emergency Power Off (EPO) interface. LCD display panel easily rotates for viewing in rackmount or tower configurations. Audible alarm with push-button momentary alarm-cancel and silent-mode configuration options. Programmable self-test. Field-replaceable, hot-swappable battery modules.

    • Features:

      • Tripp Lite SMART1500RM2UN line interactive 2U rack/tower UPS with 1500VA / 1.5kVA / 1350W capacity
      • Line interactive UPS with Automatic Voltage Regulation (AVR) corrects brownouts and overvoltages from 83 to 147V
      • NEMA 5-15P input plug; 6 NEMA 5-15R output receptacles, Two independently switchable output load banks
      • Maintains uninterrupted operation of connected networking equipment during blackouts, surges, brownouts and overvoltages

    • Specifications:

      • Output Volt Amp Capacity (VA) 1500
      • Output kVA Capacity (kVA) 1.5
      • Output Watt Capacity (Watts) 1350
      • Output kW Capacity (kW) 1.35
      • Power Factor 0.9
      • Nominal Output Voltage(s) Supported 120V
      • Frequency Compatibility 60 Hz
      • Output Voltage Regulation (Line Mode) -21%, +8%
      • Output Voltage Regulation (Battery Mode) +/- 5%
      • Output Receptacles (8) 5-15R
      • Load Management Receptacles Two switchable two-outlet 5-15R load banks
      • Output AC Waveform (AC Mode) Sine wave
      • Output AC Waveform (Battery Mode) Pure Sine wave
      • Rated input current (Maximum Load) 12A
      • Nominal Input Voltage(s) Supported 120V AC
      • UPS Input Connection Type 5-15P
      • Input Circuit Breakers 15A
      • UPS Input Cord Length (ft.) 10
      • UPS Input Cord Length (m) 3
      • Recommended Electrical Service 15A 120V
      • Input Phase Single-Phase
      • Full Load Runtime (min.) 4.5 min. (1350w)
      • Half Load Runtime (min.) 13 min. (675w)
      • DC System Voltage (VDC) 36
      • Battery Recharge Rate (Included Batteries) Less than 4.5 hours from 10% to 90% (typical, full load discharge)
      • Internal UPS Replacement Battery Cartridge RBC93-2U
      • Battery Access Front panel battery access door
      • Battery Replacement Description Hot-swappable, user replaceable batteries
      • Voltage Regulation Description Automatic voltage regulation (AVR) maintains line power operation with an input voltage range of 83 to 147
      • Switches 3 pushbutton switches control OFF / ON power status, MODE selection and MUTE / ENTER control functions
      • Alarm Cancel Operation Power-fail alarm can be temporarily silenced using alarm-cancel switch; silent mode alarm configuration option available
      • Audible Alarm Audible alarm indicates UPS startup, power-failure, low-battery, overload, UPS fault and remote shutdown conditions
      • UPS AC Suppression Joule Rating 570
      • UPS AC Suppression Response Time Instantaneous
      • EMI / RFI AC Noise Suppression Yes

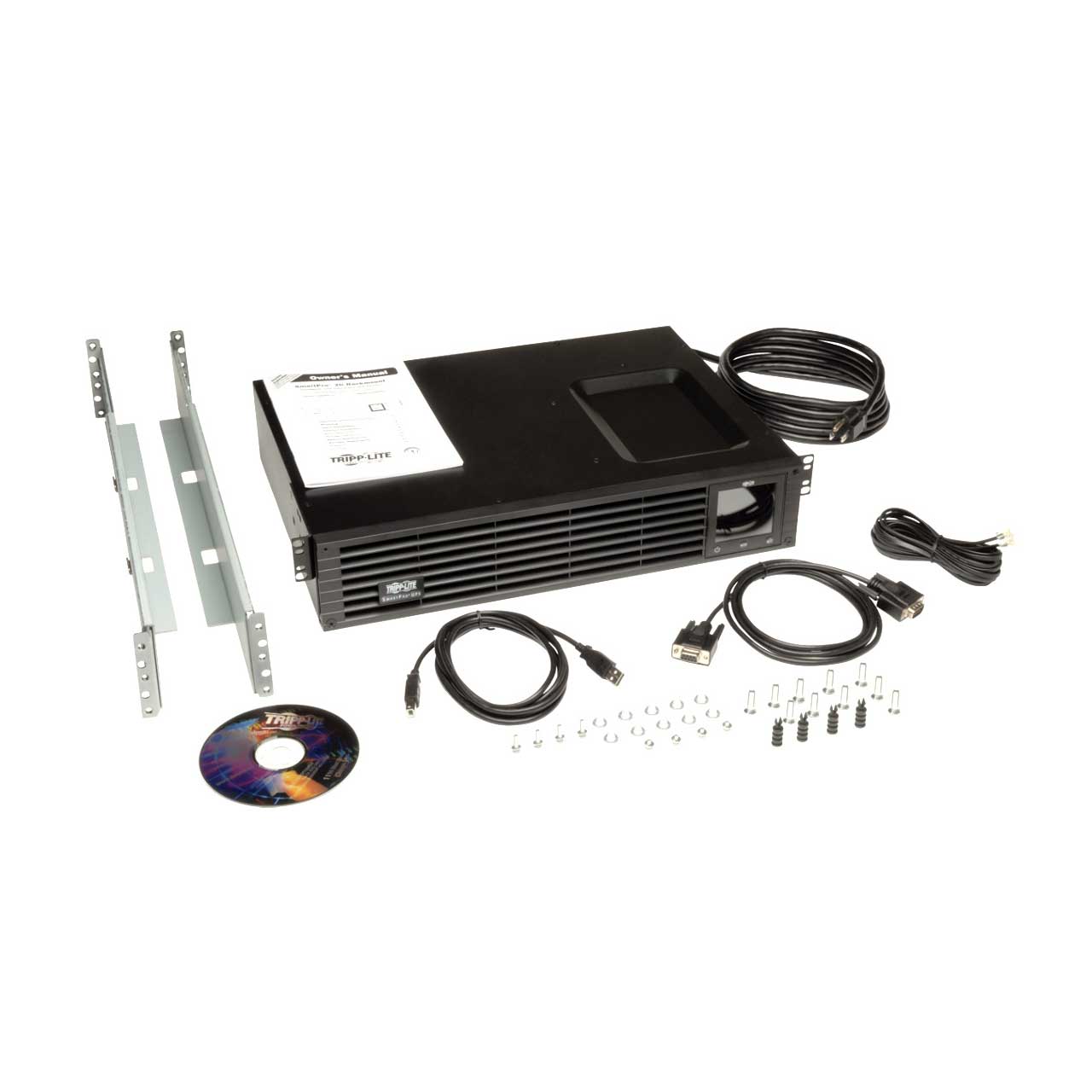

      • Included Mounting Accessory Description 4 post rackmount installation accessories included
      • Installation Form Factors Supported with Optional Accessories 2 post rackmount (2POSTRMKITWM); Wallmount (2POSTRMKITWM); Tower (2-9USTAND)
      • Primary Form Factor Rackmount
      • UPS Power Module Dimensions (hwd, in.) 3.5 x 17.5 x 13.45
      • UPS Power Module Dimensions (hwd, cm) 8.9 x 44.4 x 34.2
      • Rack Height (U Spaces) 2
      • UPS Power Module Weight (lbs.) 46.5
      • UPS Power Module Weight (kg) 21.1
      • UPS Shipping Dimensions (hwd / in.) 8.5 x 23.4 x 19.9
      • UPS Shipping Dimensions (hwd / cm) 21.6 x 59.4 x 50.5
      • Shipping Weight (lbs.) 57.6
      • Shipping Weight (kg) 26.2
      • Cooling Method Fan
      • UPS Housing Material Steel
      • Operating Temperature Range +32 to +104 degrees Fahrenheit / 0 to +40 degrees Celsius
      • Storage Temperature Range +5 to +122 degrees Fahrenheit / -15 to +50 degrees Celsius
      • Relative Humidity 0 to 95%, non-condensing
      • AC Mode BTU / Hr. (Full Load) 267
      • AC Mode Efficiency Rating (100% Load) 0.95
      • Communications Interface DB9 Serial; EPO (emergency power off); Pre-installed network card; Slot for SNMP/Web interface; USB (HID enabled)
      • Network Monitoring Port Description Includes PRE-INSTALLED SNMPWEBCARD interface card. Supports detailed monitoring of UPS and site power conditions
      • WatchDog Compatibility Supports Watchdog application, OS and hard-reboot restart options for remote applications
      • Cold Start (Startup in Battery Mode During a Power Failure) Cold-start operation supported
      • High Availability UPS Features Hot swappable batteries
      • Green Energy-Saving Features Greater than 95% efficiency - GREEN UPS; Individually controllable load banks
      • UPS Certifications Tested to UL1778 (USA); Tested to CSA (Canada); Tested to NOM (Mexico); Meets FCC Part 15 Category B (EMI)
      • Product Warranty Period (Worldwide) 2-year warranty, 3 year with registration. Note: Registration is required for 3-year warranty.
      • Connected Equipment Insurance (U.S., Canada & Puerto Rico) $250,000 Ultimate Lifetime Insurance

    • GTIN:

      0037332178237
