Tripp Lite SR12UBFFD 12U Industrial Rack Floor Enclosure Server Cabinet Doors & Sides

ITEM #: TRL-SR12UBFFD MFG #: SR12UBFFD

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

List Price:

$1,155.00

Our Price:

$747.00

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup
  • Shipped truck freight.


SR12UBFFD - Overview

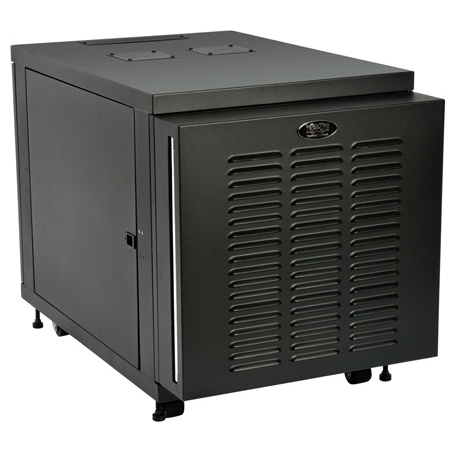

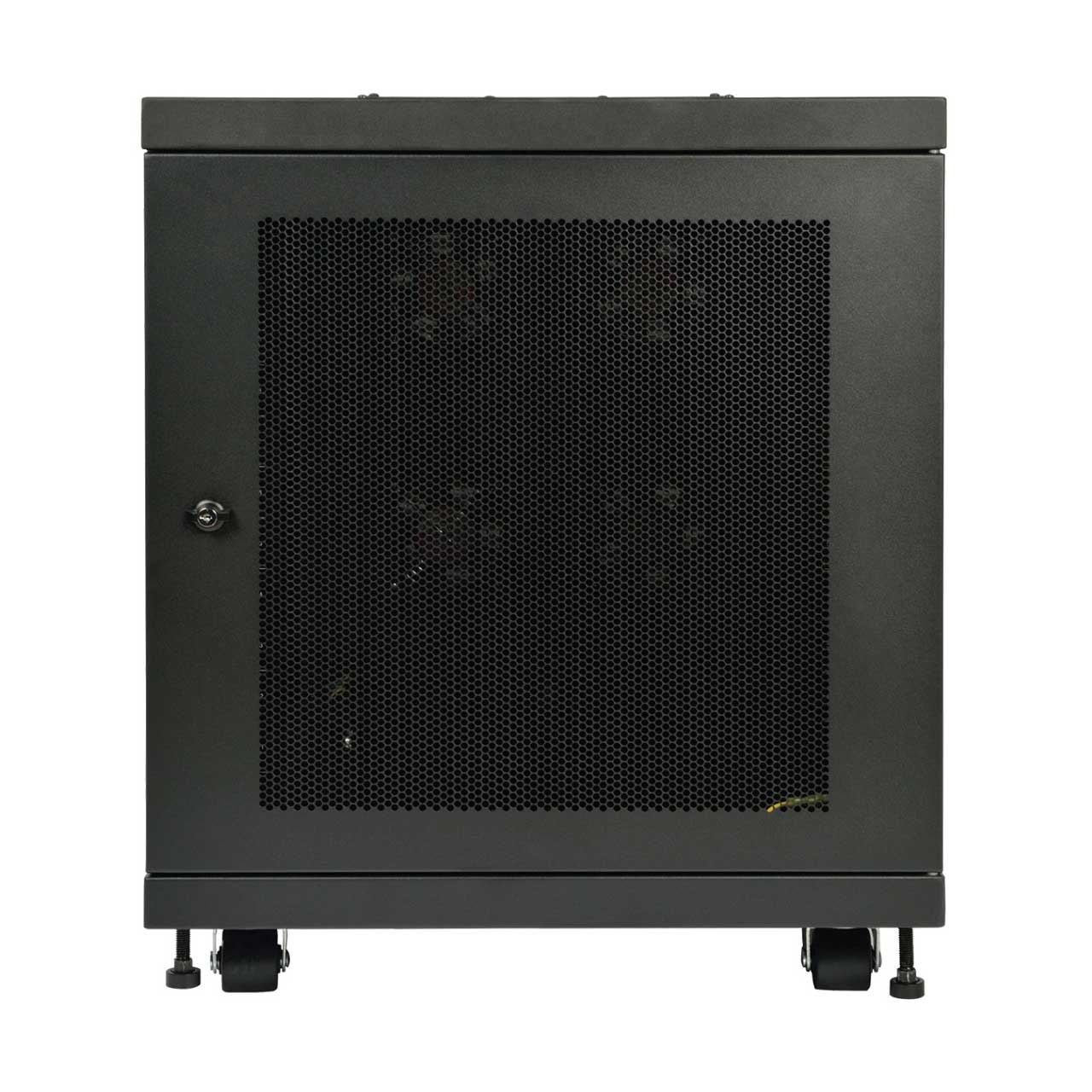

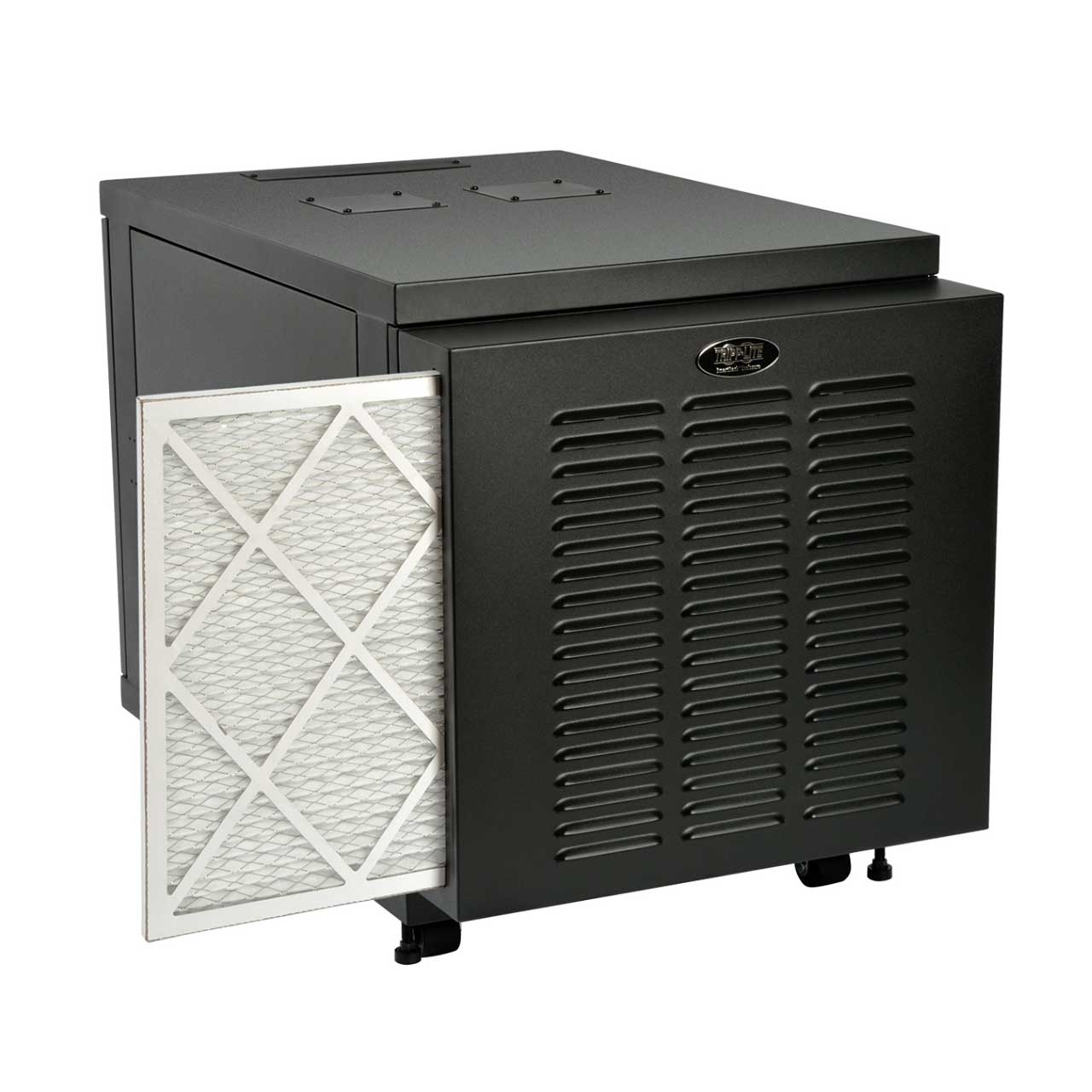

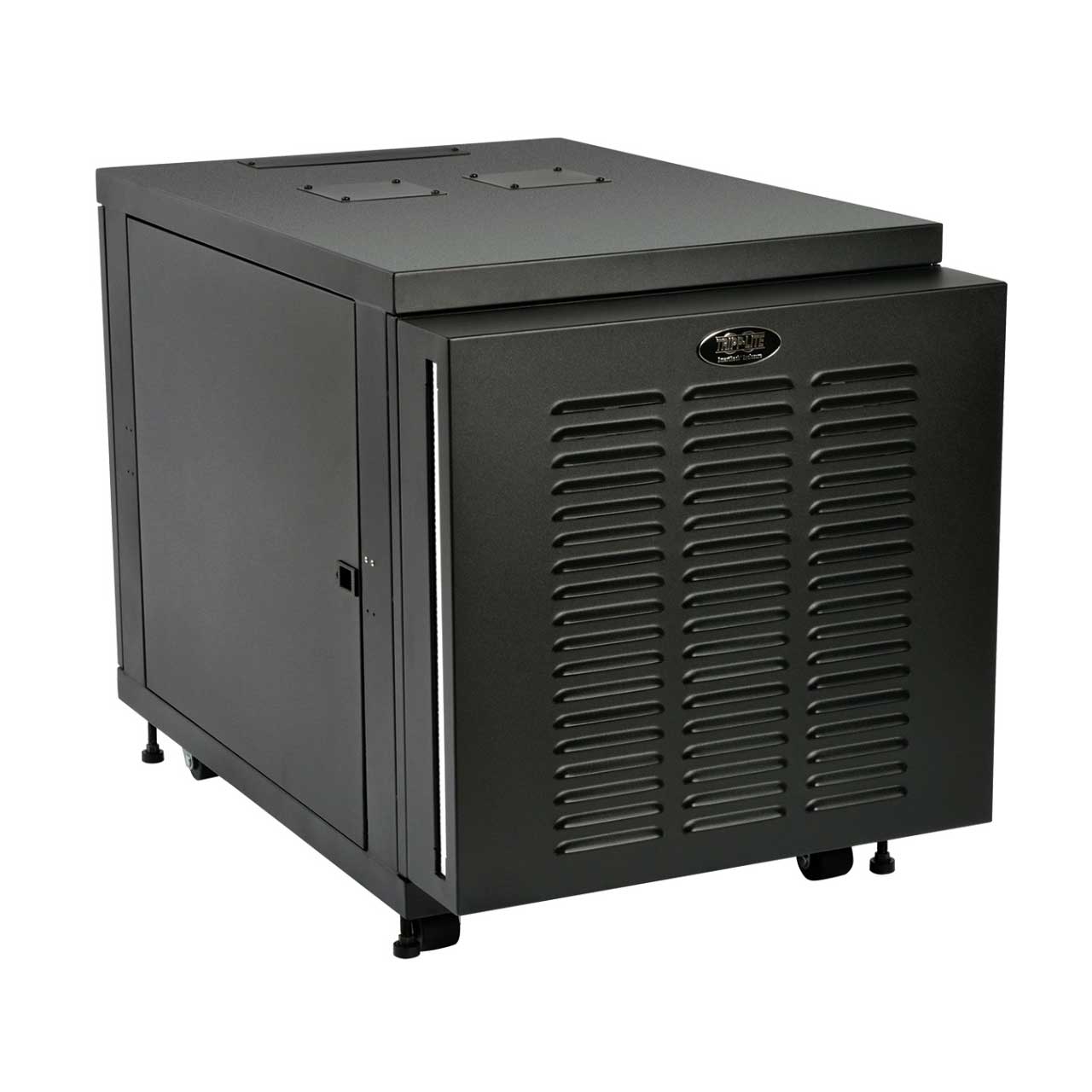

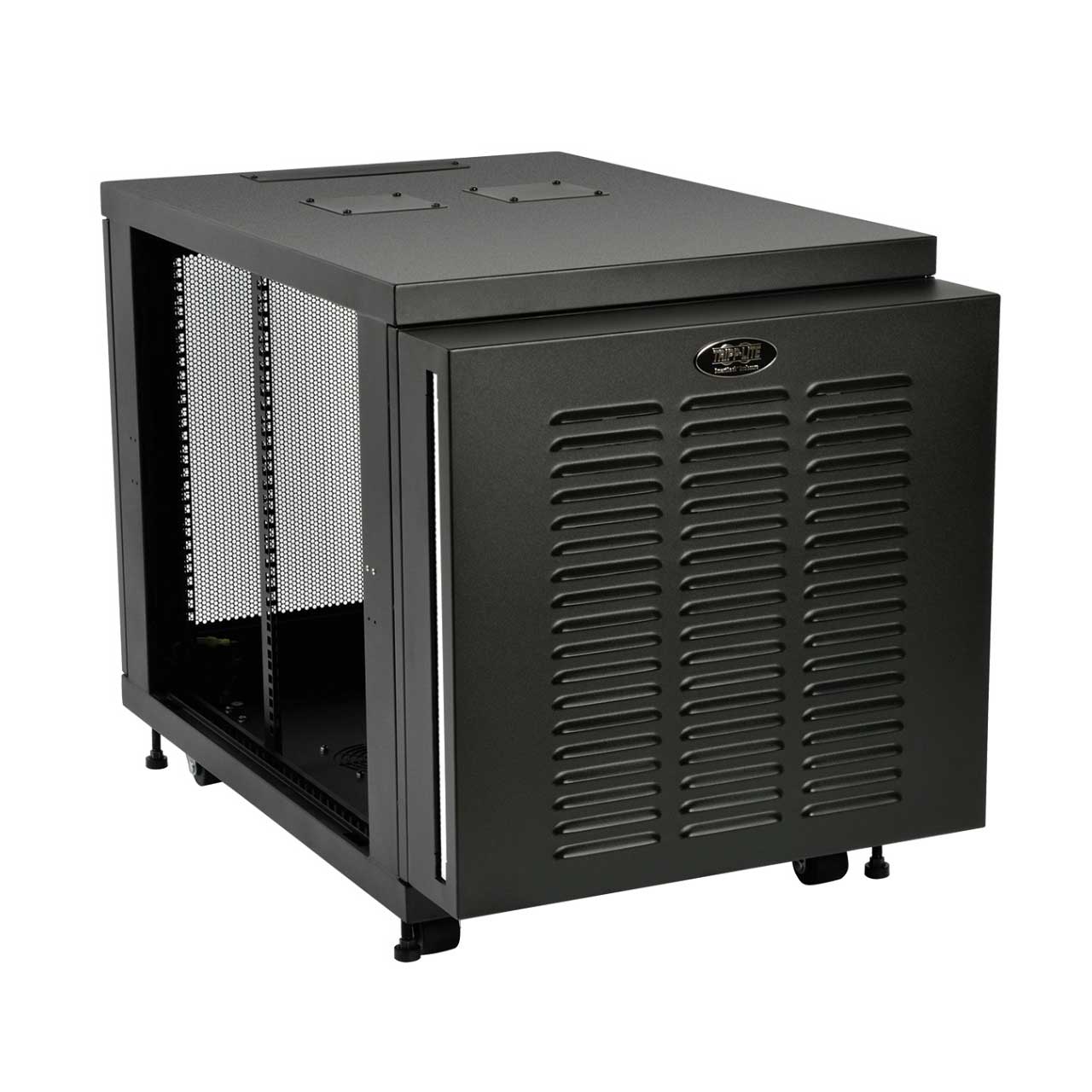

The SR12UBFFD 12U Industrial Floor Rack Enclosure Cabinet is ideal for customers who need to protect valuable equipment in harsh working environments that would overwhelm a typical rack. It can protect your equipment from falling dirt, dust, drips, splashes and accidental contact with personnel. On the front door there is a built-in dust filter. The filter is removable and can be replaced with standard furnace filters - they're simple, inexpensive and effective. To compensate for the added air resistance of the filters, there are 4 large, high performance intake fans in the front door. The fans pull air through the enclosure, from front to side. Adjustable rack rails with square mounting holes accommodate up to 12U of standard 19" rackmount equipment. Supports up to 1000 lbs of equipment.

  • Features:

    • 12U floor enclosure
    • Protection from falling dirt, dust, drips, splashes and accidental contact with personnel
    • Adjustable mounting depths from 3" to 20.5" inches
    • Front door has ventilating louvers

  • Specifications:

    • Style Floor Standing
    • Installed Whole System Maximum Rack Depth (in.) 32.5
    • Installed Whole System Maximum Rack Depth (cm) 82.6
    • Installed Whole System Minimum Rack Depth (in.) 3
    • Installed Whole System Minimum Rack Depth (cm) 7.62
    • Rack Height (U Spaces) 12
    • Shipping Dimensions (hwd / in.) 29.8 x 27 x 41.1
    • Shipping Dimensions (hwd / cm) 64 x 60 x 97.8
    • Shipping Weight (lbs.) 130
    • Shipping Weight (kg) 59
    • Unit Dimensions (hwd / in.) 25.2 x 23.6 x 38.5
    • Unit Weight (lbs.) 96
    • Unit Weight (kg) 43.5
    • Unit Dimensions (cm) EXTERNAL DIMENSIONS: 75.7 x 68.6 x 104.4(HWD)
    • Color Black
    • Weight Capacity - Stationary (lbs.) 1000
    • Factory Preset Rack Depth (in.) 10.42
    • Factory Preset Rack Depth (cm) 26.47
    • Hinged (Swings Away from Wall Bracket) No
    • NOM (Mexico) Tested to NOM (Mexico)
    • Approvals EIA-310-E, IEC 60297-3-100, DIN 41494, IP20 Protection Rating, RoHS
    • Product Warranty Period (Worldwide) 2-year limited warranty

  • GTIN:

    0037332183439
