Tripp Lite SMART3000RM2UN 3000VA 2250W UPS Smart LCD Rackmount AVR 120V USB DB9 SNMP 2URM

ITEM #: TRL-SMT3000RM2UN MFG #: SMART3000RM2UN

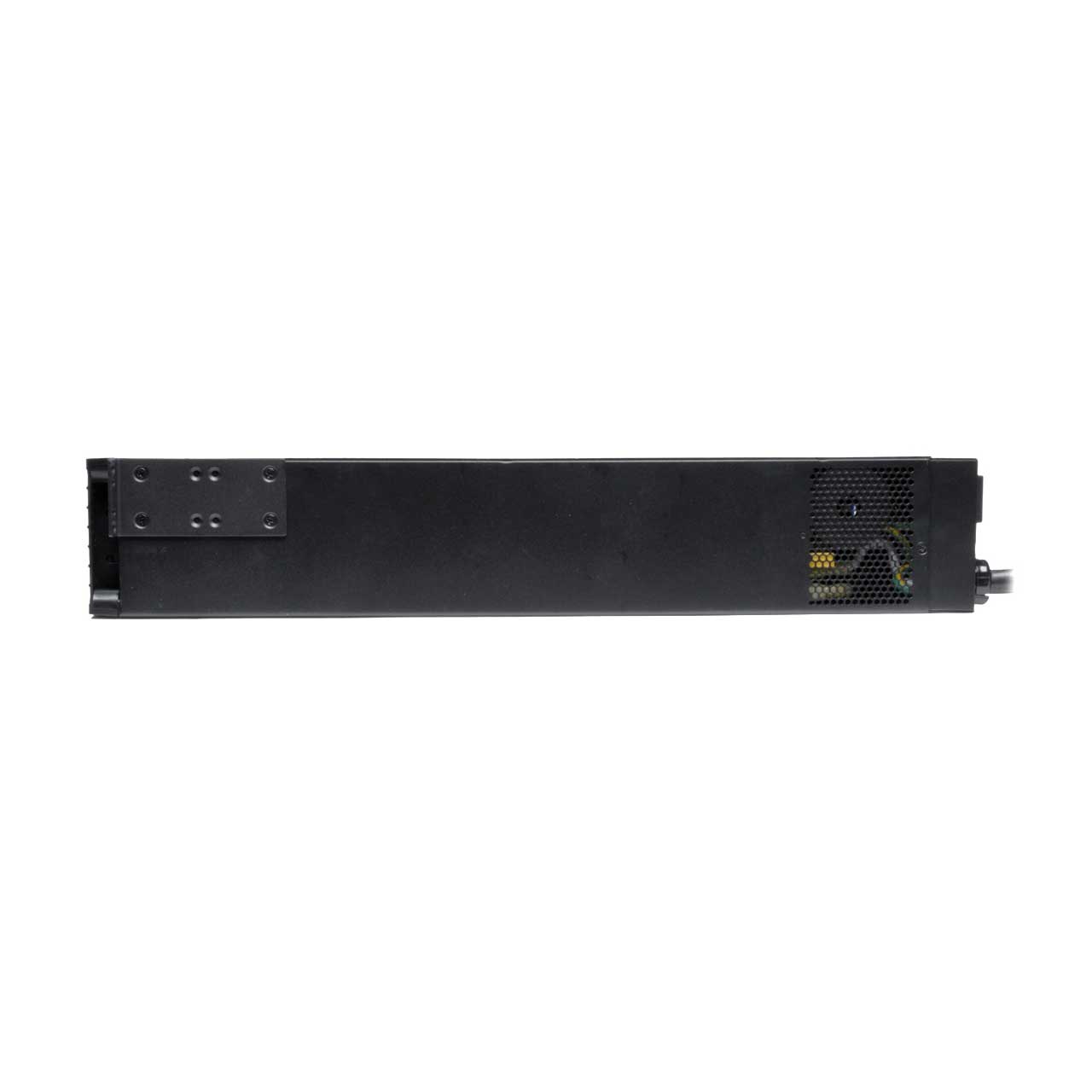

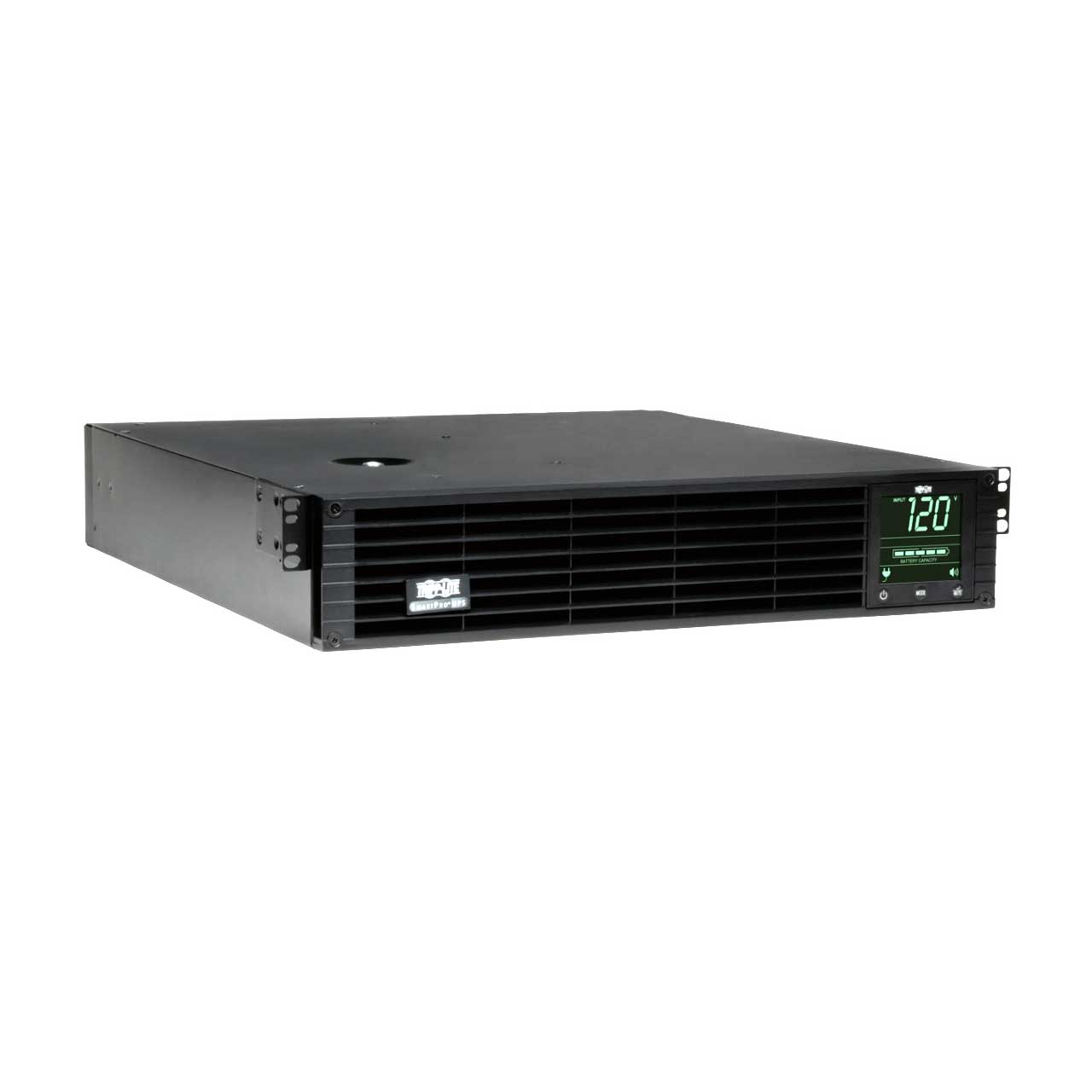

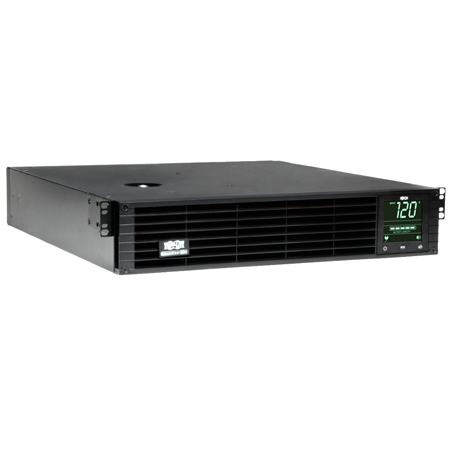

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

List Price:

$2,805.00

Our Price:

$1,748.00

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup


    SMART3000RM2UN - Overview

    Tripp Lite SmartPro Line Interactive UPS with enhanced LCD interface offers network-grade power protection for critical server, network and telecommunications equipment. Line Interactive Uninterruptible Power Supply (UPS) with built-in Auto-Voltage Regulation (AVR) actively corrects brownouts and overvoltages back to usable levels while maintaining a full battery charge in case of power failure. Tripp Lite's unique configuration excels in exceptionally poor-power environments with two separate levels of voltage boost to correct both slight undervoltages and severe brownout conditions. Interactive LCD interface reports UPS operating mode, detailed UPS and site-power data, plus enables a variety of UPS setup and configuration options. Super-fast switchover from line to battery power occurs within milliseconds to maintain operation of connected equipment without interruption or reboot. 98% line-mode efficiency offers reduced heat emissions and operating costs. Network management interfaces support communications via USB, RS-232 and pre-installed SNMPWEBCARD network interface. HID-compliant USB port enables integration with built-in power management and auto shutdown features of Windows and Mac OS X. Network communications ports enable detailed monitoring of equipment load levels, self-test data and utility power conditions. Includes PowerAlert monitoring software and complete cabling. Switched output load banks enable scheduled and real-time remote reboot and load shedding of select outlets. Emergency Power Off (EPO) interface. LCD display panel easily rotates for viewing in rackmount or tower configurations. Audible alarm with push-button momentary alarm-cancel and silent-mode configuration options. Programmable self-test. Field-replaceable, hot-swappable battery modules.

    • Features:

      • Tripp Lite SMART3000RM2UN line interactive 2U rack/tower UPS with 3000VA / 3kVA capacity(1600W maximum load with external battery packs)
      • Line interactive UPS with Automatic Voltage Regulation(AVR) corrects brownouts and overvoltages from 83 to 145V

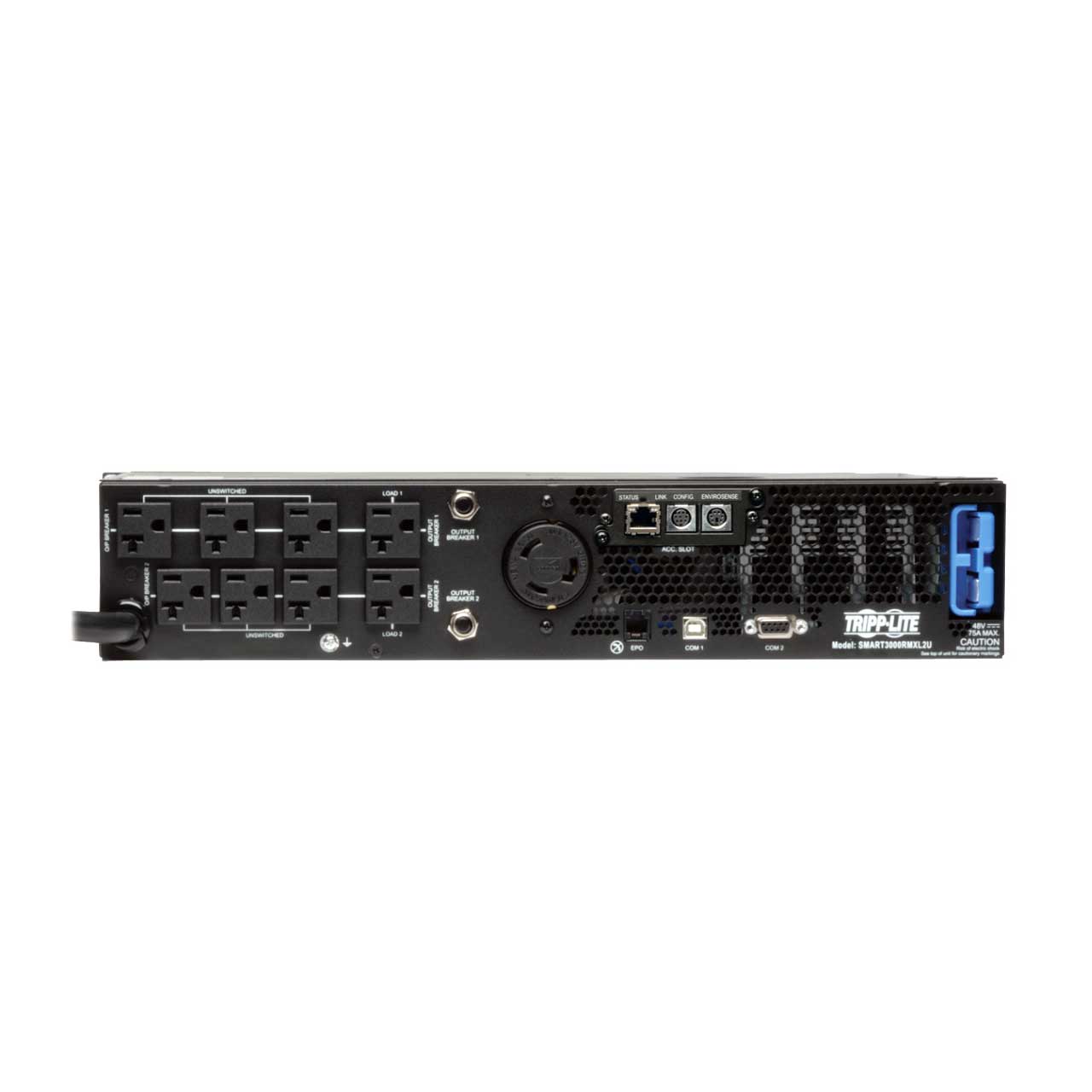

      • NEMA L5-30P input plug; 8 NEMA 5-15/20R and 1 L5-30R output receptacles, Two independently switchable output load banks
      • Maintains uninterrupted operation of connected networking equipment during blackouts, surges, brownouts and overvoltages

    • Specifications:

      • Output Volt Amp Capacity (VA) 3000
      • Output kVA Capacity (kVA) 3
      • Output Watt Capacity (Watts) 2250
      • Output kW Capacity (kW) 2.25
      • Power Factor 0.75
      • Nominal Output Voltage(s) Supported 120V
      • Frequency Compatibility 60 Hz
      • Output Voltage Regulation (Line Mode) -14%, +6%
      • Output Voltage Regulation (Battery Mode) +/- 5%
      • Output Receptacles (8) 5-15/20R; (1) L5-30R
      • Load Management Receptacles Two switchable single-outlet load banks
      • Output Circuit Breakers Two 20A output breakers protect 4 5-15/20R outlets each
      • Output AC Waveform (AC Mode) Pure Sine wave
      • Output AC Waveform (Battery Mode) Pure Sine wave
      • Rated input current (Maximum Load) 24A
      • Nominal Input Voltage(s) Supported 120V AC
      • UPS Input Connection Type L5-30P
      • UPS Input Cord Length (ft.) 10
      • UPS Input Cord Length (m) 3
      • Recommended Electrical Service 30A 120V
      • Input Phase Single-Phase
      • Full Load Runtime (min.) 3.5 min. (2250w)
      • Half Load Runtime (min.) 10 min. (1125w)
      • Expandable Battery Runtime Output with external battery pack configurations is limited to 1600 watts maximum
      • External Battery Pack Compatibility BP48V24-2U (limit 1); BP48V60RT-3U (multi-pack compatible); BP48V27-2US (multi-pack compatible)
      • Alarm Cancel Operation Power-fail alarm can be temporarily silenced using alarm-cancel switch; silent mode alarm configuration option available
      • Audible Alarm Audible alarm indicates UPS startup, power-failure, low-battery, overload, UPS fault and remote shutdown conditions
      • UPS AC Suppression Joule Rating 570
      • UPS AC Suppression Response Time Instantaneous
      • EMI / RFI AC Noise Suppression Yes

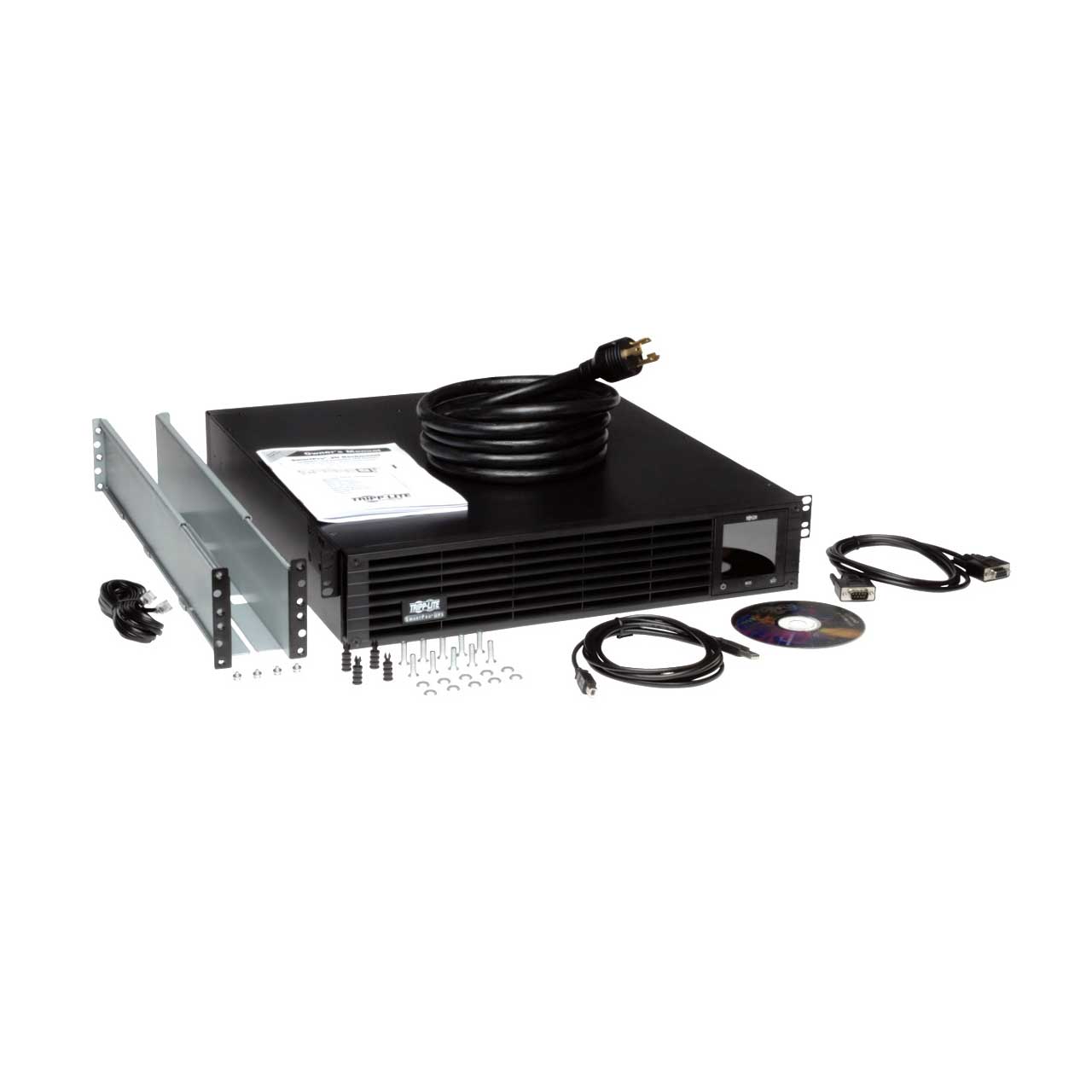

      • Included Mounting Accessory Description 4 post rackmount installation accessories included
      • Installation Form Factors Supported with Optional Accessories 2 post rackmount (2POSTRMKITWM); Wallmount (2POSTRMKITWM); Tower (2-9USTAND); 2-4 post front rail rackmount (UPSHDEARKIT)
      • Primary Form Factor Rackmount
      • UPS Power Module Dimensions (hwd, in.) 3.5 x 17.5 x 19.5
      • Rack Height (U Spaces) 2
      • UPS Power Module Weight (lbs.) 62.8
      • UPS Shipping Dimensions (hwd / in.) 7.9 x 21.7 x 24.2
      • Shipping Weight (lbs.) 73.8
      • Cooling Method Fan
      • UPS Housing Material Steel
      • Operating Temperature Range +32 to +104 degrees Fahrenheit / 0 to +40 degrees Celsius
      • Storage Temperature Range +5 to +122 degrees Fahrenheit / -15 to +50 degrees Celsius
      • Relative Humidity 0 to 95%, non-condensing
      • AC Mode BTU / Hr. (Full Load) 189
      • AC Mode Efficiency Rating (100% Load) 0.98
      • Operating Elevation (ft.) 0-3000m / 0-10,000 ft.
      • Communications Interface DB9 Serial; EPO (emergency power off); Pre-installed network card; Slot for SNMP/Web interface; USB (HID enabled)
      • Network Monitoring Port Description Includes pre-installed SNMPWEBCARD interface; Supports detailed monitoring of UPS and site power conditions
      • PowerAlert Software Included
      • Communications Cable USB and DB9 cabling included
      • WatchDog Compatibility Supports Watchdog application, OS and hard-reboot restart options for remote applications
      • Transfer Time 5 milliseconds (AC to battery); 1 millisecond (battery to AC)
      • Low Voltage Transfer to Battery Power (Setpoint) 83
      • High Voltage Transfer to Battery Power (Setpoint) 145
      • Grounding Lug Includes back panel grounding lug
      • Cold Start (Startup in Battery Mode During a Power Failure) Cold-start operation supported
      • High Availability UPS Features Hot swappable batteries
      • Green Energy-Saving Features Greater than 95% efficiency - GREEN UPS; Individually controllable load banks
      • UPS Certifications Tested to UL1778 (USA); Tested to CSA (Canada); Tested to NOM (Mexico); Meets FCC Part 15 Category A (EMI); ROHS (Restriction of Hazardous Substances); ENERGY STAR Qualified
      • Product Warranty Period (Worldwide) 2-year warranty, 3 year with registration. Note: Registration is required for 3-year warranty.
      • Connected Equipment Insurance (U.S., Canada & Puerto Rico) $250,000 Ultimate Lifetime Insurance

    • GTIN:

      0037332177902
