Tripp Lite SMX1500XLRT2U 1500VA 1000W UPS International Smart Rackmount AVR 230V C13 2URM

ITEM #: TRL-SMX1500XLRT2 MFG #: SMX1500XLRT2U

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

List Price:

$1,594.64

Our Price:

$1,039.00

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup


    SMX1500XLRT2U - Overview

    The Tripp Lite SMX1500XLRT2U SmartPro 230V 1.5kVA 1.35kW Line-Interactive Sine Wave UPS provides battery backup and AC power protection against blackouts, brownouts, surges and line noise that can damage electronics or destroy data. Ideal for backing up point-of-sale applications and small business networks, the SMX1500XLRT2U switches to battery mode in milliseconds to keep your connected equipment running long enough to save files and shut down safely with no data loss.

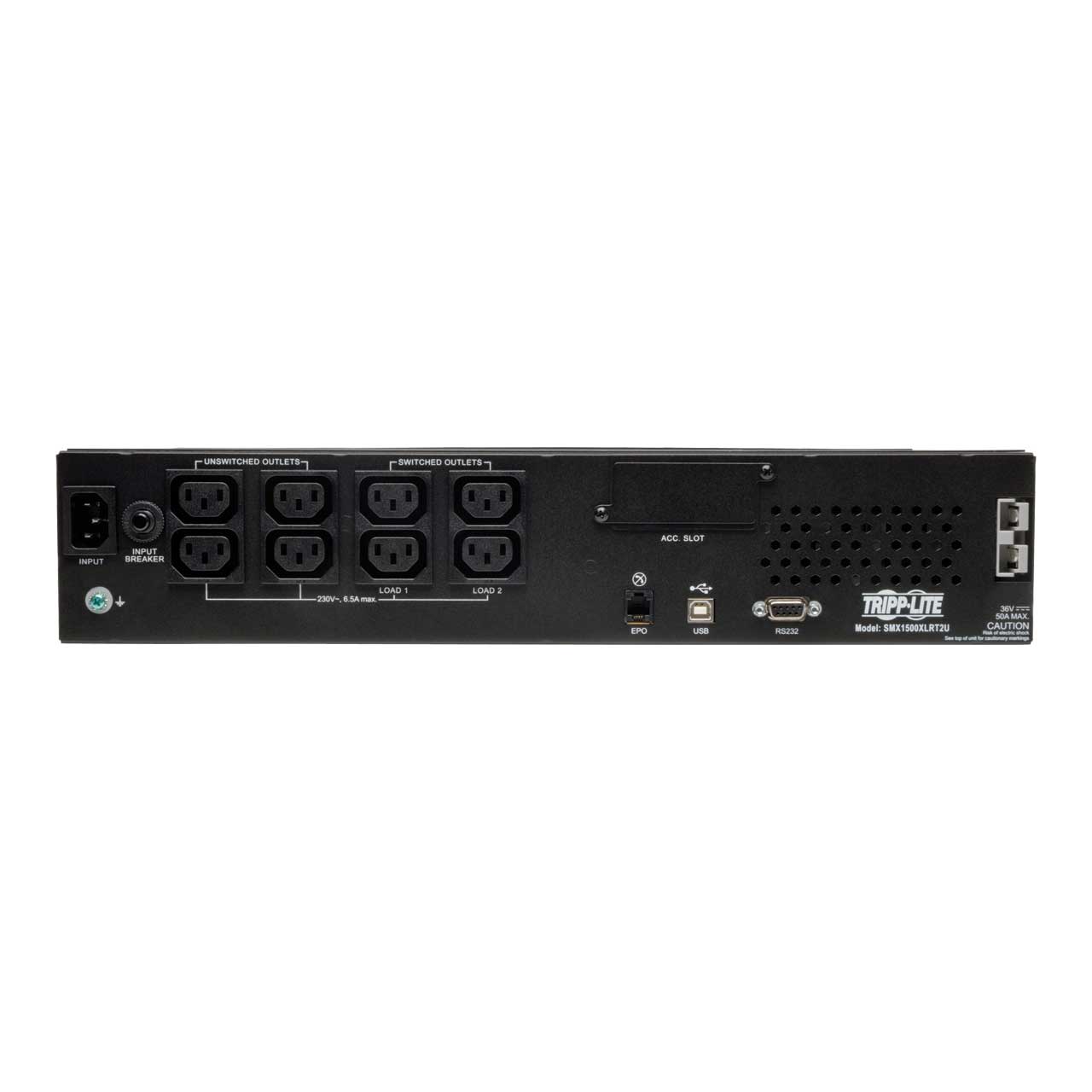

    Featuring eight C13 outlets (four switchable) and a C14 inlet that accepts a user-supplied AC power cord, the SMX1500XLRT2U has an internal battery that provides 13.6 minutes of support at half load and 4.9 minutes at full load. A front-panel LCD screen lets you monitor data, such as load level, voltage, battery charge and estimated runtimes. Adding external battery packs, such as BP36V15-2U (sold separately), provides extended runtime.

    Automatic voltage regulation (AVR) maintains 230V nominal output over an input range of 158V to 278V without using battery power. EMI/RFI noise filtering improves your equipment's performance and prevents damage. A 350-joule surge suppression rating protects your equipment from harmful power surges. With Tripp Lite's free downloadable PowerAlertr software, SMX1500XLRT2U enables safe unattended system shutdown and file saves in case of a prolonged power failure. Adding an optional network management card permits remote management of the UPS, including reboots and activity logs.

    • Features:

      • Protects Mission-Critical Rack-Mounted Equipment
      • Provides fully regulated sine wave AC output for point-of-sale applications, VoIP systems and small business networks
      • Audible alarm signals loss of utility power, overload, low battery and fault conditions
      • 8 C13 outlets
      • C14 inlet accepts user-supplied AC power cord with country-specific plug
      • 350-joule surge suppression rating

        Reliable Battery Backup with Expandable Runtime
      • Supports half load up to 13.6 min. and full load up to 4.9 min.
      • Internal batteries designed for hot-swap field replacement
      • 97% line-power efficiency rating saves money in energy costs
      • Expandable runtime with optional external battery packs, such as Tripp Lite's BP36V15-2U

        2 Load Banks with Switchable Outlets
      • Can control 4 outlets remotely to reboot equipment or shed nonessential loads

        Automatic Voltage Regulation (AVR)
      • Maintains 230V nominal output over input range of 158V-278V without using battery power

        EMI/RFI Line Noise Filtering
      • Removes electromagnetic and radio frequency interference that can disrupt or damage equipment's performance

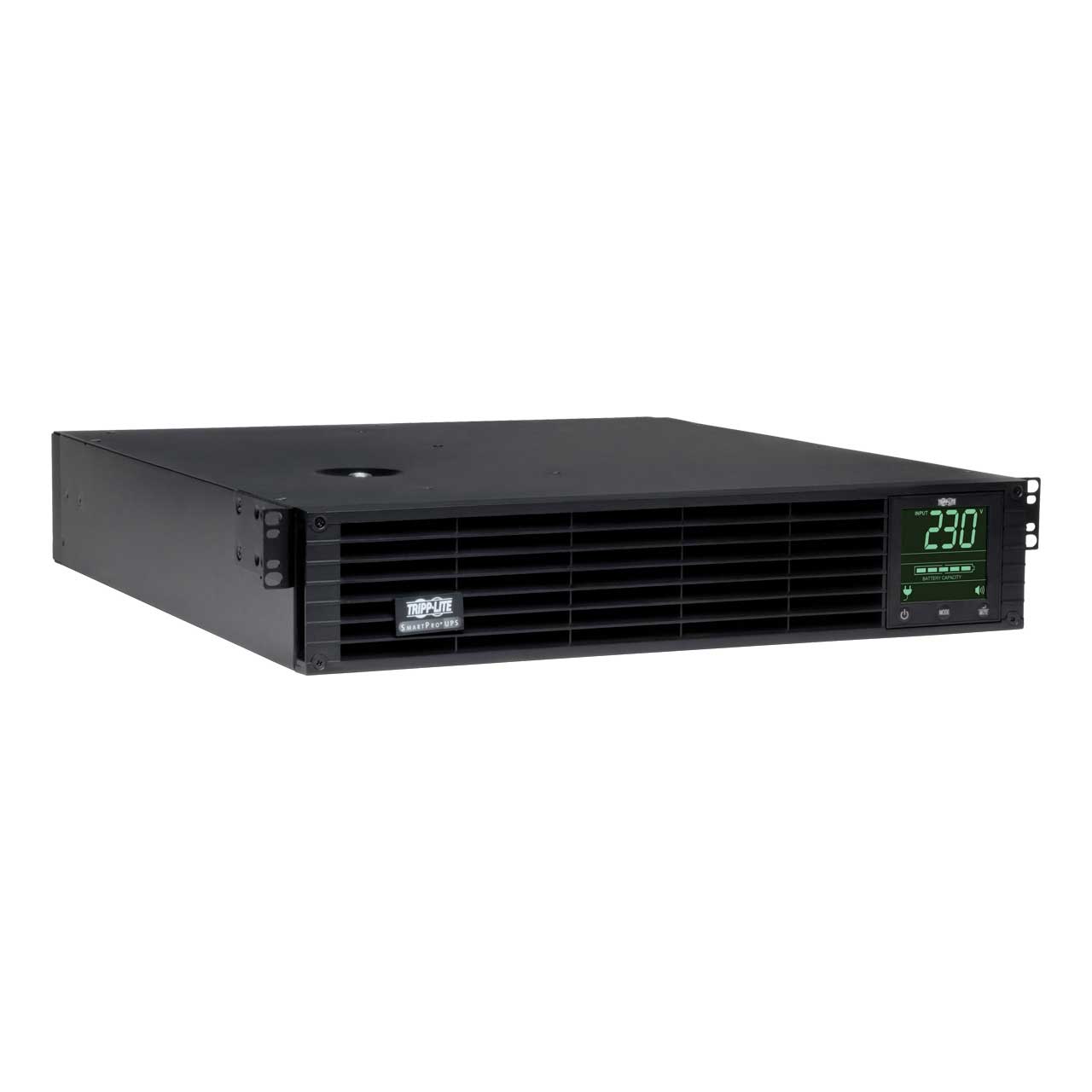

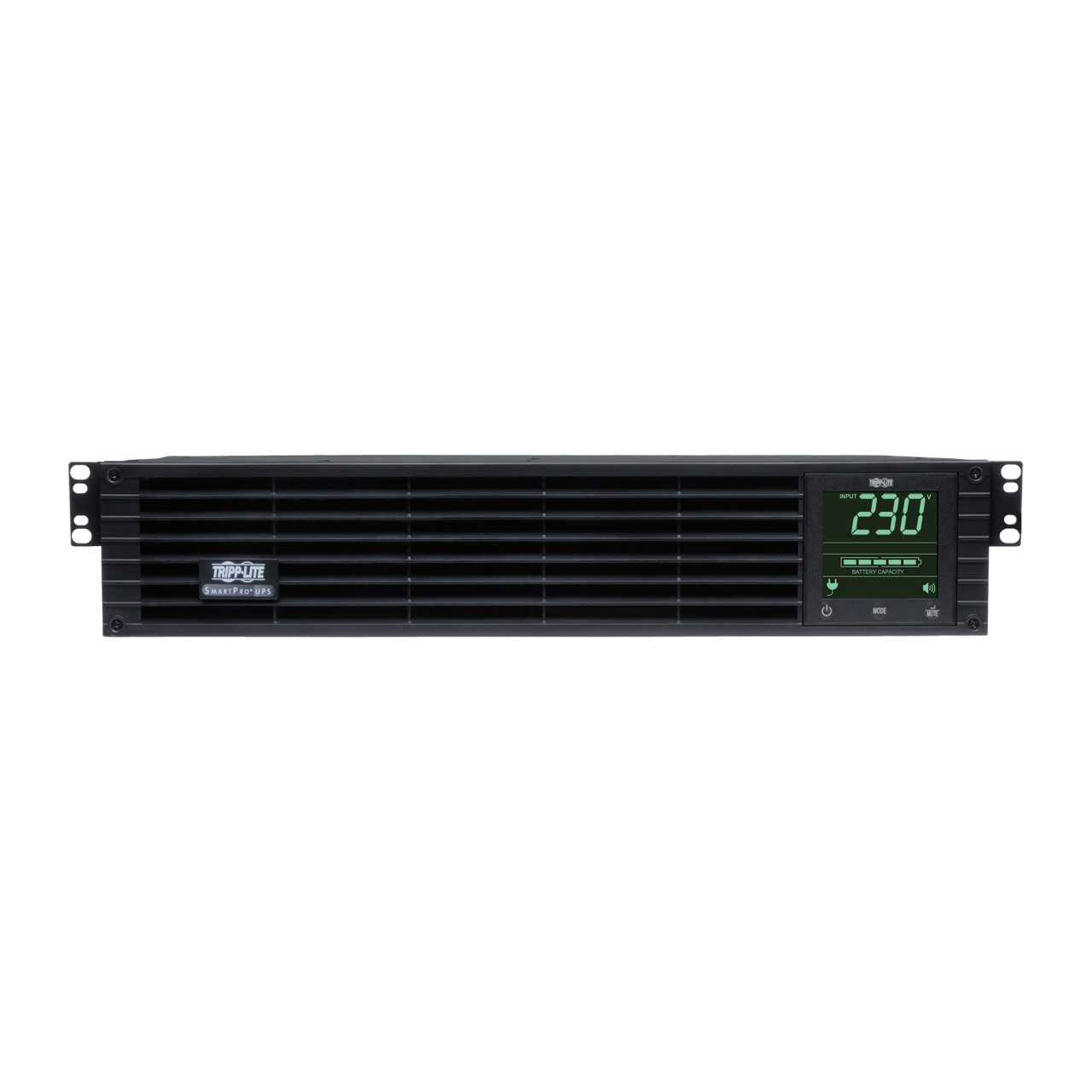

        Interactive LCD Screen
      • Front-panel LCD signals operating mode, load level, voltage, battery charge and estimated runtimes
      • Supports multiple advanced user setup and operating preferences
      • Rotates for easy viewing in rack-mount or tower configurations

    • Specifications:

      • Overview
      • UPC Code:037332119216

        Output
      • Output Volt Amp Capacity (VA):1500
      • Output kVA Capacity (kVA):1.5
      • Output Watt Capacity (Watts):1350
      • Output kW Capacity (kW):1.35
      • Output Capacity Details:Output is reduced to 1200W maximum when used with external battery packs
      • Power Factor:0.9
      • Nominal Output Voltage(s) Supported:220V; 230V; 240V
      • Nominal Voltage Details:230V nominal output in battery mode
      • Frequency Compatibility:50 / 60 Hz
      • Frequency Compatibility Details:Automatic frequency selection
      • Output Voltage Regulation (Line Mode):+6% / -15%
      • Output Voltage Regulation (Battery Mode):+/- 5%
      • Output Receptacles:(8) C13
      • Included Output Power Cables:Set of 2 C13 to C14 power cables included
      • Load Management Receptacles:Two switchable two-outlet C13 load banks
      • Output AC Waveform (AC Mode):Sine wave
      • Output AC Waveform (Battery Mode):Pure Sine wave
      • Individually Controllable Load Banks:Yes

        Input
      • Rated input current (Maximum Load):6.9A
      • Nominal Input Voltage(s) Supported:230V AC
      • UPS Input Connection Type:C14 inlet
      • UPS Input Connection Description:IEC320-C14 input connection accepts a variety of detachable cordsets to match country or site-specific wall receptacles
      • Input Circuit Breakers:10A
      • Input Phase:Single-Phase

        Battery
      • Full Load Runtime (min.):4.9 min. (1350w)
      • Half Load Runtime (min.):13.6 min. (675w)
      • External Battery Pack Compatibility: BP36V15-2U (limit 1); BP36V42-3U (multi-pack compatible); BP36V27-2US (multi-pack compatible)
      • DC System Voltage (VDC):36
      • Battery Recharge Rate (Included Batteries):Less than 4.5 hours from 10% to 90% (typical, full load discharge)
      • Internal UPS Replacement Battery Cartridge: RBC93-2U
      • Battery Access:Front panel battery access door
      • Battery Replacement Description:Hot-swappable, user replaceable batteries
      • Expandable Runtime:Yes

        Voltage Regulation
      • Voltage Regulation Description:Automatic voltage regulation (AVR) maintains line power operation with an input voltage range of 158 to 278
      • Overvoltage Correction:Input voltages between 244 and 278 are reduced by 12%
      • Undervoltage Correction:Input voltages between 182 and 206 are boosted by 12%
      • Severe Undervoltage Correction:Input voltages between 158 and 182 are boosted by 24%

        Surge / Noise Suppression
      • UPS AC Suppression Joule Rating:350
      • UPS AC Suppression Response Time:Instantaneous
      • EMI / RFI AC Noise Suppression:Yes

        Physical
      • UPS Power Module Dimensions (hwd, in.):3.5 x 17.4 x 13.5
      • Rack Height:2U
      • Minimum Required Rack Depth without External Battery Pack (cm):40 / (in.):15.75
      • Minimum Required Rack Depth with External Battery Pack (cm):51 / (in.):20
      • UPS Power Module Weight (lbs.):43.1 / (kg):19.55
      • Cooling Method:Fan
      • UPS Housing Material:Steel
      • Primary UPS Height (mm):89
      • Primary UPS Width (mm):442
      • Primary UPS Depth (mm):343

        Environmental
      • Operating Temperature Range:+32 to +104 degrees Fahrenheit / 0 to +40 degrees Celsius
      • Storage Temperature Range:+5 to +122 degrees Fahrenheit / -15 to +50 degrees Celsius
      • Relative Humidity:0 to 95%, non-condensing
      • AC Mode BTU / Hr. (Full Load):139
      • Battery Mode BTU / Hr. (Full Load):689
      • AC Mode Efficiency Rating (100% Load):97%

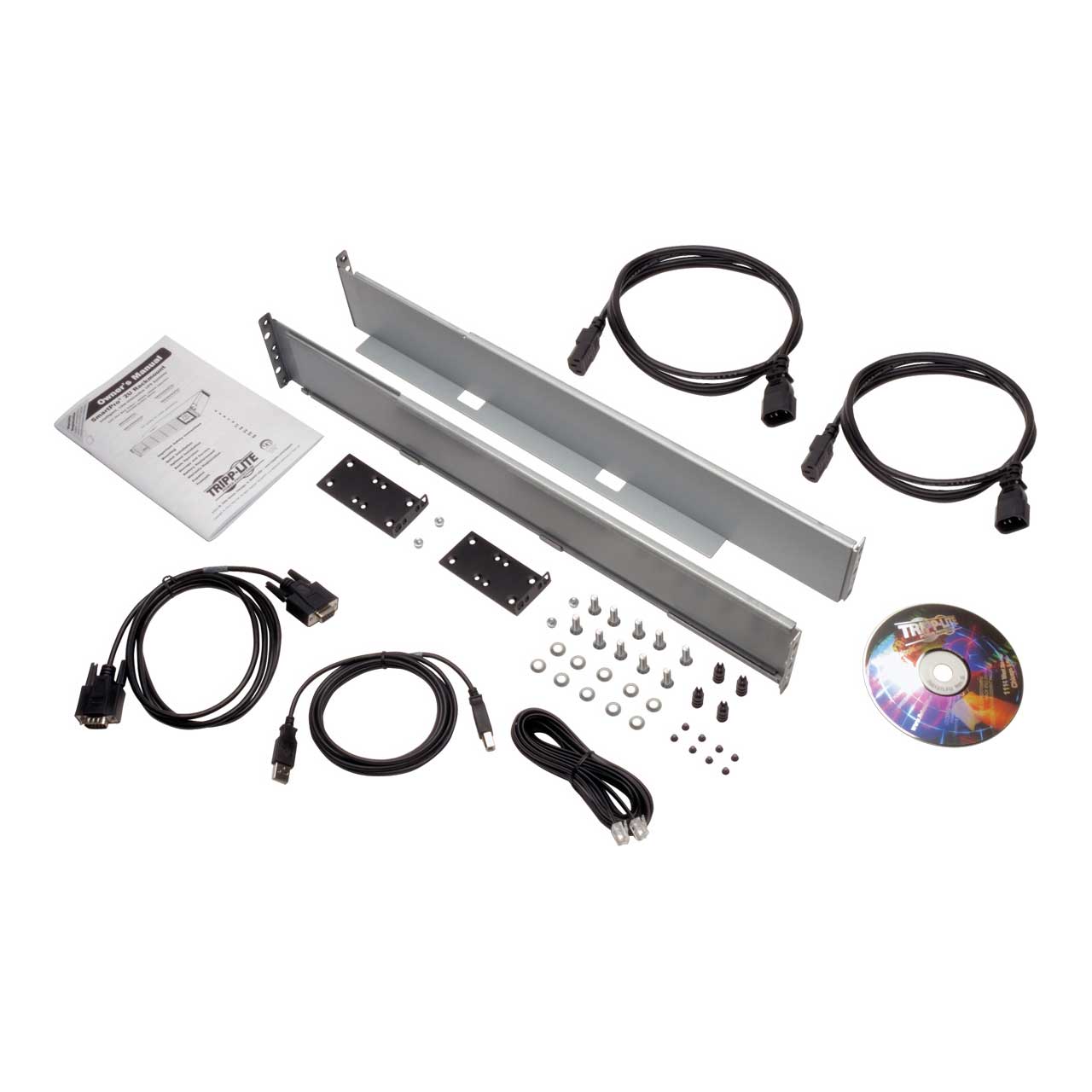

    • Item Includes:

      • SMX1500XLRT2U SmartPro 230V 1.5kVA 1.35kW Line-Interactive Sine Wave UPS
      • USB cable
      • DB9 cable
      • EPO cable
      • (2) IEC-320 C13-to-C14 power cables
      • Mounting hardware
      • Owner's manual

    • Warranty:

      • 2-year limited warranty

    • GTIN:

      0037332119216
