Tripp Lite SR48UBEXPND 48U 4-Post Open Frame Rack Cabinet Square Holes 3000lb Capacity

ITEM #: TRL-SR48UBEXPND MFG #: SR48UBEXPND

Primary Image
Free Shipping with $49 Minimum Order

List Price:

$2,212.70

Our Price:

$1,430.00

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup
  • Shipped truck freight.


SR48UBEXPND - Overview

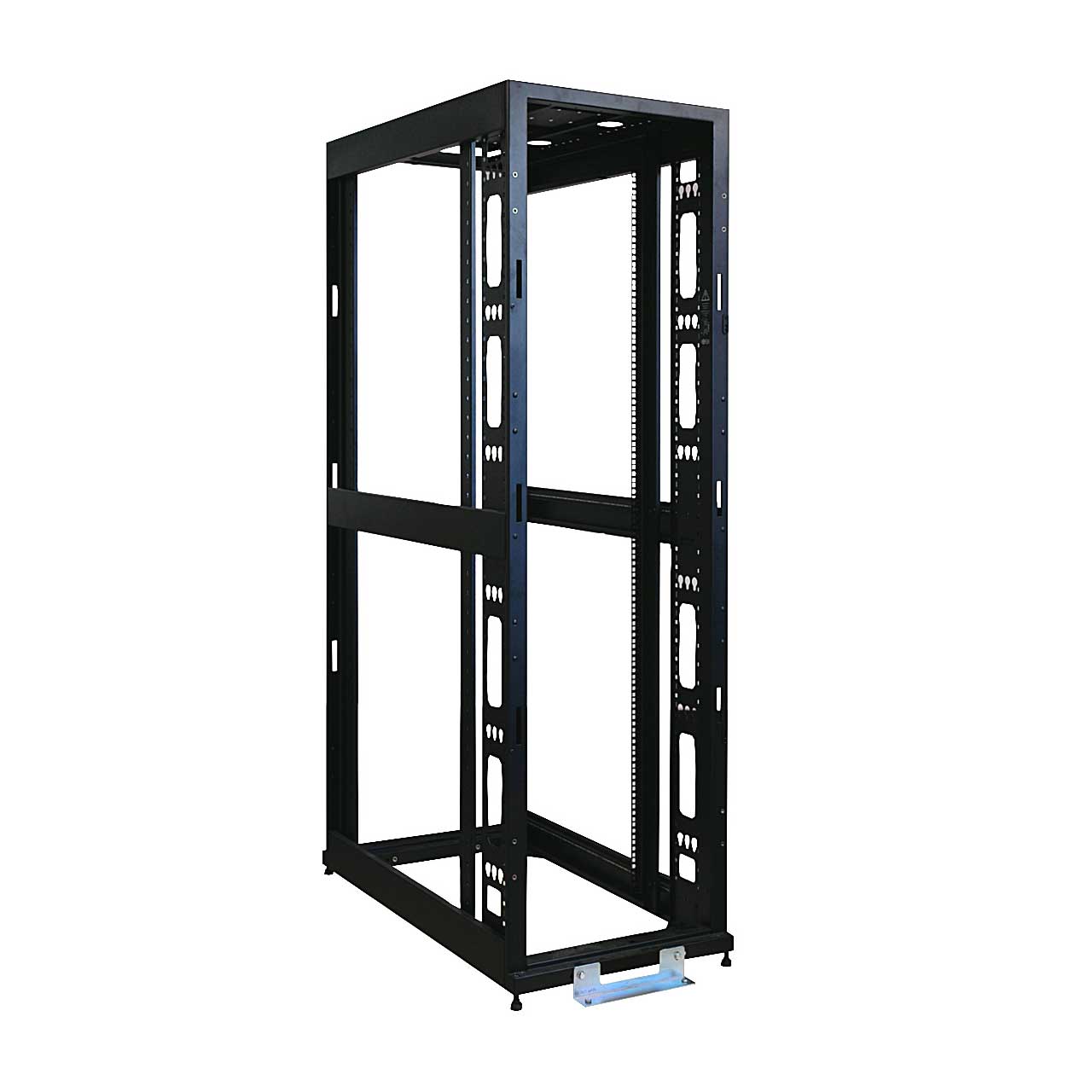

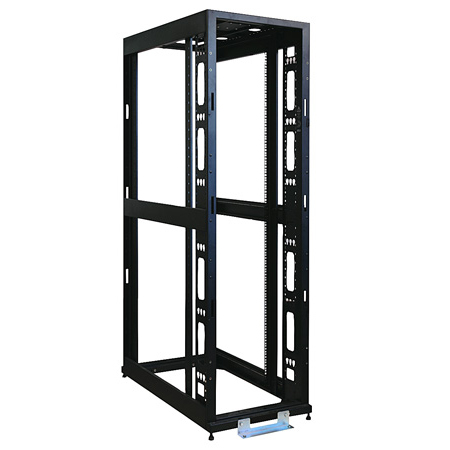

The SR48UBEXPND is 48U SmartRack enclosure with NO doors and NO side panels. The 'EXP' version is an expansion model used when several cabinets are bayed together. Its integrated baying tabs make it easy to combine multiple enclosures in rows for data center applications. This enclosure is also compatible with hot-aisle/cold-aisle configurations.The SR48UBEXPND houses 3000 lb of standard 19-inch rack equipment in 48U. Its front and rear pairs of vertical rails have square mounting holes that are adjustable in quarter-inch increments from 4 to 37 inches. Adjustment is quick and an easy-view depth index ensures consistent rail placement without requiring time-consuming measurements. Each rack space within the enclosure is numbered for ready reference.Two of the adjustable vertical mounting rails support toolless button-mount 0U installation of up to four compatible PDUs and cable managers. This feature makes it easier to route cabling to rack equipment and reduces cord clutter.All components of the SR48UBEXPND are grounded to the enclosure frame. Front and rear threaded grounding points are provided for connection to the facility earth ground. To simplify deployment, the SR48UBEXPND comes with preinstalled casters that enable it to be easily maneuvered into the desired location, where it can be secured by adjusting the preinstalled levelers. Note: the casters are intended for minor position adjustments and are not designed for moving the enclosure over long distances.The SR48UBEXPND comes with a 5-year product warranty. As part of the SmartRack family, the SR48UBEXPND is compatible with Tripp Lite’s extensive range of rackmount accessories, enabling you to customize your solution to meet any requirement.

  • Features:

    • Ships fully assembled for rapid deployment and roll into place on heavy-duty pre-installed casters (casters are removable)
    • Front and rear sets of equipment mounting rails adjust in 1/4" increments. Adjustment is quick and convenient. The easy-view depth index ensures consistent rail placement without requiring time-consuming measurements.
    • Toolless accessory mounting rails (2 rails per enclosure) include slots for quick installation of compatible PDUs and vertical cable managers. Mounting slots are arranged in an industry-standard pattern compatible with a wide variety of accessories. Each rail can accommodate two vertical PDUs or cable managers side-by-side (four items per enclosure).
    • Mounting hardware of 50 pieces of M6 cage nuts and 50 pieces of M6 screws included

  • Specifications:

    • Style Floor Standing
    • Installed Whole System Maximum Rack Depth (in.) 37
    • Installed Whole System Maximum Rack Depth (cm) 94
    • Installed Whole System Minimum Rack Depth (in.) 4
    • Installed Whole System Minimum Rack Depth (cm) 10.16
    • Rack Height (U Spaces) 48
    • Shipping Dimensions (hwd / in.) 95 x 27.75 x 47
    • Shipping Dimensions (hwd / cm) 241 x 70.5 x 119
    • Shipping Weight (lbs.) 379
    • Shipping Weight (kg) 172
    • Unit Dimensions (hwd / in.) 89 x 23.63 x 43
    • Unit Dimensions (cm) EXTERNAL DIMENSIONS: 226 x 60 x 109 (HWD)
    • Color Black
    • Factory Preset Rack Depth (in.) 27.75
    • Factory Preset Rack Depth (cm) 70.49
    • Hinged (Swings Away from Wall Bracket) No
    • Product Warranty Period (Worldwide) 5-year limited warranty

  • GTIN:

    0037332154316
