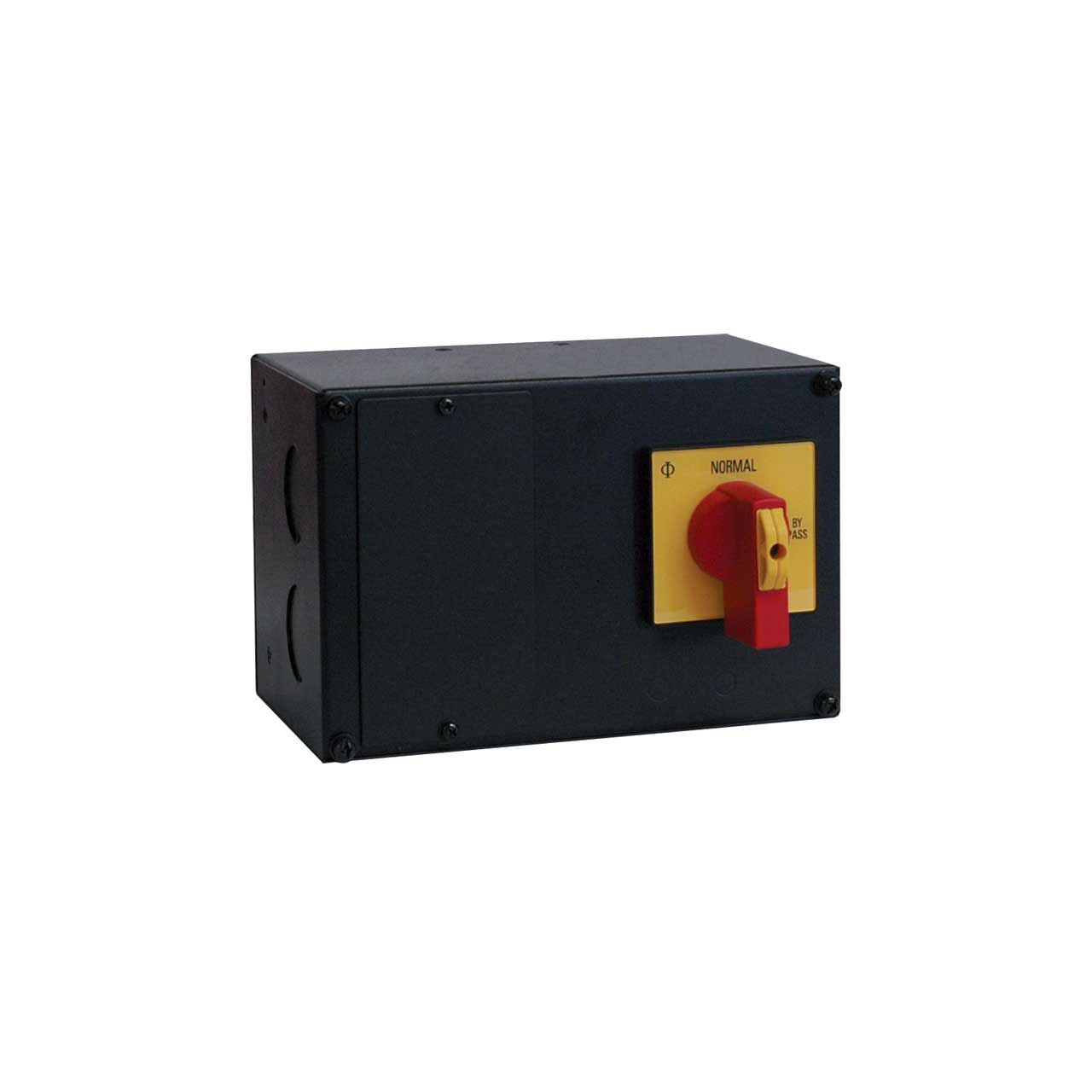

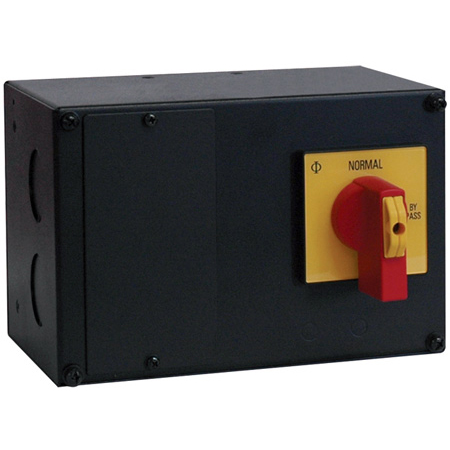

Tripp Lite SUPDMB710HW SUPDMB710HW - UPS Accessory - Hardwire PDU Module

SUPDMB710HW - Overview

• Features:

  • For use with SU10000RT3U and SU8000RT3U UPS Systems
  • Converts compatible SmartOnline Hot-Swappable Modular UPS Systems (models SU10000RT3U and SU8000RT3U) to a totally hardwired solution
  • Easy quick-connect terminal block allows installation of hardwire distribution module in minutes
  • Can accept input voltages of 208 or 240 VAC single phase power
  • Detachable hardwire module with manual bypass switch allows for effortless UPS maintenance without the need to power down connected loads and re-wire input/output connections


• Specifications:

  • Accessories Type: PDU Module
  • Frequency Compatibility: 50 / 60 Hz
  • Output Receptacles: Hardwire
  • Output Nominal Voltage: 208/240V
  • Nominal Input Voltage(s) Supported: 208V AC; 240V AC
  • Input Connection Type: Hardwire
  • Voltage Compatibility (VAC): 208; 240
  • Shipping Dimensions (hwd / in.): 10.75 x 9 x 8
  • Shipping Dimensions (hwd / cm): 27.3 x 22.9 x 20.3
  • Shipping Weight (lbs.): 5.8
  • Shipping Weight (kg): 2.6
  • Unit Dimensions (hwd / in.): 5.25 x 7.5 x 6.5
  • Unit Dimensions (hwd / cm): 13.3 x 19.1 x 16.5
  • Unit Weight (lbs.): 4.6
  • Unit Weight (kg): 2.1
  • Material of Construction: Steel
  • Certifications: Tested to UL1778 (USA), CSA (Canada), RoHS compliant
  • Product Warranty Period (Worldwide): 2-year limited warranty


• Item Includes:

  • Hardwire PDU with Bypass Switch
  • Mounting Hardware
  • Owner's Manual


• Warranty:

  • 2 Year


• GTIN:

  0037332136237
