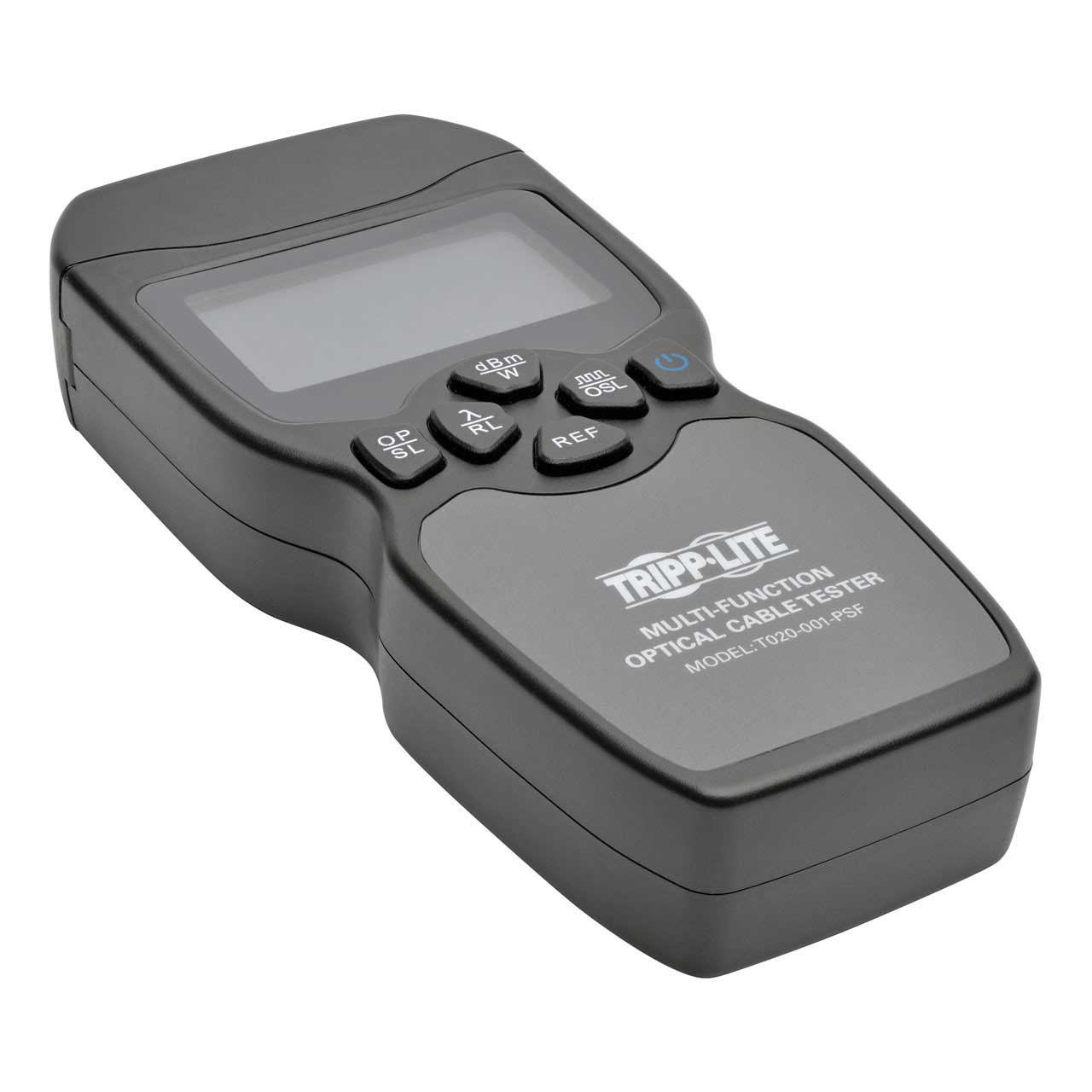

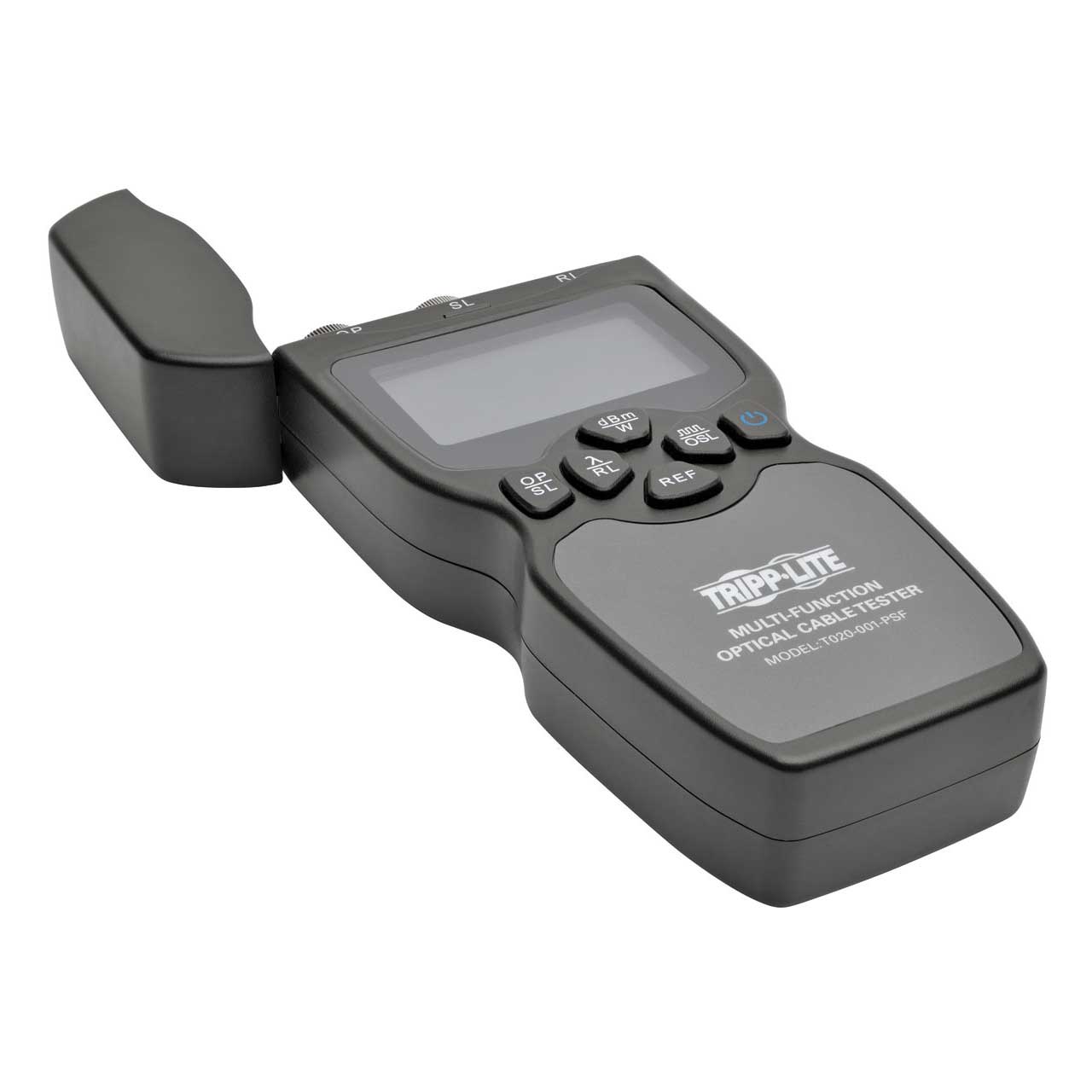

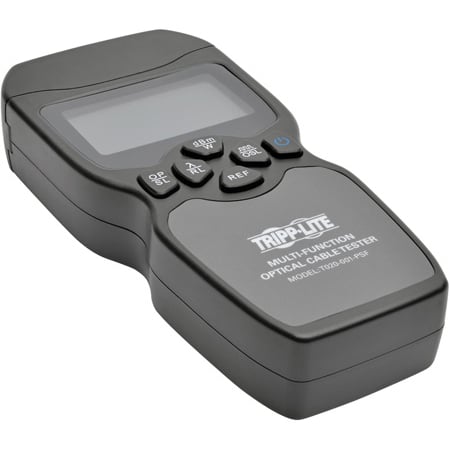

Tripp Lite T020-001-PSF Multi-Function Optical Fiber Cable Tester with Power Meter Light Source and Visual Fault Locator

ITEM #: TRL-T020-001-PSF MFG #: T020-001-PSF

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

List Price:

$1,053.79

Our Price:

$386.00

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup


    T020-001-PSF - Overview

    The all-in-one T020-001-PSF Multi-Function Optical Fiber Cable Tester is an essential tool for cable installers or anyone working in telecom or LAN environments. The combination power meter/light source/visual fault locator allows you to test fiber optic cables for breaks, insertion loss and optical power loss. It features FC connectors with optional SC, ST and LC adapters available. The power meter supports 850 nm, 1300 nm, 1310 nm, 1490 nm, 1550 nm and 1625 nm wavelengths, while the light source supports 1310 nm and 1550 nm wavelengths. The visual fault locator features multiple frequency settings for continuous and flashing modes. The easy-to-read LCD interface displays power loss measurement data, wavelength, frequency, battery capacity and battery charge status.Three AA batteries are included, and the auto-off function preserves battery power. If you're using rechargeable AA batteries, the USB Micro-B port charges them via connection to a USB wall charger or a computer's USB port. When not in use, the T020-001-PSF can be stored in its handy carrying case.

    • Features:

      • All-in-One Unit Tests Fiber Optic Cables
      • Determines optical power loss
      • Finds visual faults in cable with multiple frequency settings for continuous and flashing modes
      • Light source supports 1310 and 1550 nm
      • Power meter supports 850, 1300, 1310, 1490, 1550 and 1625 nm

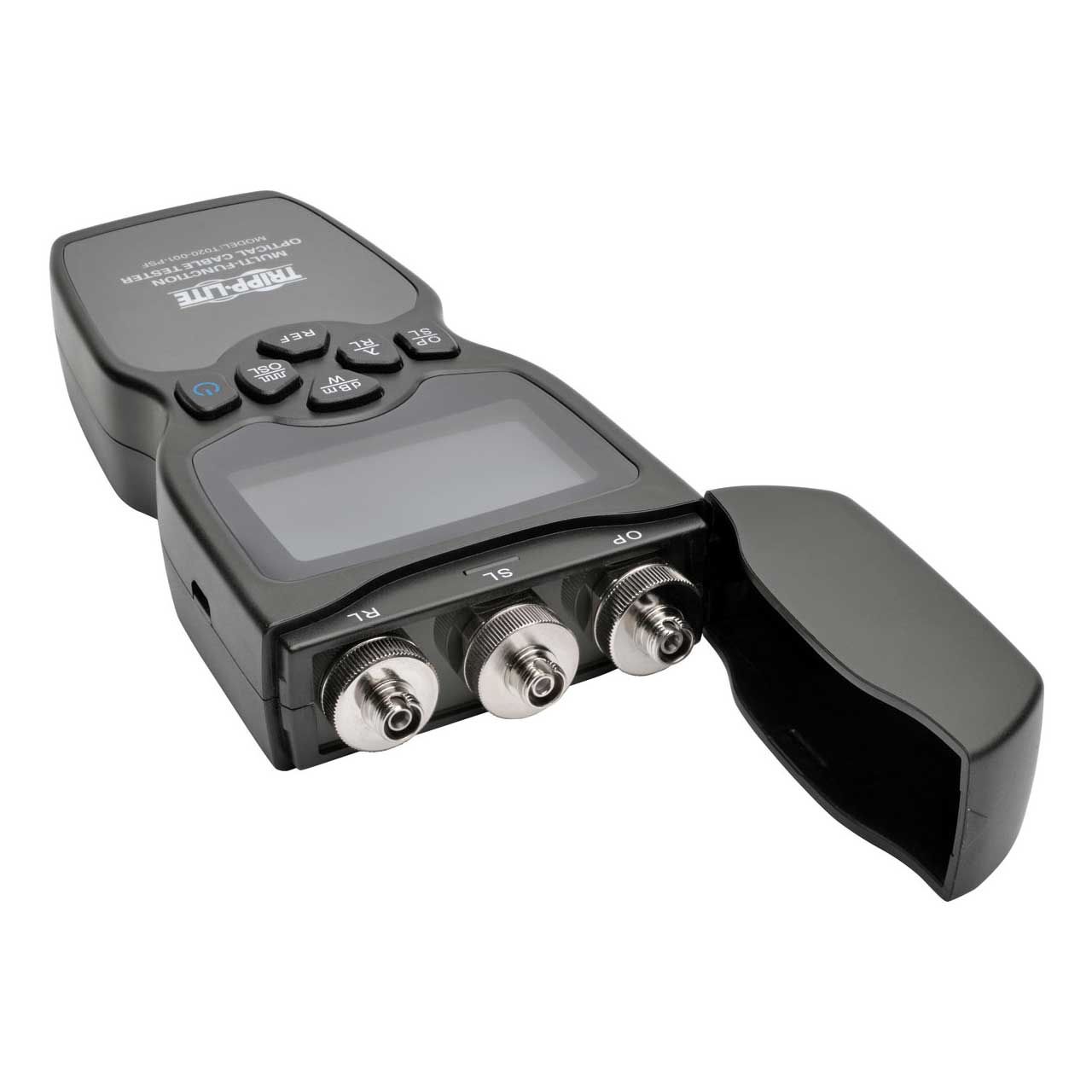

      • FC connectors with optional SC, ST and LC adapters available
      • Stores away in convenient carrying case Powered by Included AA batteries
      • Auto-off function preserves battery power
      • USB Micro-B port for charging rechargeable batteries Easy-to-Read LCD Interface
      • Displays power loss measurement data, wavelength, frequency, battery capacity and battery charge status

    • Specifications:

      • Accessories Type: Cable Tester
      • Product Warranty Period (Worldwide): 1-year limited warranty

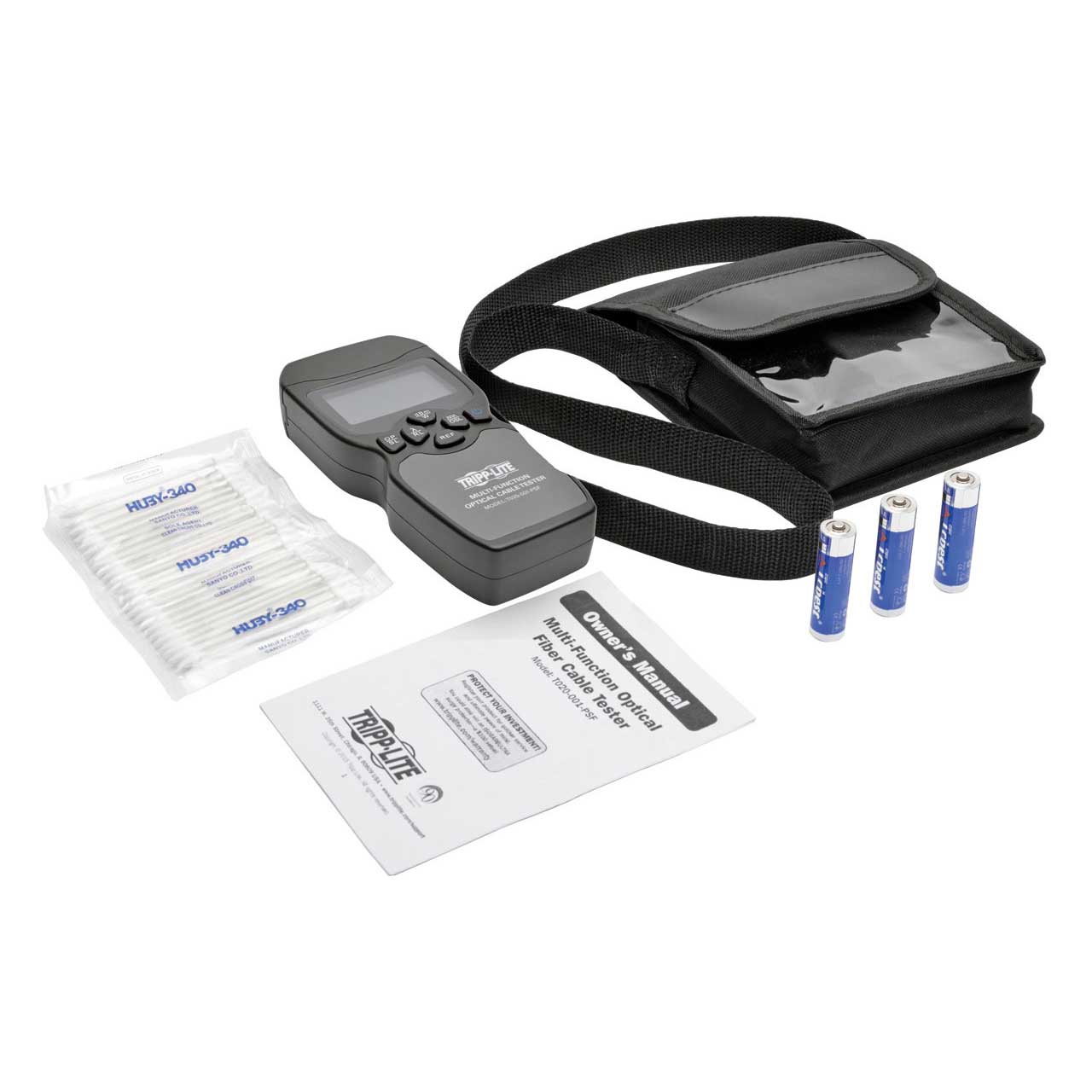

    • Item Includes:

      • T020-001-PSF Multi-Function Optical Fiber Cable Tester
      • (3) AA batteries
      • Cleaning swabs
      • Carrying case
      • Owner's manual

    • Warranty:

      • 1 Year

    • GTIN:

      0037332190345


    T020-001-PSF - Required Accessories
