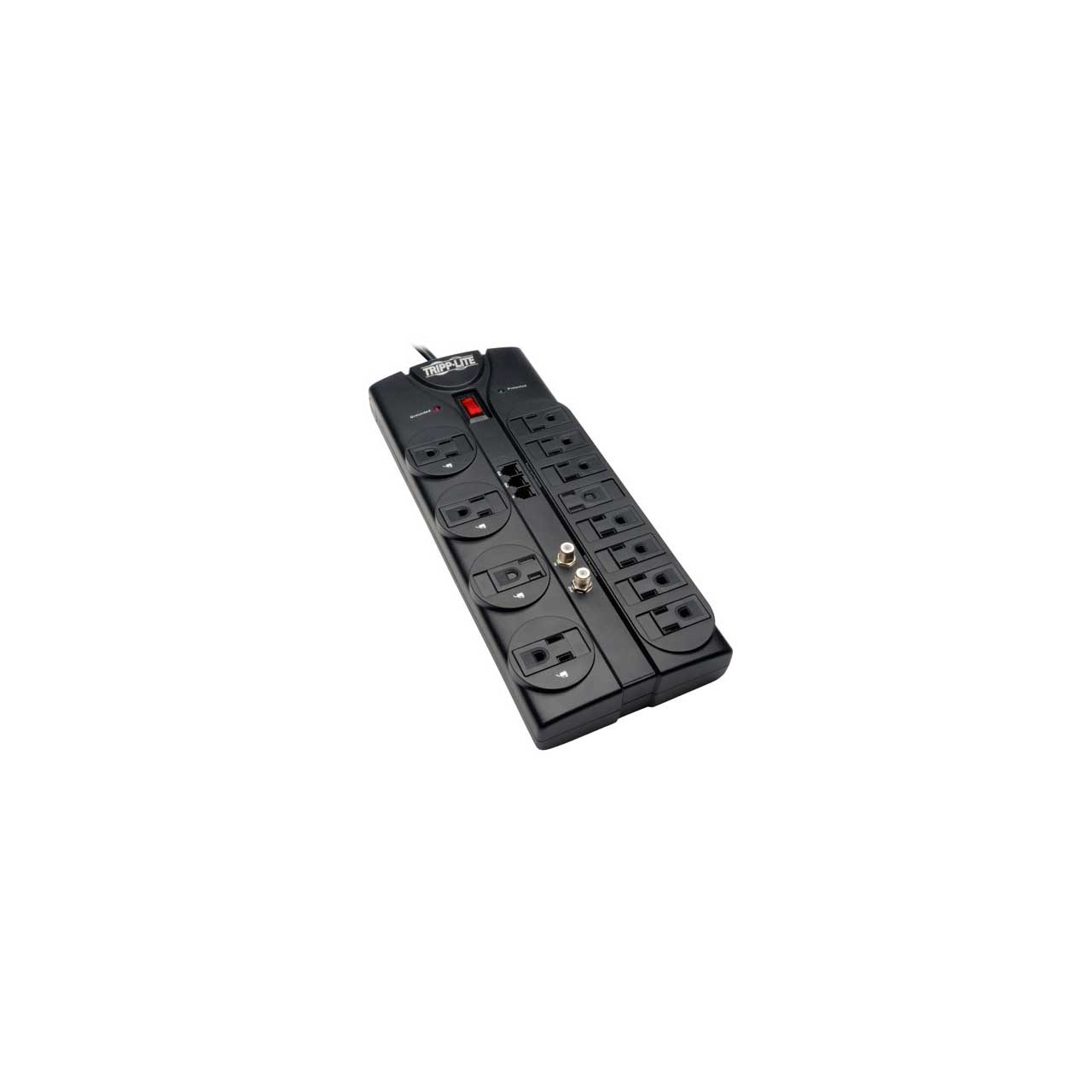

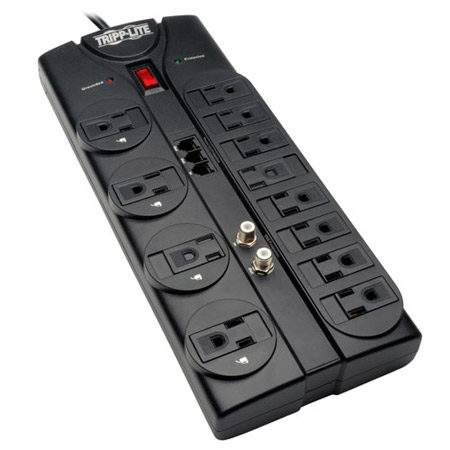

Tripp Lite TLP1208TELTV Surge Protector 12 Outlet 120V RJ11 Coax 8ft Cord 2880 Joule

ITEM #: TRL-TLP1208TELTV MFG #: TLP1208TELTV

Primary Image
Free Shipping with $49 Minimum Order

List Price:

$74.92

Our Price:

$48.36

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup


    TLP1208TELTV - Overview

    Tripp Lite's TLP1208TELTV offers economical AC surge suppression for protection of workstations, PCs, telecom systems, home electronics and other sensitive equipment. The TLP1208TLTV features 12 outlets, an 8-ft. cord with a space-saving right-angle plug, and diagnostic LEDs to warn of suppressor damage. The unit has a surge suppression rating of 2880 joules to shield equipment from line noise and the strongest surges. Built-in RJ11 jacks prevent surges from damaging your modem/fax/phone equipment. Built-in digital 2.2GHz coax jacks prevent surges from damaging your cable/satellite equipment. $150,000 Ultimate Lifetime Insurance (U.S., Canada, and Puerto Rico only)PLUG/OUTLETS: Input: NEMA5-15P/Output: 12 NEMA5-15R/8-ft. AC line cordELECTRICAL: 120V AC, 50/60Hz, 15A (Requires NEMA5-15R wall receptacle)FORMAT: Corded multi-outlet strip with 4 transformer-spaced outletSUPPRESSION: AC: 150V RMS Clamping/2880 joules/330V UL1449 3rd Edition.


    What is the main culprit of electrical surges?
    Electrical devices that require lots of power to operate. Depending on the wiring of your Studio or Production suite, you may notice at times that your lights flicker when powerful devices turn on and off, e.g. your air conditioner. When these devices are switched on, they demand a lot of electricity, which puts a lot of strain on the grid and can cause surges.
    When should you use a surge protector?
    All the time. The real question is really which devices you should connect to a surge protector. You don’t need a surge protector for your desk lamp or your standing fan, but you do want a surge protector for expensive devices that have intricate microprocessors, like computers, DVR's, LED/LCD monitors, power amps, Studio Lighting, Powered Nearfield Speaker monitors, etc. Think of it this way: if there was an electrical surge that destroyed all of the devices connected to your outlets, which lost devices would pain you the most? Plug those into a surge protector. It’s better to be safe than sorry.

    • Features:

      • 12 outlets with child safety covers
      • 8-ft cord with space-saving right-angle plug
      • Built-in RJ11 jacks prevent surges from damaging your modem/fax/phone equipment; 6-ft telephone cord included
      • Surge suppression rating: 2880 joule protection

    • Specifications:

      • Style Strip
      • Output Volt Amp Capacity (VA) 15
      • Frequency Compatibility 50 / 60 Hz
      • Output Receptacles (12) 5-15R
      • Output (Watts) 1875
      • Overload Protection 15A resettable circuit breaker
      • Transformer Accommodation Supports 4 large transformer plug accessories without covering remaining outlets
      • Outlet Orientation Two rows of outlets, including 4 widely spaced for transformers
      • USB Charging No
      • Nominal Input Voltage(s) Supported 120V AC
      • Recommended Electrical Service 120V (110-125V)
      • Input Connection Type NEMA 5-15P
      • Input Plug Features Space-saving right angle input plug
      • Input Cord Length (ft.) 8
      • Input Cord Length (m) 2.4
      • Input Cord Gauge Type 14 gauge, SJT
      • Voltage Compatibility (VAC) 120
      • Maximum Surge Amps 180000
      • Switches Two-position on/off power switch
      • Diagnostic LEDs Built-in LEDs confirm suppressor "protection present" (green) and "grounded" (red) status
      • AC Suppression Joule Rating 2880
      • AC Suppression Response Time < 1 ns
      • Protection Modes Includes full normal mode (H-N) and common mode (N-G / H-G) line surge suppression
      • Clamping Voltage (RMS) 150
      • UL1449 Let Through Rating 330V L-G, 400V L-N, 400V N-G
      • EMI / RFI Filtering Up to 40dB
      • Telephone/DSL Protection Yes
      • Cable (Coax) Protection Yes
      • Network (Ethernet) Protection No
      • Shipping Dimensions (hwd / in.) 2.05 x 8.66 x 13.39
      • Shipping Dimensions (hwd / cm) 5.21 x 22.00 x 34.01
      • Shipping Weight (lbs.) 2.29
      • Shipping Weight (kg) 1.04
      • Unit Dimensions (hwd / in.) 1.54 x 2.72 x 10.30
      • Unit Dimensions (hwd / cm) 3.91 x 6.91 x 26.16
      • Unit Weight (lbs.) 2.12
      • Unit Weight (kg) 0.96
      • Material of Construction Plastic
      • Integrated Keyhole Mounting Tabs Keyhole mounting tabs enable wall mounting
      • Housing Color Silver
      • Receptacle Color Black
      • Color (AC Line Cord) Black
      • Outlets Measurement (Center to Center) Distance between standard outlets = 25.4mm; Distance between transformer outlets = 57mm
      • Keyhole Slot Mounting Measurement (Center to Center) Distance between horizontal tabs = 152mm; Distance between vertical tabs = 73.5mm
      • Right-Angle Plug Yes
      • UL1449 3rd Edition (AC Suppression) UL1449 3rd Edition
      • UL1363 (Power Tap) UL1363
      • UL497A (Communications) UL497A
      • FCC Part 68 (Communications) FCC Part 68
      • cUL / CSA (Canada) cUL
      • Industry Canada (Communications) Industry Canada
      • Approvals Exceeds IEEE587 category A&B specifications
      • Product Warranty Period (Worldwide) Lifetime limited warranty
      • Connected Equipment Insurance (U.S., Canada & Puerto Rico) $150,000 Ultimate Lifetime Insurance

    • GTIN:

      0037332152510
