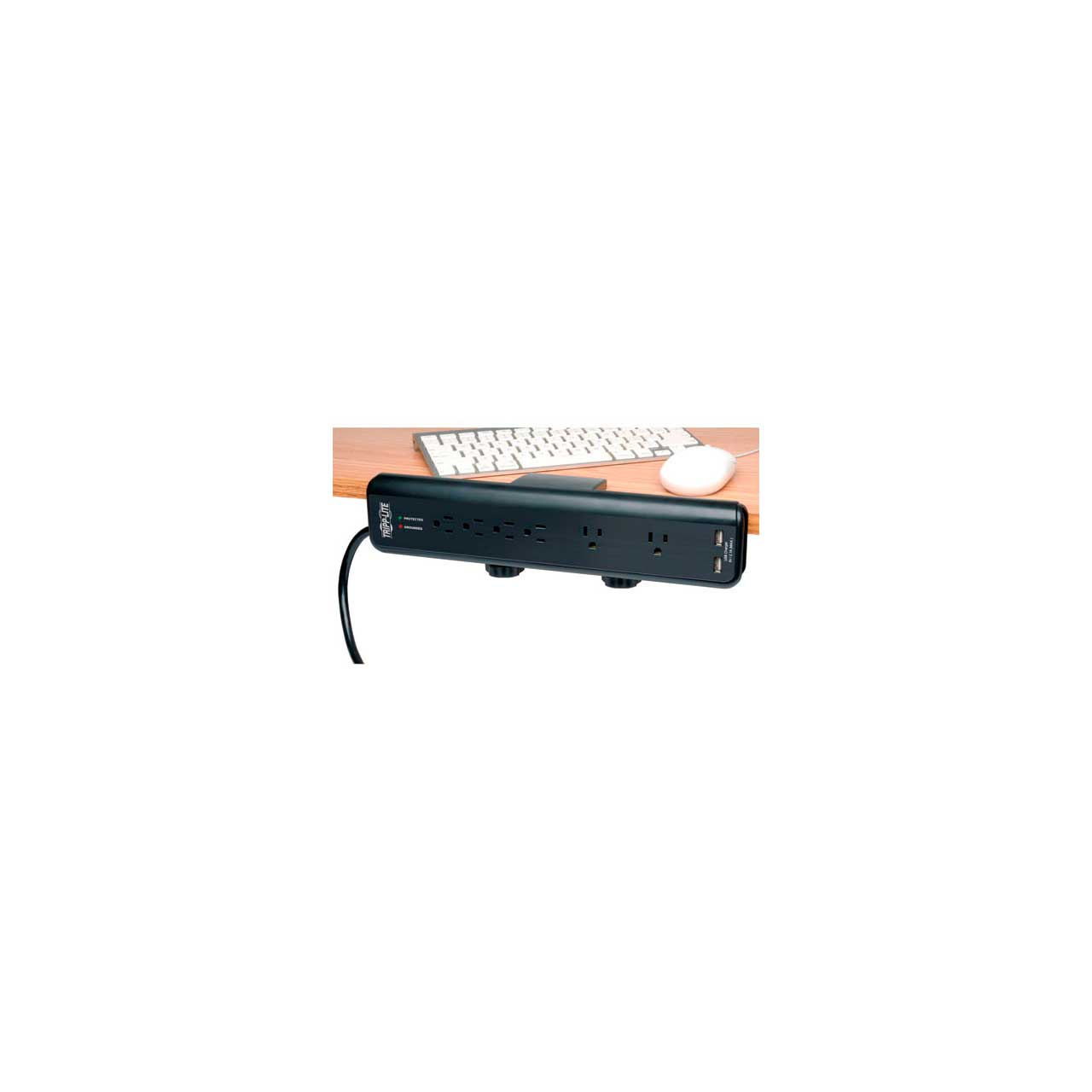

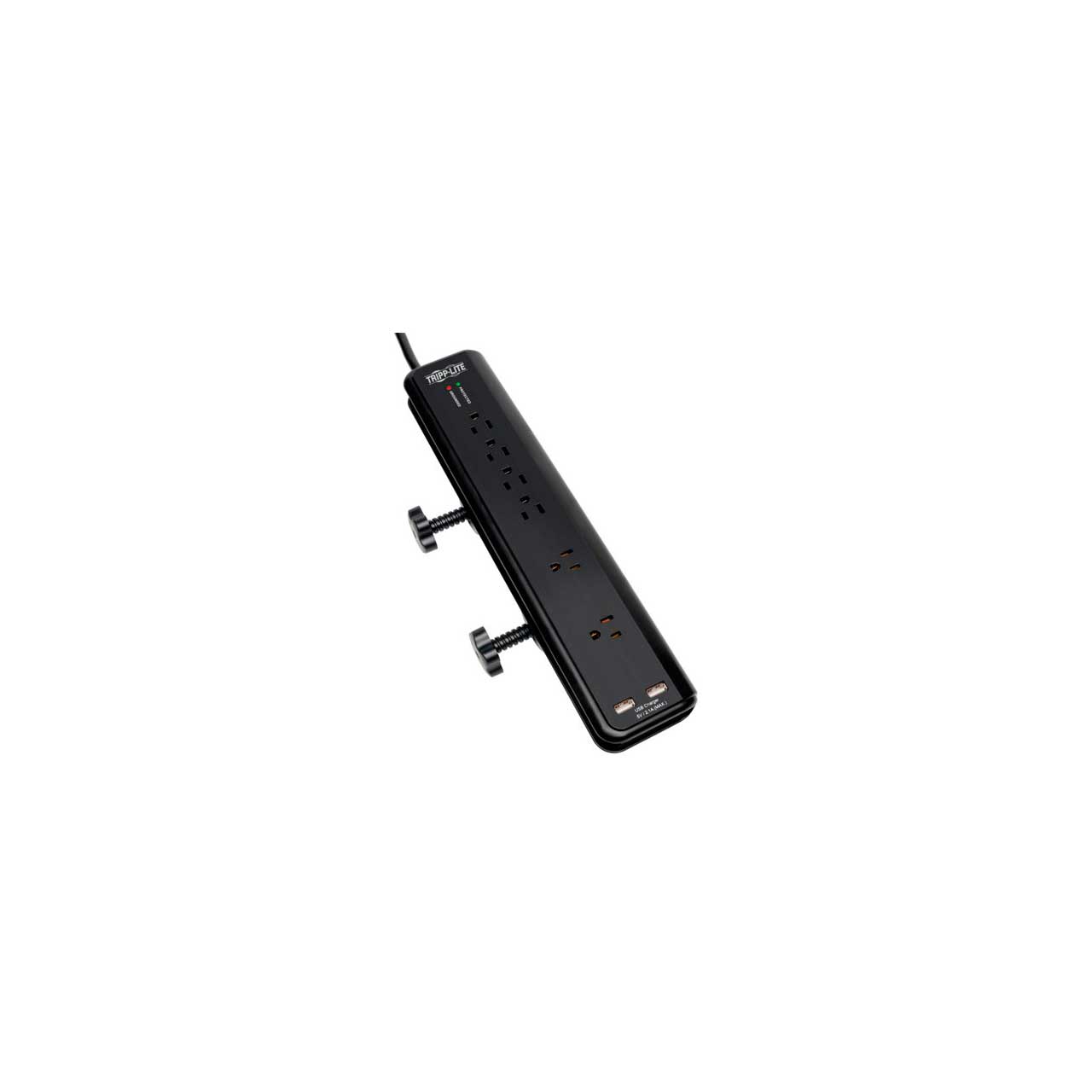

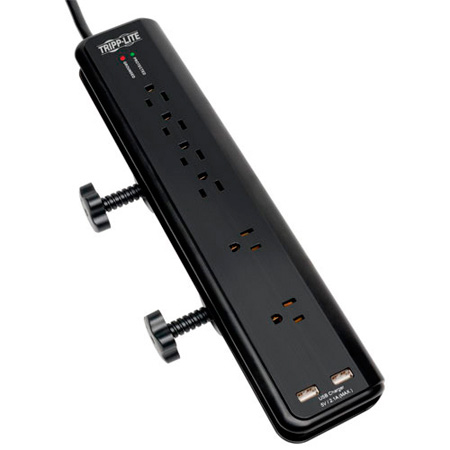

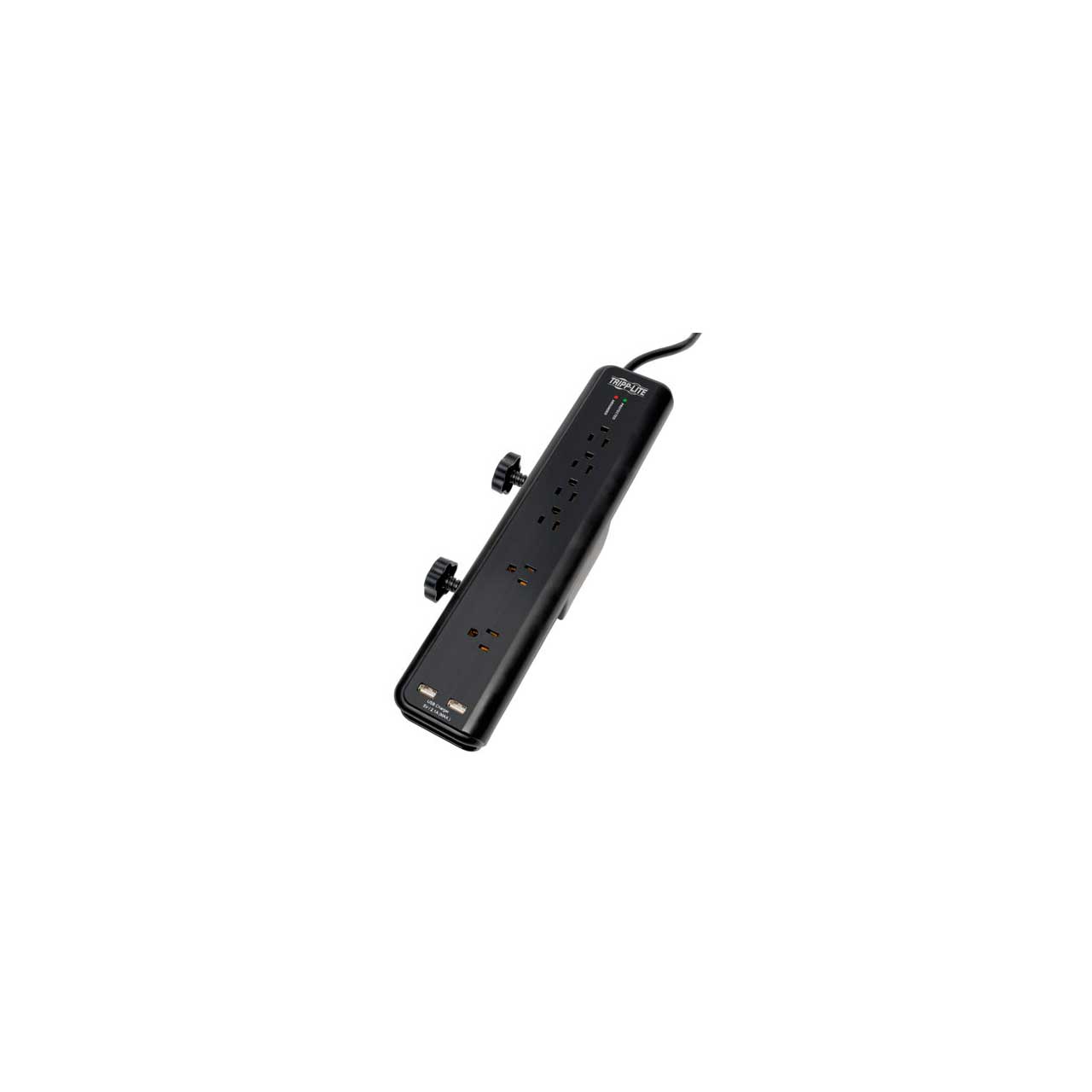

Tripp Lite TLP606DMUSB 6-Outlet Surge Suppressor- 6-Ft Cord 2 Port USB Charger

TLP606DMUSB - Overview

• Features:

  • 6 outlets
  • 6-ft. cord
  • 2 USB charging ports - 2.1 amp total
  • Surge suppression rating: 2100 joules
  • Clamps for attaching to desk, workbench or table
  • EMI/RFI noise filtering
  • 15 amp resettable circuit breaker
  • Green protection LED
  • Includes full normal mode (H-N) and common mode (N-G/H-G) line surge suppression

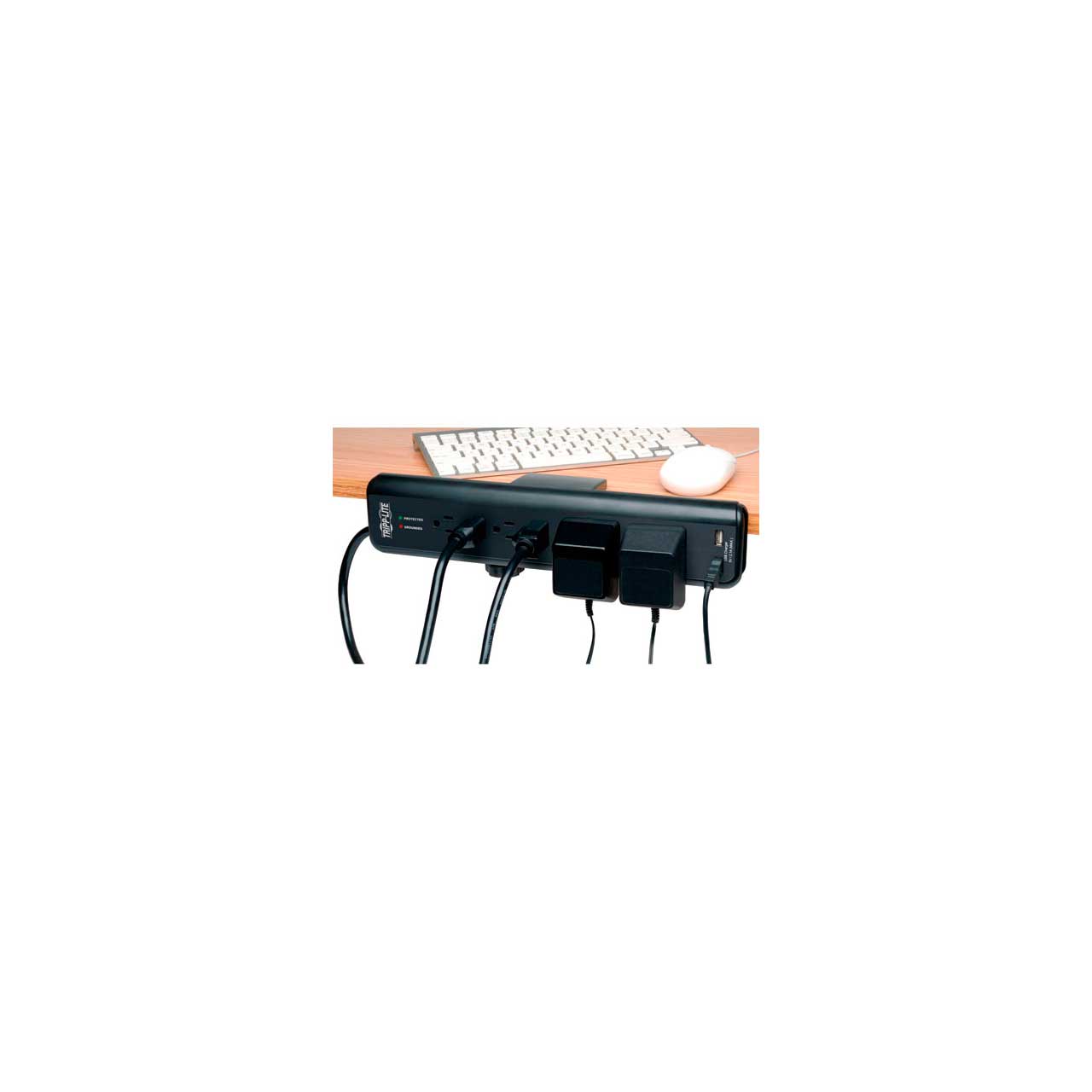

  • Can accommodate 2 large transformer plug without covering remaining outlets.
  • 2 knobs to clamping to desk Lighted power switch
  • $40,000 Ultimate Lifetime Insurance (U.S., Canada, and Puerto Rico only)
  • Automatic shutoff permanently cuts power to outlets if protection circuit is incapacitated, preventing equipment damage and indicating replacement is required


• Specifications:

  • Input
  • Nominal Input Voltage(s) Supported: 120V AC
  • Recommended Electrical Service: 120V (110-125V)
  • Input Cord Gauge Type: 14 gauge; SJT
  • Voltage Compatibility (VAC): 120
  • Maximum Surge Amps: 35500
  • Input Plug Type: NEMA 5-15P
  • Input Cord Length (ft.): 6
  • Right-Angle Plug: No
  • Integrated Cord Clip: No

    Output
  • Frequency Compatibility: 50 / 60 Hz
  • Output (Watts): 1800
  • Output Receptacles: (6) 5-15R
  • Circuit Breaker (amps): 15
  • Overload Protection: 15A resettable illuminated combo switch / circuit breaker
  • Transformer Accommodation: (3) Yes
  • Outlet Orientation: Single row of 6 outlets
  • Right-Angle Outlets: No

    User Interface, Alerts & Controls
  • Diagnostic LED(s): Yes
  • Switches: Combination AC circuit breaker and 2 position red illuminated on/off power switch
  • Diagnostic LED Details: Built-in LED confirms suppressor "protection present" (green) status

    Charging
  • Charging Ports / Amps: (2) 2.1A

    Surge / Noise Suppression
  • AC Suppression Joule Rating: 2100
  • AC Suppression Response Time: < 1 ns
  • Protection Modes: Includes full normal mode (H-N) and common mode (N-G / H-G) line surge suppression
  • Clamping Voltage (RMS): 150
  • UL1449 Let Through Rating: 400V
  • EMI / RFI Filtering: Yes
  • Automatic Shut-Off: Yes

    Dataline Surge Suppression
  • Telephone/DSL Protection: No
  • Cable (Coax) Protection: No
  • Network (Ethernet) Protection: No

    Physical
  • Anti-Microbial Protective Coating: No
  • Color: Black
  • Color (AC Line Cord): Black
  • Housing Color: Black
  • Integrated Keyhole Mounting Slots: No
  • Material of Construction: Plastic
  • Receptacle Color: Black
  • Shipping Dimensions (hwd / in.): 3.00 x 5.60 x 16.50
  • Shipping Weight (lbs.): 1.68

    Special Features
  • Rotatable Outlets: No

    Standards & Compliance
  • Canada: cUL
  • Approvals: Exceeds IEEE 587 category A&B specifications
  • UL1449 3rd Edition (AC Suppression): UL1449 3rd EDITION
  • UL1363 (Power Tap): UL1363


• Item Includes:

  • TLP606DMUSB surge suppressor
  • Instruction manual with warranty information


• GTIN:

  0037332180292
