Tripp Lite U223-004-IND 4-Port Industrial USB 2.0 Hub Heavy Duty 15kV ESD Immunity

ITEM #: TRL-U223-004-IND MFG #: U223-004-IND

  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
free ship

List Price:

$175.17

Our Price:

$66.68

Availability: Typically Ships in 3-10 Days
iAvailability Description Popup


    U223-004-IND - Overview

    Tripp Lite's U223-004-IND is a rugged, all metal constructed USB 4-Port hub for use in data centers, work areas, and Industrial applications. Can be mounted on a wall or din-rail with included mounting hardware. Supports Hi-Speed USB 2.0 transfer rates at 480mbps, but is also backward compatible to USB 1.1 (12mbps). Hub is bus-powered through the computer connection, or can self-power with an external adapter (not included) or via the included 3-wire terminal block connector (9-36V).

    Compatible with all major operating systems

    • Features:

      • Industrial-grade, rugged all metal 4-port USB hub
      • Supports USB 1.1 and 2.0 transfer speeds (12 - 480mbps)
      • Wall or Din Rail mountable - hardware included
      • Bus Powered or optional 3-Wire DC Terminal Block
      • Over-current detection and protection circuit design
      • ESD protected to ± 15kV
      • Automatic link and speed detection
      • Plug-and-Play; no software or drivers
      • Compatible with all major operating systems

    • Specifications:

      • Physical
      • Unit Dimensions (hwd / in.): 1 x 2.5 x 5.6
      • Material of Construction: Metal
      • Included Mounting Accessories: Yes
      • Color: Black
        Environmental
      • Relative Humidity: 5 to 95% RH
      • Operating Temperature: 0°C to 60°C (32°F to 140°F)
        Connections
      • Ports: 4
      • Side A - Connector 1: USB A (MALE)
      • Side B - Connector 1: (4) USB A (FEMALE)

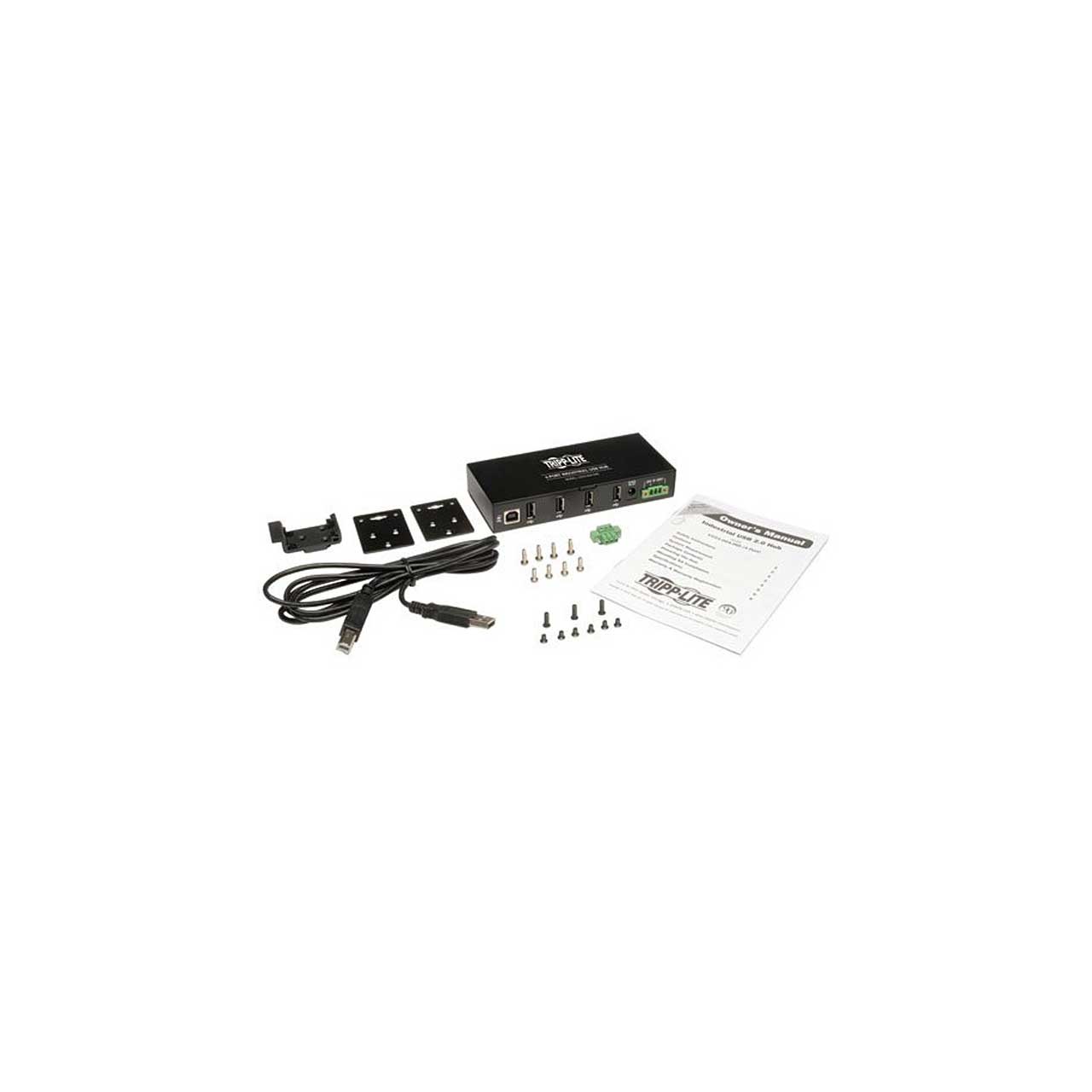

    • Item Includes:

      • U223-004-IND
      • 6ft USB cable
      • 3-pin power terminal block
      • DIN rail mounting hardware
      • Wallmount hardware

    • Warranty:

      • 1 Year Limited Warranty

    • GTIN:

      0037332174284
