    MPA1-SOLO-IP - Overview

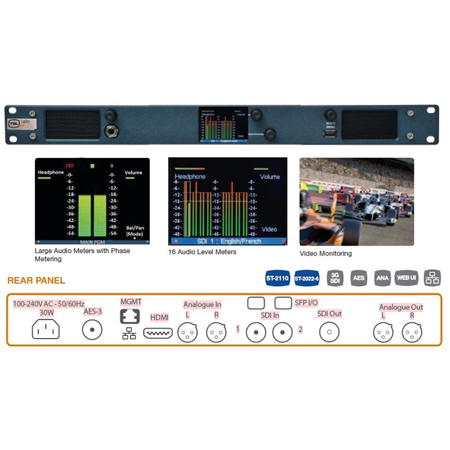

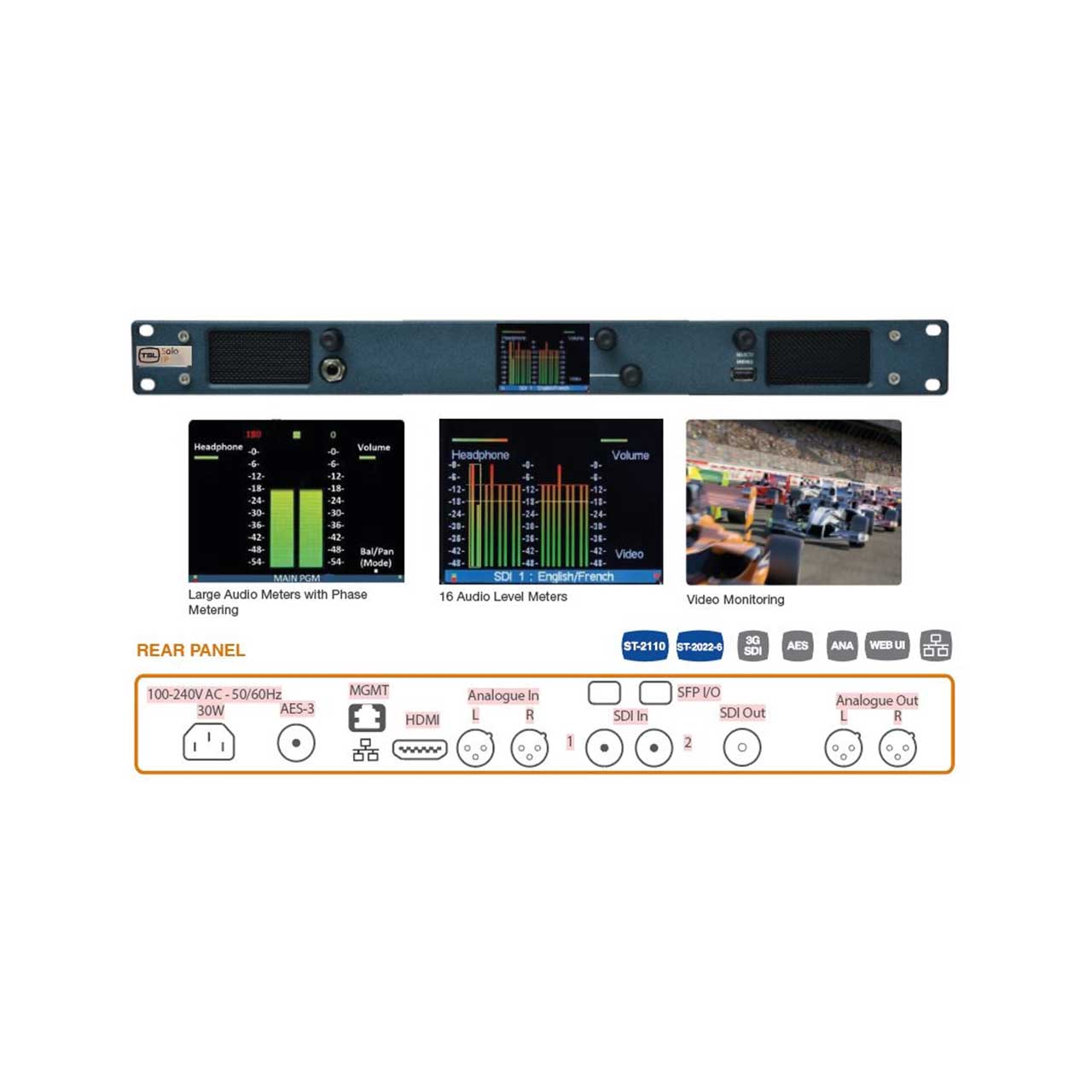

    As the latest addition to the MPA1 Range, the MPA1-SOLO-IP helps make the transition to IP seamless, providing peace of mind and ease of use in even the most demanding environments.

    Featuring 2 SFP cages the MPA1-SOLO-IP allows redundant connectivity to ST-2022-6 / ST-2110 IP networks, in addition to SDI, AES and Analogue inputs also allowing for hybrid monitoring environments.

    Tight integration with your control system is made possible through SNMP, Ember+ and NMOS.

    • Features:

      • 2 x SFP ports for redundant monitoring of ST-2110 and ST-2022-6 video and audio sources using optional Embrionix Modules. (TSL recommends Riedel MNSet for module configuration).
      • Audio monitoring of 16 audio channels, with intuitive `scroll to hear' selection.
      • Front panel video display of 3G/HD/SD sources
      • 2 x Balanced Analogue Inputs on XLR connectors.
      • 1 x AES3id input on BNC.
      • 2 x SFP ports for redundant monitoring of SDI over Fibre (optional SFP's required).

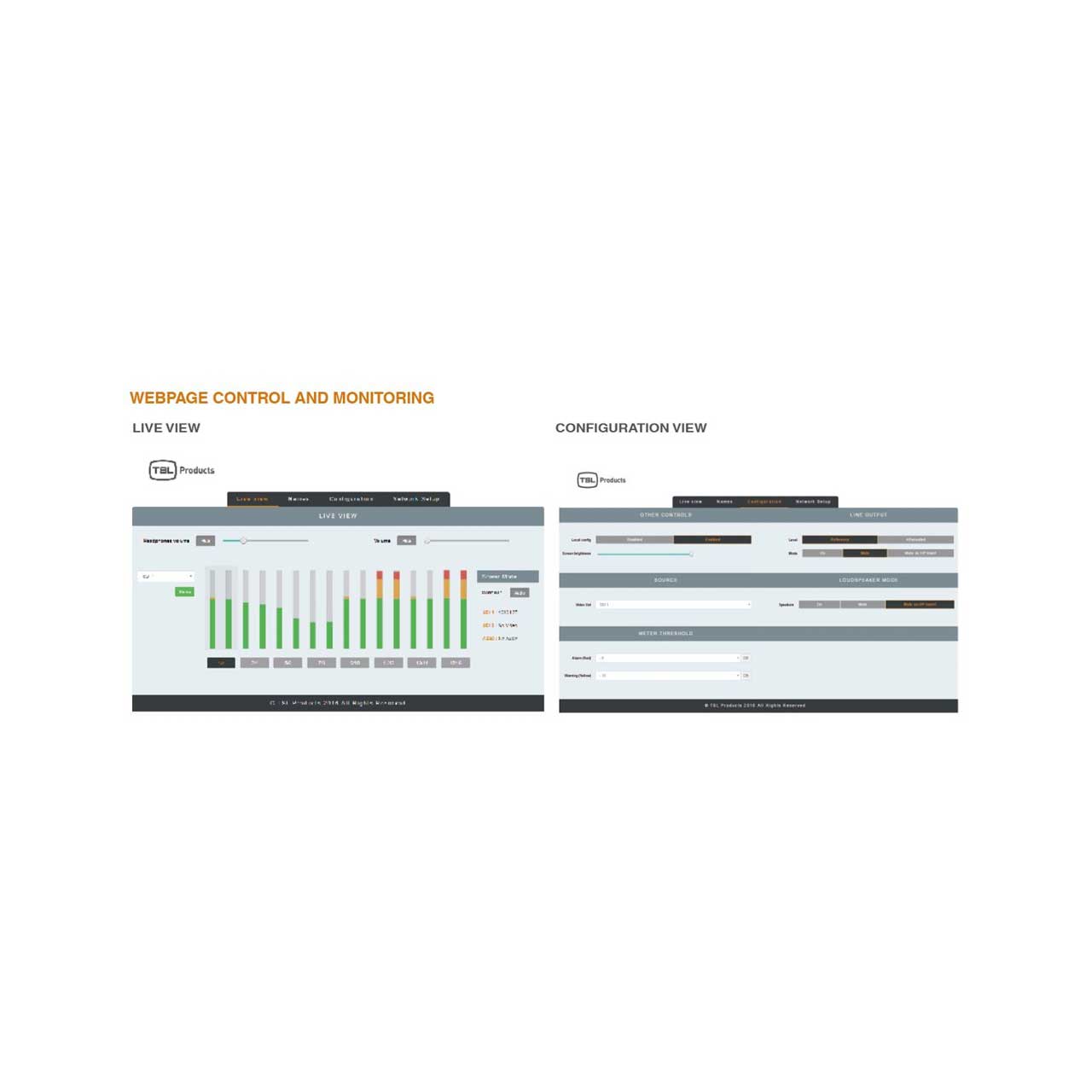

      • 1 x Ethernet connection for monitoring and control via a web-browser and SNMP.


    • Specifications:

      • Height: 1RU
      • Dimensions: 483mm x 45mm x 100mm
      • Weight: 1-4kg
      • Display: Audio Metering
      • 16 Audio channels
      • Signal to Noise Ratio: 72dB (+4dBu input level, THD+N A weighted)
      • Peak Acoustic Output: 90dB @ 1foot
