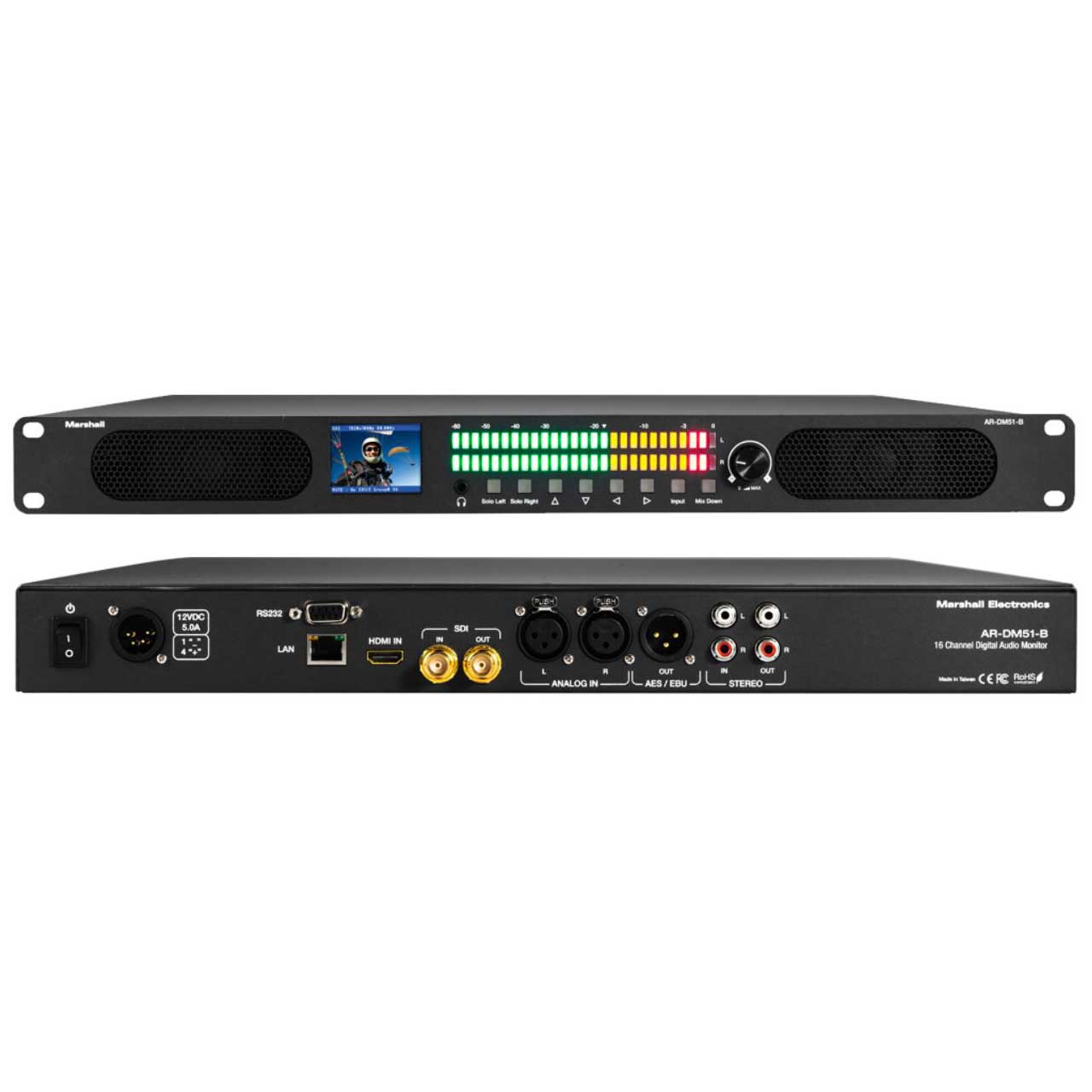

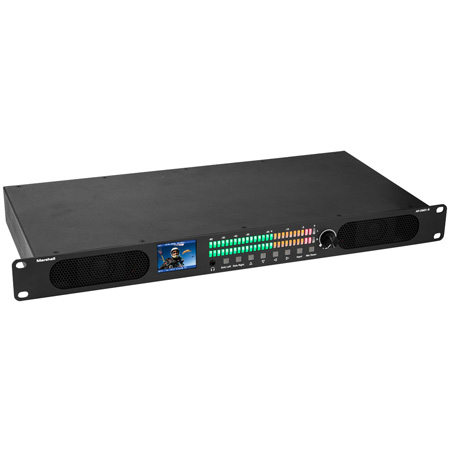

Marshall AR-DM51-B 16 Channel Audio Rack-Mount Monitor with Built-in Preview Screen - up to 8 Stereo Channels of Audio

Manufacturer: Marshall Electronics

Item #: MAR-AR-DM51-B   •   MFG #: AR-DM51-B



List Price:$1,175.00
Our Price:$998.75

free ship


Availability: In Stock
i
Item is Available for immediate shipping from our warehouse.



    California Residents:
    8pt-triangleWARNING:
    Cancer and Reproductive Harm - www.P65Warnings.ca.gov





    The Marshall AR-DM-51-B is a compact, lightweight audio monitor that can preview up to 8 stereo channels of audio. It has two extra powerful speakers (up to 100dB in volume) for accurate monitoring even in noisy environments, and the small built-in video screen allows for precise confidence monitoring during live broadcasts. The AR-DM-51-B accepts SDI, HDMI, analog XLR, and analog RCA inputs, and outputs in AES and analog RCA.

    The AR-DM-51-B features one-button mix down and control through Ethernet or RS-232, and is only 1 RU tall so it fits in any flypack or mobile broadcast set up.

    High Performance Audio
    Matches or exceeds many larger 2RU designs
    Enough "punch" for the noisiest server rooms (up to 100dB)

    Multiple Input Types
    3G SDI with Looping Output
    HDMI
    Analog XLR Balanced - 2 Channels
    Analog RCA Unbalanced Line Level - 2 Channels

    Flexible Output Types
    AES-EBU Pair Balance XLR (110-ohms)
    Analog Unbalanced RCA Line Level - 2 Channels

    2" Video Display
    Provides confidence image of selected HDMI or SDI source
    Text indicates Source, Format, Selected Channels and more

    Controllable via Ethernet or RS-232 Serial
    Control application downloadable from Marshall website
    Select audio scale types, sources, etc.

    Compact 1RU Design Saves Rack Space
    Minimum size
    Low power consumption, low heat emission into rack

    Applications:
    Flypacks, production trucks, news control rooms, news trucks, and broadcast control rooms.


    • Features

      • Inputs: SDI, HDMI, Analog XLR, Analog RCA
      • Outputs: AES (from Analog Input), Analog RCA (from selected Input)
      • Built-in live preview monitor (from HDMI or SDI source)
      • One-button Mix Down for 5.1 and 7.1 to Stereo
      • Free app for Ethernet or RS-232 control
      • Analog input converts to AES out
      • Convenient stereo outputs for listening room speakers
      • Two powerful built-in speakers go up to 100dB in volume (great for noisy server rooms)
      • Straight forward intuitive design

    • Specifications

      • Video inputs: HDMI 2.0 x 1; 3G SDI x 1 with looping output
      • Video formats supported: HDMI Up to [email protected] (4:4:4 sampled 8-bits); SDI up to 1080p50, 59.94,60 (4:2:2 sampled 10-bits)
      • HDMI HDCP: HDCP 2.2 and 1.4 Supported
      • Audio inputs: Analog Balanced x 2 XLR Female; Analog Unbalanced x 2 RCA Jack
      • Audio outputs: AES/EBU x 1 (Digital Pair) XLR Male; Analog Unbalanced x 2 RCA Jack
      • Digital audio Supported: PCM 2, 5.1, 7.1 channels
      • HDMI connector: HDMI type A
      • Serial control connector: DE-9 [9-pin D-sub female] supports RS-232
      • Network connector: WE/SS 8P8C for control via Ethernet
      • Moutning: Chassis has "ears" for standard 19" rack mount
      • Included power supply: DC 12-Volts 5-Amps 4-pin XLR connector
      • Power consumption: 6 Watts Avg
      • Operation temperature: 0~40°C [32~104°F]
      • Storage temperature: -20~60°C [-4~140deg;F]
      • ESD protections: Human body model - ±15kV [air-gap discharge] & ±8kV [contact discharge]
      • Relative humidity: 20~90% RH [no condensation]
        Housing: Metal enclosure
      • Dimensions(H x W x D): 1.75" X 19" x 8.5" / 4.45 cm x 48.25 cm x 21.6 cm
      • Weight: 7.3 lbs / 3.3 Kg

    • Item Includes

      • One AR-DM51-B Main Chassis
      • One 12-Volt Universal Power supply (120/240V - 50/60Hz)

    • GTIN:

      0801813187175
