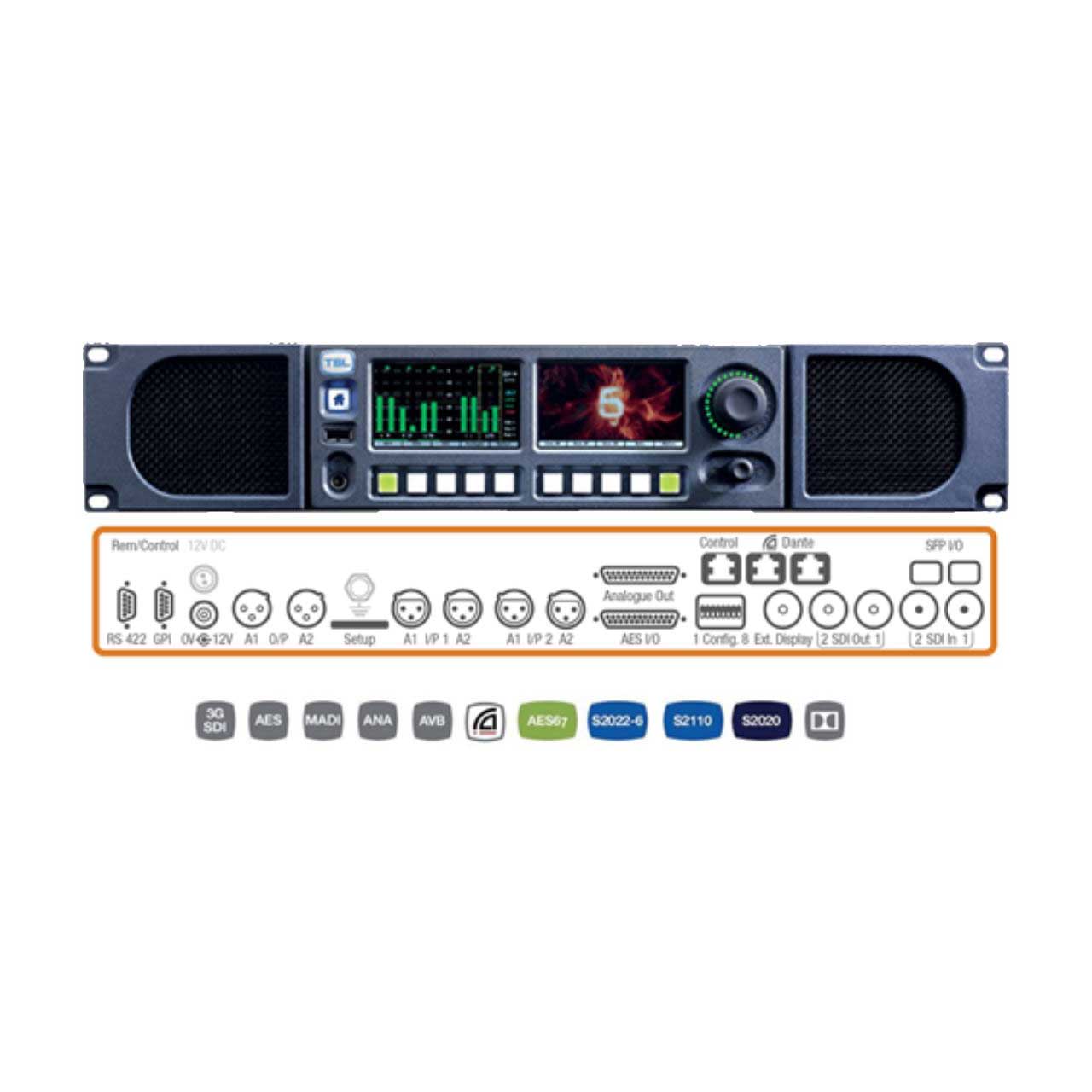

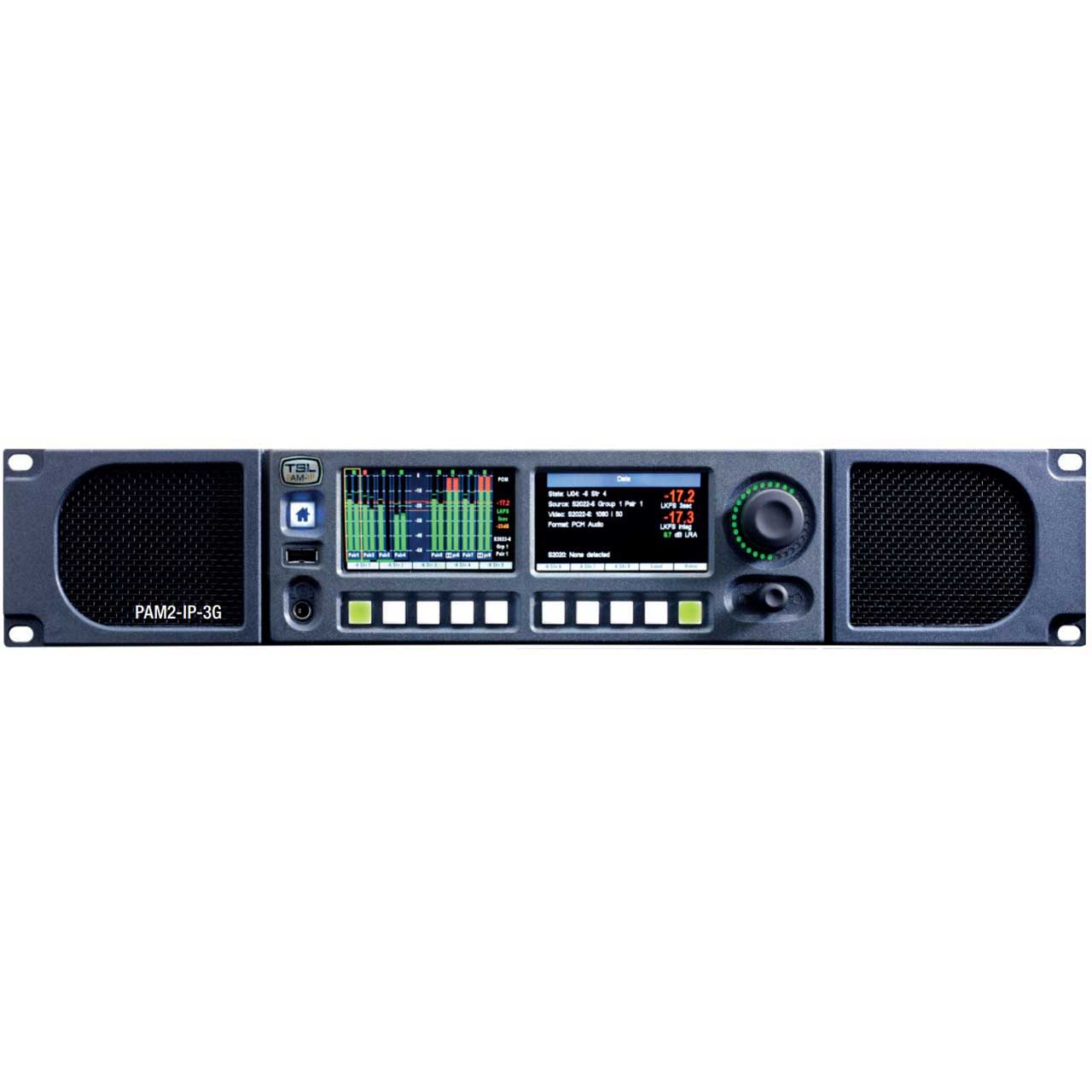

TSL Products PAM2-IP-3G 2RU Precision Audio Monitor for ST2022-6 and ST2110 IP Sources - Dante Support

ITEM #: TSL-PAM2-IP-3G MFG #: PAM2-IP-3G

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

List Price:

$12,344.00

Our Price:

$7,800.00

Special Price:

$7,600.00

Availability: In Stock
iAvailability Description Popup


    PAM2-IP-3G - Overview

    Customers looking to monitor ST2022-6 and ST2110 IP sources can do so using the intuitive and familiar PAM user interface. The PAM-IP is also Dante Domain Manger compliant, featuring Primary and Secondary Dante ports for connection into Dante networks. SDI, AES and Analogue connectivity is also provided for connection into more traditional infrastructures.

    About TSL Products

    For over 30 years we have worked directly with the world's leading broadcasters and content creators to design, manufacture and market a range of broadcast workflow solutions that serve to simplify operations within the television broadcast, cable, satellite, IPTV and IT industries. Specialising in audio monitoring, broadcast control systems and power management tools, we ensure that our solutions satisfy and exceed the commercial, technical and operational requirements that exist in IT-based and traditional workflows to help our customers lower costs, generate revenue and streamline operations.

    • Features:

      • Same feature set and operation as PAM2 MK2.
      • Now supports IP Infrastructures whilst maintaining 3G/HD/SD-SDI, AES and Analog Audio connections
      • Now supports Dante Audio over IP (Optional extra)
      • Monitoring and decoding of Dolby E, Dolby Digital and Dolby Digital Plus (including Metadata)
      • Loudness Monitoring - EBU (R128) and ATSC (A85)
      • 3G/HD/SD-SDI Video Source Monitoring directly on Front Panel.
      • User Programmable Presets

    • Specifications:

      • Equipped with 2 x 10Gig/E SFP+ ports
      • Supports uncompressed ST-2022-6 and ST-2110
      • Supports IGMP v3 for Multicast `join/leave' requests
      • Recall of stored Presets also includes Multicast `join/leave' request
      • Equipped with Primary and Secondary 1 Gig/E ports for use on Dante/AES67 Networks
      • Fully compatible with Audinate's Dante Controller
      • High quality internal full range loudspeaker system
      • Variable LED brightness control
      • Dual 12V DC inputs
      • Control API available


    PAM2-IP-3G - Required Accessories
