Wohler iAM-AUDIO-1 PLUS 1RU Triple Screen - 16 channel Dual Input - 3G/HD/SD-SDI Audio Monitor with Touch Screen Control

ITEM #: WOH-IAMAUDIO1PLS MFG #: IAM-AUDIO-1 PLUS

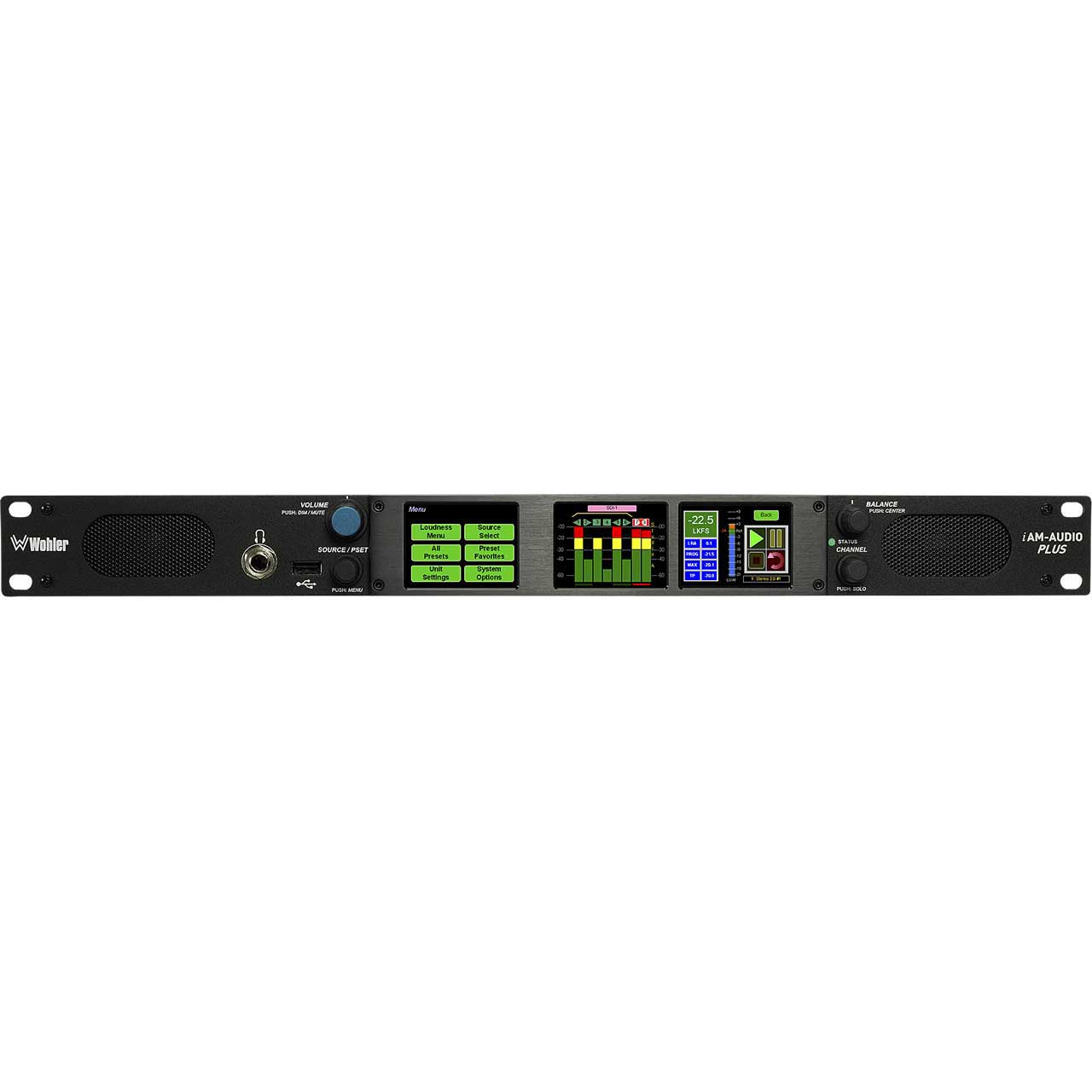

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

Our Price:

$4,995.00

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup


    IAM-AUDIO-1 PLUS - Overview

    The Wohler iAM-AUDIO-1 PLUS is a well featured, easy to use, competitively priced 16 channel IP ready audio monitor which comes standard with 3G-SDI and Analog inputs, loudness monitoring and phase status. Developed as a direct result of customer feedback, it shares many of the same features as the iVAM1-3, but without video monitoring. License other signal formats and processing options, including Dolby, AoIP, Toslink and 8 channel Analog, as and when needed, either initially or after purchase.

    Flexible. Adaptable. Future Proof.
    iAM-AUDIO-1 PLUS is designed to be easy to operate, providing fast access to meters, menus and presets. Options for additional signals, including AES3, MADI64, Dante™, Ravenna™, SMPTE-2110 and SMPTE-2022-7.

    All iAM Series monitors contain an onboard web server. Multiple units on the same network can be updated, monitored and controlled via a browser-based user interface that supports fast configuration with role-based authentication that protects critical configurations from unauthorized alteration.

    • Features:

      • Audio monitoring (up to 16 channels) from multiple sources
      • Up to 64 presets

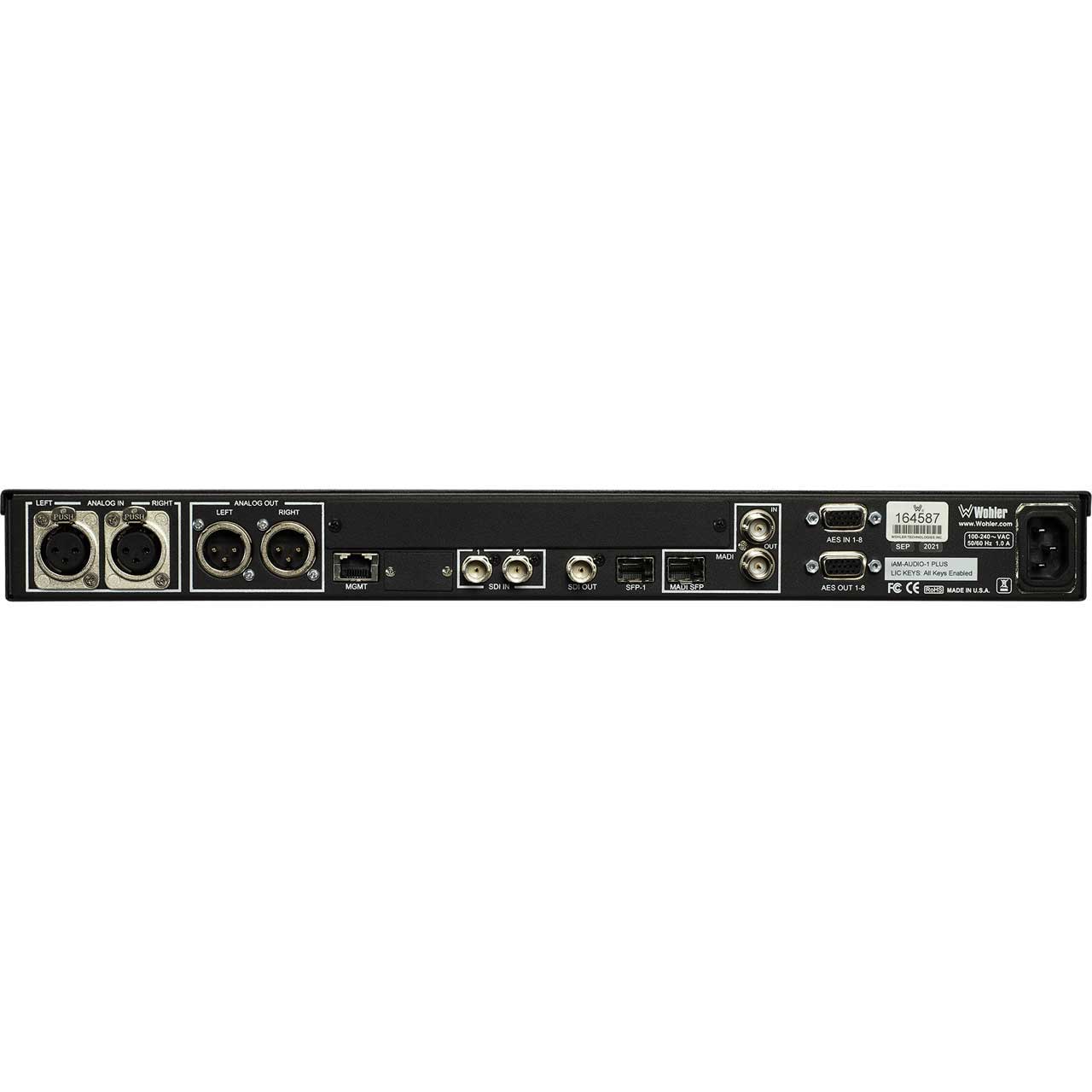

      • 2 x 3G-SDI Inputs on BNC; 1 x 3G-SDI Output on BNC + 1 pair Analog in/out on XLR
      • Optional Output routing enables the flexibility to route input signals to various outputs
      • Optional I/O for AES3 on HD-15 (incl selected audio source converted to AES3 out), MADI on BNC (looped out), and SMPTE 2110 or SMPTE 2022 via SFP
      • Measure Audio Loudness using ITU-R BS.1770 or EBU R128 standards
      • Phase status
      • Option cards for AoIP or an additional 8 channels of analog inputs and outputs
      • Software upgradeable via USB or Network
      • APIs for remote management

    • Specifications:

      • Dimensions (WxHxD): 1RU in standard 19" rack: 19 x 1.75 x 5.5" (483 x 45 x 140mm)
      • Weight: 5.5Lbs (2.5kg)
      • Shipping Dimensions (WxHxD): 23 x 6 x 12"
      • Shipping Weight: 8Lbs (3.6kg)
      • Power Consumption/Supply: 65W, 100 to 240 VAC ±10%, 50-60 Hz, CE & UL approved
      • Display Type: 2.4" (60 mm) LCD Capacitive Touchscreen
      • Resolution: 320H x 240V
      • Viewing Angle: 160 (H) x 160 (V)
      • Audio Channels: 16 Max
      • Hum and Noise: Better than -68 dB below full output
      • Peak Acoustic Output: 90 dB SPL @ 2 feet
      • Speaker Power Output: 5W RMS per side, 12W Peak
      • Upgrades: Via USB or GUI web interface
      • APIs: Provide easy integration with 3rd party control systems
