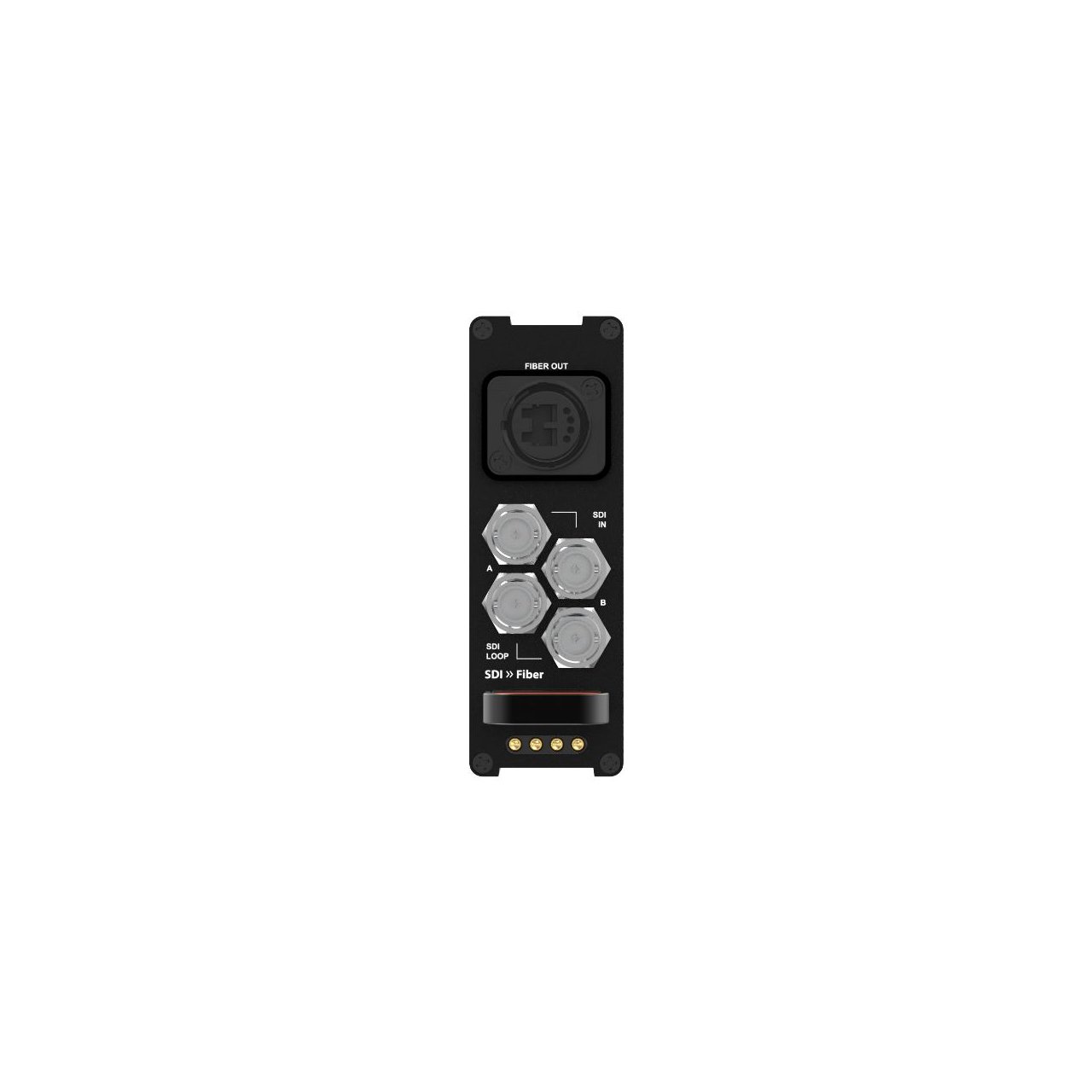

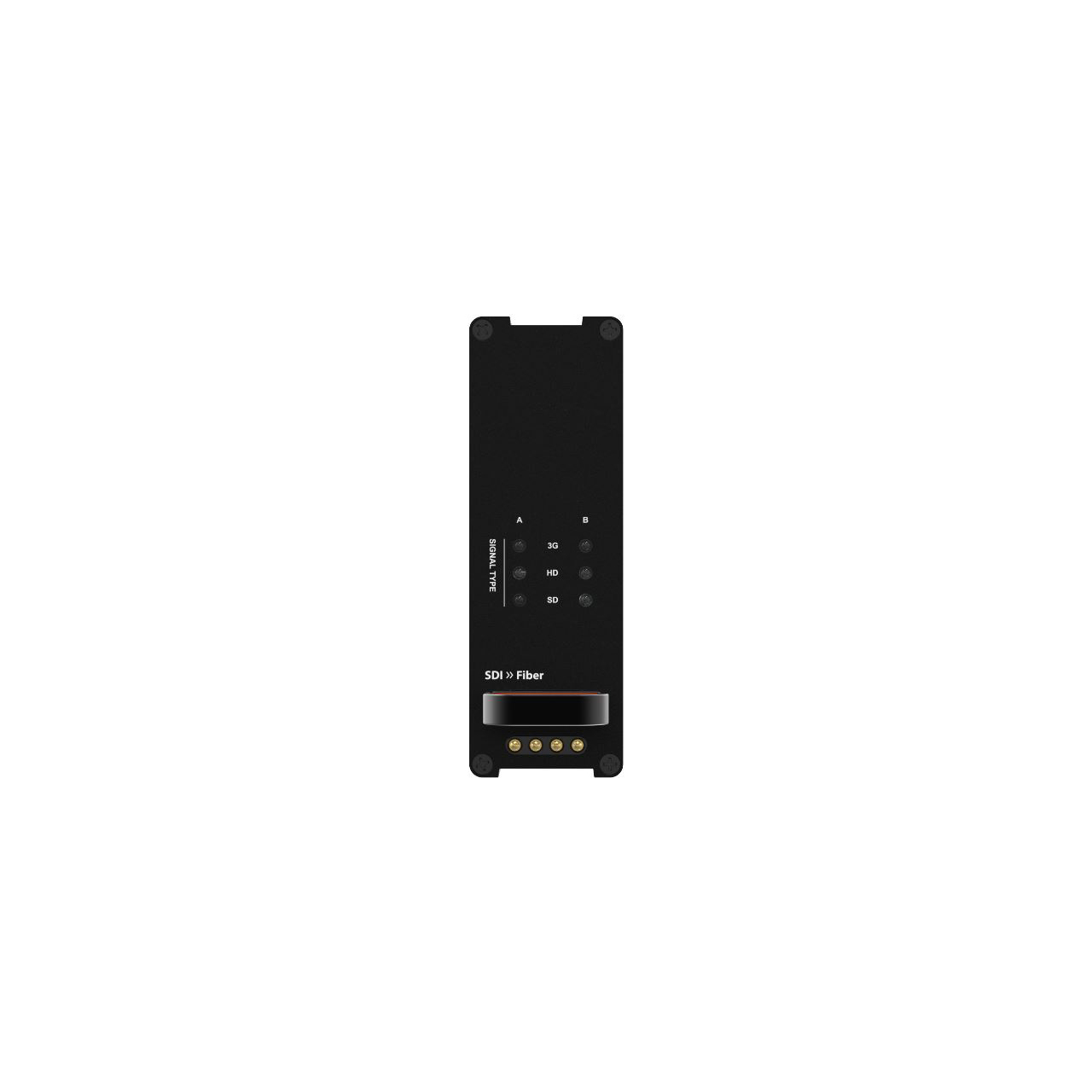

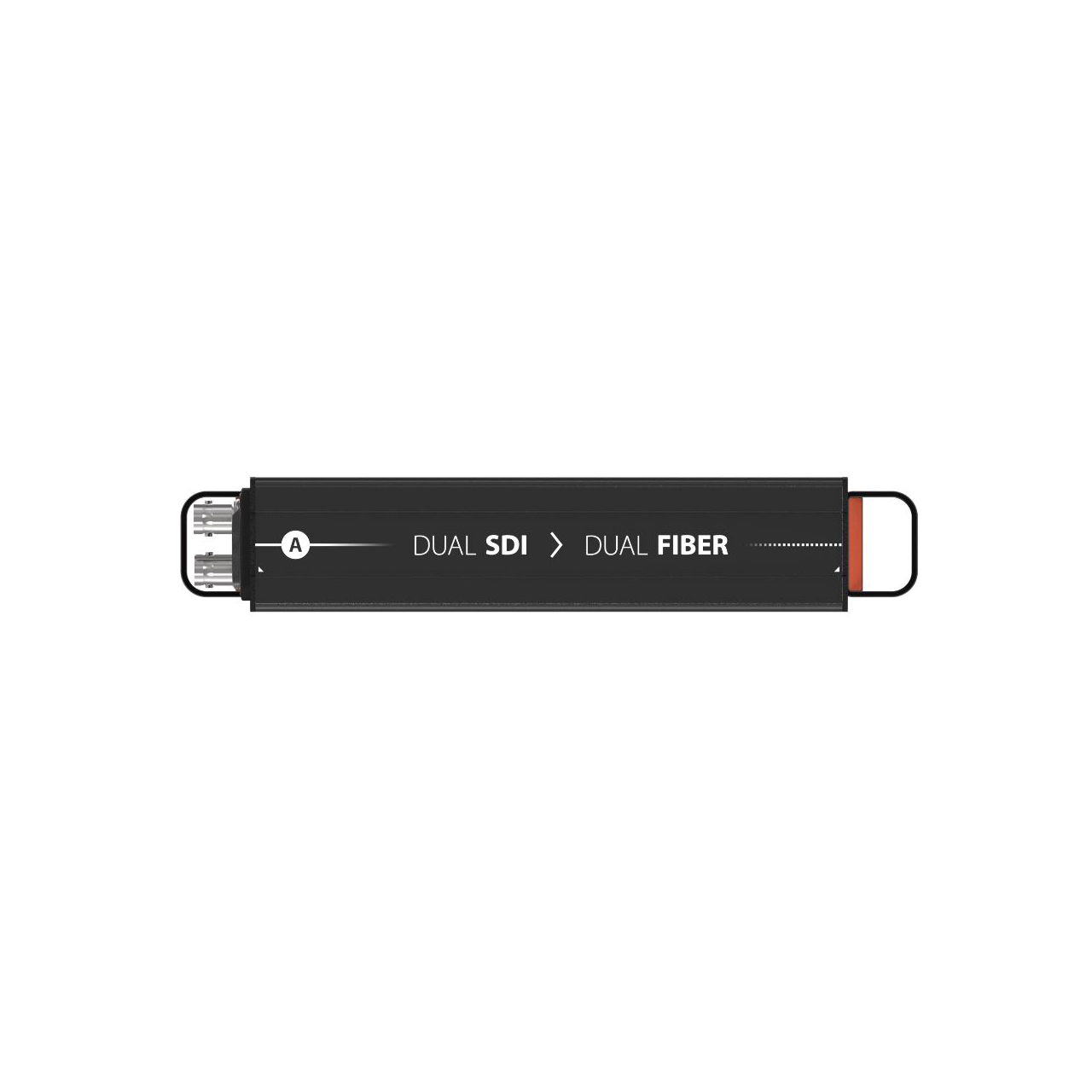

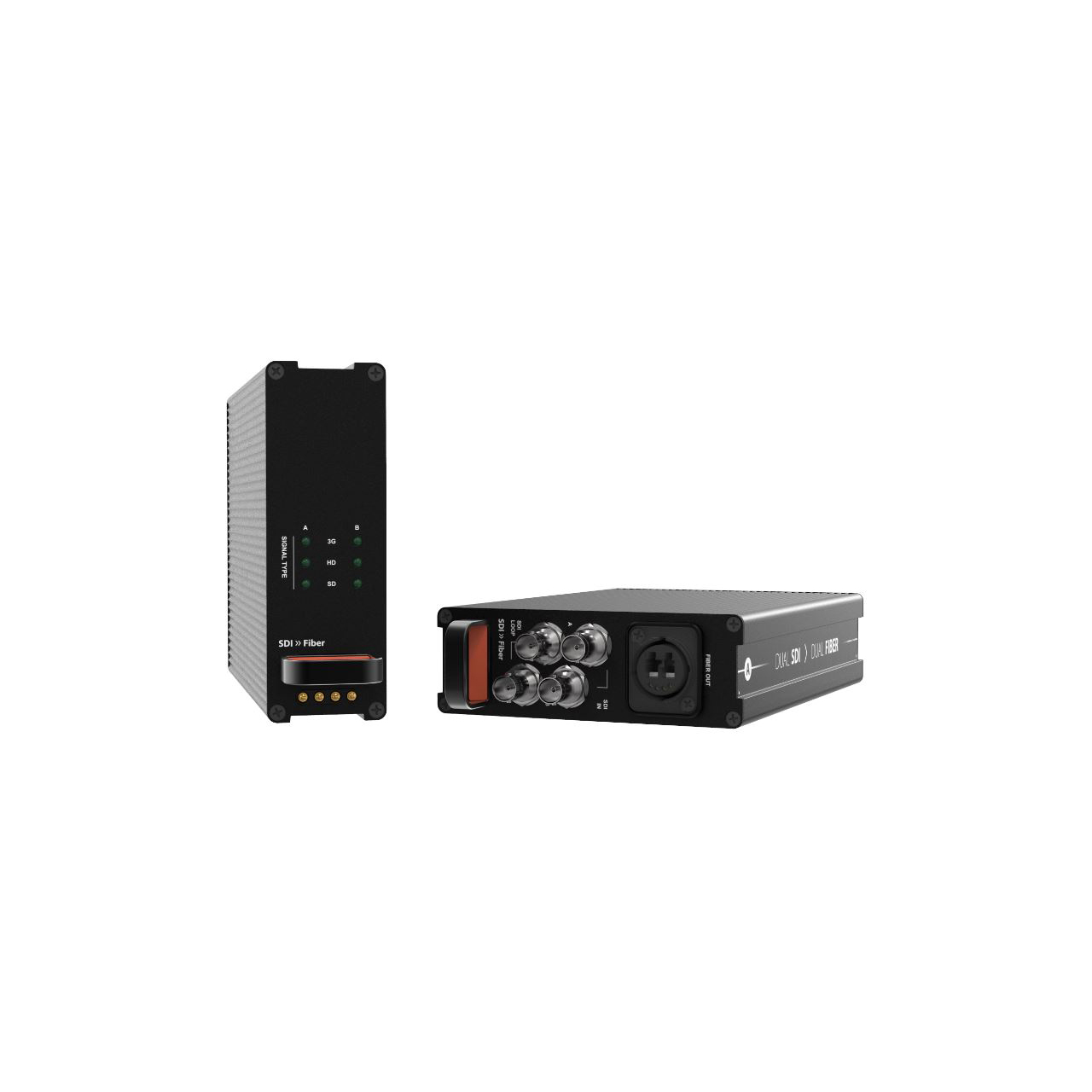

Theatrixx XVVRM2SDI2FIBERS2 Reversible Module - Dual 3G-SDI to Dual Fiber - SM - OpticalCON Duo


Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

List Price:


Our Price:


Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup

    XVVRM2SDI2FIBERS2 - Overview

    The Dual SDI to Dual Fiber Reversible Module fits in the Theatrixx 8-bay Frame. The module can be inserted in the 8-Bay Frame in either direction, allowing the inputs/outputs to be positioned either at the front or the back of the unit depending on the application. There are no exposed PCBs as all modules are enclosed, and therefore protected againststatic shock, dust and general wear and tear. Gold-plated, redundant spring pins with magnetic retention deliver DC power to the modules, meaning no messy cabling and external power bricks are needed

    • Specifications:

      • Video Input: 2 x 3G/HD/SD SDI BNC
      • Loop-thru: 2 x 3G/HD/SD SDI BNC
      • Video Output: OpticalCON DUO Singlemode
      • Video Format Support: 3G-SDI Level A and B, HD-SDI, SD-SDI with
      • embedded audio.
      • SMPTE Standards: 425M Level A & B, 424M, 292M, 259M
      • Relative Humidity: 0% to 90% non-condensing
      • Operating Temperature: 0-40 °C
    • Item Includes:

      • Theatrixx Reversible Module Dual SDI to Dual Fiber
