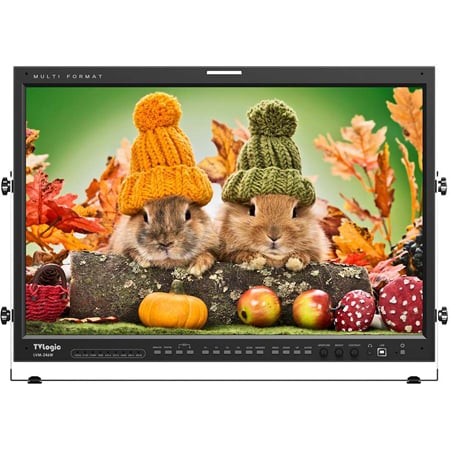

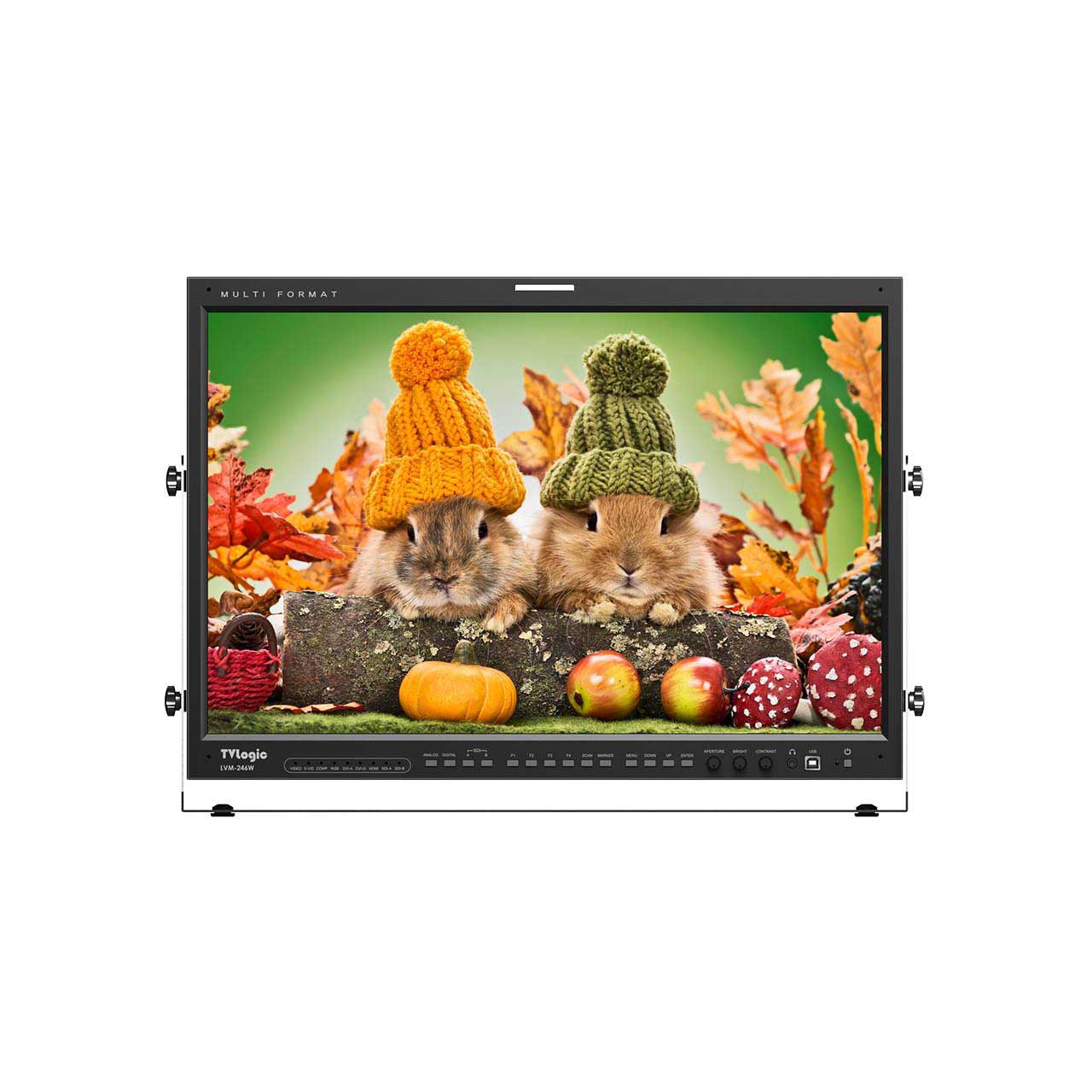

TVLogic LVM-246A 3G-SDI Full HD 24 Inch 1920x1200(8-bit) Professional LCD Monitor w/SDI/HDMI/BNC/DVI Inputs

LVM-246A - Overview

24 Inch Full HD Display for Non-Critical Broadcast Monitoring

• Features:

  • Full HD Resolution
  • Easy and Simple
  • IPS LCD
  • Timecode Display
  • 16 Channel Audio Level Meter
  • Wide Color Gamut
  • 3G-SDI Level A/B
  • Closed caption
  • Focus Assist
  • Dynamic UMD
  • Waveform/Vector Scope


• Specifications:

  • Size: 24"
  • Resolution: 1920 x 1200 (16:10)
  • Pixel Pitch: 0.27(H) x 0.27(V) mm
  • Color Depth: 16.7M Colors (True 8bit)
  • Luminance of white: 600nits
  • Contrast Ratio: 1000:1
  • Display Area: 518.4(H) x 324.0(V) mm

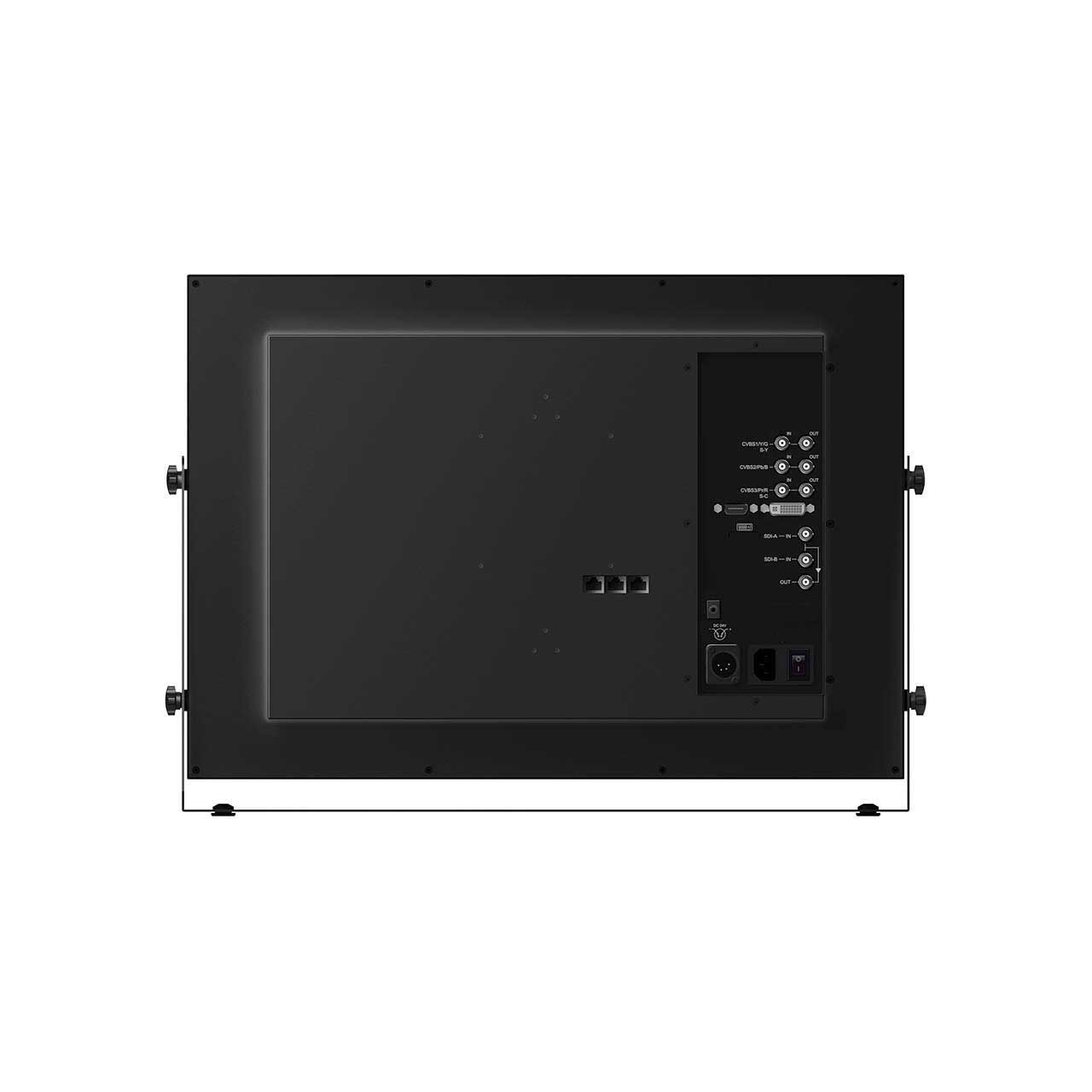

  • Input
  • 2 x BNC SDI A/B Channel Input
  • 1 x HDMI HDMI Input
  • 3 x BNC Analog Video Input
  • 1 x DVI-I DVI-IN
  • Output
  • 1 x BNC SDI Channel (Active Through Out)
  • 3 x BNC Analog Video Output
  • Audio In: Embedded Audio / Analog Stereo (Phone Jack)
  • Audio Out: Internal Speaker (Mixed Mono)/ Analog Stereo (Phone Jack)
  • Power: DC 12~24V / AC100~240V(50~60Hz)
  • Power Consumption: (Approx.) 115W


• Item Includes:

  • 1x LVM-246A Monitor
  • 1x AC Power Cord
  • 1x Table Stand
