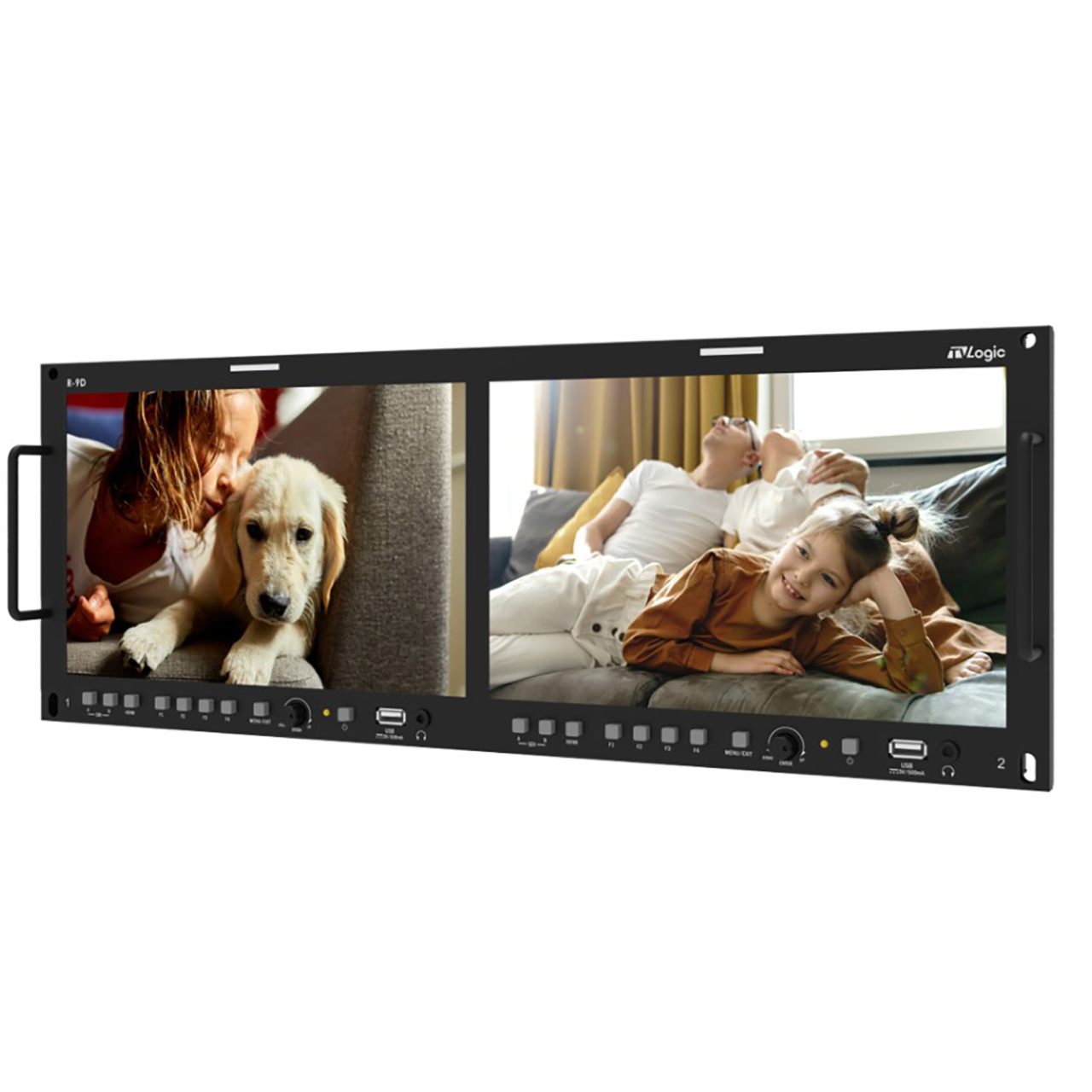

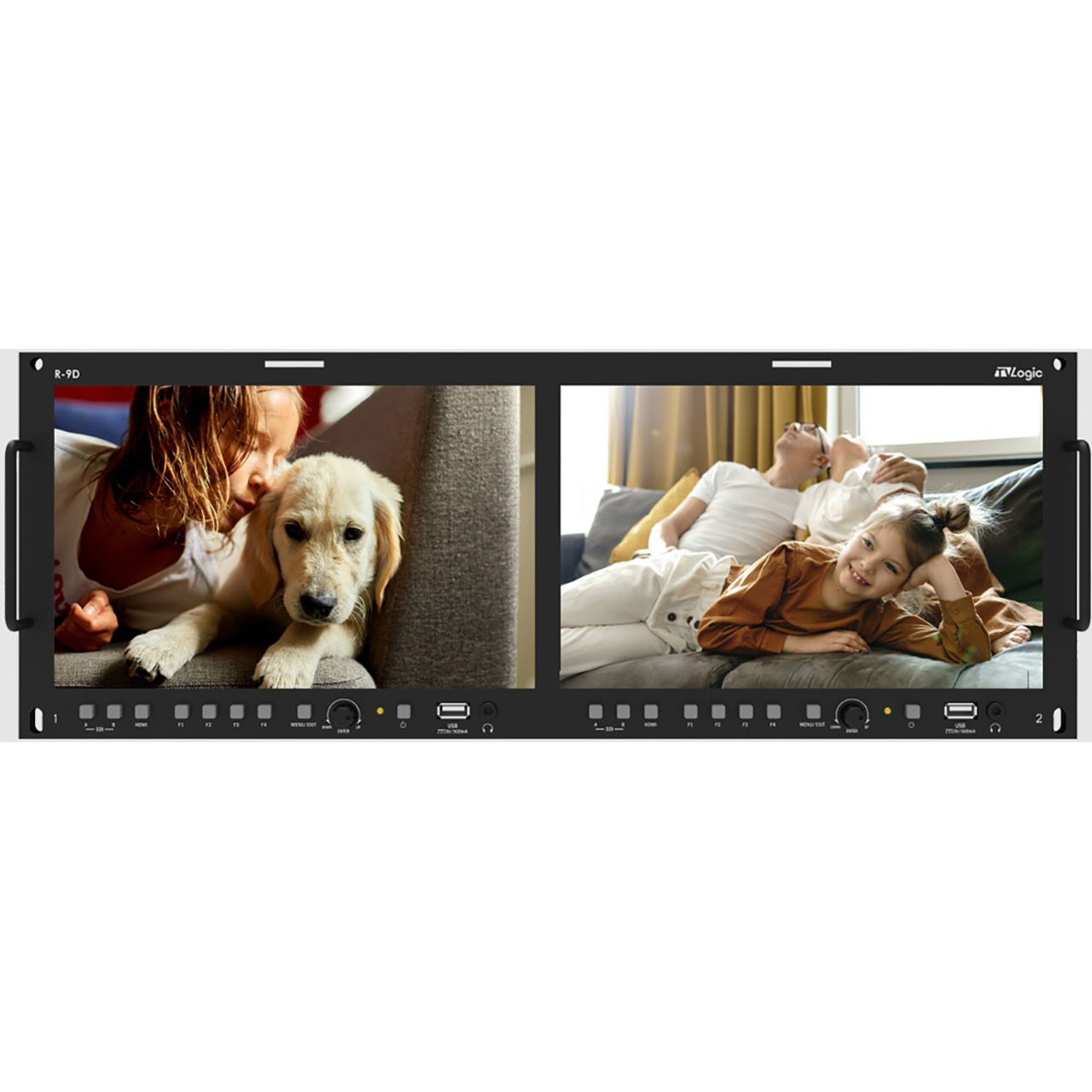

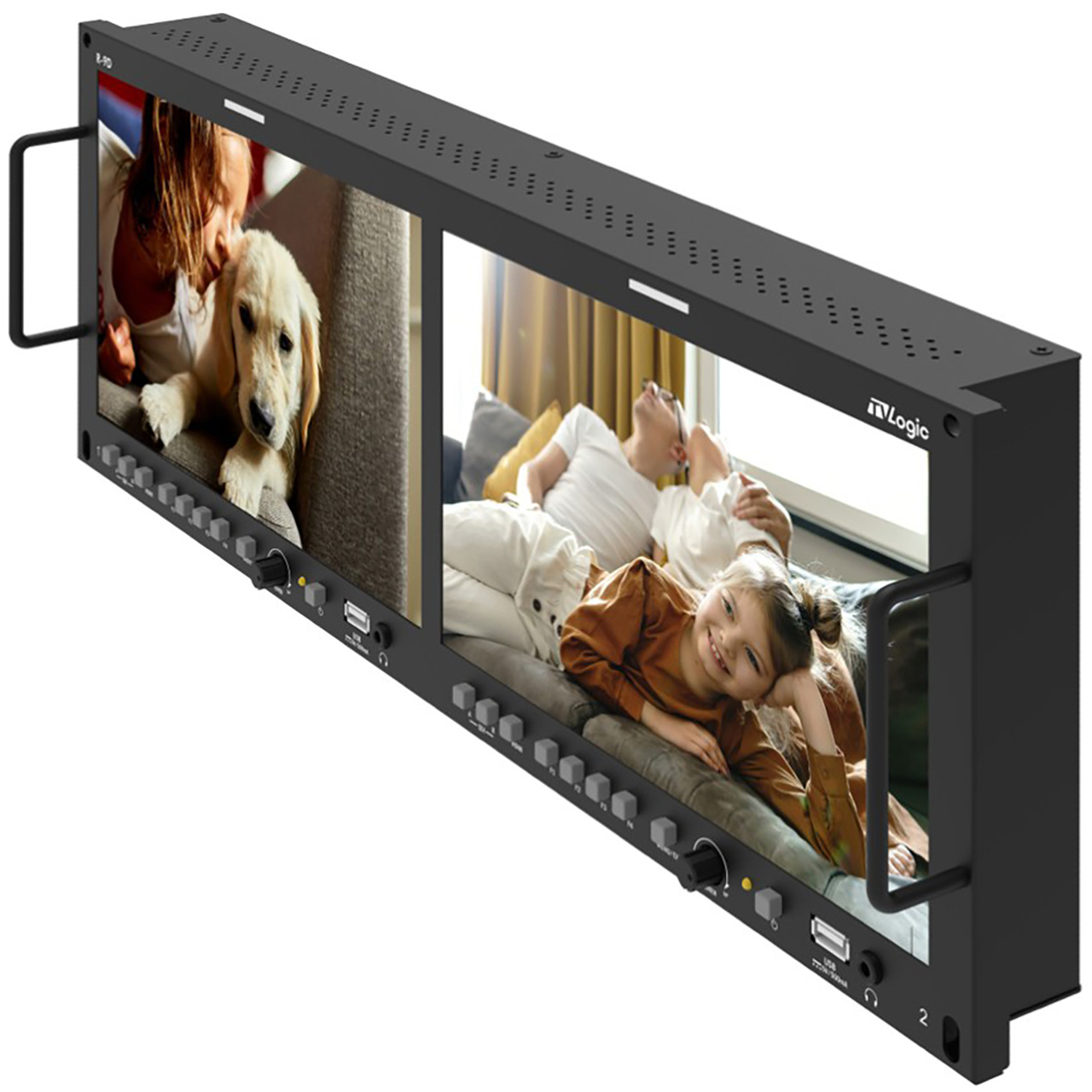

TVLogic R-9D Dual 10.1-Inch 12G Ready 4RU Rack-Mount Monitor with One 12G-SDI Loop Out & One 3G-SDI Input with Loop Out

R-9D - Overview

• Features:

  • Dual 10" Full HD LCD Screens
  • 12G/6G/3G-SDI Input & Output
  • HDR (PQ, HLG, S-Log3)
  • Waveform/Vectorscope
  • 16 Channel Audio Level Meter
  • Marker
  • Dynamic UMD
  • Timecode Display
  • Luma (Y') Zone Check
  • Focus Assist
  • 1:1 Scan/Zoom
  • Blue/Mono Only
  • H/V Delay
  • Tally
  • Remote Control by Ethernet


• Specifications:

  • Main Body: 18.93" x 6.92" x 1.94" (481mm x 175.8mm x 49.5mm)
  • With Handle: 18.93" x 6.92" x 3.03" (481mm x 175.8mm x 77mm)
  • Weight: 6.50Ibs (2.95kg)
  • Size: 10.1"
  • Resolution: 1920 x 1200 (16:10)
  • Pixel Pitch: 0.1128mm (H) x 0.1128mm (V)
  • Color Depth: 16.7M Colors (8 bit)
  • Viewing Angle: 170° (H)/170° (V)
  • Luminance of White: 800cd/m2
  • Contrast Ratio: 1000:1
  • Display Area: 8.52 (H) x 5.32 (V)

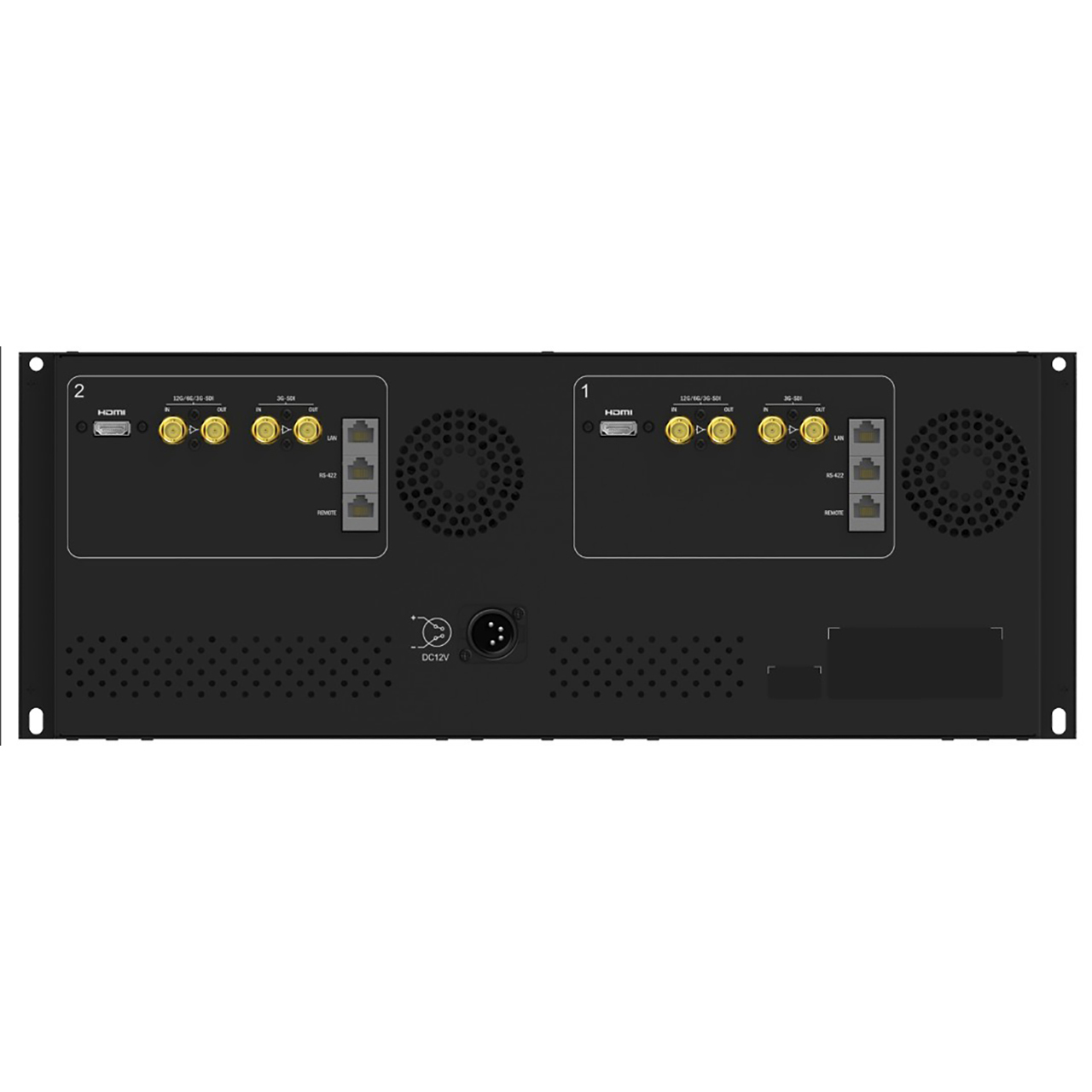

  • Input:
    - 1x HDMI
    - 1x 3G-SDI BNC
    - 1x 12G-SDI BNC
    - 2x RJ45 RS-422 REMOTE
  • Output:
    - 1x 12G-SDI BNC OUT (Passive Through Out)
    - 1x 3G-SDI OUT (Passive Through Out)
    - 1x RJ45 RS-422
  • Input Signal:
    - 12G-SDI-11.88Gb/s
    - 6G-SDI-5.94Gb/s
    - 3G-SDI-2.97Gb/s
    - HD-SDI-1.48Gb/s
    - SD-SDI-270 Mbps
    - HDMI-1080p and 1080i
  • SDI Input Signal Formats:
    - SMPTE ST 2082 2160p (60/59.94/50/30/29.97/25/24/23.98/30sF/29.97sF/25sF/24sF/23.98sF)
    - 2160i (60/59.94/50)
    - SMPTE-425M-A/B 1080p (60/59.94/50/30/29.97/25/24/23.98/30sF/29.97sF/25sF/24sF/23.98sF)
    - 1080i (60/59.94/50)SMPTE-274M 1080i (60/59.94/50)
    - 1080p (30/29.97/25/24/24sF/23.98/23.98sF)
    - SMPTE-296M720p(60/59.94.50/30/29.97/25/24/23.98)
    - SMPTE-125M 480i (59.94)
    - ITU-R BT.656 576i (50)
  • Audio In: Embedded Audio
  • Audio Out: Speaker
  • Power: DC 12V/3.4A
  • Power Consumption (est): 38W
  • Operating Temperature: 32°F - 104°F
  • Storage Temperature: -4°F - 140°F


• Item Includes:

  • TVLogic Dual 10.1" 12G-SDI Rackmount Monitor
  • Power Cable
  • Power Adapter
  • Rackmount Kit
