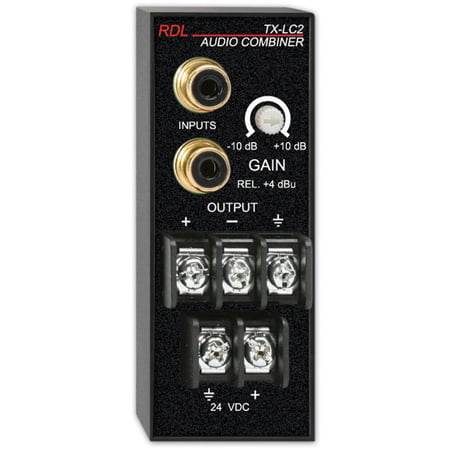

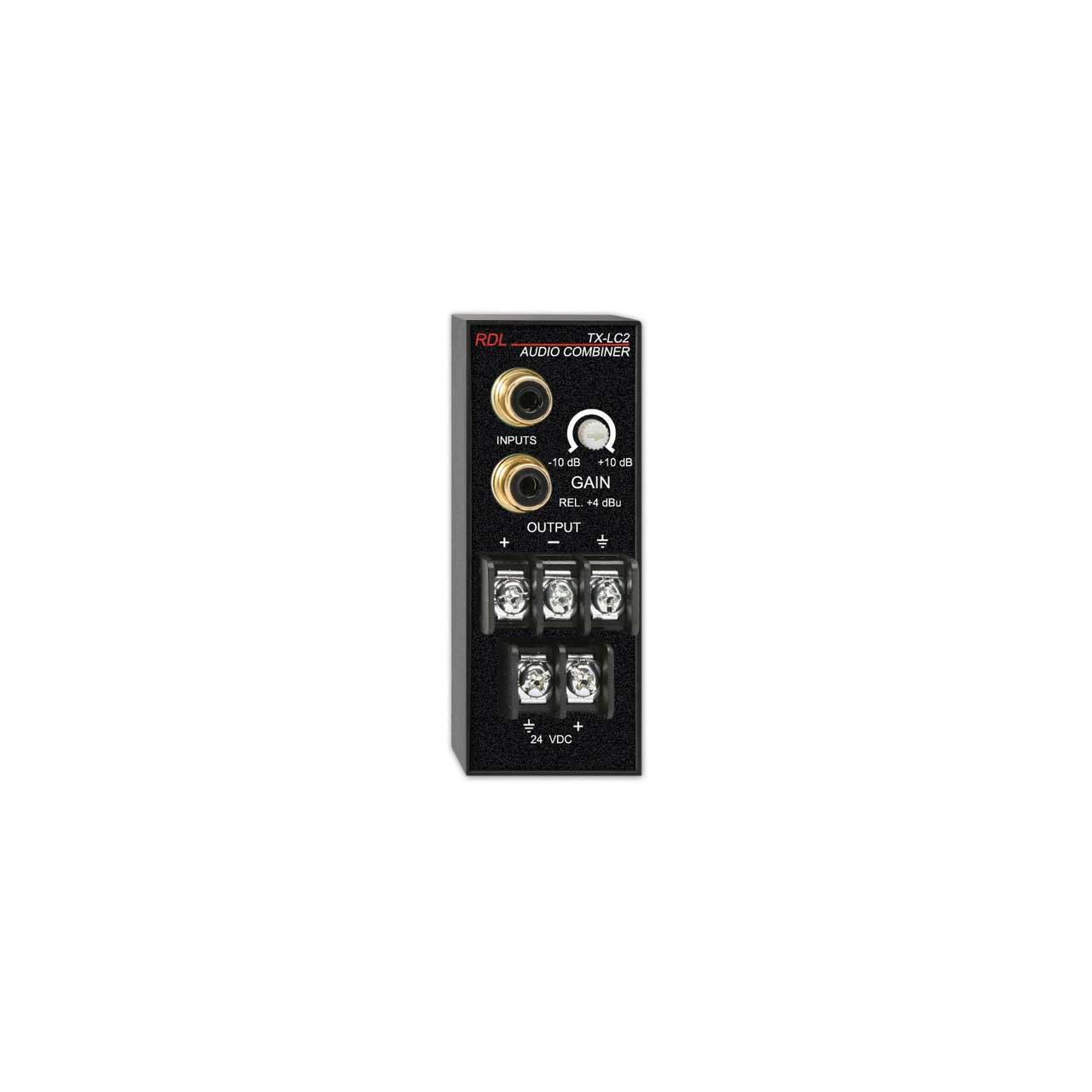

RDL TX-LC2 Unbalanced to Balanced Line Combiner

ITEM #: TX-LC2 MFG #: TX-LC2

  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
free ship

List Price:

$171.20

Our Price:

$116.45

Availability: In Stock
iAvailability Description Popup


    TX-LC2 - Overview

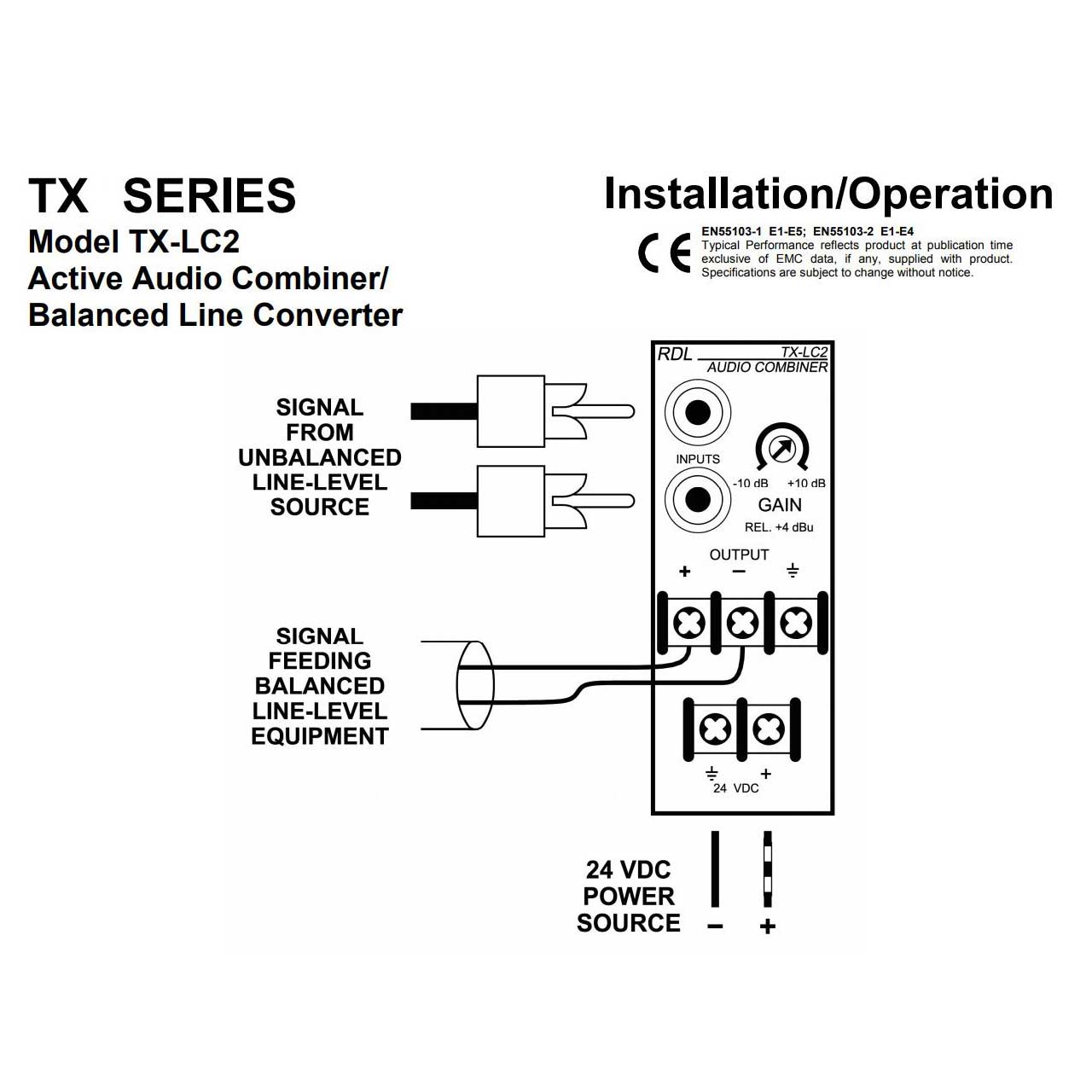

    The RDL TX-LC2 is the ideal choice in installations requiring the active, isolated mixing of two unbalanced line-level audio sources to feed a balanced (or unbalanced) audio line.

    The input circuits are high-impedance, line-level (-10 dBV) and are each isolated from each other. Therefore the modules may be used to bridge an unbalanced stereo source without affecting the stereo separation. The output from the TX-LC2 is a mono mix of the stereo signal. Gain of the combined signals is adjustable from unity to 14 dB.

    The TX-LC2 may also be used to mix two separate sources into a single output. The mixing circuit in the module is an active summing amplifier.

    The input connectors make connection of the TX-LC2 easy. The gain range makes the TX-LC2 ideally suited to any installation where a balanced mono signal is needed from a stereo unbalanced source, particularly low-output consumer products such as certain televisions.

    • Features:

      • Mix 2 Unbalanced Audio Signals to Mono Balanced
      • Combine Stereo Into Mono with Balanced Output
      • Output Gain Trim
      • Isolation Between Inputs
      • Unbalanced to Balanced Conversion
      • High-Quality Audio
      • PS24V Power Supply required (Sold Separately)

    • Specifications:

      • Inputs (2): -10dBV nominal, -22dBV minimum
      • Input Impedance: 10kΩ
      • Noise: < -85dB below +4dBu (-10dBV input @ 12dB gain)
      • THD+N: < 0.005%
      • Frequency Response:
        10Hz - 20kHz (±0.25dB into bridging input)
        25Hz - 20kHz (±0.25dB into 600Ω)
      • Gain: ±10dB (rel. +4dBu balanced output, adjustable)
      • IMD: > 0.001%
      • Output: 150Ω balanced, +4dBu to drive low or high impedance, balanced or unbalanced lines
      • Headroom: > 18dB
      • Ambient Operating Environment: 32°F - 131°F (0°C - 55°C)
      • Power Requirement: GROUND-REFERENCED, 24 VDC @ 30mA
      • Dimensions (HxWxL): 1.4" x 1.2" x 3.0" (3.6cm x 3.0cm x 7.6cm)
      • Package Type: Cardboard Box
      • Package Dimensions: 2" x 2" x 4"
      • Shipping Weight: 0.255lbs
      • WEEE Weight: 0.195lbs
      • Tariff Code: 8518.40.2000

    • GTIN:

      0813721016065
