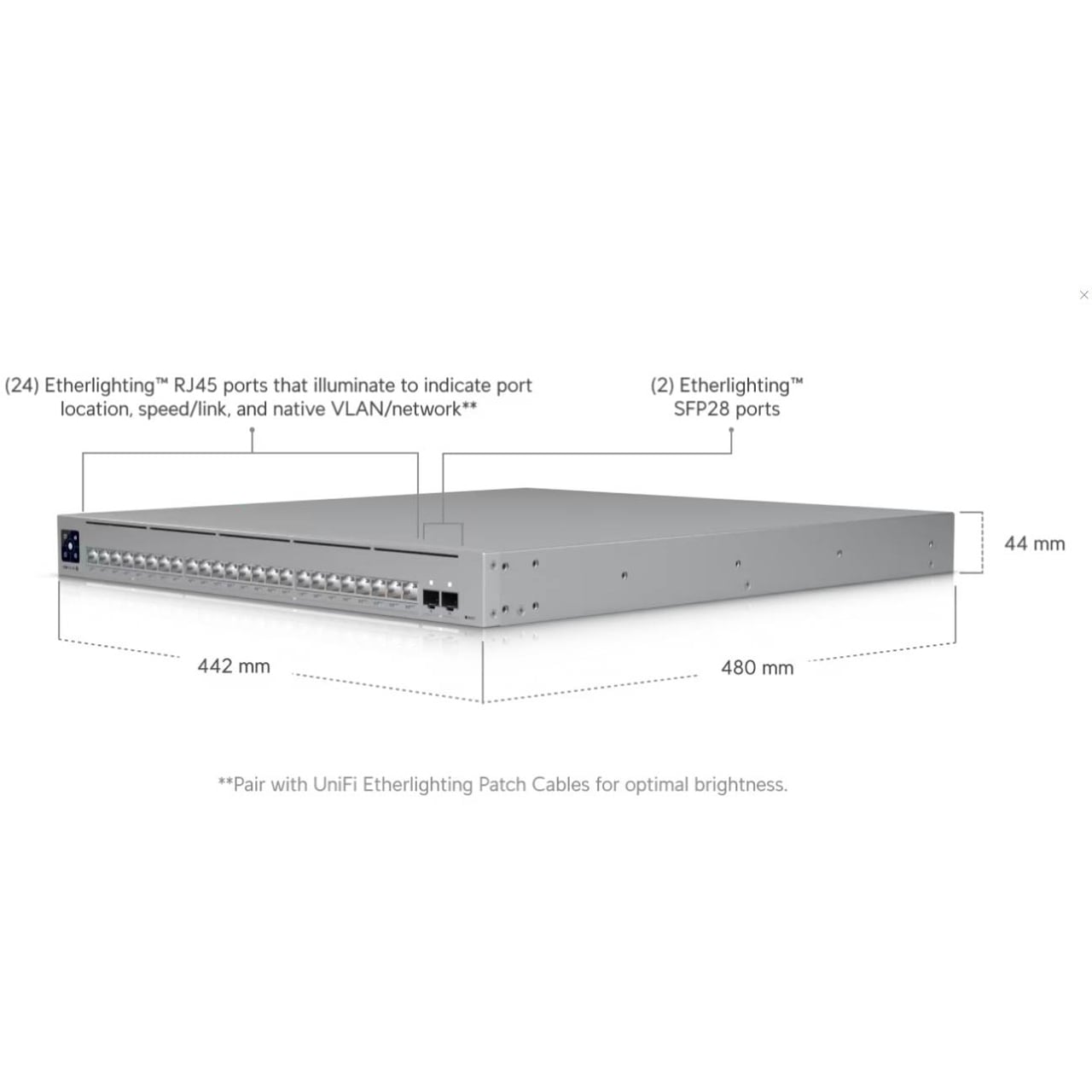

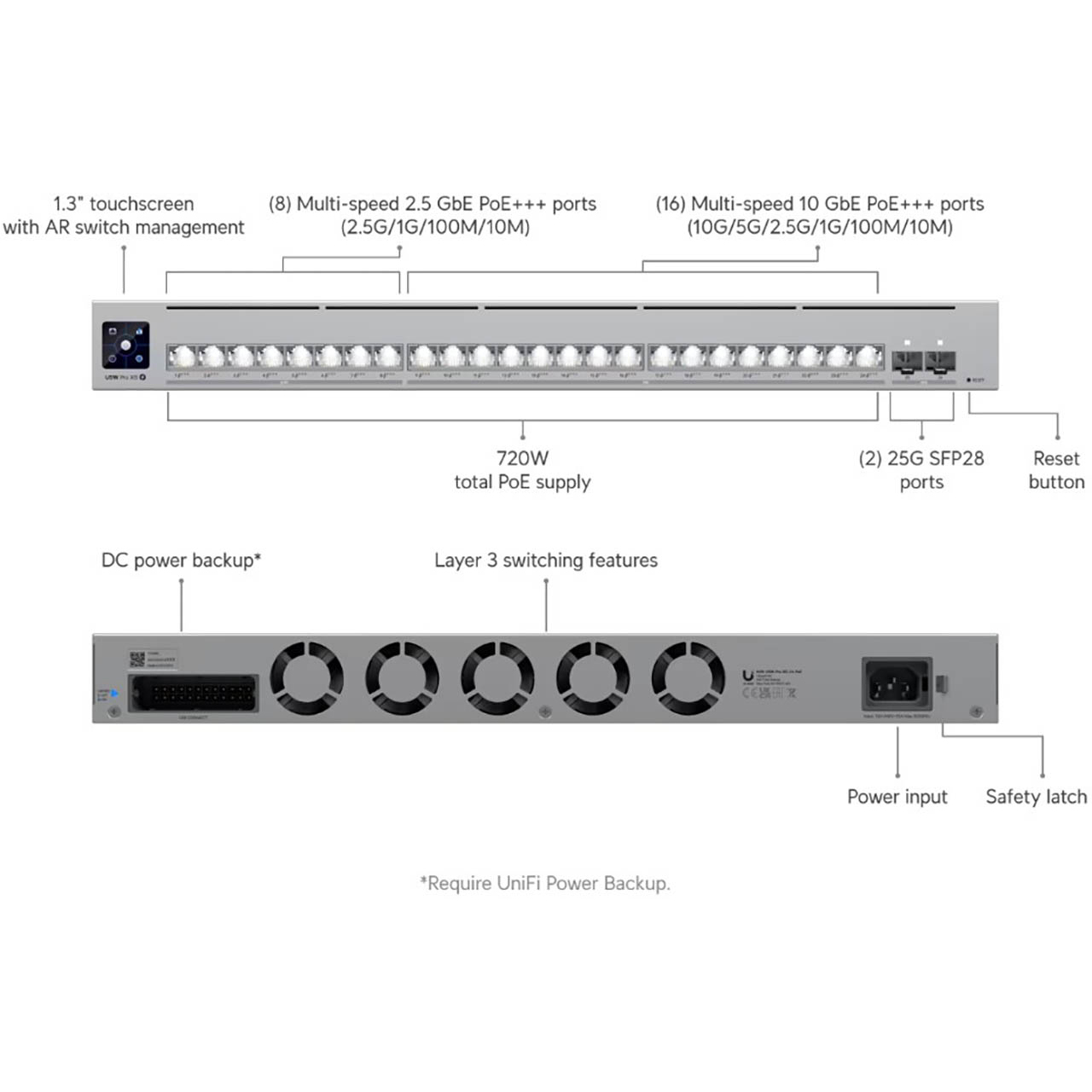

Ubiquiti USW-PRO-XG-24-POE 24-Port Layer 3 Etherlighting PoE+++ Switch with 16x 10GbE / 8x 2.5 GbE / 2x 25G SFP28 Ports

USW-PRO-XG-24-POE - Overview

• Features:

  • Wi-Fi 7 access points
  • IP video systems
  • Security cameras
  • High-performance workstations
  • NAS/SAN storage
  • Audio-over-IP and broadcast networks
  • Enterprise server infrastructure


• Specifications:

  • Switching Capacity: 460 Gbps
  • Total Non-Blocking Throughput: 230 Gbps
  • Forwarding Rate: 342 Mpps
  • Supported VLANs: 1,000
  • MAC Address Table Size: 32,000
  • IPv4 Static Routes: 512
  • Packet Buffer Size: 8 MB
  • Access Lists: IPv4 - 256, MAC - 256.
  • PoE Ports - PoE+++: 24.
  • Max. PoE Wattage per Port by PSE - PoE 15.4W, PoE+ 30W, PoE++ 60W, PoE+++ 90W.
  • Max. Power Consumption: 150W (Excluding PoE Output), 870W (Including PoE Output).
  • Power Method: (1) Universal input, 100-240V AC, 50/60 Hz, (1) USP RPS DC input.
  • Power Input Method: AC input.
  • Power Supply: AC/DC, internal, 870W.
  • Supported Voltage Range: 100-240V AC.
  • Management: Ethernet, AR.
  • LCM Display: 1.3" touchscreen
