UNiKA NBB-0202 Cascadable 2x2 Bidirectional Dante Audio Transceiver

ITEM #: UPA-NBB-0202 MFG #: NBB-0202

  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
free ship

Our Price:

$499.00

Availability: More on the Way
iAvailability Description Popup


    NBB-0202 - Overview

    The NBB-0202 bidirectionally transmits 2x2 audio to and from Dante audio network. It accepts wide range of signal from MIC to LINE level while its output capability meets the industrial standard up to 24dBu.

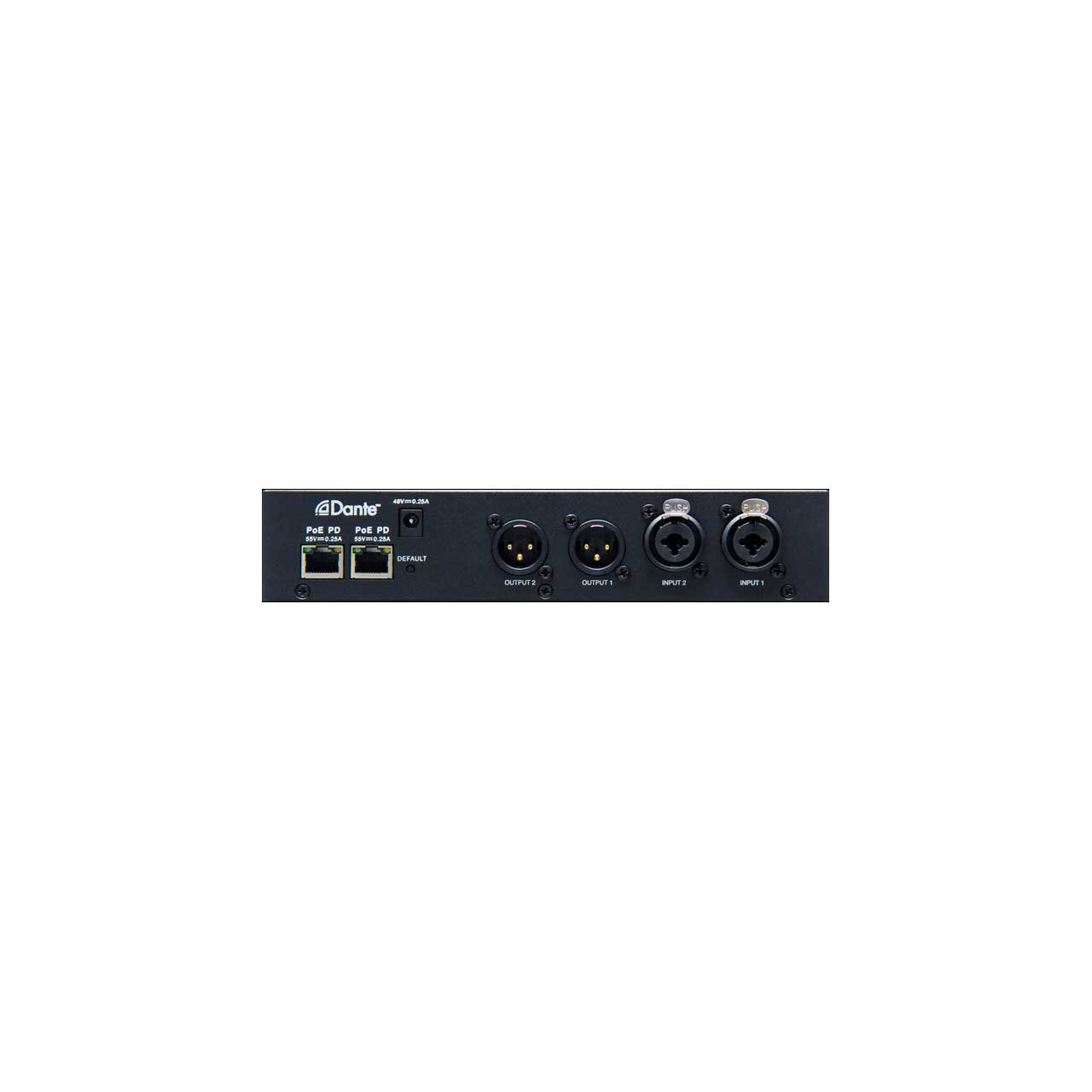

    he NBB-0202 is equipped with two RJ-45 Ethernet ports so that several NBB-0202 can be cascaded, i.e. in daisy-chaining, in the same network link. Also, it can be powered by either PoE from Ethernet switch or 48V from external power adapter.


    The UNiKA NBB-0202 adopts Audinate Dante networking technology for audio transceiving, and is very network friendly with unlimited flexibility in topology of deployment. It supports up to Layer 3 of IEEE 802.3 network standard, enabling you to organize your audio network with the on-the-shelf Ethernet switches or to immediately transport streaming audio by taking advantage of your existing installed network facility with no hassle. Even better, every NBB-0202 comes with two Ethernet ports which allow you to physically cascade several NBB-0202s in the same network link. Accompanying with Ethernet switches, this capability helps NBB-0202 gaining flexibility and expanding territory in device deployment in audio networking.

    Audio routing among each NBB-0202 and all the other Dante-enabled devices is configured via computer with dedicated Dante Controller software which is available free from Audinate website. With Dante Virtual Soundcard software, you are even able to have your DAW software direct record/play stereo streaming audio from/to NBB-0202.

    The audio input/output interfaces of NBB-0202 are fully met the requirement of professional audio industrial. Audio is encoded/decoded with the latest and uncompressed 24-bit PCM encoder/decoder with sample rate in 44.1KHz, 48KHz, or 96KHz. The NBB-0202 outputs are peculiarly buffered with amplifiers of high-rail-voltage which can drive the lines up to 24dBu. Besides the high-level of drive capability, the output of NBB-0202 can also be attenuated to meet the narrower reception range of inputs of some semi-professional devices. Both inputs of NBB-0202 accept signal of level from mic to line with individual gain and phantom power control. The NBB-0202 is also equipped with a pair of clip indicators for both the inputs to warn audio technician any signal overload on inputs.

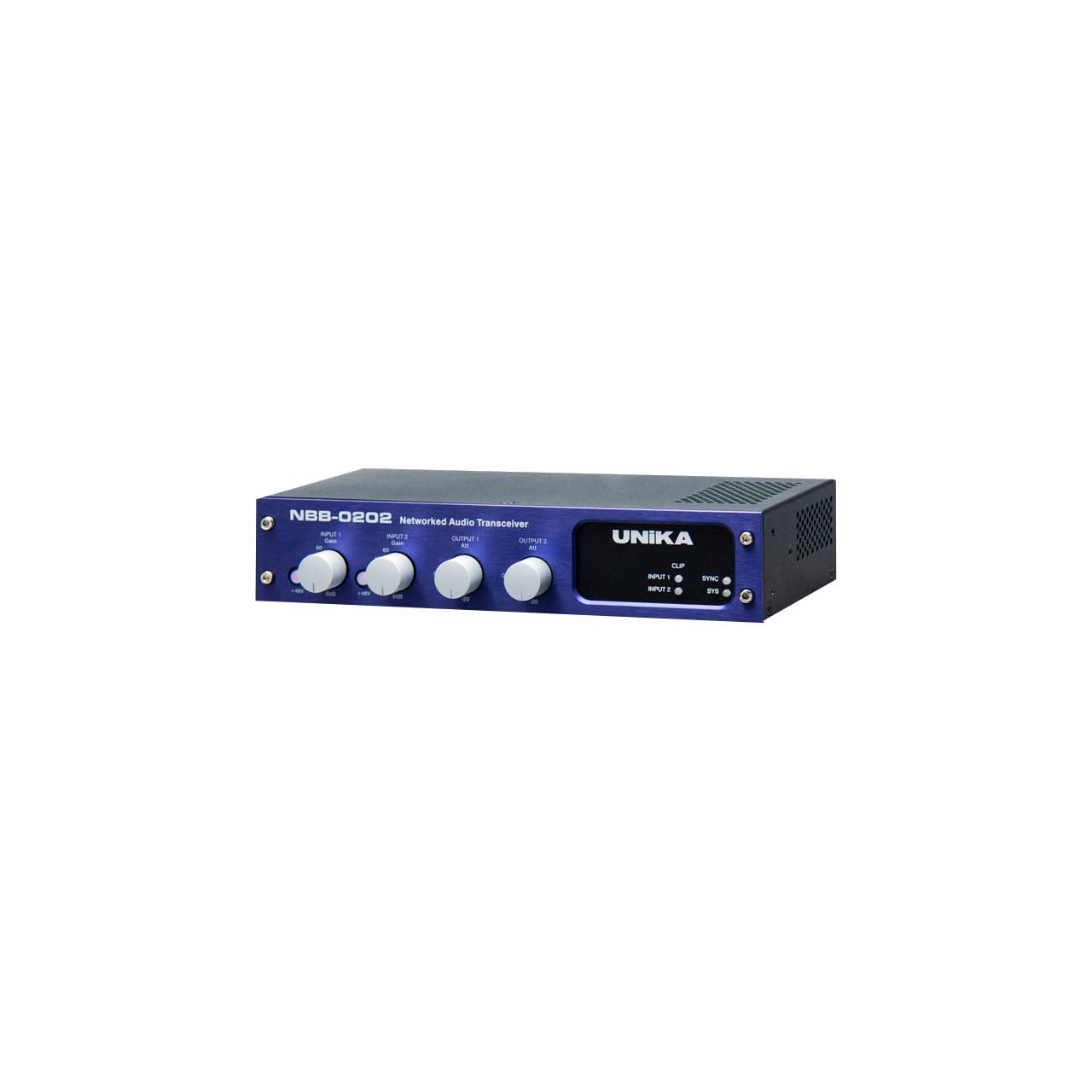

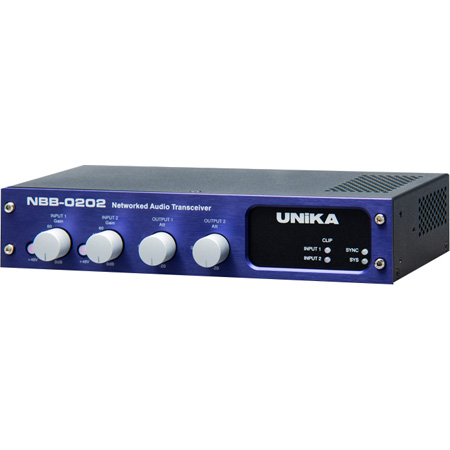

    The NBB-0202 is assembled in a sturdy metal chassis with elegant style of front panel. A set of rackmount kit is included in the package so that you can mount the NBB-0202 in standard 19" rack.

    NBB-0202 - Required Accessories

      NBB-0202 - Recommended Accessories
