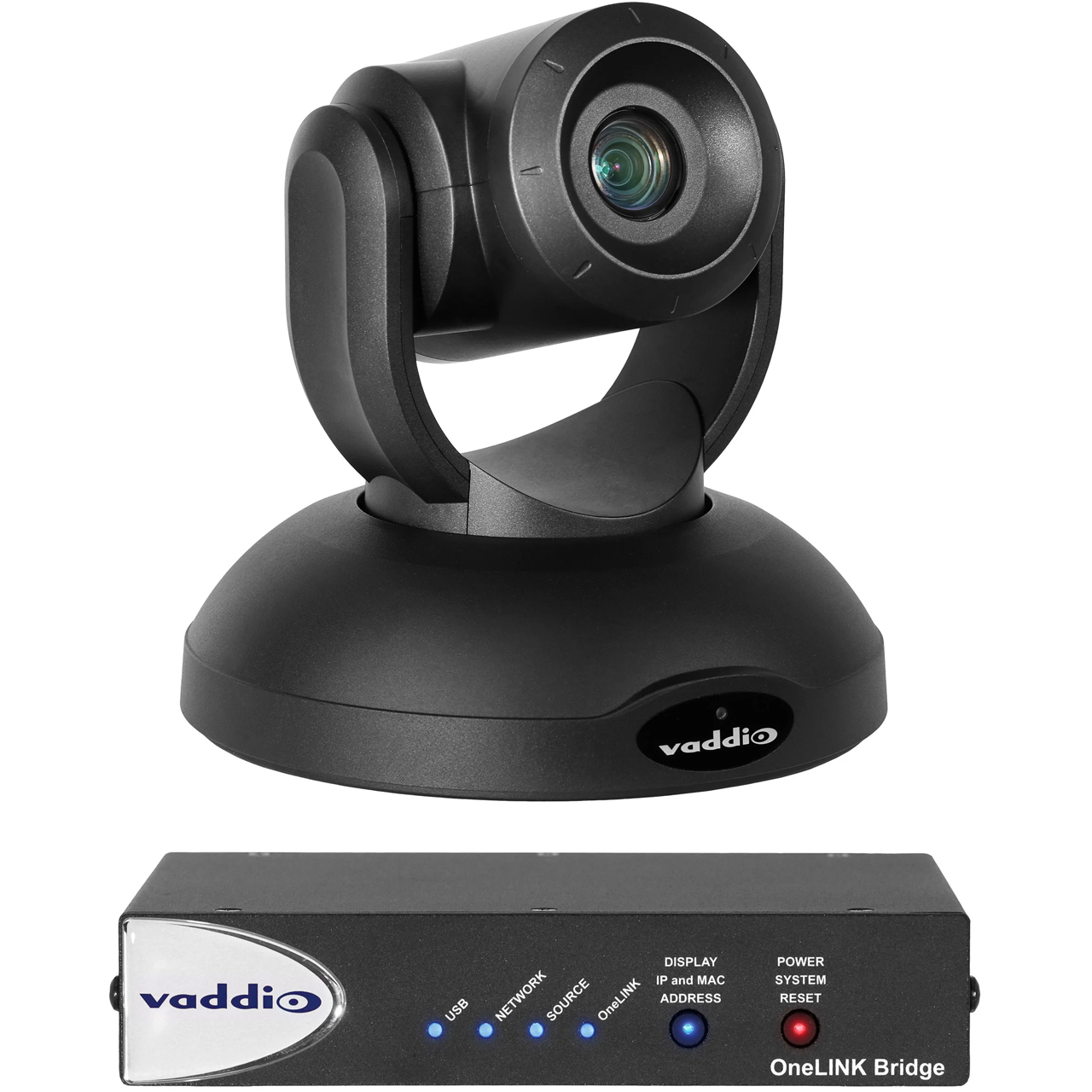

Vaddio 999-9952-200 RoboSHOT 40 UHD 40x PTZ Camera and OneLINK Bridge Interface System - Black

ITEM #: VAD-999-9952-200 MFG #: 999-9952-200

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

List Price:

$10,634.00

Our Price:

$9,570.60

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


999-9952-200 - Overview

This Vaddio 999-9952-200 system combines the RoboSHOT 40 UHD camera with the OneLINK Bridge to extend power, video and control over a single cable for simple, tidy installation. Production-quality RoboSHOT 40 UHD provides brilliant 4K video footage for broadcasting or live streaming applications.

Vaddio Deployment Tool
Simplify installations by viewing all your Vaddio products across a deployment on one screen with the simple click of a button. The Vaddio Deployment Tool enables you to select devices from the network, choose an action like rebooting the device, unmute the audio, or updating firmware and voila! - remote troubleshooting success. You can even conduct mass firmware updates on hundreds of devices all at once, which saves you a lot of time.

The production-quality RoboSHOT 40 UHD PTZ camera provides brilliant 4K video footage for broadcasting or live streaming applications.

RoboSHOT 40 UHD offers 40x zoom, genlock capabilities, ultra-smooth motor movement, and outstanding image quality - all at a surprisingly competitive price for the entry-level broadcast PTZ camera market.

Designed with a genlock external sync port, the RoboSHOT 40 UHD camera provides accurate synchronization in multi-camera broadcast environments, plus phase compensation to fine-tune and adjust the genlock signal.

In addition to an incredible 30x zoom with 4K resolution at 30fps, it provides full high definition 40x zoom with 1080p/60fps performance with the latest advancements in digital super-resolution zoom.

With its 4K Exmor R CMOS image sensor, RoboSHOT 40 UHD offers more powerful image signal processing (ISP) - resulting in better light-gathering capabilities, incredible contrast, and sharp 4K video, even in dim lighting conditions. Expect exceptional performance in the presence of high-intensity spotlights seen in performance halls, live event venues, and night-time outdoor sporting events.

RoboSHOT 40 UHD offers silky-smooth, silent pan-tilt-zoom motion, thanks to Vaddio's next-generation silent motors paired with Tri-Synchronous motion algorithms. Even at full zoom, the RoboSHOT 40 UHD moves with no jitter or bouncing.

Applications:
- Broadcast TV, corporate broadcast, local TV stations, campus news
- Churches, houses of worship
- Live events
- Sporting events such as high school football or soccer
- Large auditoriums
- Concert halls

  • Features:

    • Back-illuminated 8.51 Megapixel, ultra-high-definition 1/2.5-type CMOS sensor delivers native 2160p/30 (3840 x 2160) video
    • 20x optical zoom with 30x lossless zoom at 3840 x 2160. Achieve 40x zoom at full HD resolution
    • Genlock signal for multi-camera synchronization
    • Simple, clutter-free camera extension with HDBaseT technology
    • Power, video and control over a single Cat-5e cable up to 230 ft. (70m), or over a Cat-6 cable up to 328 ft. (100m)
    • Bridges audio and video for easy soft-client conferencing
    • Simultaneous HDMI, USB 3.0, IP Streaming, and 3G-SDI outputs
    • Configurable audio matrix with AEC
    • Up to 1080p/60 resolution available over uncompressed USB

  • Specifications:

    • 3rd Party Control: RS232, Telnet, trigger
    • Browser-based User Interface for Remote Control: Built-in
    • Camera Type: PTZ
    • Color: Black
    • Compatible With: Vaddio
    • Control Method: IR Remote, Joystick, RS232, Telnet, Touch Screen Web UI
    • Estimated Room Size: Large Room
    • Extension Type: with OneLINK Bridge
    • Field of View: 70.2° Wide End to 2.05° Tele End
    • Field of View Wide: Greater than 70
    • Focus System: Auto, Manual
    • Gain: Auto, Manual
    • Image Sensor Type: 1/2.5-type Exmor R CMOS sensor
    • Invertible: Yes
    • Max Resolution: 2160p 29.97
    • Minimum Illumination: 1 Lux (F1.6), 100+ Lux Recommended
    • OneLINK Bridge adds: 328ft (100M) Power Video Control Extension, Audio Mixer, USB 3.0
    • OneLINK Compatibility: Native
    • OneLINK HDMI adds: 328ft (100M) Power Video Control Extension
    • Output Ports: 3G SDI, HDbT, HDMI, IP Streaming, USB 3.0 Type B
    • Pan and Tilt Range: Pan - ±160°, Tilt - +90° to -30°
    • Pan and Tilt Speed: 0.35°/sec - 120°/sec
    • Power Cord: US Cord
    • Power Supply: 2.0A, 24VDC
    • Power Type: Local Power, OneLINK, PoE++
    • Preset Positions: 16 Custom Home Position
    • PTZ Motors: Silent BLDC Direct Drive Motors
    • Quick-Connect Compatibility: No
    • Signal Type: 3G SDI, HDbT, HDMI, IP Streaming
    • Solution Type: Camera with Extension
    • Special Features: IP Streaming With OneLINK Extender
    • Switcher Control: IR Remote, RS232, Telnet, Web UI
    • Top Resolution: 2160p 29.97
    • Tri-Sync Motion: Yes
    • Video SN Ratio: Greater than 50 dB
    • White Balance: ATW, Auto, Indoor, Manual, One Push, Outdoor
    • Zoom: 30x at 4k/30, 40x at 1080p/60
    • Zoom Range: Greater than 19X
    • Certifications: CE, FCC, TAA
    • Depth: 5.5 in (14 cm)
    • Distance: 328 in (833.1 cm)
    • Height: 7.9 in (20.1 cm)
    • Operating Temperature: 32° to 104°F (0° to 40°C)
    • Product Weight: 6 lbs (2.7 kg)
    • Width: 8 in (20.3 cm)

  • Item Includes:

    • 1x RoboSHOT 40 UHD camera
    • 1x Thin Profile Wall Mount with mounting hardware
    • 1x Vaddio IR Remote Commander
    • 1x OneLINK Bridge Interface
    • 1x Quick-start cards
    • 1x 48V power supply with AC cord set(s)
    • 1x EZCamera RS-232 Control Adapter
    • 4x 3-position phoenix-style connectors
    • 1x 6 ft. (1.8m) USB 3.0 cable, type A to B
    • 1x 12V power supply with AC cord set(s)
    • 1x EZCamera RS-232 Control Adapter

  • Warranty:

    • 3 year
