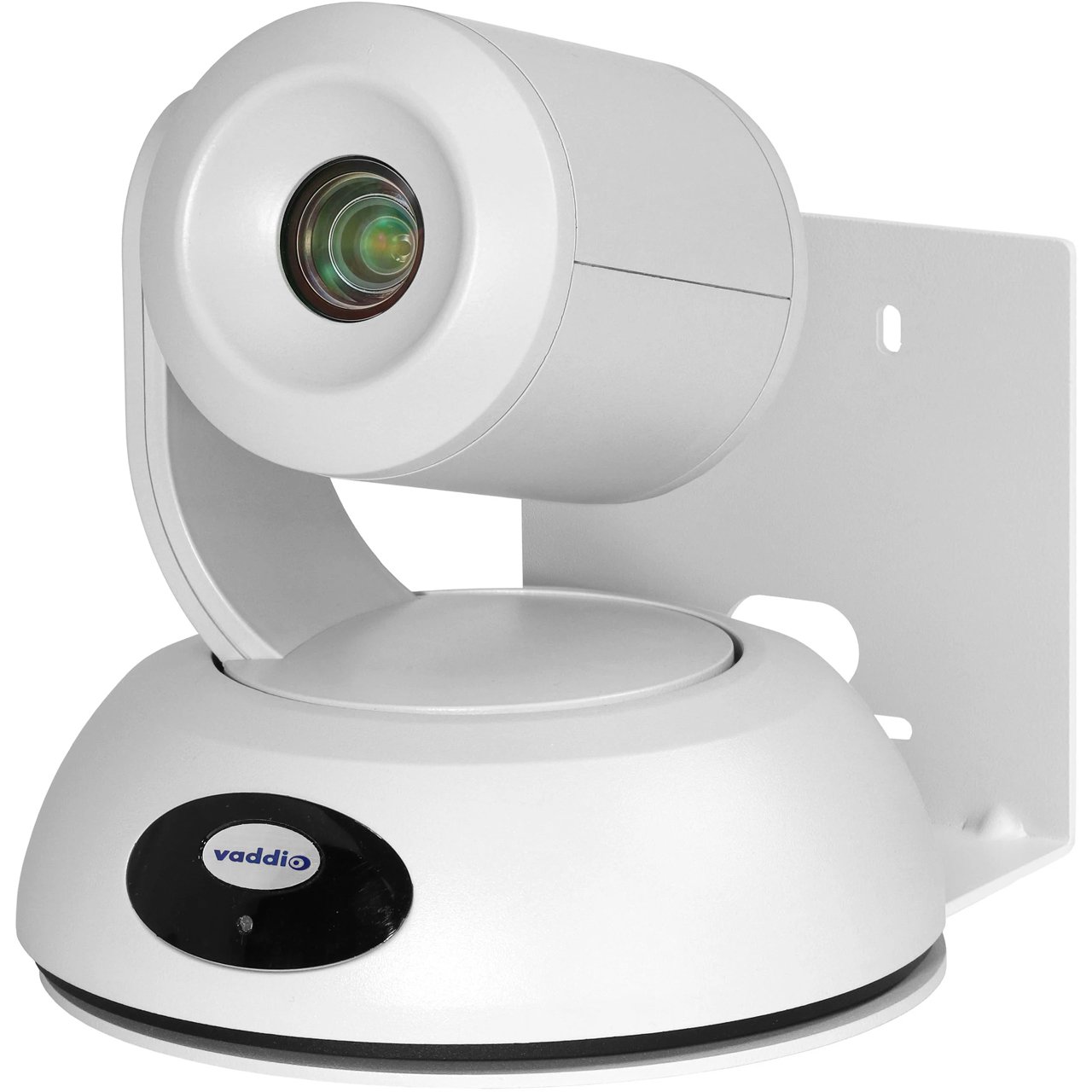

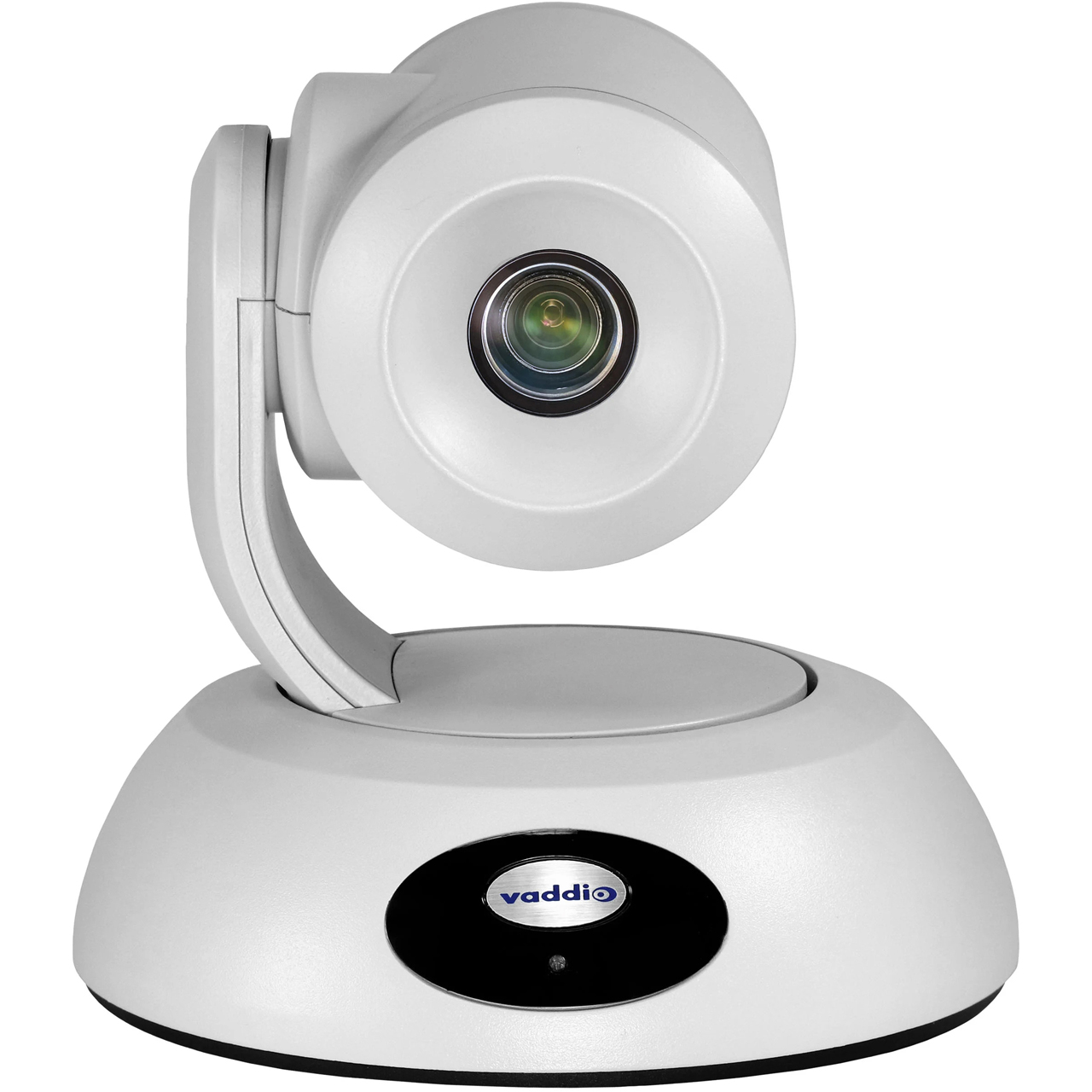

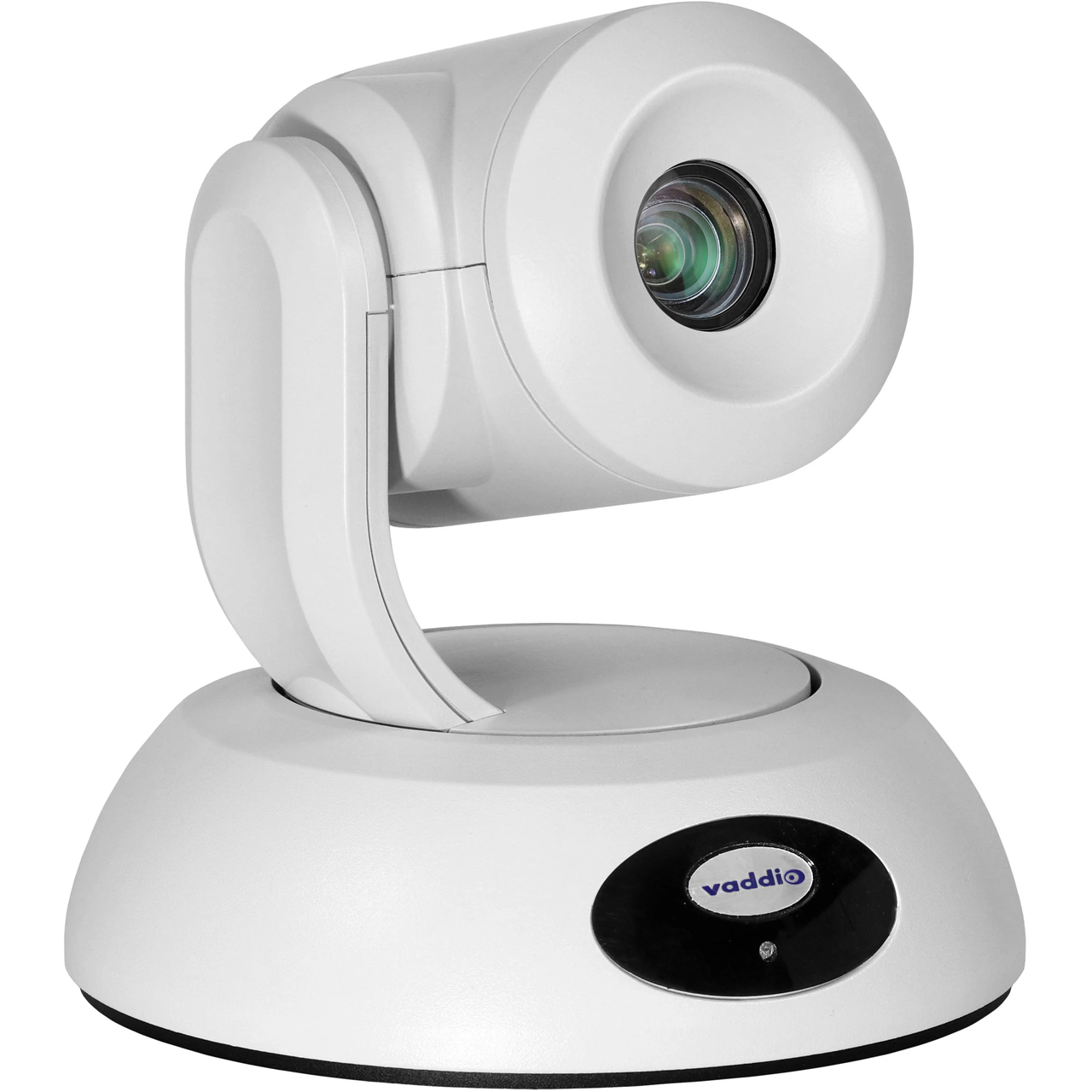

Vaddio 999-30230-000W EasyIP 20 1080p/60 20x PTZ Camera with Network PoE+ and HDMI - White

ITEM #: VAD-99930230000W MFG #: 999-30230-000W

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

List Price:

$4,070.00

Our Price:

$3,663.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


999-30230-000W - Overview

The Vaddio EasyIP 20 PTZ Camera brings professional AV quality performance to the EasyIP Ecosystem, an AV-over-IP solution for lecture capture, remote learning and videoconferencing in large meeting rooms, lecture halls, and houses of worship. It delivers 1080p/60 resolution feeds to EasyIP endpoints and connects to a 1 GB PoE+ switch - eliminating the need for costly USB extensions. A local HDMI output allows for easy IMAG (image magnification).

Vaddio Deployment Tool
Simplify installations by viewing all your Vaddio products across a deployment on one screen with the simple click of a button. The Vaddio Deployment Tool enables you to select devices from the network, choose an action like rebooting the device, unmute the audio, or updating firmware and voila! - remote troubleshooting success. You can even conduct mass firmware updates on hundreds of devices all at once, which saves you a lot of time.

The EasyIP 20 Camera brings professional AV quality performance to the EasyIP Ecosystem, an AV-over-IP solution for lecture capture, remote learning and videoconferencing in large meeting rooms, lecture halls, and houses of worship. It delivers 1080p/60 resolution feeds to EasyIP endpoints and connects to a 1 GB PoE+ switch - eliminating the need for costly USB extensions. A local HDMI output allows for easy IMAG (image magnification).

  • Features:

    • 20x optical zoom with 70.2° horizontal field of view
    • 1/2.5-type Exmor R CMOS sensor

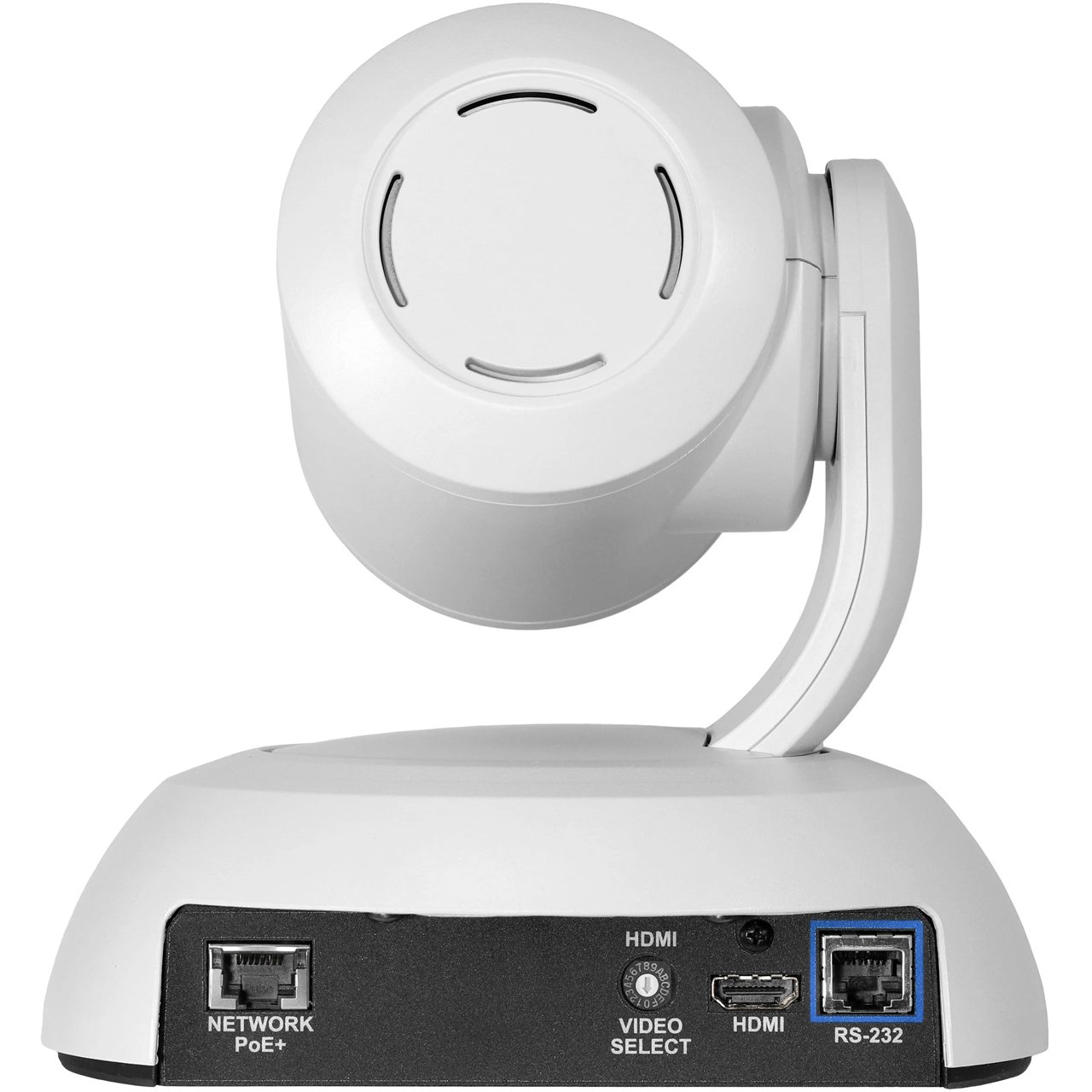

    • One EasyIP (Network PoE+) and one HDMI video output
    • Supports up to two EasyIP Mixers or Decoders simultaneously

  • Specifications:

    • Browser-based User Interface for Remote Control: Built-in
    • Camera Type: PTZ
    • Color: White
    • Compatible With: Vaddio
    • Control Method: IR Remote, Joystick, RS232, Telnet, Web UI
    • Estimated Room Size: Large Room, Medium Room
    • Field of View: 70.2° Wide End to 4.1° Tele End
    • Field of View Wide: Greater than 70
    • Focus System: Auto, Manual
    • Gain: Auto, Manual
    • Image Sensor Type: 1/2.5-type Exmor R CMOS sensor
    • Invertible: Yes
    • Max Resolution: 1080p 60
    • Minimum Illumination: 100+ Lux Recommended
    • OneLINK Compatibility: No
    • Pan and Tilt Range: Pan - ±150°, Tilt - +90° to -30°
    • Pan and Tilt Speed: 0.35°/sec - 90°/sec
    • Power Supply: PoE+
    • Power Type: PoE+
    • Preset Positions: 16 Custom Home Position
    • PTZ Motors: Silent BLDC Direct Drive Motors
    • Quick-Connect Compatibility: No
    • Solution Type: Camera Only
    • Top Resolution: 1080p 60
    • Tri-Sync Motion: Yes
    • Zoom: 20x
    • Zoom Range: Greater than 19X
    • Certifications: CE, FCC, TAA
    • Depth: 5.5 in (14 cm)
    • Height: 6.3 in (16 cm)
    • Operating Temperature: 32° to 104°F (0° to 40°C)
    • Product Weight: 3 lbs (1.4 kg)
    • Width: 6.1 in (15.5 cm)

  • Item Includes:

    • 1x EasyIP 20 Camera
    • 1x Thin Profile Wall Mount (black or white) with mounting hardware and installation guide
    • 1x Vaddio IR Remote Commander
    • 1x 10 ft (3.05m) cat-5e snagless cable, black
    • 1x Quick-start card

  • Warranty:

    • 3 year
