Vaddio 999-9952-100W RoboSHOT 40 UHD PTZ Camera and OneLINK HDMI Receiver System - White

ITEM #: VAD-9999952100W MFG #: 999-9952-100W

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

List Price:

$9,306.00

Our Price:

$8,375.40

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


999-9952-100W - Overview

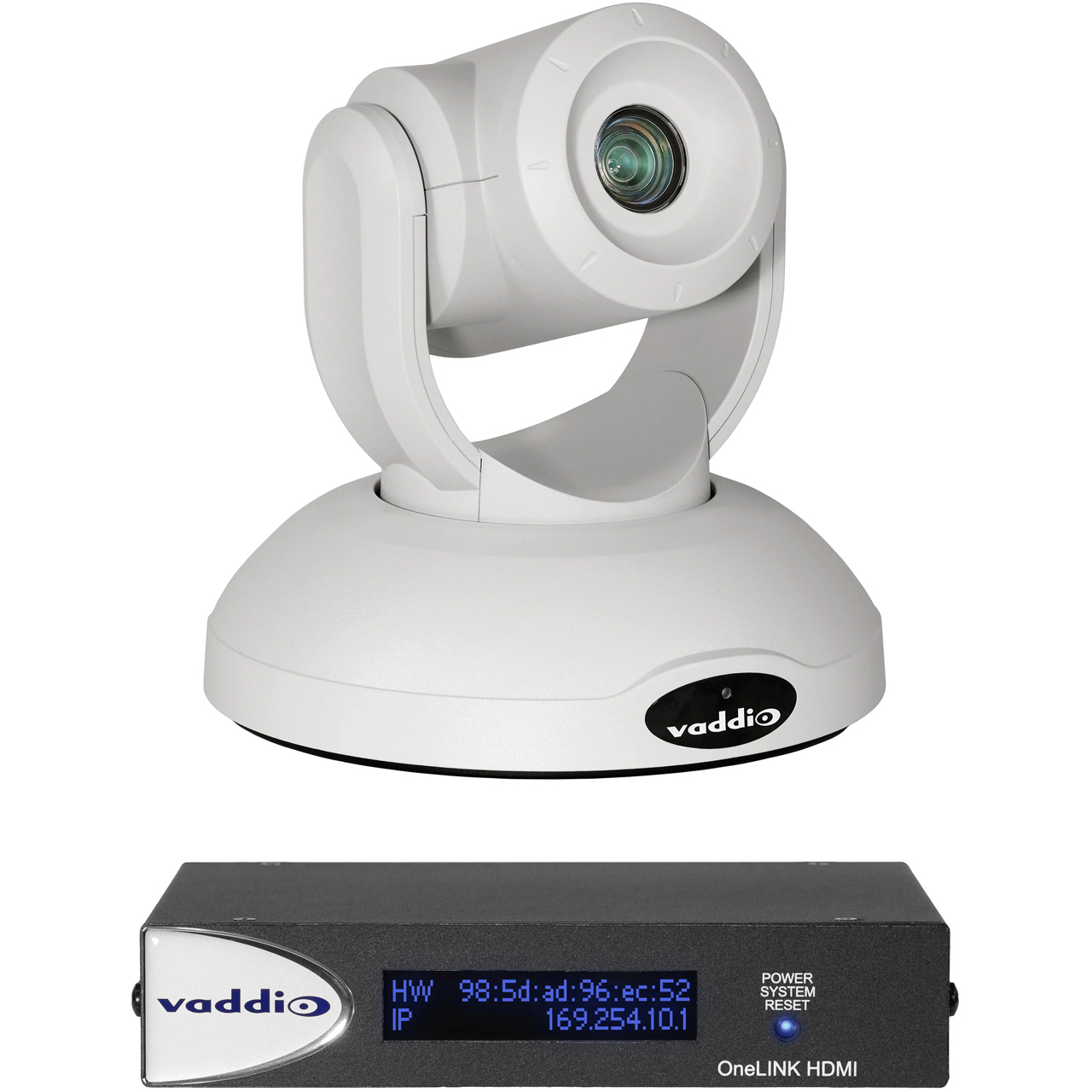

This Vaddio 999-9952-100W system combines the RoboSHOT 40 UHD camera with the OneLINK HDMI Receiver for HDBaseT Cameras to extend power, video and control over a single cable for simple, tidy installation. Production-quality RoboSHOT 40 UHD provides brilliant 4K video footage for broadcasting or live streaming applications.

Vaddio Deployment Tool
Simplify installations by viewing all your Vaddio products across a deployment on one screen with the simple click of a button. The Vaddio Deployment Tool enables you to select devices from the network, choose an action like rebooting the device, unmute the audio, or updating firmware and voila! - remote troubleshooting success. You can even conduct mass firmware updates on hundreds of devices all at once, which saves you a lot of time.

The production-quality RoboSHOT 40 UHD PTZ camera provides brilliant 4K video footage for broadcasting or live streaming applications.

RoboSHOT 40 UHD offers 40x zoom, genlock capabilities, ultra-smooth motor movement, and outstanding image quality - all at a surprisingly competitive price for the entry-level broadcast PTZ camera market.

Designed with a genlock external sync port, the RoboSHOT 40 UHD camera provides accurate synchronization in multi-camera broadcast environments, plus phase compensation to fine-tune and adjust the genlock signal.

Applications:
- Broadcast TV, corporate broadcast, local TV stations, campus news
- Churches, houses of worship
- Live events
- Sporting events such as high school football or soccer
- Large auditoriums
- Concert halls

  • Features:

    • Back-illuminated 8.51 Megapixel, ultra-high-definition 1/2.5-type CMOS sensor delivers native 2160p/30 (3840x2160) video
    • 20x optical zoom with 30x lossless zoom at 3840x2160. Achieve 40x zoom at full HD resolution
    • Genlock signal for multi-camera synchronization
    • Simple, clutter-free camera extension with HDBaseT technology
    • Power, video and control over a single Cat-5e cable up to 230 ft. (70m), or over a Cat-6 cable up to 328 ft. (100m)

  • Specifications:

    • 3rd Party Control: RS232, Telnet, Trigger
    • Browser-based User Interface for Remote Control: Built-in
    • Camera Type: PTZ
    • Color: White
    • Compatible With: Vaddio
    • Estimated Room Size: Large Room
    • Extension System: with OneLINK HDMI
    • Extension Type: Camera
    • Field of View: 70.2° Wide End to 2.05° Tele End
    • Field of View Wide: Greater than 70
    • Focus System: Auto, Manual
    • Gain: Auto, Manual
    • Image Sensor Type: 1 25 type Exmor CMOS sensor 4K
    • Invertible: Yes
    • Max Resolution: 2160p 29.97
    • Minimum Illumination: 1.6 Lux (F2.0), 100+ Lux Recommended
    • OneLINK Bridge adds: 328ft (100M) Power Video Control Extension, Audio Mixer, USB 3.0
    • OneLINK Compatibility: Native
    • OneLINK HDMI adds: 328ft (100M) Power Video Control Extension
    • Output Ports: 3G SDI, HDbT, HDMI, IP Streaming
    • Pan and Tilt Range: Tilt: +90· to -30°, Pan: ±160°
    • Pan and Tilt Speed: 0.35°/sec - 120°/sec
    • Power Cord: US Cord
    • Power Supply: PoE++
    • Power Type: Local Power, OneLINK, PoE++
    • Preset Positions: 16 Custom Home Position
    • PTZ Motors: Silent BLDC Direct Drive Motors
    • Quick-Connect Compatibility: No
    • Signal Type: 3G SDI, HDbT, HDMI, IP Streaming
    • Solution Type: Camera with Extension
    • Special Features: IP Streaming with OneLINK Extender
    • Switcher Control: IR Remote, RS232, Telnet, Web UI
    • Top Resolution: 2160p 29.97
    • Tri-Sync Motion: Yes
    • Video SN Ratio: Greater than 50 dB
    • White Balance: ATW, Auto, Indoor, Manual, One Push, Outdoor
    • Zoom: 30x at 4k/30, 40x at 1080p/60
    • Zoom Range: Greater than 19X
    • Certifications: CE, FCC, HDBaseT, TAA
    • Depth: 5.5 in (14 cm)
    • Distance: 328 in (833.1 cm)
    • Height: 7.9 in (20.1 cm)
    • Operating Temperature: 32° to 104°F (0° to 40°C)
    • Product Weight: 6 lbs (2.7 kg)
    • Width: 8 in (20.3 cm)

  • Item Includes:

    • 1x RoboSHOT 40 UHD camera
    • 1x Thin Profile Wall Mount with mounting hardware
    • 1x OneLINK HDMI Interface
    • 1x Quick-start cards
    • 1x 12V power supply with AC cord set(s)
    • 1x Vaddio IR Remote Commander
    • 1x EZCamera RS-232 Control Adapter
    • 1x 48V power supply with AC cord set(s)

  • Warranty:

    • 3 year
