Vaddio RoboSHOT 30E HDBT OneLINK Bridge HDMI PTZ Streaming Camera System 3G-SDI - 30x Zoom - Black

ITEM #: VAD-99999630200 MFG #: 999-99630-200

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

List Price:

$7,651.00

Our Price:

$6,885.90

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup


    999-99630-200 - Overview

    Introducing the RoboSHOT Elite Series - Vaddio’s next generation of professional cameras. Designed with a 1/2.5-type Exmor R CMOS sensor, the Vaddio 999-99630-200 RoboSHOT Elite camera delivers striking, high-definition video image quality. Cutting-edge image signal processing (ISP) results in better light-gathering capabilities, incredible contrast and sharp 1080p/60 video, even in dim lighting conditions.

    RoboSHOT Elite cameras are equipped with enhanced wide dynamic range, which can help correct for environments with uneven lighting by making darker or over-bright areas in video more visible and detailed.

    Enjoy IP streaming (RTSP or RTMP format with H.264 compression) to share live events like church services, lectures, or meetings over popular applications like YouTube, Livestream and Facebook.

    A web-based user interface gives the user camera control with a web browser from anywhere in the world over the IP network. To watch the IP stream, simply enter the camera’s streaming URL into any standards based (H.264, RTSP format) media player. Perfect for remote management, network operating centers and overall IT control.

    The RoboSHOT 30E cameras have a 20x optical zoom and have an additional 10x of IntelliZoomTM Image Processing. IntelliZoom image processing technology lets you zoom greater distances without compromising any resolution quality of the image. Most digital zooms use electronic cropping to get closer to the subject, resulting in fuzzy images. The RoboSHOT 30E camera’s powerful processor compares patterns found in adjacent pixels and creates new pixels to match selected patterns, resulting in more realistic, higher-quality images.

    The Elite Series of RoboSHOT PTZ cameras is equipped with Vaddio’s industry-leading Tri-Synchronous Motion technology allowing all three axes of the camera to move simultaneously for ultra-smooth, natural camera motion.

    The RoboSHOT 30E cameras are ideal for larger spaces such as large meeting rooms, lecture halls, conference centers, and houses of worship.

    Video outputs include simultaneous HDBaseT, HDMI and IP (H.264) streaming. Connect directly to HDBaseT-compatible devices or pair with Vaddio OneLINK receivers to simplify cabling and extend installation distance.

    • Features:

      • MADE IN THE USA!
      • 30x Zoom
      • 1/2.5-type Exmor R CMOS sensor
      • 70.2° horizontal field of view
      • Simultaneous HDBaseT, HDMI and IP H.264 streaming
      • Remote IP Management
      • Simple, clutter-free camera extension with HDBaseT technology
      • Power, video and control over a single Cat-5e cable up to 230 ft. (70m), or over a Cat-6 cable up to 328 ft. (100m)
      • Bridges audio and video for easy soft-client conferencing
      • Simultaneous HDMI, USB 3.0, IP Streaming, and 3G-SDI outputs
      • Configurable audio matrix with AEC
      • Up to 1080p/60 resolution available over uncompressed USB

    • Specifications:

      • Color: Black
      • Certifications: CE Approved, FCC Approved
      • Dimensions (WxHxD): 7.05 x 6.94 x 6.75" (17.91 x 17.63 x 17.15cm)
      • Weight: 4.85Lbs (2.2kg)
      • Signal Type: HDMI, RS-232, IP-Streaming, 3G-SDI, Audio, USB 3.0
      • Power Type: OneLINK
      • Output Ports: HDMI, USB 3 Type B, IP-Streaming, 3G-SDI
      • Zoom: 30x
      • Max Resolution: 1080p/60
      • Field of View: 70.2° Wide End to 4.1° Tele End
      • Estimated Room Size: Large Conference Room, Large Venue
      • Minimum Illumination: 1.0 Lux (F1.6), 100+ Lux Recommended
      • Browser-based User Interface for Remote Control: Built-in
      • Control Method: Web UI, Telnet, RS-232 and IR Remote
      • OneLINK Compatibility: Native
      • OneLINK Bridge adds: 328 ft (100 M) Power, Video, Control Extension, HDMI, 3G-SDI, USB 3.0, Audio Mixer
      • PTZ Motors: Silent BLDC Direct Drive Motors
      • Tri-Sync Motion: Yes
      • Pan and Tilt Range: Pan: ±160°, Tilt: +90° to -30°
      • Pan and Tilt Speed: 0.35°/sec to 120°/sec
      • Pixels: 8.51 Megapixel (8.57 Total MP)
      • Top Resolution: 1080p/60
      • Invertible: Yes
      • Focus System: Auto, Manual
      • Gain: Auto, Manual
      • Operating Temperature: 32° to 104°F (0° to 40°C)
      • Preset Positions: 16 + Custom Home Position
      • White Balance: Auto, Manual, One-Push
      • Warranty: 2 years
      • Power Supply: 48 VDC, 1.36 A
      • Quick-Connect Compatibility: No
      • Distance: 328' (100m)

    • Item Includes:

      • 1x RoboSHOT 30E HDBT camera (black or white)
      • 1x Thin Profile Wall Mount (black or white) with mounting hardware and installation manual
      • 1x Vaddio IR Remote Commander

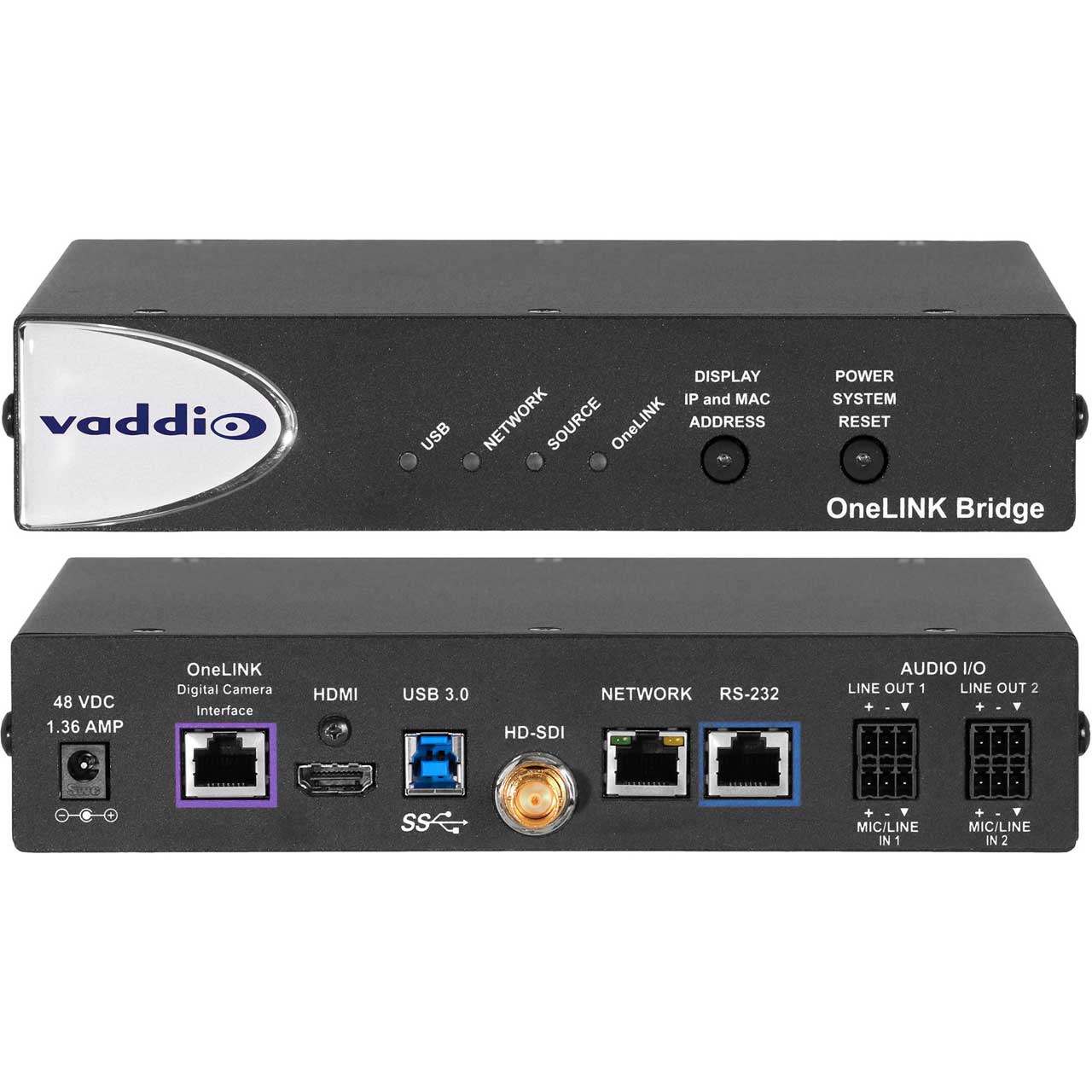

      • 1x OneLINK Bridge Interface
      • 1x 48V power supply with AC cord set(s)
      • 1x EZCamera RS-232 Control Adapter
      • 1x Quick-Start Guides
      • 4x 3-position phoenix-style connectors
      • 1x 6' (1.8m) USB 3.0 cable, type A to B

    • Warranty:

      • 2 years

    • GTIN:

      0840077504526
