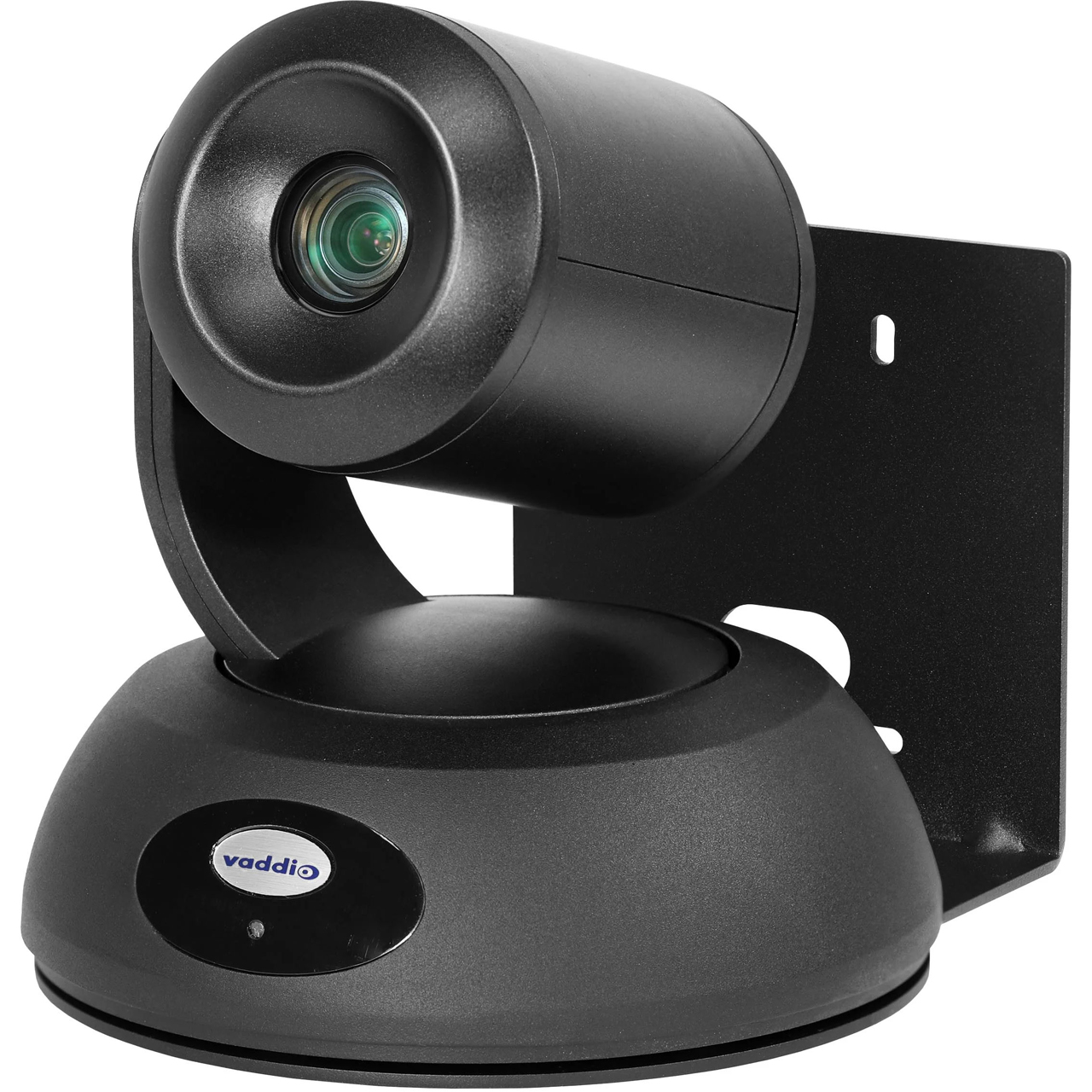

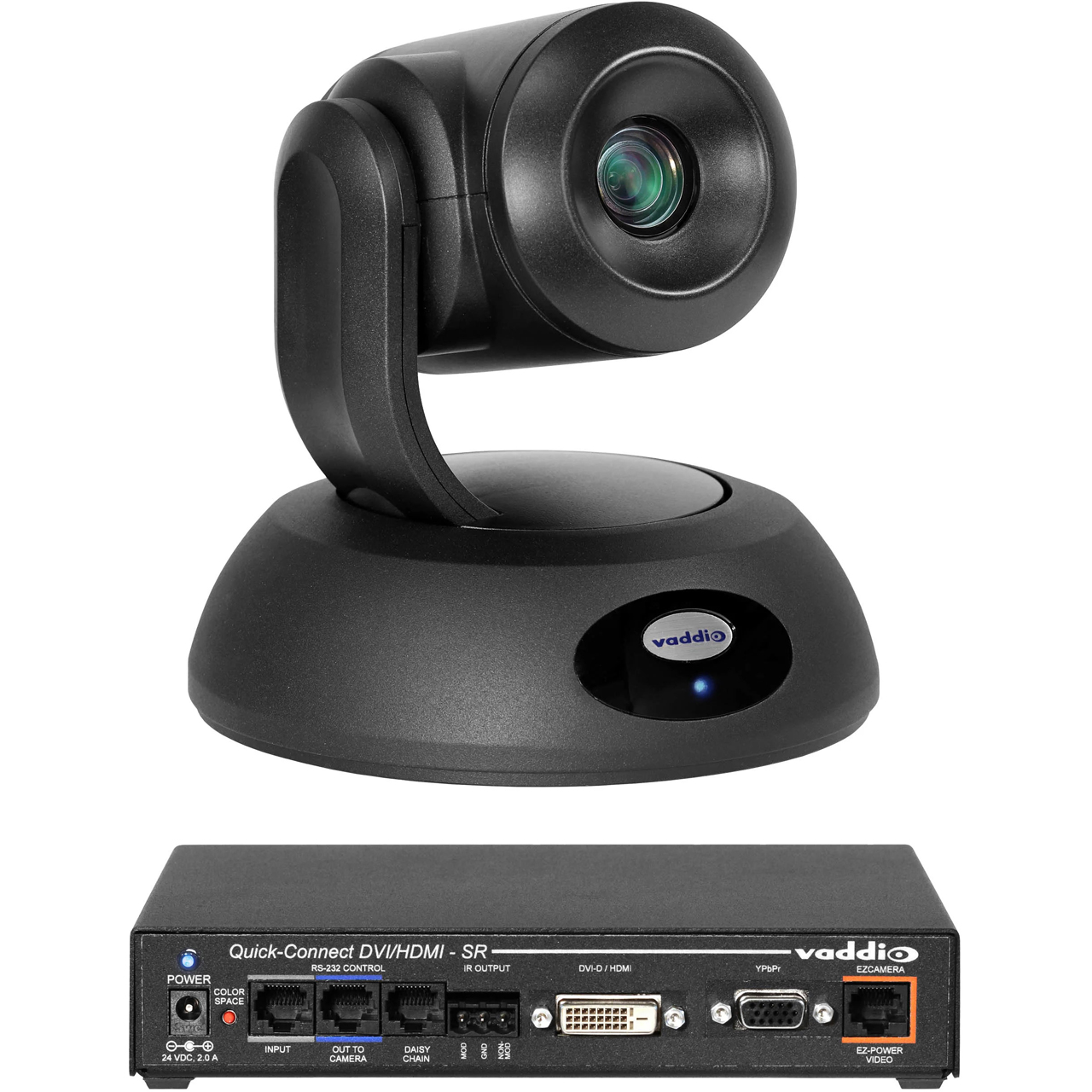

Vaddio 999-99160-000 RoboSHOT 30E QDVI PTZ Camera System - RoboSHOT 30E Camera with 30x Zoom Included - Black

ITEM #: VAD-ROBOSHOT30E MFG #: 999-99160-000

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

List Price:

$7,623.00

Our Price:

$6,860.70

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup


999-99160-000 - Overview

Introducing the Vaddio RoboSHOT Elite Series - Vaddio's next generation of professional cameras. Designed with an 1/2.5-type Exmor R CMOS sensor, RoboSHOT Elite cameras deliver striking, high-definition video image quality. Cutting-edge image signal processing (ISP) results in better light-gathering capabilities, incredible contrast and sharp 1080p/60 video, even in dim lighting conditions.

RoboSHOT Elite cameras are equipped with enhanced wide dynamic range, which can help correct for environments with uneven lighting by making darker or over-bright areas in video more visible and detailed.

A web-based user interface gives the user camera control with a web browser from anywhere in the world over the IP network. Perfect for remote management, network operating centers and overall IT control.

The RoboSHOT 30E cameras have a 20x optical zoom and have an additional 10x of IntelliZoom Image Processing. IntelliZoom image processing technology lets you zoom greater distances without compromising any resolution quality of the image. Most digital zooms use electronic cropping to get closer to the subject, resulting in fuzzy images. The RoboSHOT 30E camera's powerful processor compares patterns found in adjacent pixels and creates new pixels to match selected patterns, resulting in more realistic, higher-quality images.

The Elite Series of RoboSHOT PTZ cameras is equipped with Vaddio's industry-leading Tri-Synchronous Motion technology allowing all three axes of the camera to move simultaneously for ultra-smooth, natural camera motion.

The RoboSHOT 30E cameras are ideal for larger spaces such as large meeting rooms, lecture halls, conference centers, and houses of worship.

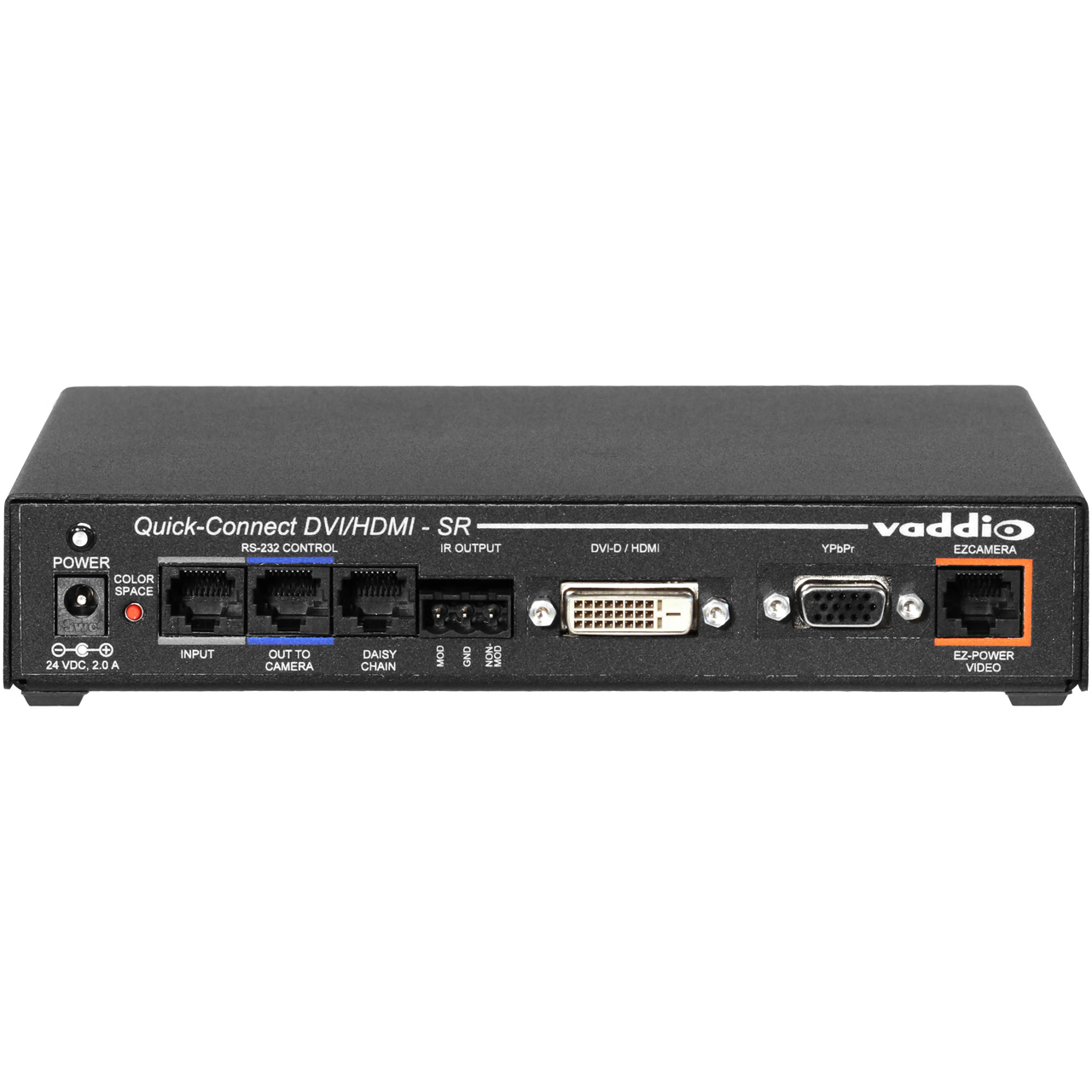

The Quick-Connect DVI/HDMI delivers simultaneous analog YPbPr HD video and digital video (DVI-D or HDMI) outputs on separate connectors. This system is ideal for video conferencing, multiple monitoring and large screen projection applications.

  • Features:

    • 30x Zoom
    • 1/2.5-type Exmor R CMOS sensor
    • 70.2° horizontal field of view
    • Power/Video/Control on two Cat-5's up to 100' (30.5m) for RoboSHOT Elite series cameras
    • HDMI-DVI-D and HD-YPbPr Outputs

  • Specifications:

    • Dimensions & Measurements
    • Depth: 6.75
    • Distance: 150
    • Height: 6.94
    • Operating Temperature: 32° to 104°F (0° to 40°C)
    • Product Weight: 4.85
    • Width: 7.05

      Characteristics & Features
    • 3rd Party Control:
      - RS232
      - Telnet
    • Browser-based User Interface for Remote Control: Built-in
    • Camera Type: PTZ
    • Color: Black
    • Compatible With: Vaddio
    • Control Method:
      - IR Remote
      - RS232
      - Telnet
      - Web UI
    • Estimated Room Size:
      - Large Room
      - Medium Room
    • Extension Type: Camera
    • Field of View: 70.2° Wide End to 3.1° Tele End
    • Field of View Wide: Greater than 70
    • Focus System:
      - Auto
      - Manual
    • Gain:
      - Auto
      - Manual
    • Image Sensor Type: 1/2.5-type Exmor R CMOS sensor
    • Invertible: Yes
    • Max Resolution: 1080p 60
    • Minimum Illumination:
      - 1 Lux (F1.6)
      - 100+ Lux Recommended
    • OneLINK Compatibility: No
    • Output Ports:
      - DVI D
      - HD YPbPr
      - HDMI
    • Pan and Tilt Range:
      - Pan: ±150°
      - Tilt: +90° to -30°
    • Pan and Tilt Speed: 0.35°/sec - 120°/sec
    • Pixels: 8.51 Megapixel (8.57 Total MP)
    • Power Cord: US Cord
    • Power Supply:
      - 2.0A
      - 24VDC
    • Power Type: EZ Power
    • Preset Positions: 16 Custom Home Position
    • PTZ Motors: Silent BLDC Direct Drive Motors
    • Quick-Connect Compatibility: QDVI
    • Signal Type:
      - HD YPbPr
      - HDMI
      - RS 232
    • Solution Type: Camera with Extension
    • Special Features: With Quick-Connect Extender
    • Top Resolution: 1080p 60
    • Tri-Sync Motion: Yes
    • White Balance:
      - Auto
      - Manual
      - One Push
    • Zoom: 30x zoom, 20x optical zoom + 10x IntelliZoom
    • Zoom Range: Greater than 19X
    • Certifications:
      - CE
      - FCC
      - TAA

  • Item Includes:

    • 1x RoboSHOT 30E camera
    • 1x Thin Profile Wall Mount (black or white) with mounting hardware and installation manual
    • 1x Vaddio IR Remote Commander
    • 1x Quick-Connect DVI/HDMI SR Interface (QDVI)
    • 1x 24V power supply with AC cord set
    • 1x Quick-start card
    • 4x Rubber feet for bottom of QDVI unit if not rack-mounted
    • 1x 3-position phoenix-style connector

  • Warranty:

    • 3 Year Warranty

  • GTIN:

    0840077503000
