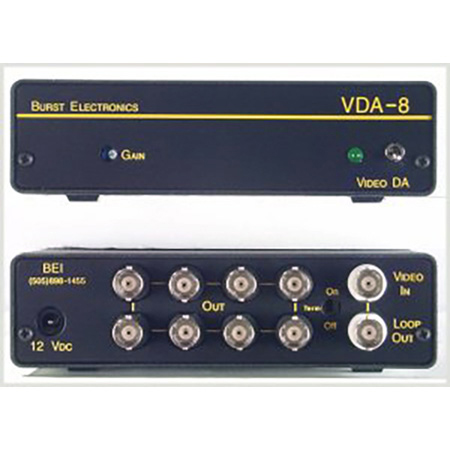

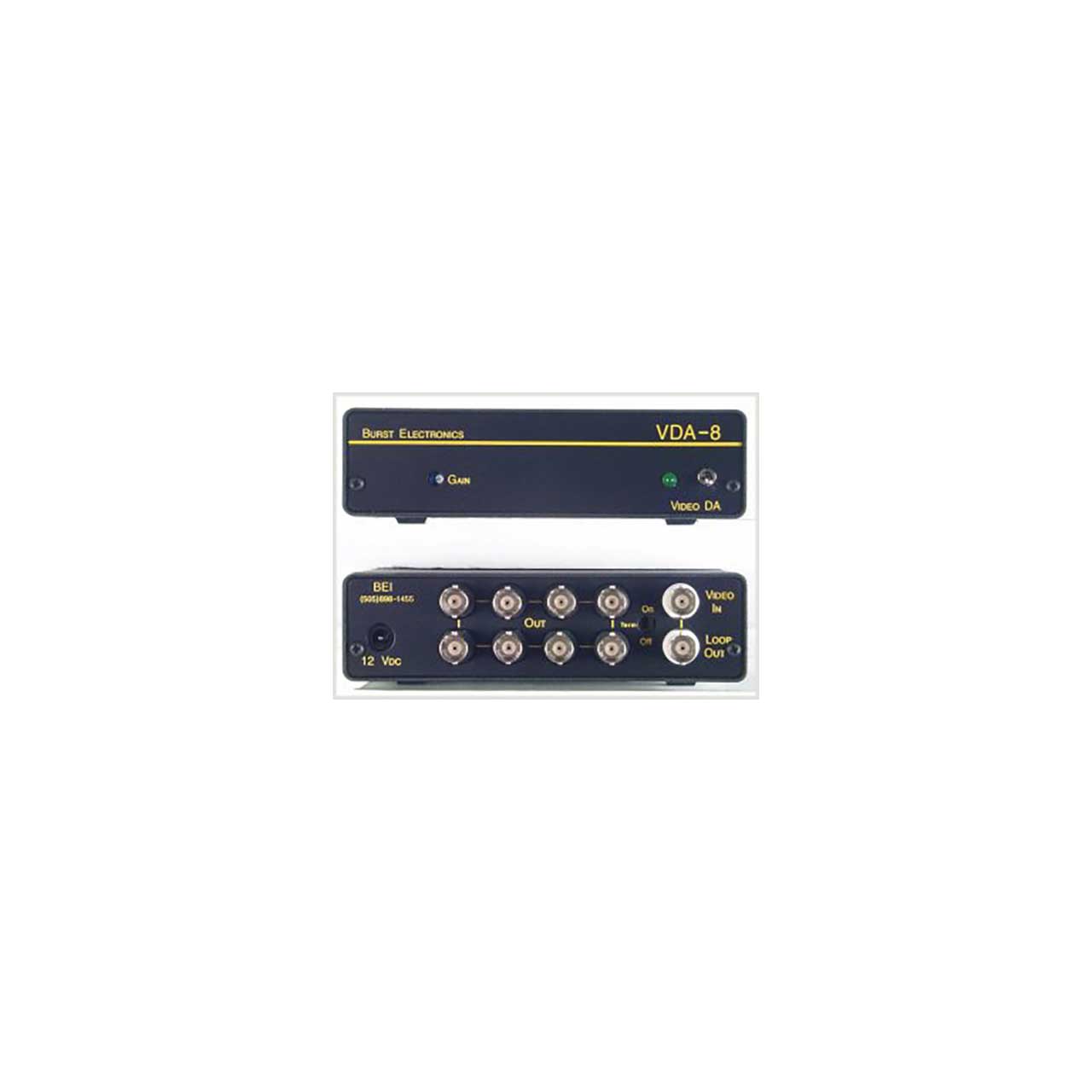

Burst VDA-8 1x8 Video Distribution Amplifier

ITEM #: VDA-8 MFG #: VDA-8

Primary Image
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$528.00

Our Price:

$446.00

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup


    VDA-8 - Overview

    Burst Electronics manufactures a series of Video Distribution Amplifiers. These units use the latest in high speed, monolithic operational amplifier technology. This results in wide bandwidth, high gain stability, low differential gain and phase. Models are available that range from MicroDA that will fit most anywhere to a 8 output version for Y/C (S-VHS/Hi8) applications. All units contain internal regulated bipolar power supplies and are powered by external 12Vdc, perfect for field applications. MicroDA is a compact unit featuring a loopthru input. A wide bandwidth of 33 MHz assures clean video. Small enough to fit most anywhere but with no sacrifice in performance. Gain is adjustable plus or minus 3 dB. There is an external jumper to select 75 Ohm termination, no need for external terminator.

    • Specifications:

      • Input: 1 volt standard video
      • Input Impedance: Hi-Z or 75 Ohms 1%, looping (jumper/switch selected)
      • Coupling: DC throughout
      • Internal Power: ± 5 Vdc derived from external 12 Volt
      • Outputs: Eight, 75 Ohm
      • Output Voltage: 4 Vpp max
      • Delay Input to Output: 10 nS
      • Output Impedance: 75 Ohms 1%
      • Frequency Response: DC to 33 MHz 0.2 dB
      • Gain: Unity, adjustable ± 3 dB
      • S/N: 68 dB
      • Diff Gain: 0.03%
      • Diff Phase: 0.05 deg
      • Video Connector: BNC
      • Output Protection: Open or Short, infinite duration
      • Size: 5.6 W x 1.5 H x 7.0 D inches.
      • DC Powered: 11-14 Vdc
      • Wall module (included): 120 VAC 60 Hz, 12 Vdc 500 mA, UL Listed
