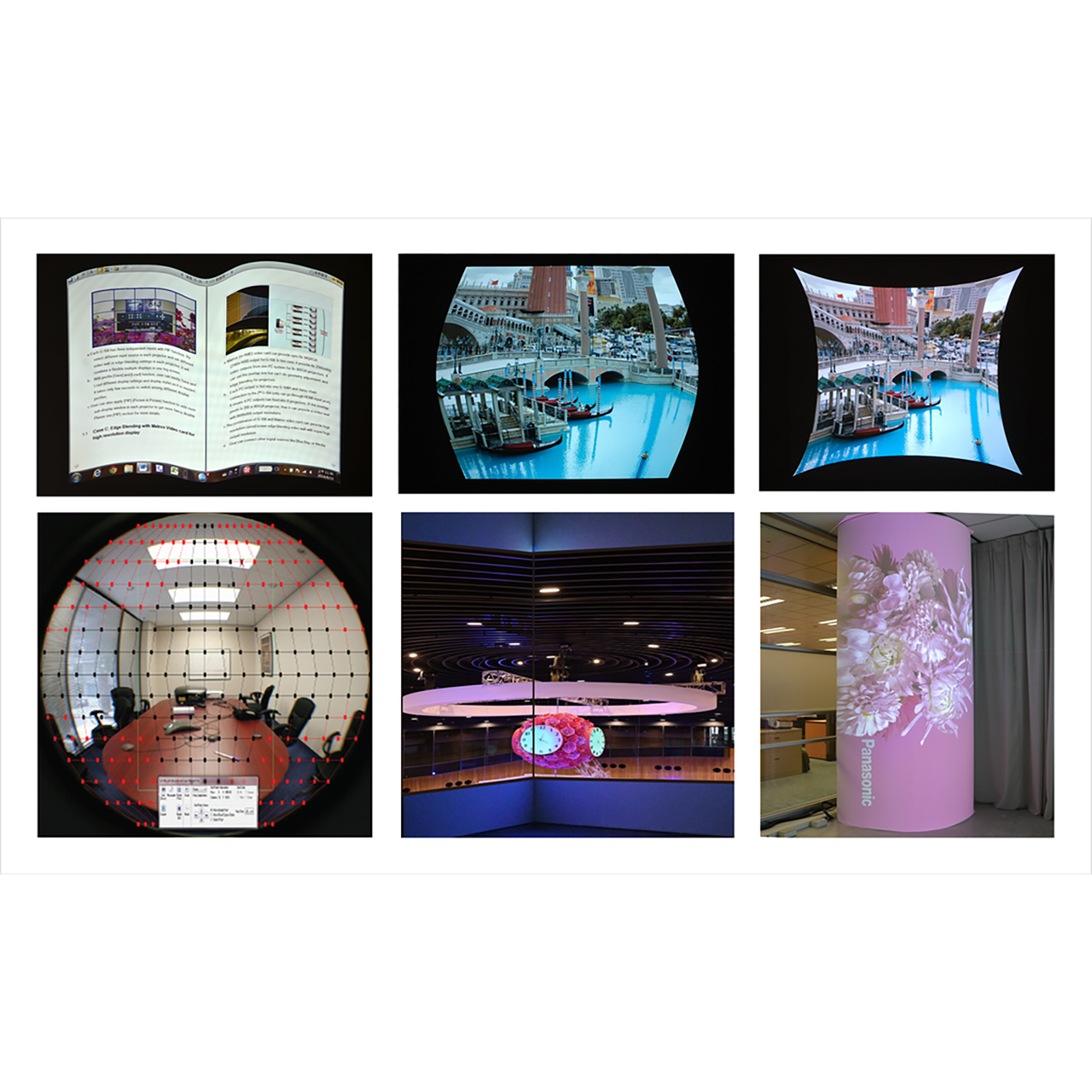

The VigilLink G111 is a mini warping box. It was designed for image warping, cropping, rotation and stacking. The major application is for image de-warp for medical devices and optical devices, image from wide angle lens or 180 degrees lens, projector curved screen display and image distortion adjustment for Ultra-short throw ratio projector.

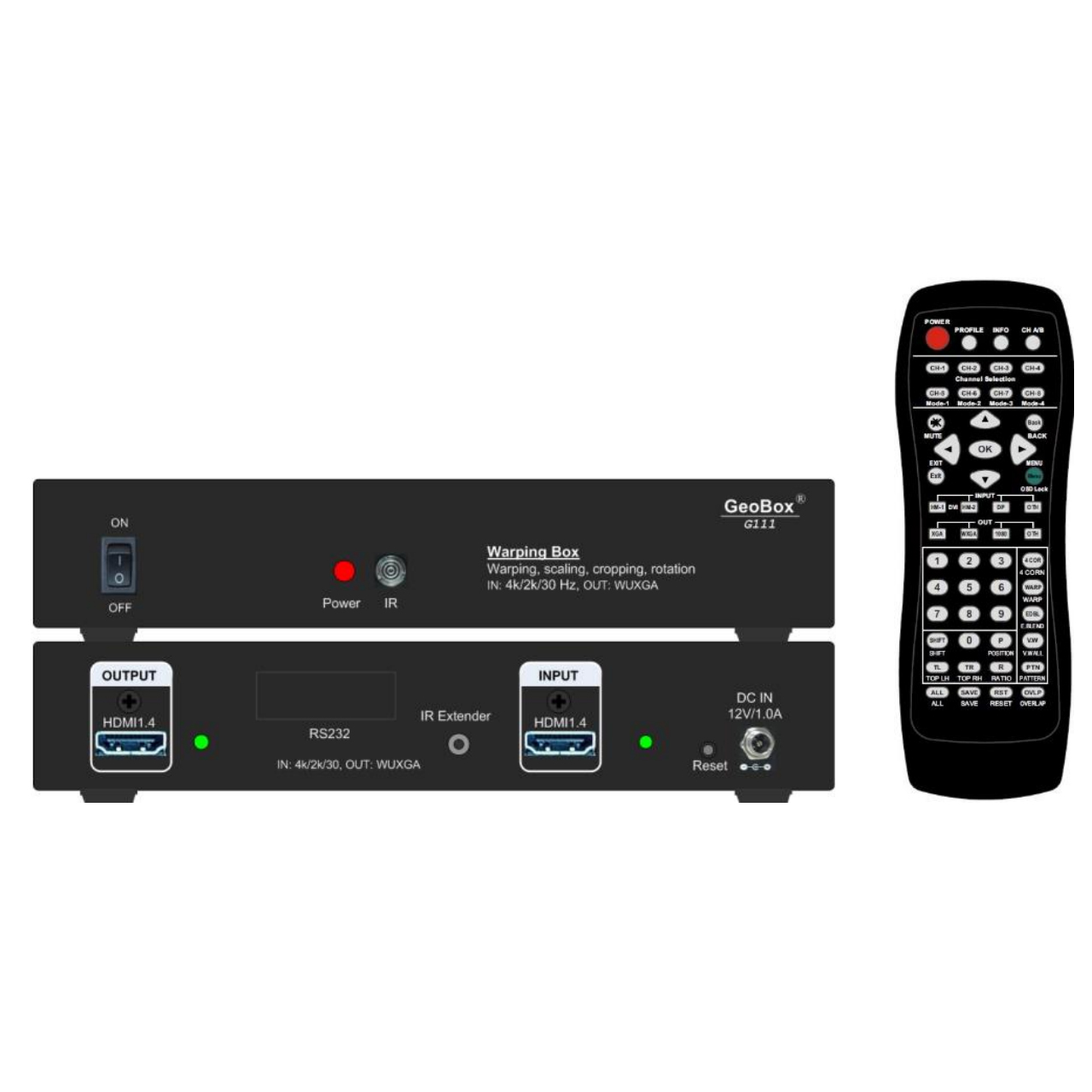

One HDMI 1.4 input port and 1x HDMI1.4 output port are designed in each box. Max. input resolution is up to 3840*2160 @30Hz with 4:4:4 full color sampling. Output supports up to 1920*1200 @60Hz. It is integrated with 10-bit high end processor, motion adaptive de-interlace, low angle smooth algorithm, 3:2/2:2 pull-down and supports non-VESA standard input timing. Programmable EDID can optimize input timing to get the best video result.
Advanced warp technology is embedded in G111. User can use IR controller to perform sophisticated geometry alignment up to 17x9 control points. Linearity Grid Line Adjustment and Corner Wall image adjustment for mapping image at 90 degrees corner is embedded in geometry alignment. In extreme curved screen edge blending system, user can add G111 before each projector to provide more geometry alignment range.
Video wall function is to crop source image for display devices and set overlap pixels for edge blending.

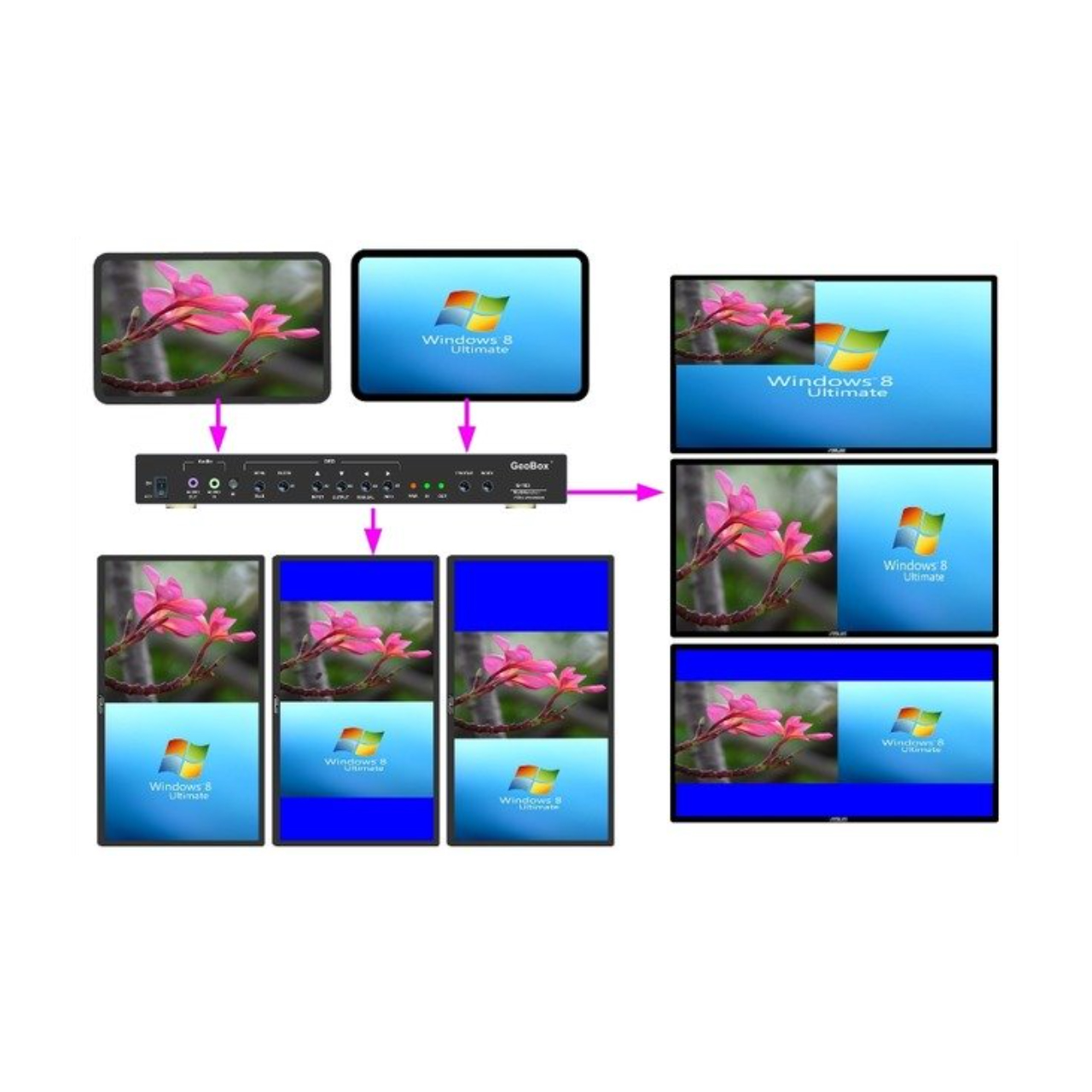

User can install display device at portrait position without rotating source image. The aspect ratio of the final image can be adjusted to meet the required aspect ratio. It provides an ideal solution to display Mobile phone/iPad native image at portrait monitor.
G111 provides easy configuration, low entry barrier, cost effective, reliable and flexible edge blending solution.
