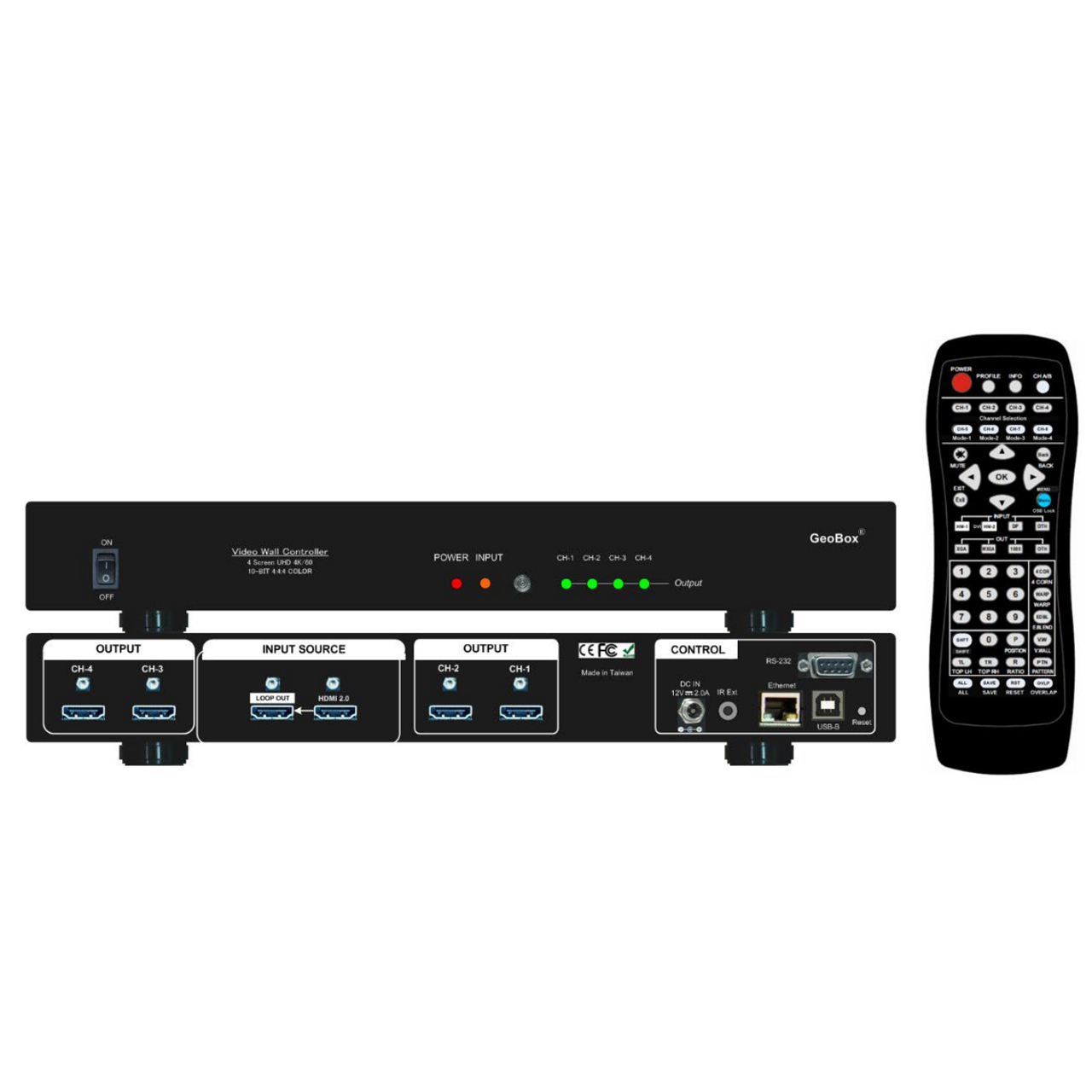

VigilLink GeoBox G406lite 4 Channel 1x4 4K60/8K30 4:4:4 Video Wall Controller with Multiview - HDCP 2.2 Compliant

G406LITE - Overview

• Features:

  • Supports up to true 4K or 8K/1K@30hz, and outputs up to WUXGA

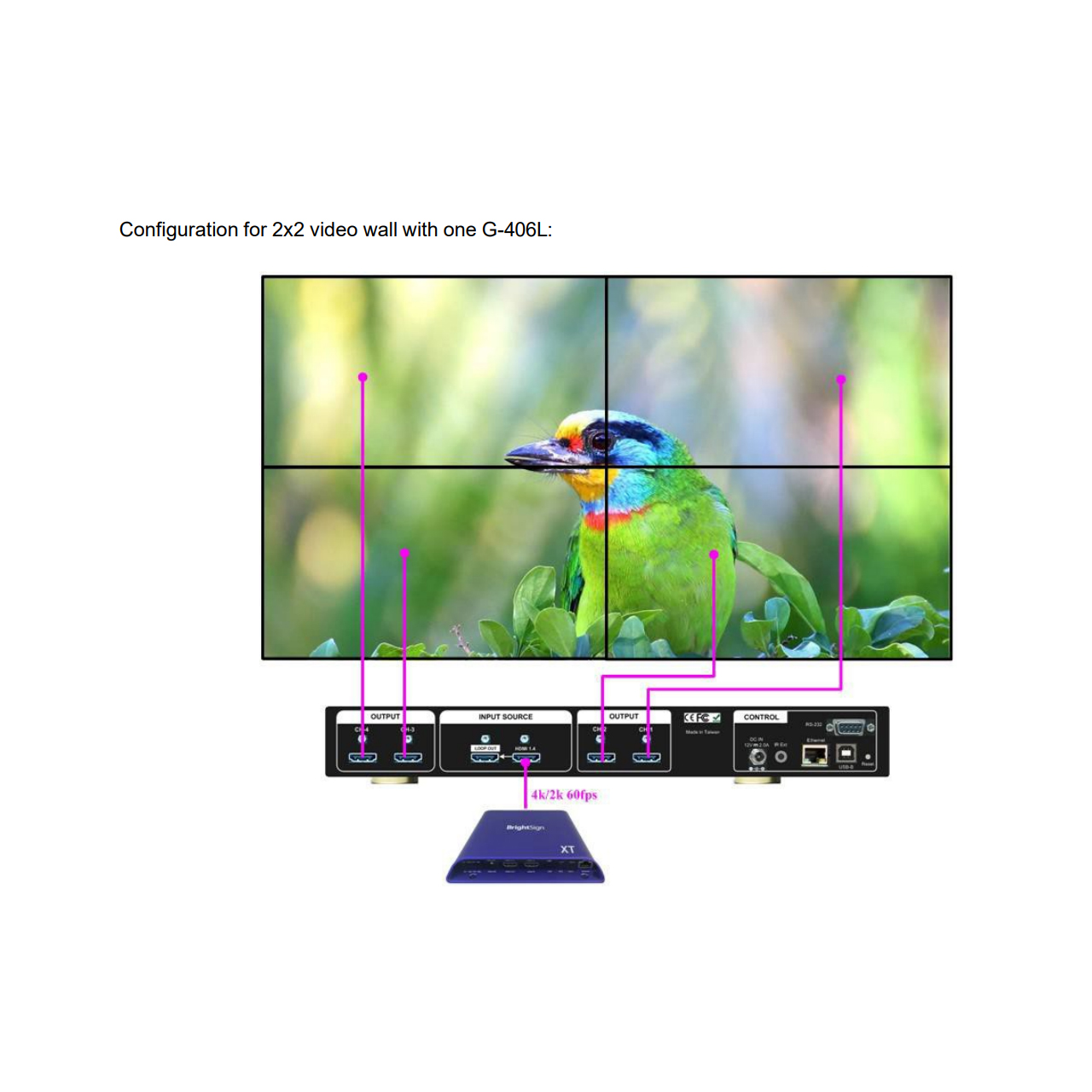

  • Supports multiple units cascade through HDMI loop-out for controlling larger scale video wall, such as 3x3, 4x4 or more
  • Configuration can be done through IR remote, PC tool or WebGui
  • Frame lock for synchronized outputs

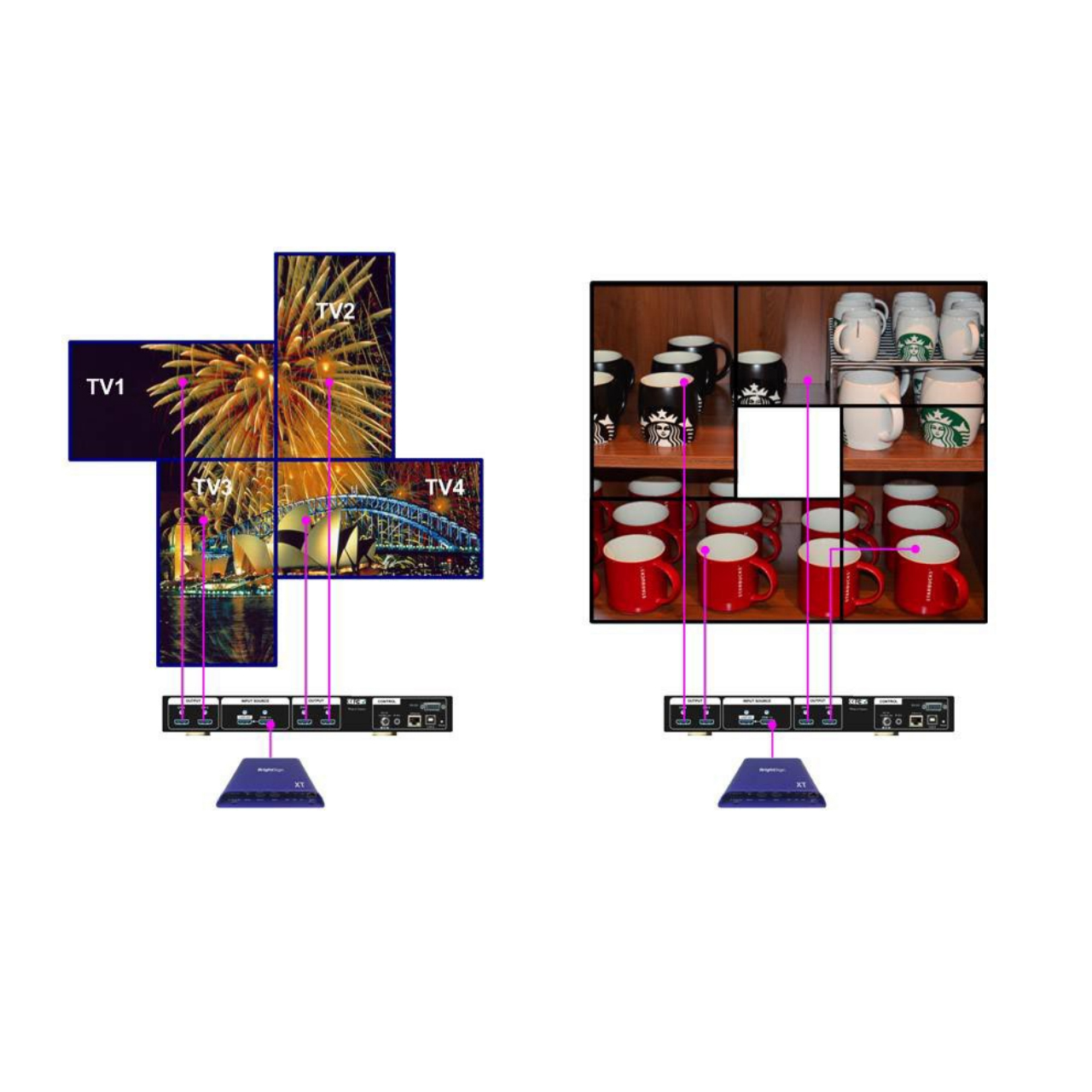

  • Individual 90/180/270 rotation, flip, cropping, scaling & color adjustment in each channel
  • Embedded HDMI audio in each output
  • Selectable and programmable EDID


• Specifications:

  • Input: 1x HDMI 2.0b
  • Output:
    - 4x HDMI up to 1080P & WUXGA
    - 1x HDMI 2.0 loop out port for multiple unit cascade & daisy chain connection
  • Compliance: HDCP V2.2/V1.4 compliant.
  • Resolution:
    - Max. input resolution: 4096x2160 @60Hz
    - Support non-VESA STD input timings.
    - Support pixel to pixel 4k/2k display.
    - Selectable output up to 1920x1200, 2048*1080 60Hz
  • Color:
    - 4:4:4 Chroma sampling, 30 Color bits.
    - Support sRGB & xvYCC color processing & 8/10-bit deep color output.
  • Image Processing:
    - 3:2/2:2 cadence, low angle smooth algorithm, high quality scaling engine.
    - Flexible aspect ratio adjustment in each edge up to +_1800 pixels.
    - 10-bit processor, frame rate conversion.
    - 3D motion adaptive de-interlace.
  • Protection and Power:
    - ESD Protection: ±15kV (Air-gap discharge), ±8kV (Contact discharge).
    - DC 12V/0.93A, max. 11.2w, (100-240 VAC PSU)
    - Working Environment: 45°C, 10-90% RH


  • Control: IR, RS232, USB, Ethernet
  • Dimensions: 12.99" x 7.48" x 1.41" (330mm x 190mm x 36mm)
  • Weight: 3.3lbs (1.5kg)


• Item Includes:

  • 1x VigilLink GeoBox G406lite Video Wall Controller with Multiview
  • 1x Power Adapter
  • 1x User Manual


• Warranty:

  • 6 Year Limited Warranty
