VigilLink GeoBox G408 8 Channel 4x4 4K60/8K30 4:4:4 Video Wall Controller with Multiview - HDCP 2.2 Compliant

ITEM #: VGL-G408 MFG #: G408

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

Our Price:

$4,623.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


G408 - Overview

Introducing the VigilLink GeoBox G408, a powerful solution for creating high-quality video walls. With its eight output channels, the G408 supports true 4K/2K resolution and integrates four 4K/2K input signals seamlessly. Combined with another G408 unit, it can produce a pixel-to-pixel 8K/4K video wall using 16 Full HD monitors.

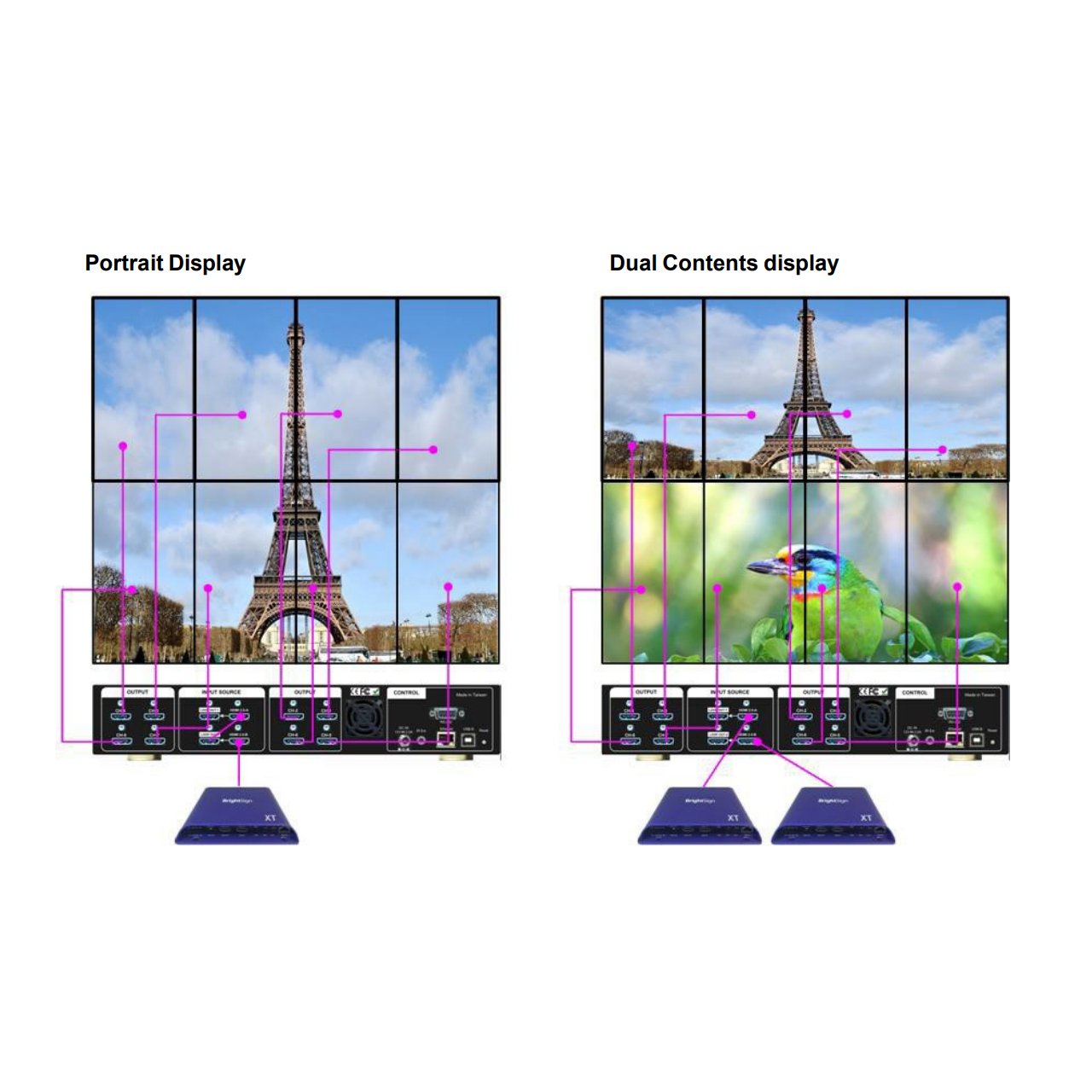

Landscape and Portrait Options
Monitors can be installed in any combination of landscape or portrait orientation.

Pixel-Based Image Position Adjustment
Achieve precise bezel compensation.

Overlap Adjustment & Image Rotation
Create asymmetrical video walls with ease by adjusting the aspect ratio and rotating images.

Unlimited Video Wall Size
Combine multiple G408 units to scale your video wall to any size.

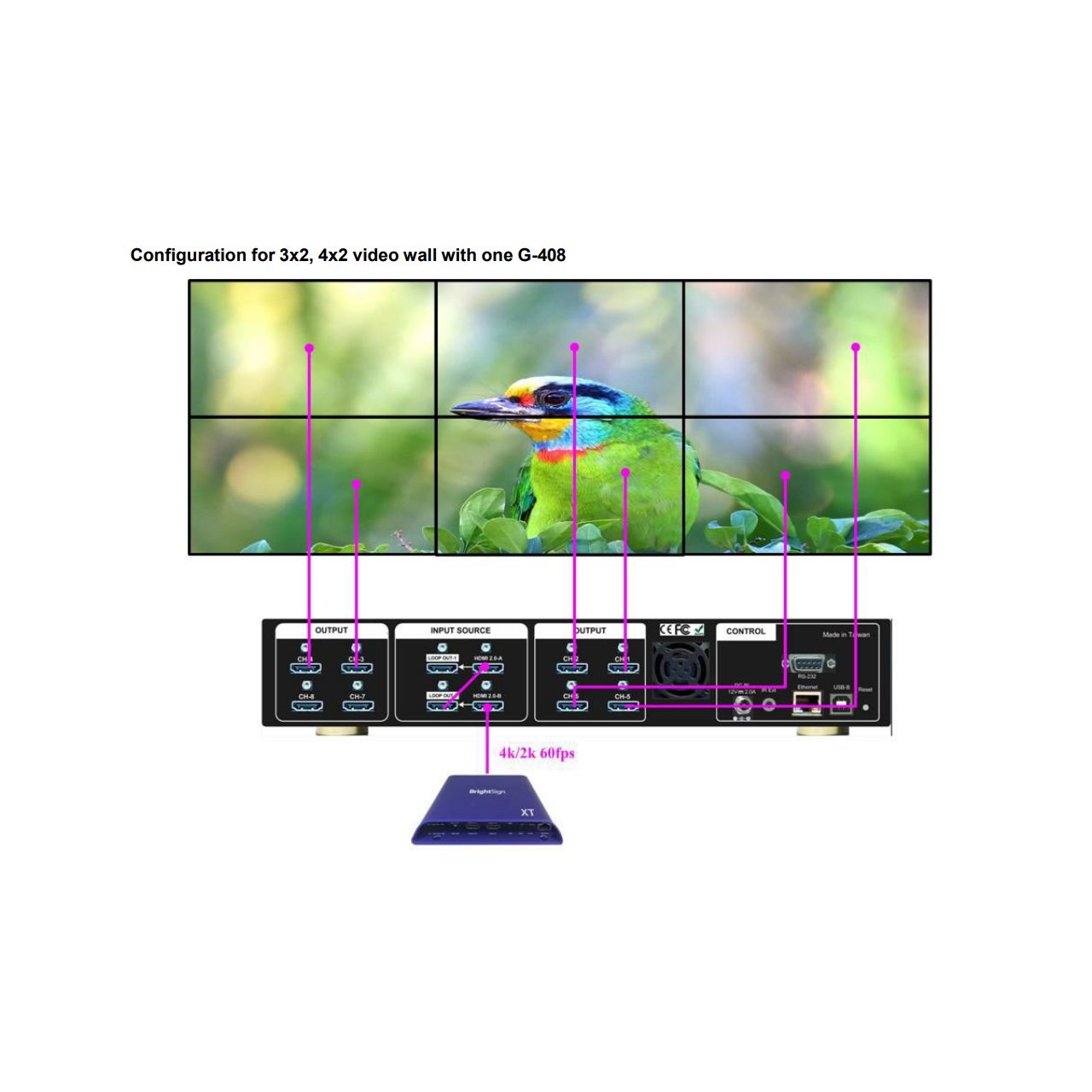

3x3 Video Wall Display
Pair the G408 with a G406s to create a 3x3 video wall display.

The GeoBox G408 offers unmatched flexibility, allowing users to create impressive video walls with various orientations and resolutions. Whether you're setting up a large-scale display or a smaller video wall, the G408 is your go-to solution for top-tier performance and customization.

  • Features:

    • Supports up to true 4K or 8K/1K@30hz, and outputs up to WUXGA
    • Supports multiple units cascade through HDMI loop-out for controlling larger scale video wall, such as 3x3, 4x4 or more
    • Configuration can be done through IR remote, PC tool or WebGui
    • 10-bit processor, frame rate conversion
    • 3D motion adaptive de-interlace
    • Frame lock for synchronized outputs
    • Individual 90/180/270 rotation, flip, cropping, scaling & color adjustment in each channel

  • Specifications:

    • I/O Ports:
    • Two processing modules, each with:
      - Input: 1x HDMI 2.0b, HDCP: 2.2/1.4.
      - Output: 4x HDMI up to 1080P & WUXGA.
      - 1x HDMI 2.0 loop-out ports from adjacent HDMI input ports.
    • Max. Input Resolution: 4096x2160 @60Hz
    • Selectable Output: Up to 1920x1200, 2048*1080 60Hz
    • Chroma Sampling: 4:4:4, 30 Color Bits
    • ESD Protection: ±15kV (Air-gap discharge), ±8kV (Contact discharge).
    • DC 12V/1.9A, max. 22.8W, (100V - 240V AC PSU)

      Physical:
    • Dimensions: 12.99" x 6.38" x 2.28" (329.94mm x 162.05mm x 57.91mm)
    • Weight: 4.19lbs (1.9kg)
    • Working Environment: 113°F (45°C), 10% - 90% RH

  • Item Includes:

    • 1x VigilLink GeoBox G408 8 Channel Video Wall Controller with Multiview
    • 1x Power Adapter

  • Warranty:

    • 6 Year Limited Warranty
