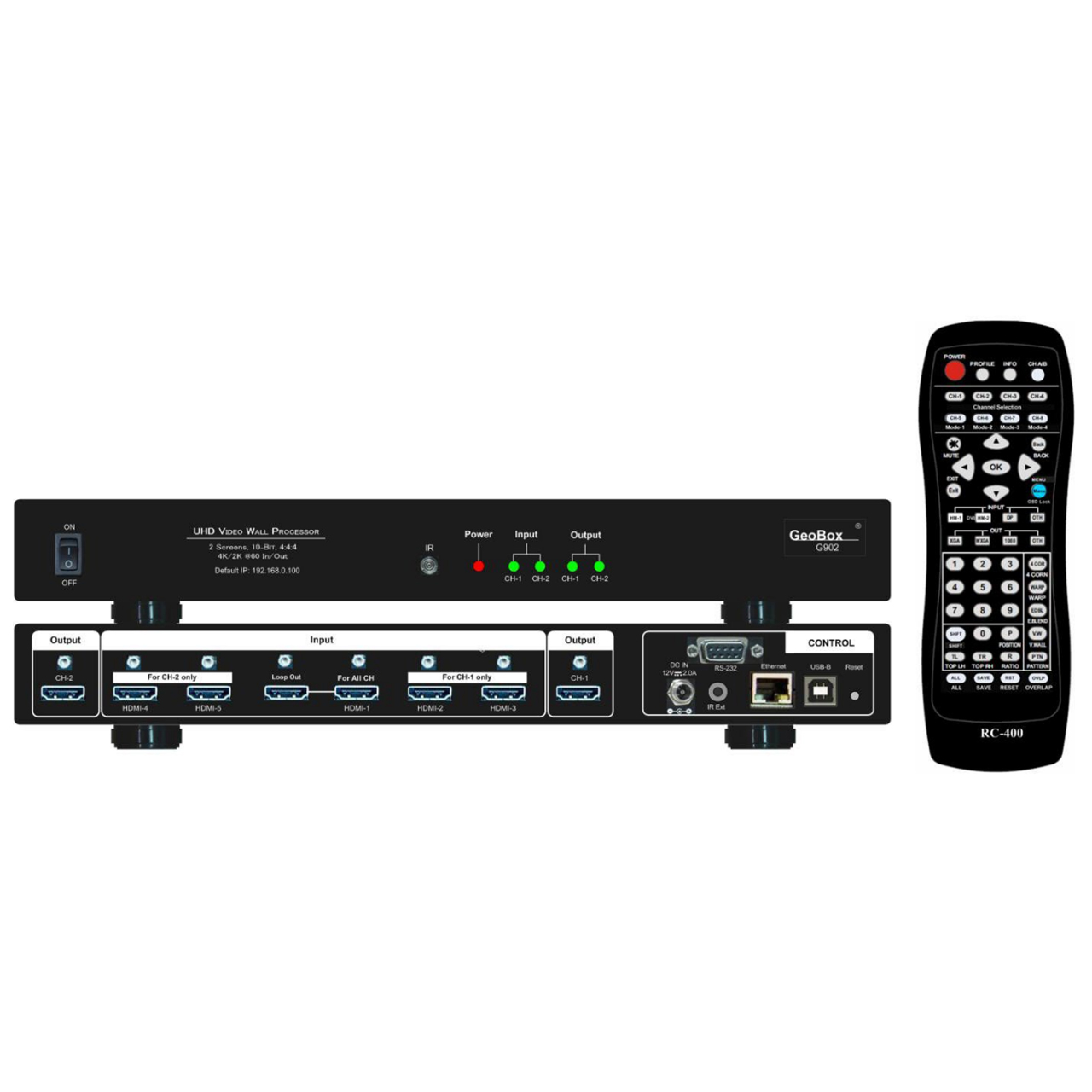

Introducing the VigilLink GeoBox G902, the powerful and versatile signal processor designed to elevate your video display experience. Packed with features, the G902 offers two 4K/60 output channels and five HDMI 2.0 input ports, making it the ideal solution for video walls and complex video applications.
High-Quality Input & Output
- Supports input resolutions up to 4096x2160 @60Hz and 7680x2160 @30Hz with 4:4:4 chroma sampling
- Capable of handling non-VESA standard input timings
Enhanced Video Performance
Equipped with a 10-bit high-end processor for adaptive motion de-interlace, low angle smooth algorithm, and 3:2/2:2 pull-down cadence
Programmable Output
- Supports output resolutions up to 4096x2160 or 3120x3120 @60Hz with selectable refresh rates for customized video wall setups
- Color adjustments available for brightness, contrast, hue, saturation, sharpness, and discrete RGB gain
- HDR-BT.2020 input signal support for full color 4:4:4 RGB SDR output

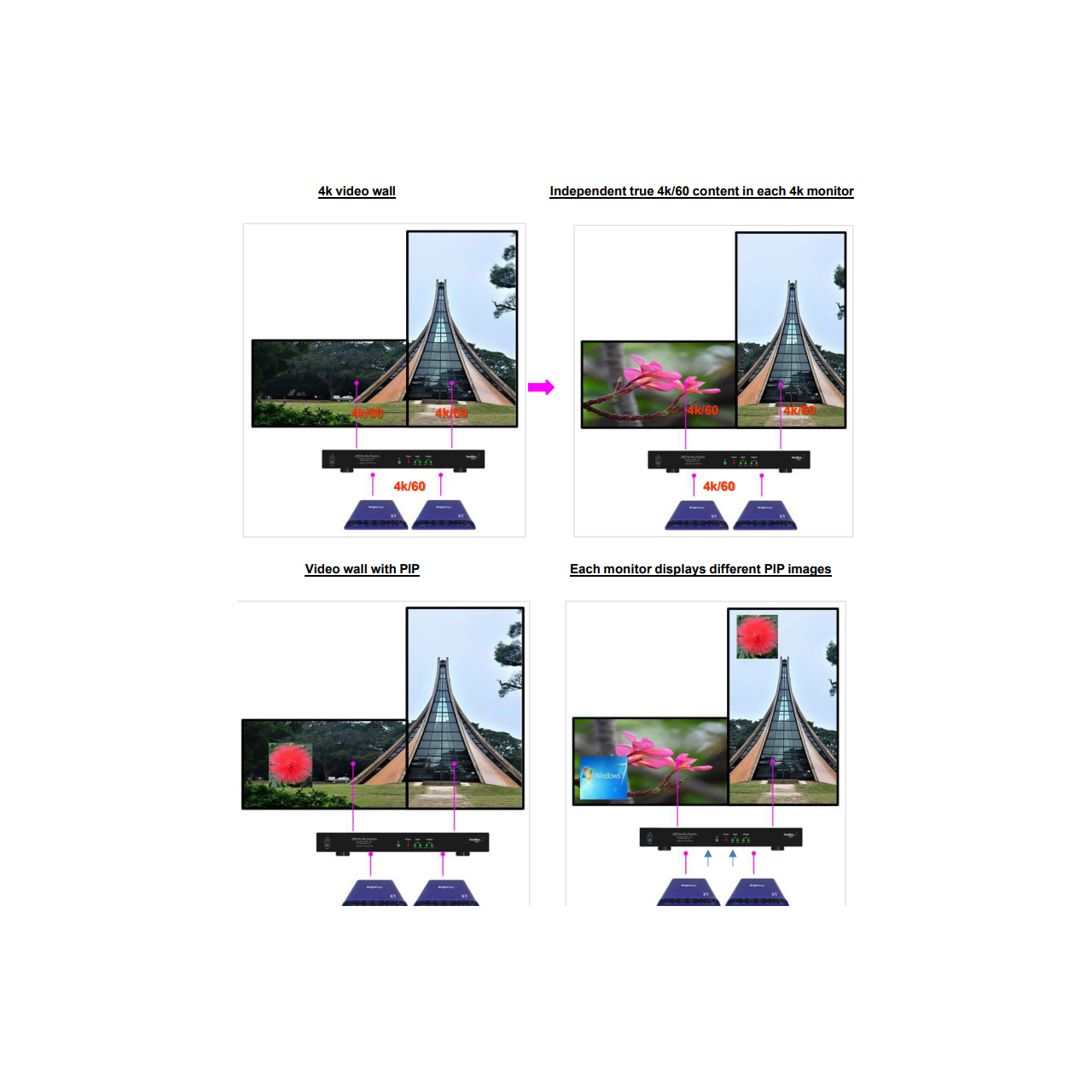

Video Wall Function
- Crop specific locations and resolutions for each output
- Overlap function to adjust image position, aspect ratio, and cropping area up to +/-1800 pixels

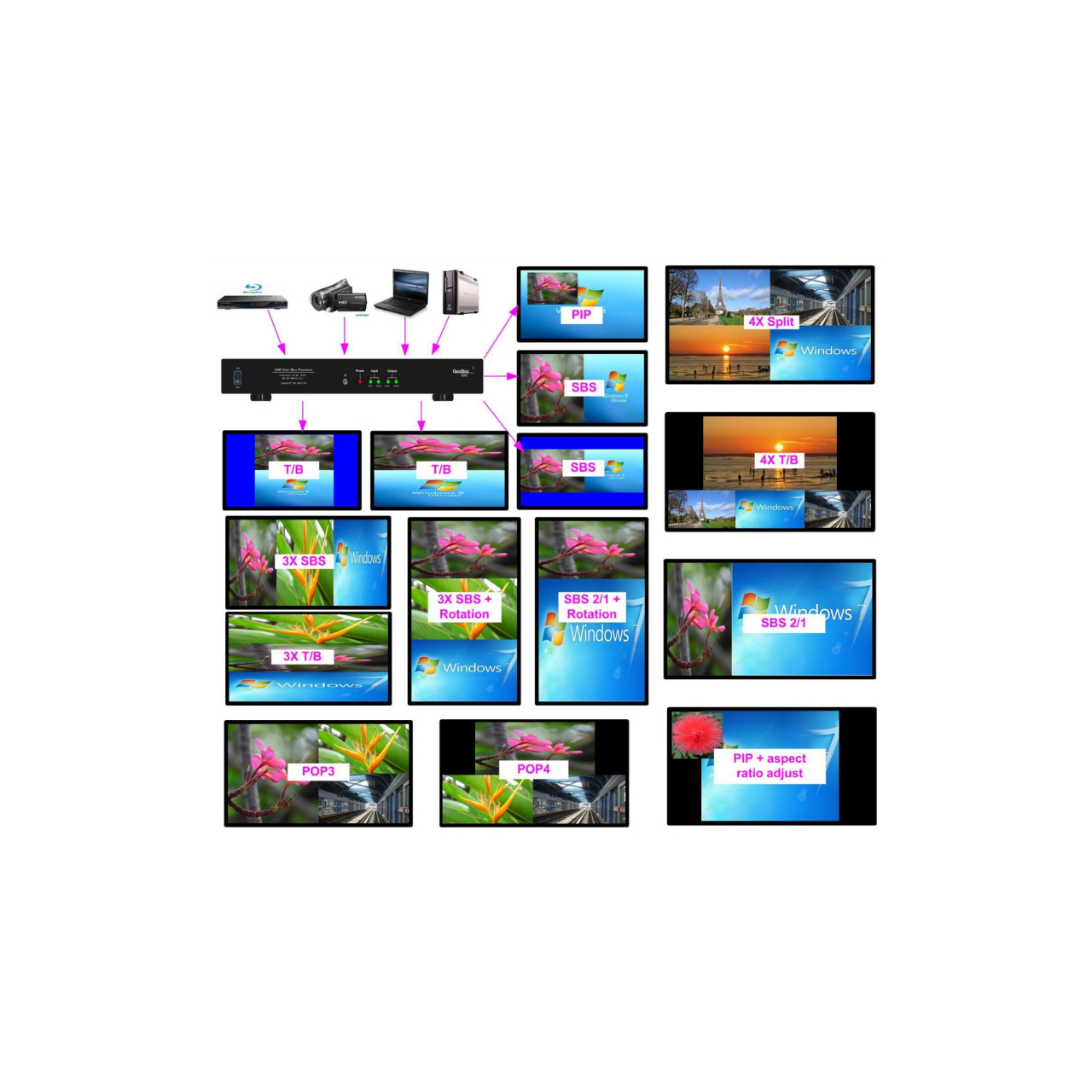

PIP & POP
- Standard functions for picture-in-picture (PIP) and side-by-side or top/bottom (POP) displays
- Built-in 3-split view Multi-viewer function for diverse display setups
3D Capabilities
- Convert 3D formats into side-by-side, top/bottom, or frame sequential 3D output formats
Easy Setup & Control
- Multiple Control Options: Operate through IR remote, USB, Web GUI, or Ethernet
- Custom Settings: Save and recall up to 10 custom settings for quick access
- 24/7 Operation: Designed for continuous use in demanding environments'
The GeoBox G902 is a cost-effective, reliable, and flexible solution for all your video wall and display needs, delivering unmatched video performance every time. Whether you're handling complex display configurations or integrating 3D content, the G902 ensures your video experience is second to none.
