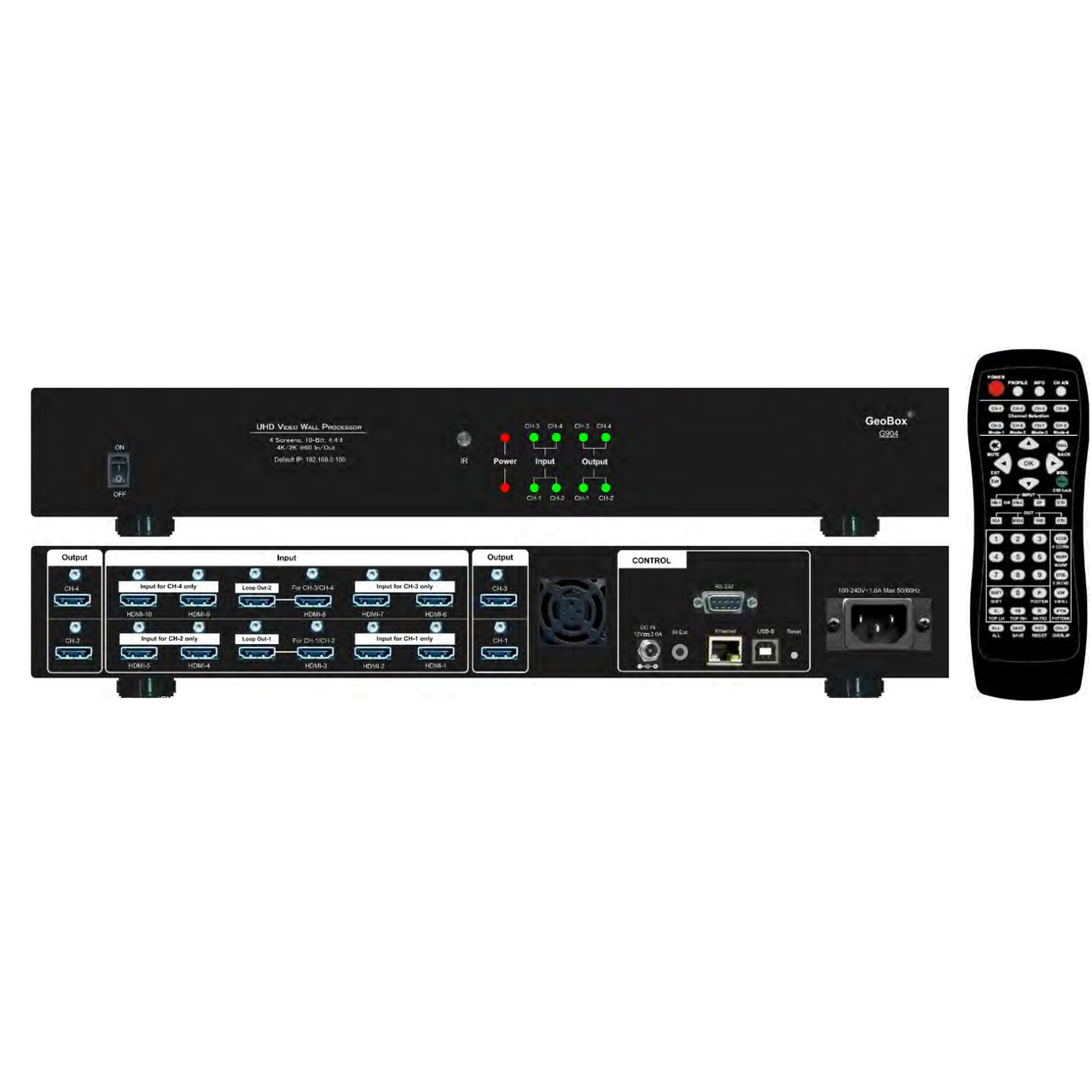

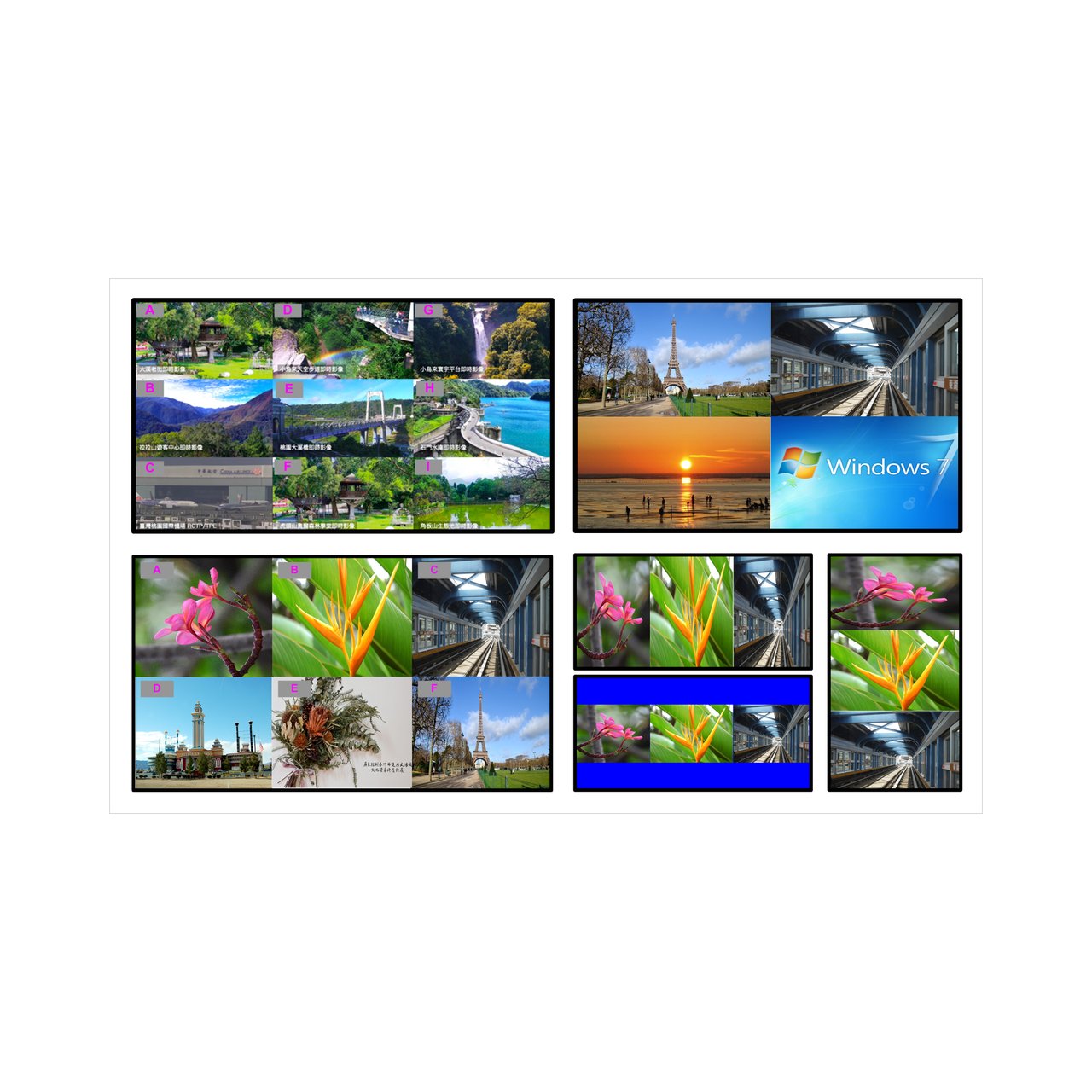

VigilLink GeoBox G904 4 Channel 4x4 4K60 4:4:4 Video Wall Controller with Multiview - HDCP 2.2 Compliant

ITEM #: VGL-G904 MFG #: G904

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

Our Price:

$5,247.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


G904 - Overview

The VigilLink GeoBox G406s is a powerful hardware system designed to elevate your video wall setup. Whether working with dual monitor video walls or scaling up to a 3x3 video wall, the G406s offer unmatched flexibility and performance.

Dual Monitor Support
- Ideal for video walls with both portrait and landscape orientations
- Cascadable with the GeoBox G408 to create an impressive 3x3 video wall

Edge Blending and Signal Splitting
- Perfect for splitting signal sources and setting overlap pixels for seamless projector edge blending
- Connects to sources with varying resolutions, simplifying your setup and reducing configuration time

Standalone System
The G406s is designed as a pure hardware solution, eliminating the need for additional PCs or software tools

Intuitive Control
- Easily control all operations through IR remote, USB, RS232, or Ethernet
- User-friendly interface ensures quick setup and hassle-free operation

Perfect for Video Wall Applications
- The G406s seamlessly integrate into any video wall setup, delivering high-quality performance and reliability
- With its versatility and ease of use, the G406s is the go-to choice for upgrading your video wall experience

Upgrade Your Video Wall with GeoBox G406s
With the GeoBox G406s, you get a cost-effective, reliable, and flexible solution that makes video wall setups easier and more efficient than ever. Whether you're working on a small dual monitor setup or a large 3x3 video wall, the G406s is the perfect addition to your system.

  • Features:

    • Supports up to true 4K or 8K/1K@30hz, and outputs up to WUXGA

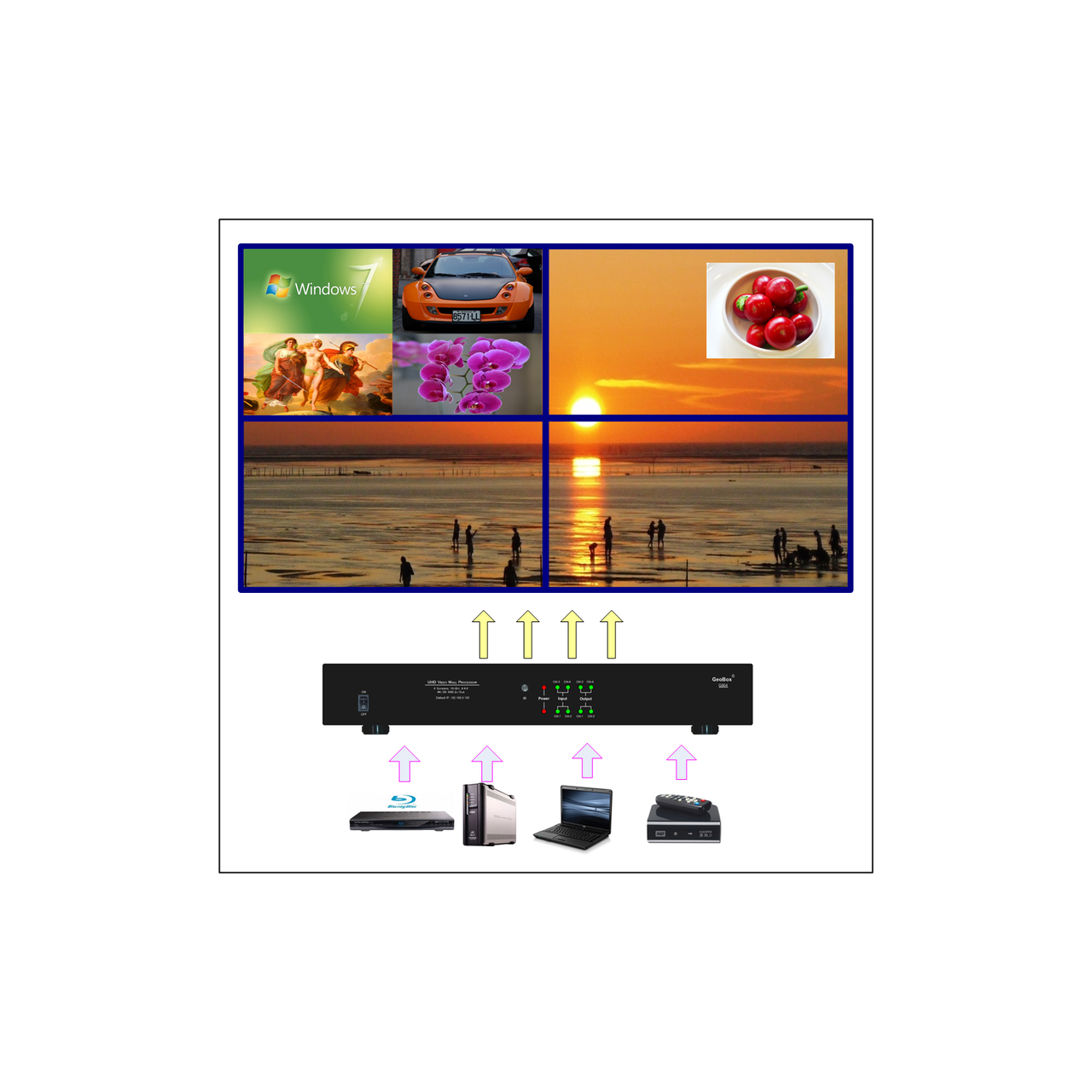

    • Supports multiple units cascade through HDMI loop-out for controlling larger scale video wall, such as 3x3, 4x4 or more
    • Configuration can be done through IR remote, PC tool or WebGui
    • HDCP V2.2/V1.4 compliant
    • Support non-VESA STD input timings
    • 4:4:4 Chroma Sampling, 30 Color bits
    • Frame lock for synchronized outputs
    • Flexible aspect ratio adjustment in each edge up to ± 1800 pixels

  • Specifications:

      Input
    • Input Port: 1x HDMI 2.0b
    • Max Input Resolution: 4096x2160 @60Hz & 7680x1200 @30Hz

      Output
    • Output Port: 2x HDMI up to 2048x1080 @60Hz, RGB 4:4:4 progressive
    • 1x HDMI 2.0 loop out port for multiple unit cascade & daisy chain connection
    • 3:2/2:2 cadence, low angle smooth algorithm, high-quality scaling engine
    • Flexible aspect ratio adjustment in each edge up to ± 1800 pixels
    • High Dynamic Range (HDR) input signal: SMPTE ST-2084, SMPTE ST-2086

      Physical
    • ESD Protection: ±15kV (Air-gap discharge), ±8kV (Contact discharge)
    • DC 12V/1.1A, max. 8w, (100V - 240V AC PSU)
    • Working Environment: 113°F (45°C), 10% - 90% RH
    • Control: IR, RS232, USB, Ethernet
    • Product Dimensions: 8.7" x 6.3" x 1.6" (220.98mm x 160.02mm x 40.64mm)
    • Weight: 2.4lbs (1.08kg)

  • Item Includes:

    • 1x VigilLink GeoBox G904 4 Channel Video Wall Controller with Multiview
    • 1x Power Adapter
    • 1x User Manual

  • Warranty:

    • 6 Year Limited Warranty
