VigilLink GeoBox S901 5x1 Seamless 4K HDMI UHD Switcher with Quad View

S901 - Overview

• Features:

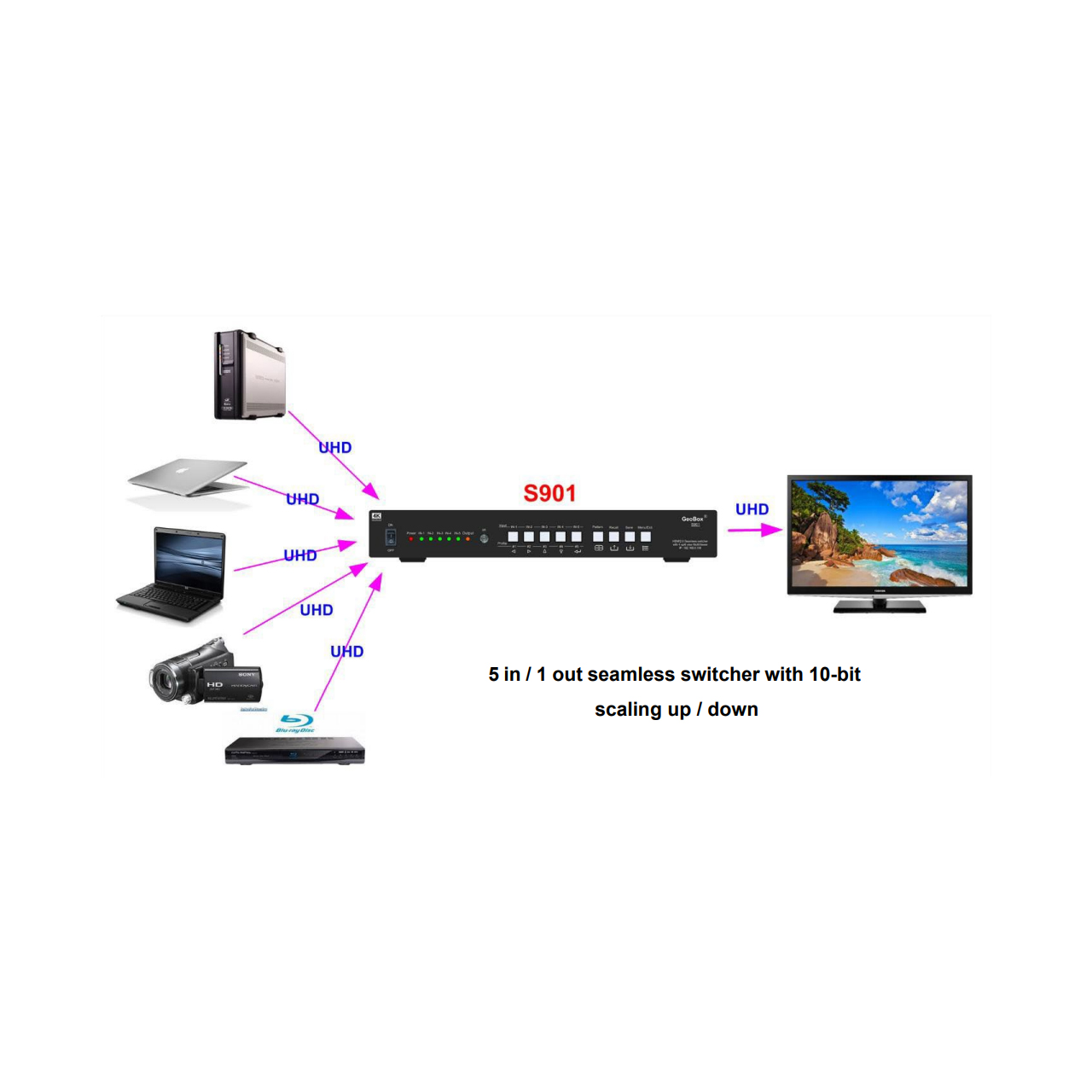

  • 5-in-1-out multi-function video processors (seamless switching, scaling, image flip/rotation/cropping, 3D format conversion, and multi-viewer functions)
  • Ideal for use as seamless switchers, quad split multi-viewers, and front-end processors for large display systems

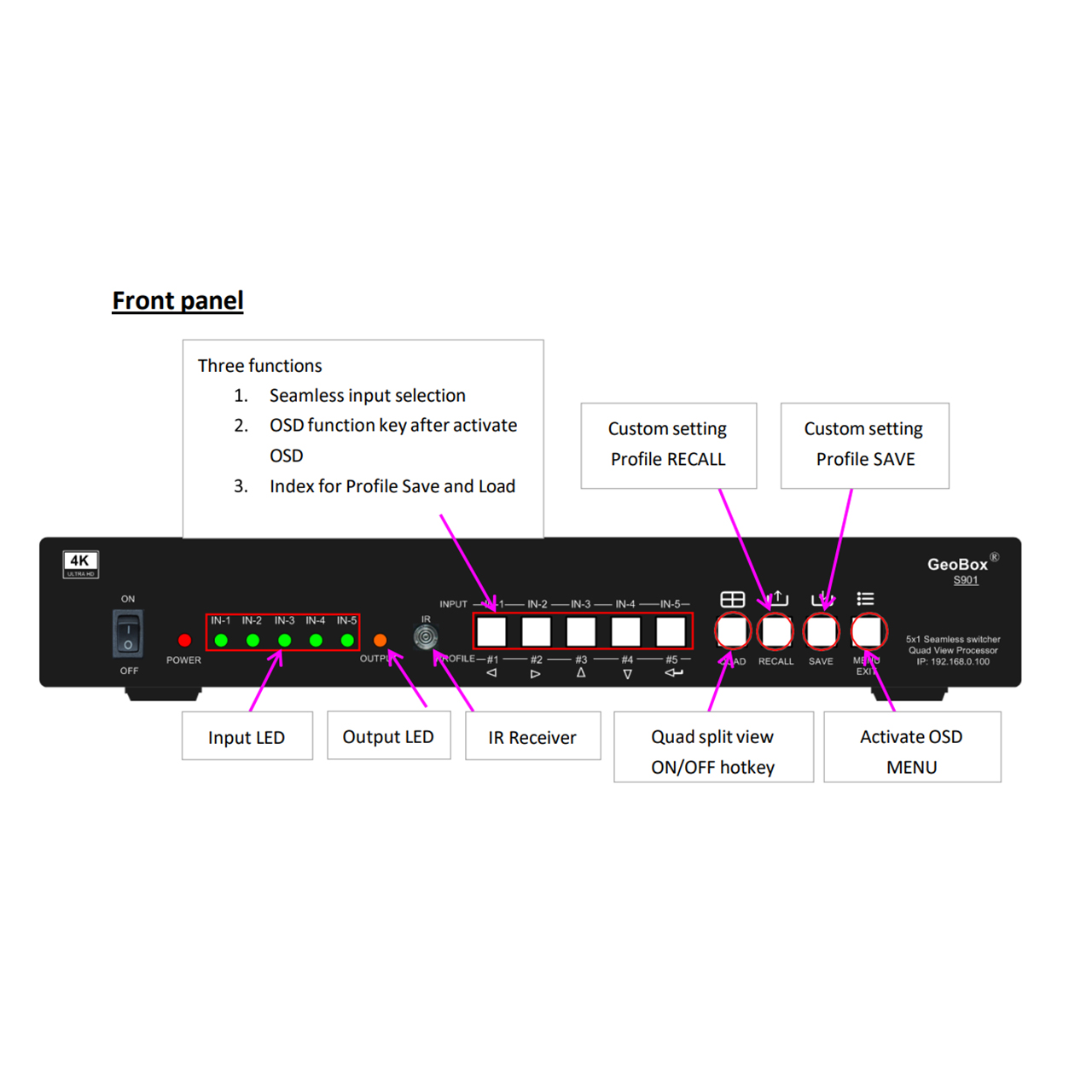

  • Equipped with a front keypad for an even more intuitive user interface
  • PIP (Picture-in-Picture) & POP (Picture-outside-Picture)
  • Support for up to five input signals displayed in different layouts on a 3K monitor
  • Flexible PIP positioning and sizing (320x180 to 1920x1200)
  • Interchangeable master and PIP images, with rotation and flipping options (90°/180°/270°)
  • 3D format conversion, supporting HDMI 1.4 standard formats (side-by-side, top/bottom, frame order)


• Specifications:

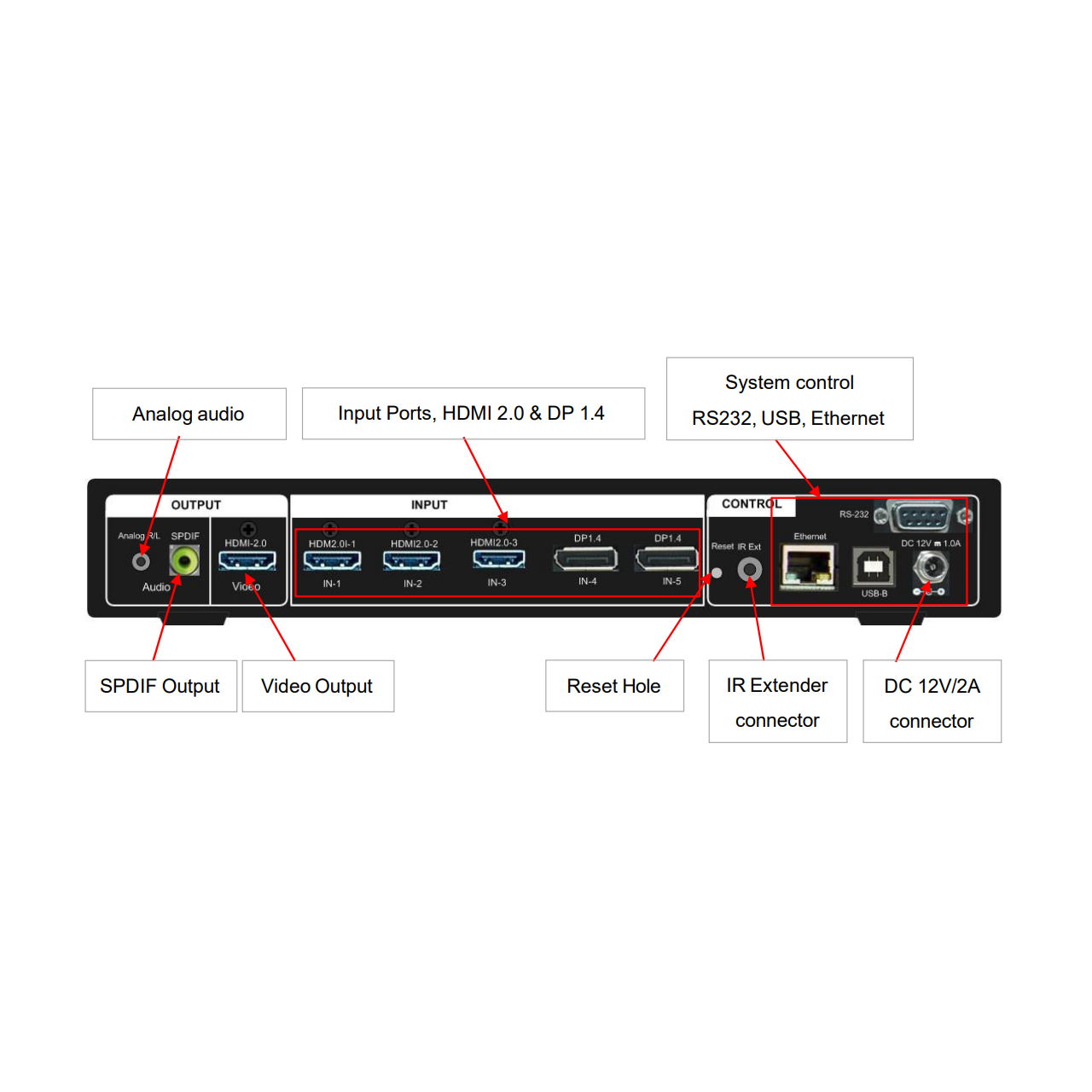

  • Inputs
  • Three HDMI 2.0b and two DP1.4 ports are available
  • Supports non-VESA standard input timing

    Maximum Input
  • HDMI input supports up to 4096x2160 60fps, 7680*2160 30Hz
  • DP input supports up to 7680x4320 (8K/4K) @30Hz, and interleaved and progressive input signals
  • Supports 4:4:4 10-bit color

    Editable Output
  • One HDMI output up to 40962267/60 or 76801234/60 can be edited.
  • Horizontal output range is 800-7680 with 230 points/step below 8MHz and 230 points/step above 16MHz.
  • Vertical output range is 600-3840 with 1 point/step, with the highest point frequency of 600MHz.
  • Supports progressive output with 10-bit, RGB 4:4:4 full color.
  • Default 17 output timing with selectable 8-bit/10-bit dark and 24/30/50/60/100/120Hz refresh rates.
  • Supports native 1:1 image display with original quality

    HDCP
  • Supports HDMI V2.2/V1.4, DP: HDCP: V2.2/V1.4

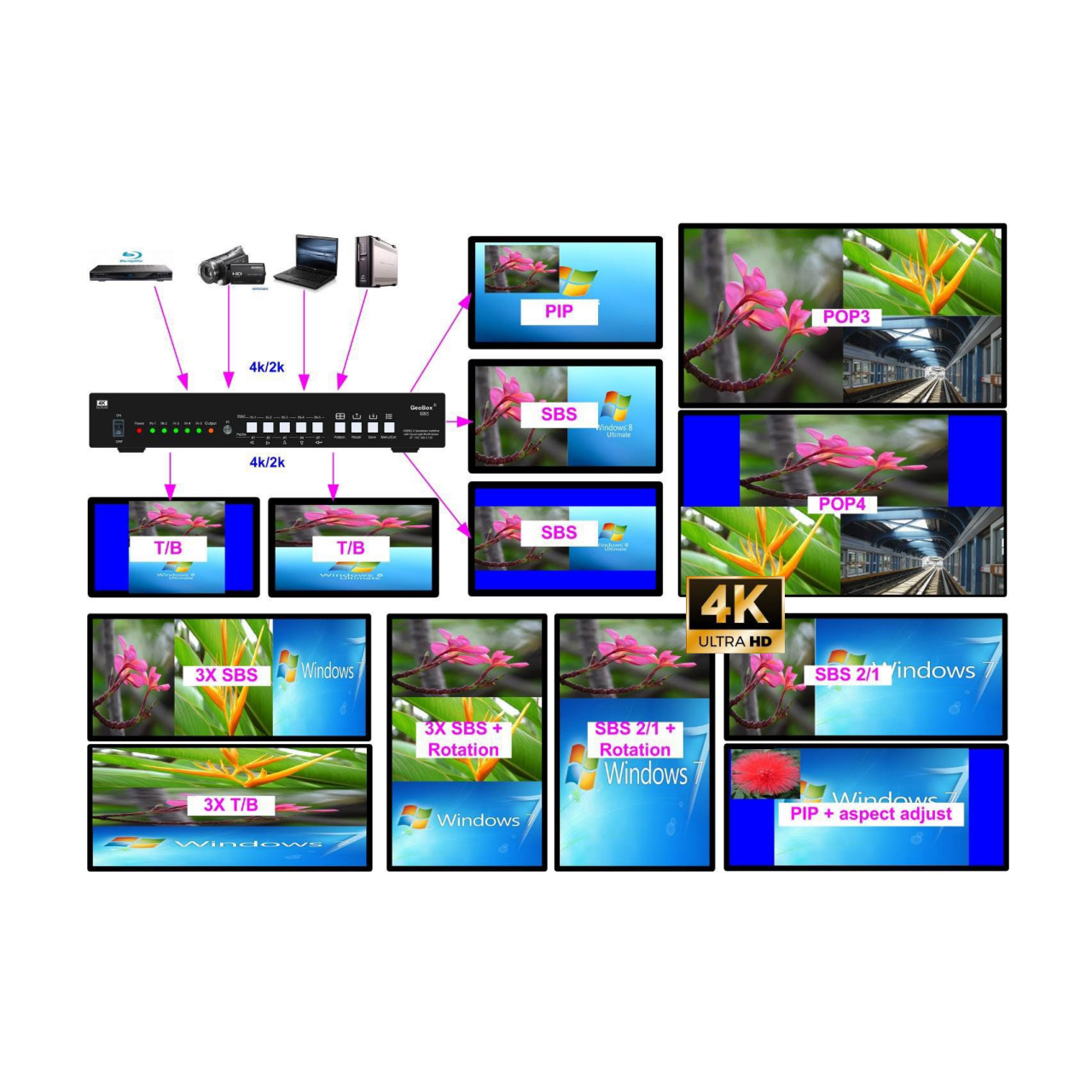

    PIP/POP Function
  • PIP image size ranges from 320180 to 19201200 resolution, with a flexible position and optional aspect ratio.
  • POP images can be side-by-side, top/bottom, and 2/3:1/3 ratios, with the ability to rotate/flip and adjust the aspect ratio.
  • One S901 can display four different 3-split windows or two different 4-split windows on one landscape or portrait UHD monitor

    3D Functionality
  • Passive 3D decoding into the left eye or proper eye signal output for passive 3D applications.
  • Supports 3D format conversion with 4 3D format or left and right eye independent signals, which can be converted into left and right side-by-side, up and down side-by-side, or sequential 3D signal output. It can be applied to VR/AR system

  • Selectable and Programmable EDID: EDID is selectable and programmable
  • Embedded Video Wall Functionality: Supports image segmentation, cropping, position assignment, and position shifting for video wall functionality
  • Freeze Image: The image can be frozen by pressing the keys on the remote control
  • Aspect Ratio: Each edge of the image can flexibly adjust the aspect ratio up to ± 1800 pixels
  • Processor: 10-bit processor, 3:2/2:2 movie signal response, low-angle smoothing algorithm, high-quality scaling engine
  • Image Scaling: Supports scaling of images up and down between XGA and 8k/2k 4:4:4 chroma sampling
  • Color Processing: Supports 30 color bits with xvYCC color processing and 8/10/12-bit deep color input signals
  • Deinterlacing: Supports 3D motion self-adjusting deinterlacing function
  • HDR Support: Supports High Dynamic Range (HDR) with SMPTE ST-2084, SMPTE ST-2086, and HDR 10
  • Individual Adjustments: Supports individual 90/180/270 rotation, flip, cropping, scaling, and color adjustment up to 4k/60 inputs
  • Embedded Audio: Embedded HDMI audio output is supported
  • ESD Protection: ±15kV (Air-gap discharge), ±8kV (Contact discharge)

    Physical
  • DC Power Supply:
    - DC adapter: 12V 2A (100V-240V)
    - Max. Power consumption: 0.6A (7.2w)
  • Working Environment: 104°F (40°C), 10-90% RH
  • Weight: 1.94 lbs. (body only)


• Item Includes:

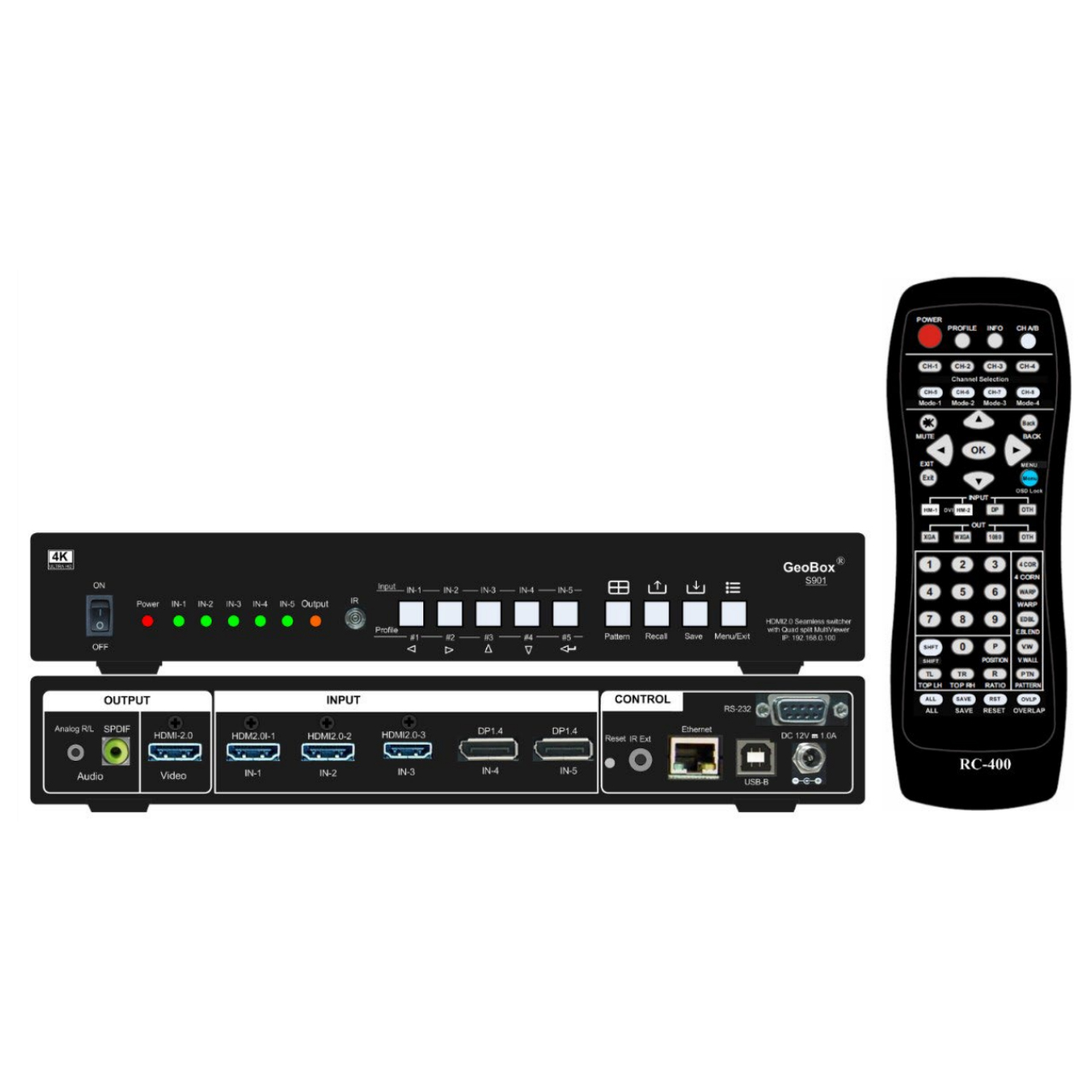

  • 1x VigilLink S901 5x1 Seamless 4K HDMI UHD Switcher with Quad View
  • 1x Power Cord
  • 1x Remote Control


• Warranty:

  • 6-Year Limited Warranty
