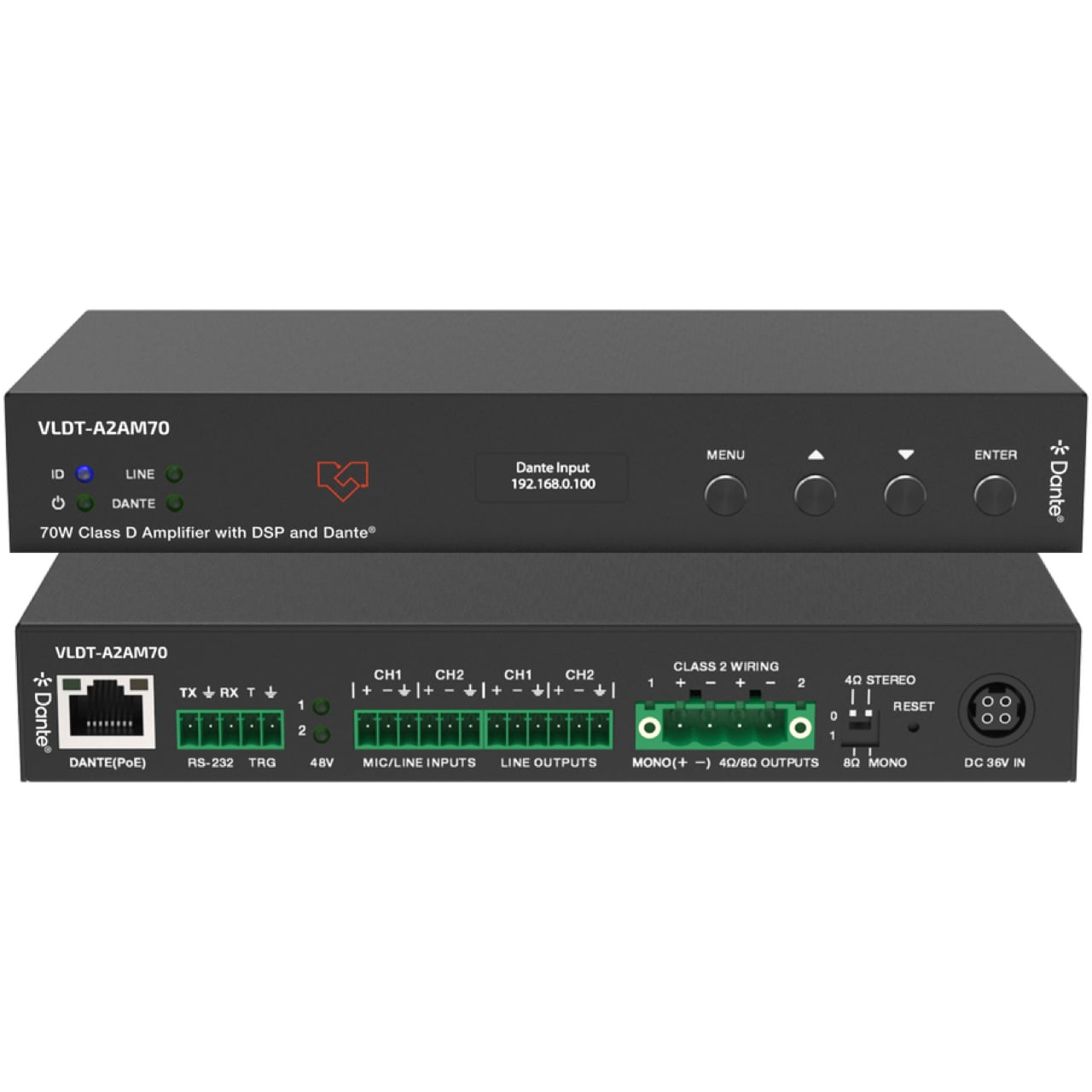

The VigilLink VLDT-A2AM70 is a 2-channel Class D amplifier designed for compact audio distribution systems. It delivers up to 2x 35W into low-impedance (4Ω/8Ω) stereo loads, or 1x 70W in bridged mono mode. The amplifier features Dante 2-channel digital inputs and outputs, plus 2-channel balanced or unbalanced analog inputs and outputs for comprehensive connectivity. Analog inputs accommodate both microphone and line-level signals, with 48V phantom power available for condenser microphones.
Integrated DSP provides extensive audio processing, including gain control, mixing, matrixing, equalization, volume adjustment, and delay. Control options include RS-232, TCP/IP, and an integrated web GUI for flexible system management.

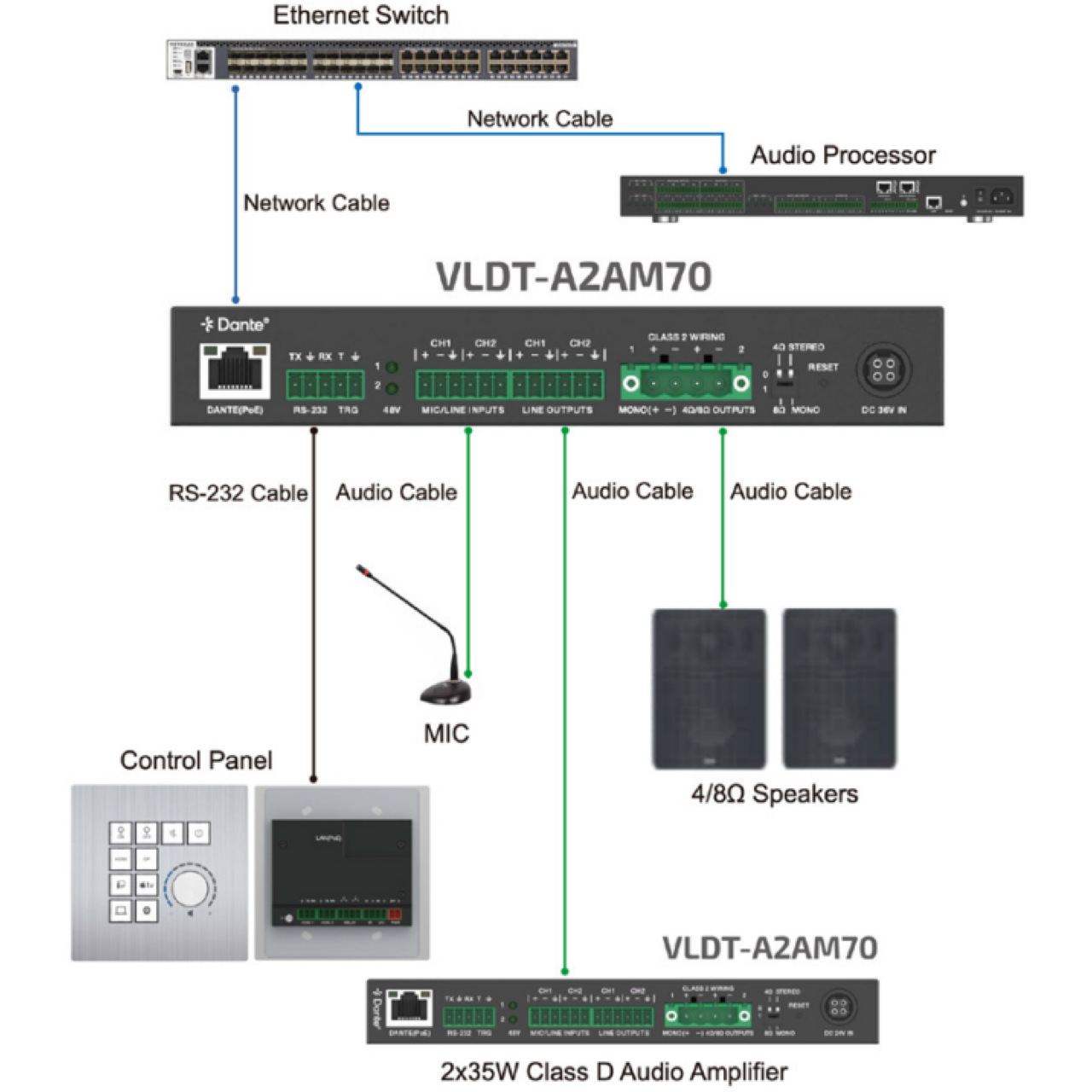

This versatile amplifier is well-suited for professional AV installations in corporate boardrooms, huddle spaces, retail and hospitality venues, and distributed audio systems. It seamlessly integrates legacy analog sources with Dante-enabled infrastructure, powering ceiling speakers, zone speakers, and monitor systems while simplifying installation in both new builds and retrofit applications.
Dante (Digital Audio Networking Through Ethernet) is a media networking technology developed by Audinate that transports high-quality, low-latency audio over standard IP networks using off-the-shelf Ethernet switches and Cat5e/6 cabling. The VLDT-A2AM70 implements Dante connectivity, enabling it to receive audio from any Dante source on the network and integrate seamlessly with the thousands of Dante-enabled products from over 600 manufacturers worldwide.
