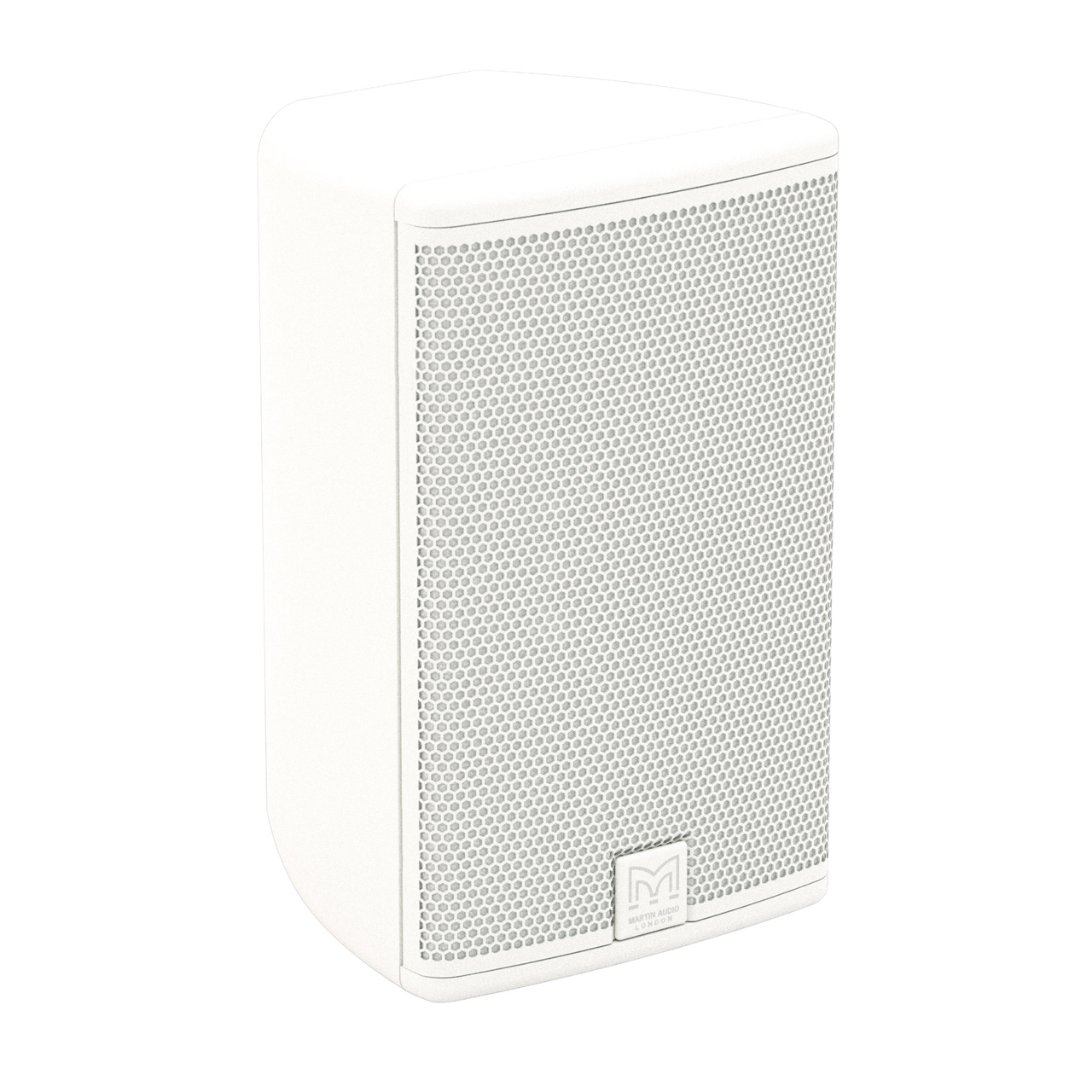

Martin Audio ADORN A55T-W 5.35-Inch Passive A55 2-Way On-Wall Loudspeaker with 70V/100V Transformer - White

ITEM #: MRTN-A55T-W MFG #: A55T-W

Primary Image
Free Shipping with $49 Minimum Order

List Price:

$480.00

Our Price:

$449.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


A55T-W - Overview

The Martin Audio ADORN A55T-W is a two-way passive speaker with an elegant design that is perfect for architectural environments that require high-fidelity sound from an unobtrusive, ultra-compact enclosure. It brings class-leading performance, reliability and value to a wide range of commercial sound applications.

The A55T is the perfect choice for background and foreground systems which require superior performance. Its Martin Audio signature sound characteristic also provides a seamless sonic transition within a multi-zoned complex using larger Martin Audio systems such as CDD or BlacklineX.

Comprising a 5.25" (135mm) LF driver and a 0.75" (19mm) silk-dome HF driver on a 110° x 80° horn, it handles 50W AES, 200W peak and can produce 113dB peak output at 1m. It has a smooth frequency response and strong bass reproduction that extends down to 65Hz.

The A55T incorporates a high-quality transformer for 70V/100V line operation, with transformer taps selected by a rotary switch. For full-bandwidth protection, the low and high-frequency sections are individually protected against overload.

Available in black or white as standard, it can be readily painted to match any decor, and can be wall-mounted vertically or horizontally using the wall bracket supplied. For outdoor use, the speaker has an IP rating of IP54 when fitted with an optional weatherized connector cover.

The Martin Audio SX110 subwoofer will extend the bandwidth of ADORN on-wall speakers and is ideal for foreground music applications which require increased impact and low frequency performance.

Applications:
• Retail outlets
• Cafes, bars and restaurant chains
• Hotels and convention centers
• Educational facilities
• Corporate offices

  • Features:

    • Contemporary, unobtrusive design
    • High output capability
    • High fidelity sound
    • Low and high-frequency overload protection
    • 70V/100V line transformer
    • Vertical or horizontal orientation
    • Wide 110° x 80° coverage
    • 1x Wall bracket included
    • IP rating of IP54 with optional connector cover

  • Specifications:

    • Type: Ultra-compact passive two-way system, front ported bass reflex
    • Frequency Response: 90Hz - 17kHz ±3dB, -10dB @ 65Hz
    • Drivers:
      - LF: 5.25"/1" high-temp voice coil, coated paper cone, rubber surround, ferrite motor, pressed steel chassis
      - HF: 0.75" silk dome, neodymium motor
    • Rated Power: 50W AES, 200W peak
    • Recommended Amplifier: VIA5002
    • Sensitivity: 90dB/1W/1m
    • Maximum SPL: 113dB peak
    • Nominal Impedance: 16Ω
    • Dispersion (-6dB): 110° H x 80° V
    • Crossover: 3.5kHz passive (LF and HF auto-resetting fuses)
    • Transformer Taps:
      - 70V: 30W/15W/7.5W/3.75W
      - 100V: 30W/15W/7.5W
    • Recommended High-Pass Filter: 60Hz, 24dB/oct
    • Enclosure: ABS, UL 94V-0 rated
    • Finish: White
    • Grille: Perforated steel
    • IP Rating: IP54 when fitted with optional weatherized connector cover
    • Connectors: Phoenix-style 12 A plug (replacement part PCX00006)
    • Fittings: Wall bracket included
    • Dimensions (HxWxD): 9.6" x 6" x 5.5" (245mm x 152mm x 140mm)
    • Weight: 6.2lbs (2.81kg)

  • Warranty:

    • 5 Year Limited Warranty
