VLEX-HT3040U - Overview

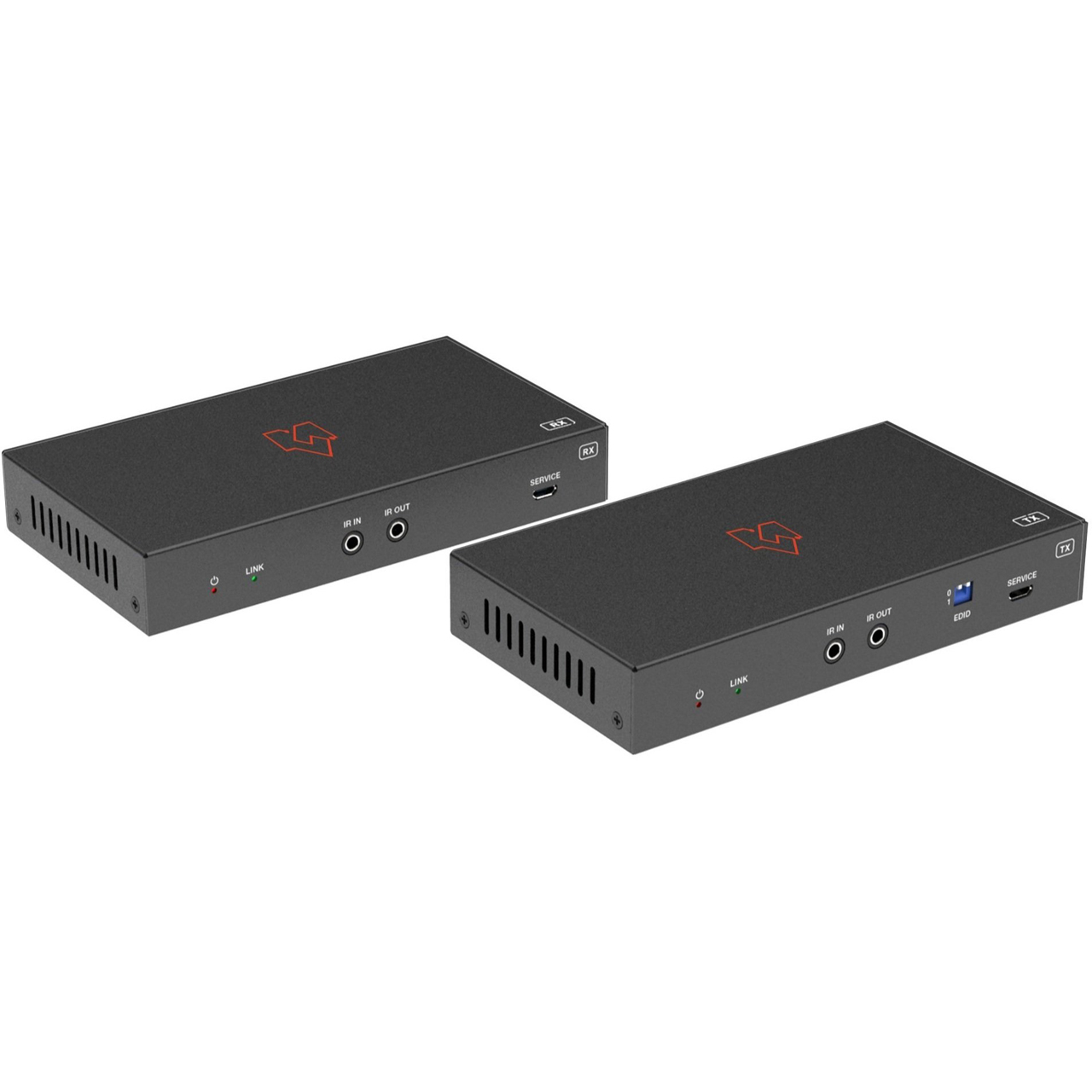

Introducing the VigilLink VLEX-HT3040U 18Gbps HDBaseT 3.0 Extender, engineered to effortlessly extend uncompressed HDMI/USB-C signals, bi-directional IR, RS-232, and USB 2.0 signals across distances of up to 230ft/70m (4K30/1080P) or 131ft/40m (4K60) with just a single CAT6A/7 cable. With support for video resolutions up to 4K2K@60Hz YUV 4:4:4, this extender ensures crystal-clear visuals. The transmitter boasts 1x HDMI input, 1x USB-C input (60W charging), 1x USB Host, and 3x USB Device ports, while the receiver features 1x HDMI output and 2x USB Device ports. Both units support 3.5mm analog audio de-embedding, EDID management, bi-directional IR, and RS-232 signal pass-through. Plus, enjoy the convenience of a bi-directional 24V POC function. Ideal for home and commercial settings, this extender offers seamless integration and long-distance capability, delivering a hassle-free solution for video extension via a single CAT cable.

Features:
- HDMI 2.0b and HDCP 2.2 compliant for seamless compatibility
- Supports 18Gbps video bandwidth for high-quality transmission
- Accommodates video resolution up to 4K2K@60Hz (YUV 4:4:4) for stunning clarity
- Pass-through support for HDR, HDR10, HDR10+, Dolby Vision LLM, and HLG for vibrant visuals
- Allows pass-through of audio formats, including LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, and more
- Transmission distances up to 230ft/70m (4K30/1080P) or 131ft/40m (4K60) via a single CAT6/6A cable
- Bi-directional Power over Cable (POC) eliminates the need for external power supplies at both ends
- Features 3.5mm analog audio de-embedding at both transmitter and receiver for versatile audio options
- Includes EDID management for simplified setup and configuration
- Supports bi-directional RS-232 signal pass-through, bi-directional IR signal control, and USB2.0 signal transmission for comprehensive connectivity
- Compact design enables easy and flexible installation in any environment
Specifications:
- HDMI Compliance: HDCP 2.2
- HDCP Compliancel: HDCP 2.2
- Video Bandwidth: 18Gbps
- Video Resolution: Up to 4K @ 60Hz
- HDR: HDR, HDR10, HDR10+, Dolby Vision, HLG
- Color Space: RGB, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0
- Color Depth: 8/10/12-bit
- Audio Formats: LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD
- IR Level: 12Vp-p
- Transmission Distance:
  - 4K60/40m
  - 4K30/70m
  - 1080p/70m (CAT6/6A cable)

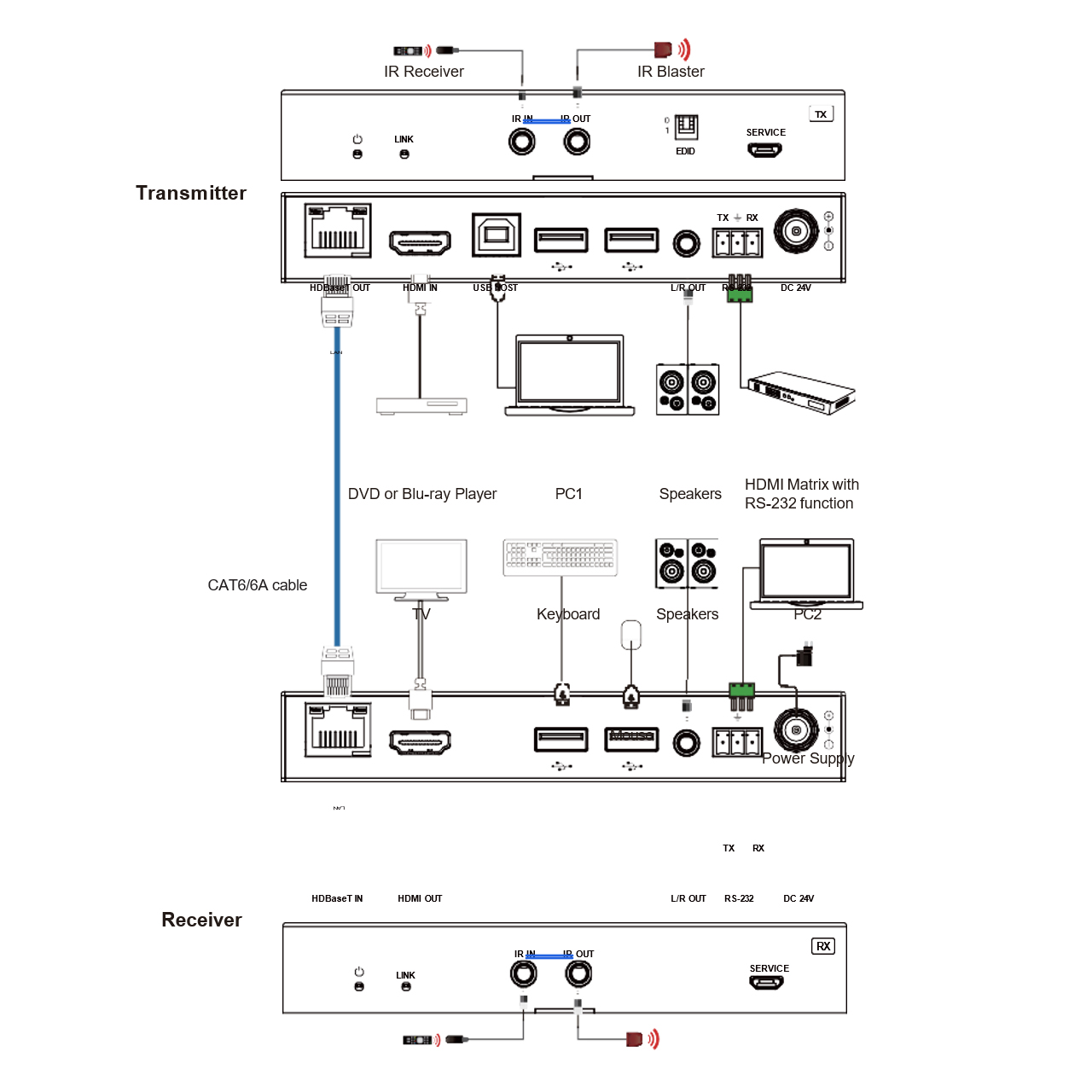

  Connection
- Transmitter Inputs: 1x HDMI IN (Type A, 19-pin female)
- Transmitter Outputs:
  - 1x HDBaseT OUT (RJ45 connector)
  - 1x L/R OUT (3.5mm Stereo Mini-jack)
- Transmitter Controls:
  - 1x IR IN (3.5mm Stereo Mini-jack)
  - 1x L/R OUT (3.5mm Stereo Mini-jack)
  - 1x RS-232 (3pin-3.81mm Phoenix jack)
  - 1x SERVICE (Micro USB, 5-pin female)
  - 1x USB HOST (USB Type B)
  - 2x USB DEVICES (USB Type A)
- Receiver Inputs: 1x HDBaseT IN (RJ45, 8-pin female)
- Receiver Outputs:
  - 1x HDMI OUT (Type A, 19-pin female)
  - 1x L/R OUT (3.5mm Stereo Mini-jack)
- Receiver Controls:
  - 1x IR IN (3.5mm Stereo Mini-jack)
  - 1x IR OUT (3.5mm Stereo Mini-jack)
  - 1x RS-232 (3pin-3.81mm Phoenix jack)
  - 1x SERVICE (Micro USB, 5-pin female)
  - 2x USB DEVICES (USB Type A)

  Mechanical
- Housing: Metal Enclosure
- Color: Black
- Dimensions (TX/RX): 5.66" x 3.07" x 0.90" (144mm x 78mm x 23mm)
- Weight:
  - Transmitter: 0.71lbs (323g)
  - Receiver: 0.70lbs (319g)
- Power Supply:
  - Input: AC 100V - 240V, 50/60Hz
  - Output: DC 24V/1A (US/EU standard, CE/FCC/UL certified)
- Power Consumption: 14.28W (POC)
- Operating Temperature: 32°F - 104°F (0°C - 40°C)
- Storage Temperature: -4°F - 140°F (-20°C - 60°C)
- Relative Humidity: 20% - 90% RH (non-condensing)
Item Includes:
- 1x HDBaseT 3.0 Extender (Transmitter)
- 1x HDBaseT 3.0 Extender (Receiver)
- 1x IR Blaster Cable (1.5 meters)
- 1x IR Receiver Cable (1.5 meters)
- 2x 3pin-3.81mm Phoenix Connectors (Male)
- 4x Mounting Ears
- 8x Machine Screws (KM3*4)
- 1x 24V/1A Locking Power Adapter
- 1x User Manual
Warranty:
- 6 Years
