VLEX-HT3100U0-TR - Overview

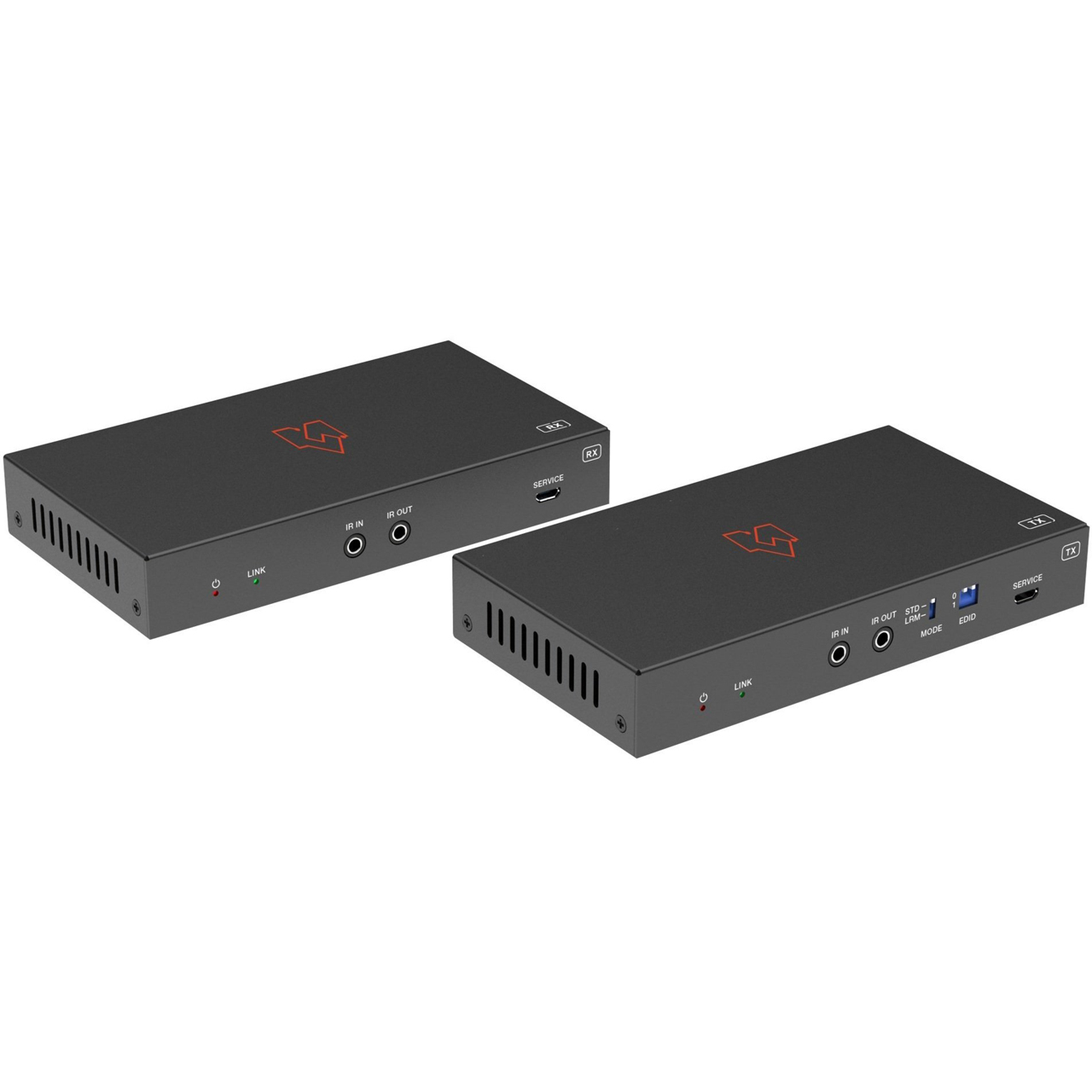

This VigilLink VLEX-HT3100U0-TR HDBaseT 3.0 Extender, boasting an impressive 18Gbps bandwidth, offers seamless extension of uncompressed HD/UHD video and audio signals, along with RS-232, bi-directional IR, and USB 2.0 signals, all up to 328ft / 100m using just a single CAT6A/7 cable. It supports video resolutions of up to 4K2K@60Hz YUV 4:4:4. The Transmitter features HDMI input and audio de-embedding capabilities, while the Receiver supports HDMI output and audio de-embedding. With bi-directional RS-232 and IR signal pass-through, EDID management, USB 2.0 signal transmission, and bi-directional POC function, this Extender provides versatility and convenience. Additionally, the Transmitter offers the flexibility to switch between HDBT Standard Mode (as factory default) and HDBT Long Reach Mode.

Offering unparalleled convenience and long-distance capability, this Extender is the ideal solution for both home and commercial applications.

Features:
- HDMI 2.0b and HDCP 2.2 compliant
- Supports 18Gbps video bandwidth
- Supports video resolution up to 4K2K@60Hz (YUV 4:4:4)
- HDR, HDR10, HDR10+, Dolby Vision LLM and HLG pass-through
- LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD pass-through
- 4K transmission distance up to 328ft/100m via a single CAT6A/7 cable (HDBT standard mode)
- 1080P transmission distance up to 492ft/150m via a single CAT6/6A/7 cable (HDBT extended reach mode)
- Supports bidirectional POC (Power over Cable); when TX or RX gets power, the other end does not need an external power supply
- Supports 3.5mm analog audio de-embedding at TX and RX
- EDID management
- Supports bi-directional RS-232 signal pass-through, bi-directional IR signal control, USB2.0 signal transmission
- Compact design for easy and flexible installation
Specifications:
- HDMI Compliance: HDCP 2.2
- HDCP Compliance: USB 2.0
- Video Bandwidth: 18Gbps
- Video Resolution: Up to 4K @ 60Hz
- HDR: HDR, HDR10, HDR10+, Dolby Vision, HLG
- Color Space: RGB, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0
- Color Depth: 8/10/12-bit
- Audio Formats: LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD
- IR Level: 12Vp-p
- Transmission Distance:
  - HDBT Standard Mode: 4K60/100m; 1080p/100m (CAT6A/7 cable)
  - HDBT Long Reach Mode: 1080p/150m (CAT6/6A/7 cable)

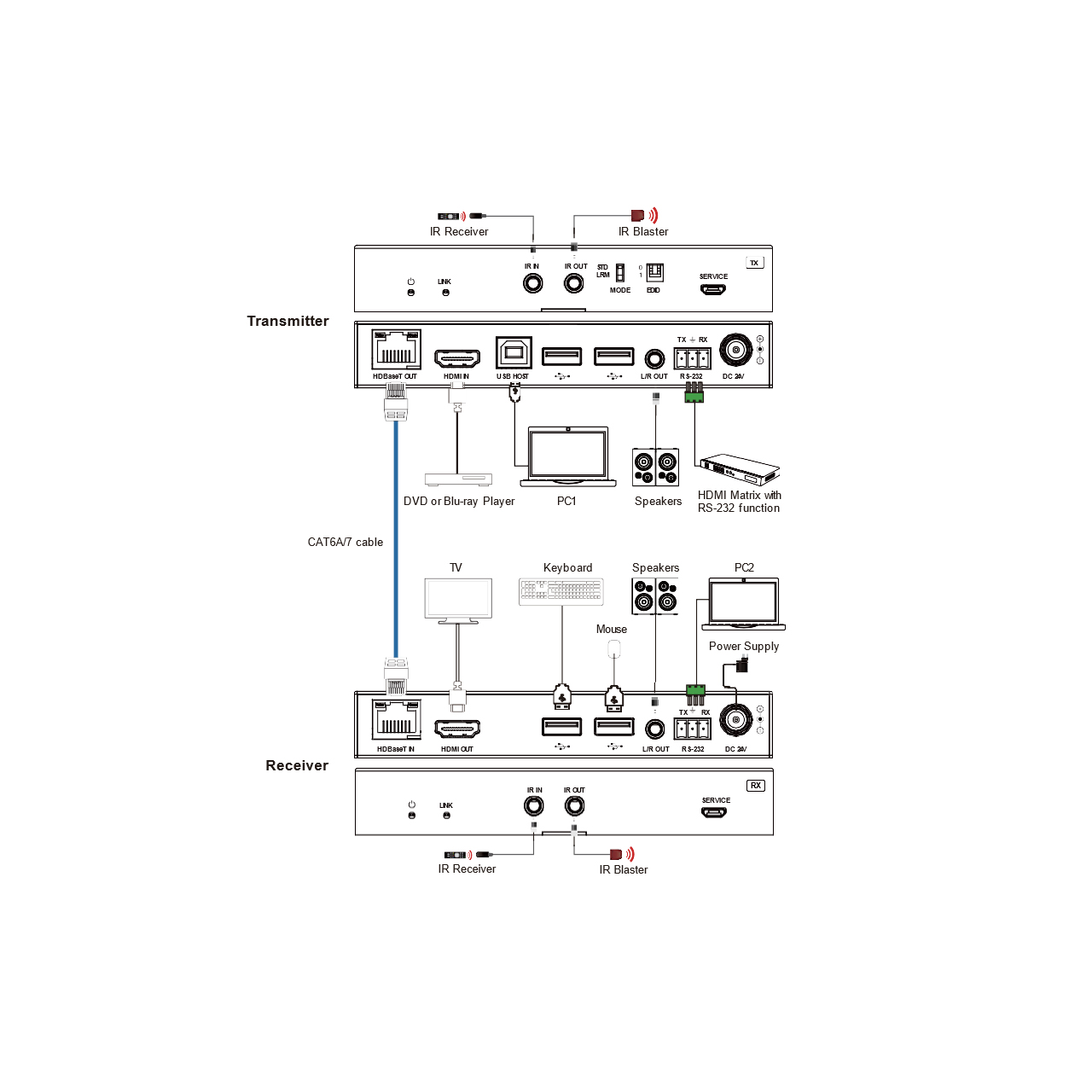

  Connections
- Transmitter Inputs: 1x HDMI IN (Type A, 19-pin female)
- Transmitter Outputs:
  - 1x HDBaseT OUT (RJ45 connector)
  - 1x L/R OUT (3.5mm Stereo Mini-jack)
- Transmitter Controls:
  - 1x IR IN (3.5mm Stereo Mini-jack)
  - 1x L/R OUT (3.5mm Stereo Mini-jack)
  - 1x RS-232 (3pin-3.81mm Phoenix jack)
  - 1x SERVICE (Micro USB, 5-pin female)
  - 1x USB HOST (USB Type B)
  - 2x USB DEVICES (USB Type A)
- Receiver Inputs: 1x HDBaseT IN (RJ45, 8-pin female)
- Receiver Outputs:
  - 1x HDMI OUT (Type A, 19-pin female)
  - 1x L/R OUT (3.5mm Stereo Mini-jack)
- Receiver Controls:
  - 1x IR IN (3.5mm Stereo Mini-jack)
  - 1x IR OUT (3.5mm Stereo Mini-jack)
  - 1x RS-232 (3pin-3.81mm Phoenix jack)
  - 1x SERVICE (Micro USB, 5-pin female)
  - 2x USB DEVICES (USB Type A)

  Mechanical
- Housing: Metal Enclosure
- Color: Black
- Dimensions: Transmitter/Receiver: 5.66" x 3.07" x 0.90" (144mm x 78mm x 23mm)
- Weight:
  - Transmitter: 0.71lbs (323g)
  - Receiver: 0.70lbs (319g)
- Power Supply:
  - Input: AC 100V - 240V, 50/60Hz
  - Output: DC 24V/1A (US/EU standard, CE/FCC/UL certified)
- Power Consumption: 14.28W (POC)
- Operating Temperature: 32°F - 104°F (0°C - 40°C)
- Storage Temperature: -4°F - 140°F (-20°C - 60°C)
- Relative Humidity: 20% - 90% RH (non-condensing)
Item Includes:
- 1x HDBaseT 3.0 Extender (Transmitter)
- 1x HDBaseT 3.0 Extender (Receiver)
- 1x IR Blaster Cable (1.5 meters)
- 1x IR Receiver Cable (1.5 meters)
- 2x 3pin-3.81mm Phoenix Connectors (Male)
- 4x Mounting Ears
- 8x Machine Screws (KM3*4)
- 1x 24V/1A Locking Power Adapter
- 1x User Manual
Warranty:
- 6 Years
