VigilLink VLEX-U2CT050-TR CAT Cable USB2.0 Extender - 200Mbps - 164 Foot/50m

ITEM #: VGL-VLEXU2CT050T MFG #: VLEX-U2CT050-TR

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
VigilLink
Free Shipping with $49 Minimum Order

Our Price:

$205.00

Add to Wish ListLeasing Options
Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.
Report Lower PriceLarge Quantity Quote

VLEX-U2CT050-TR - Overview

The VigilLink VLEX-U2CT050-TR USB 2.0 Extender redefines the boundaries of USB signal transmission, extending it up to 50m/164ft via a single CAT5/5e/6 cable (Please note: the transmission distance may vary up to 40m/131ft for specific USB 2.0 Hubs).

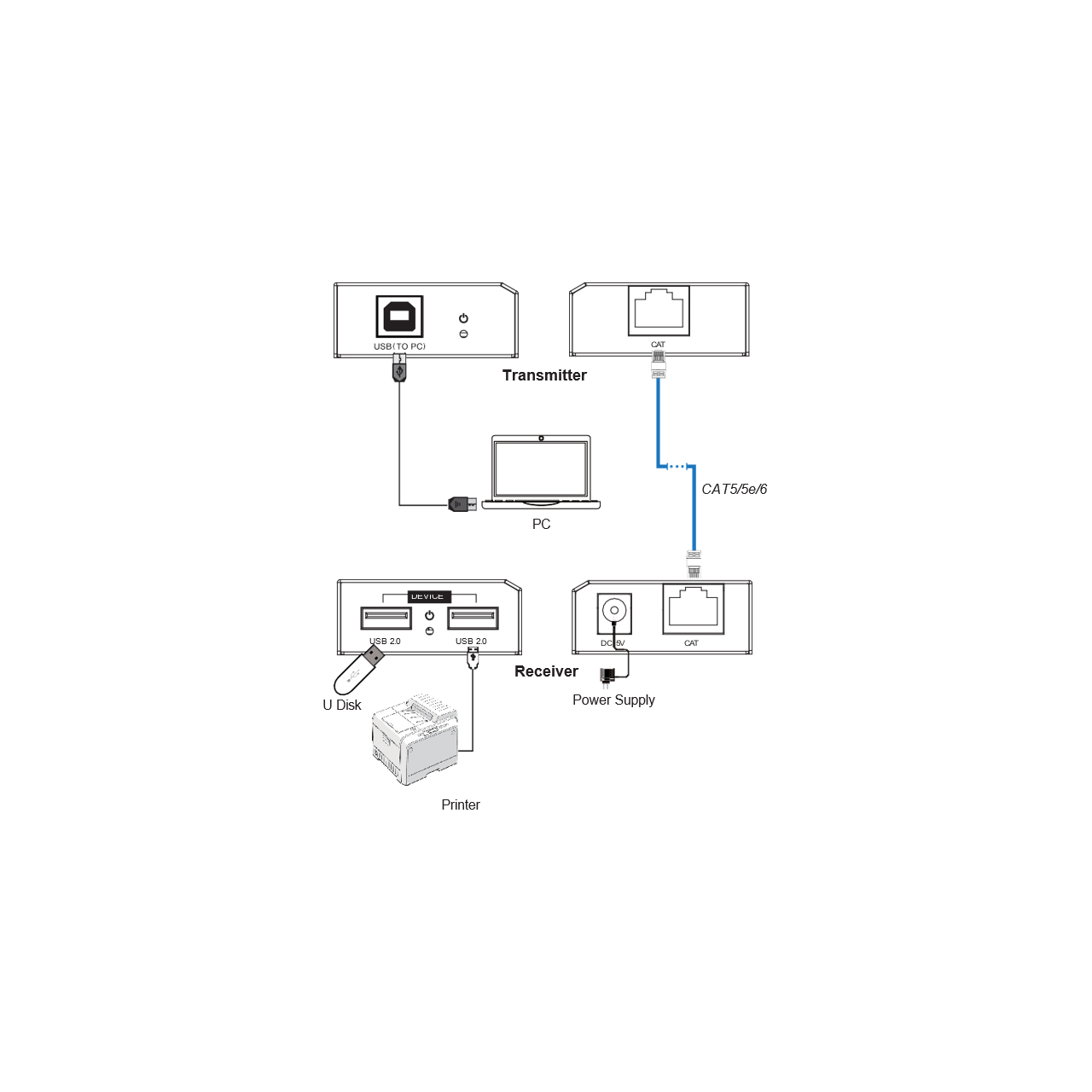

Simply connect the USB-B port on the transmitter to your PC and use the two USB ports on the receiver to connect devices such as U disks or printers. Additionally, ensure that you connect a 5V/1A power supply to the receiver for optimal performance.

This extender offers hassle-free installation with plug-and-play functionality, ideal for bridging the gap between your PC and USB devices over long distances. Say goodbye to complicated setup processes - plug in and enjoy

  • Features:

    • Supports USB 2.0 protocol, transmission rate up to 480Mbps
    • USB signal can be extended up to 50m*/164ft via CAT5/5e/6 cable
    • The transmitter supports one USB-B port input
    • The receiver supports two USB 2.0 ports, output
    • The transmitter is powered by the device connected to its USB-B port; the Receiver is powered by connecting a DC 5V/1A power supply.
    • Simple plug-and-play, no drive and setting installation required
    • Compact design for easy and flexible installation
    • Subject to the USB 2.0 protocol, when using this product, each additional level of Hub between Host and Device in the entire link will shorten the CAT cable transmission distance by about 12m/39ft.


  • Specifications:

      Technical
    • USB Protocol: USB 2.0
    • Transmission Rate: Up to 480Mbps
    • Transmission Distance: 164ft (50m)(Note: The transmission distance can only up to 131ft (40m) for some USB 2.0 Hub)
    • ESD Protection: Human Body Model: ±8kV (Air-gap discharge) & ±4kV (Contact discharge)

      Connections

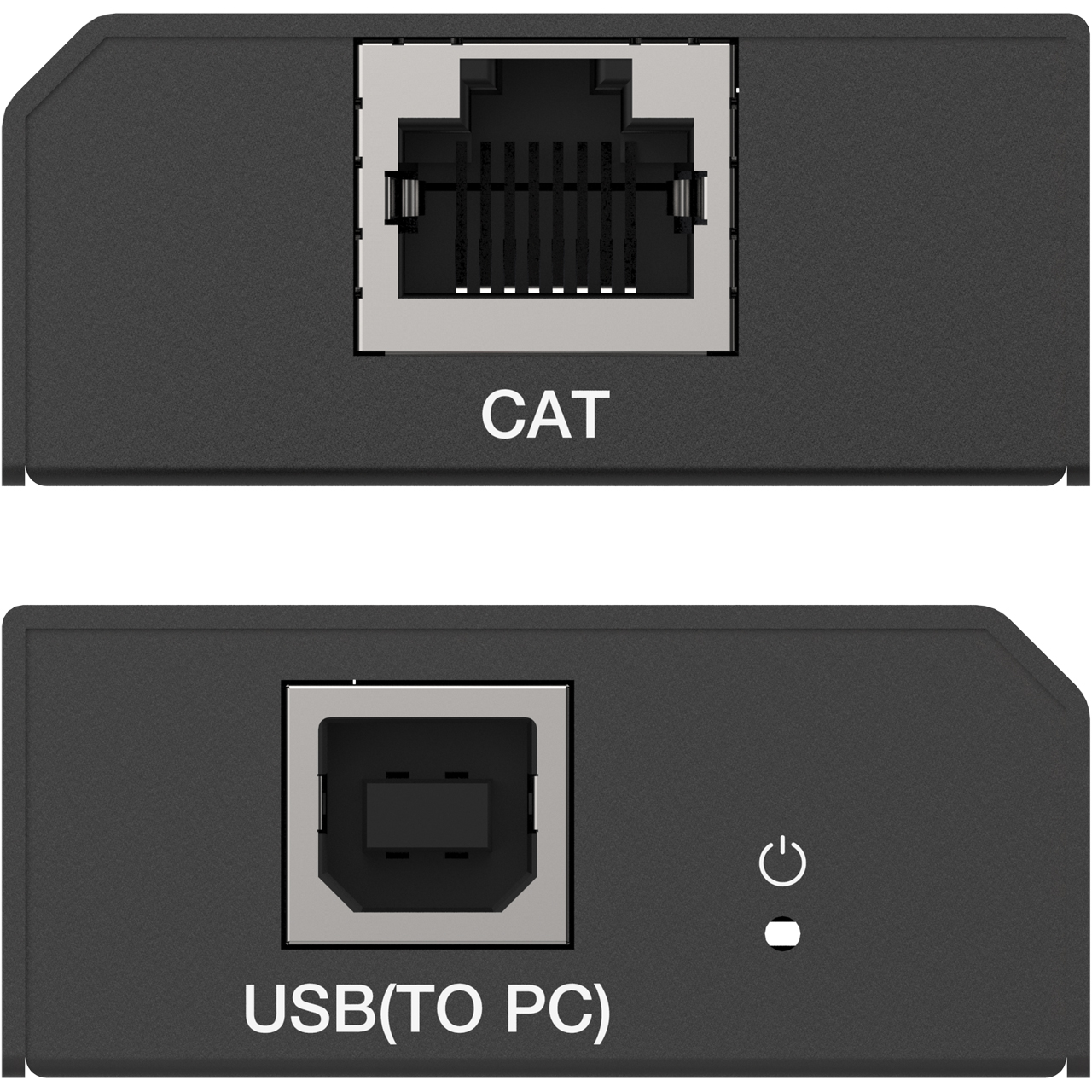

    • Transmitter Inputs: 1x USB (USB-B, female)
    • Transmitter Outputs: 1x CAT (RJ45, female)
    • Receiver Inputs: 1x CAT (RJ45, female)
    • Receiver Outputs: 2x USB (USB-A, female)

      Mechanical
    • Housing: Metal Enclosure
    • Color: Black
    • Dimensions: 3.22" x 1.92" x 0.78" (82mm x 49mm x 20mm)
    • Weight: 0.22lbs (100g)
    • Power Supply:
      - Input: AC 100V - 240V, 50/60Hz
      - Output: DC 5V/1A
    • Power Consumption:
      - Transmitter: 0.7W
      - Receiver: 1W
    • Operating Temperature: 32°F - 104°F (0°C - 40°C)
    • Storage Temperature: -4°F - 140°F (-20°C - 60°C)
    • Relative Humidity: 20% - 90% RH (non-condensing)


  • Item Includes:

    • 1x USB 2.0 Extender (Transmitter)
    • 1x USB 2.0 Extender (Receiver)
    • 1x USB cable (USB-B male head to USB-A male head, 1m)
    • 1x 5V/1A Power Adapter
    • 1x User Manual


  • Warranty:

    • 6 Years
