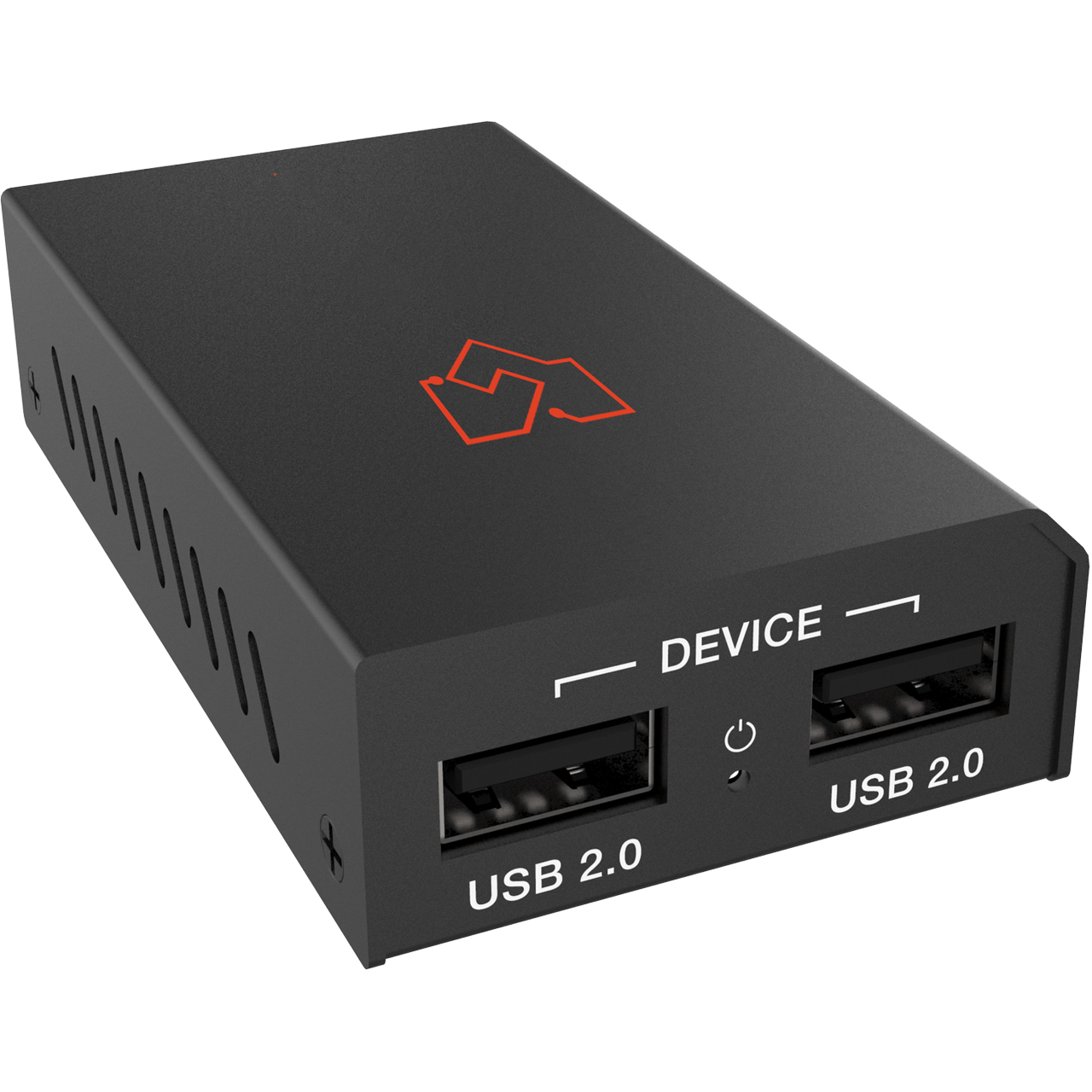

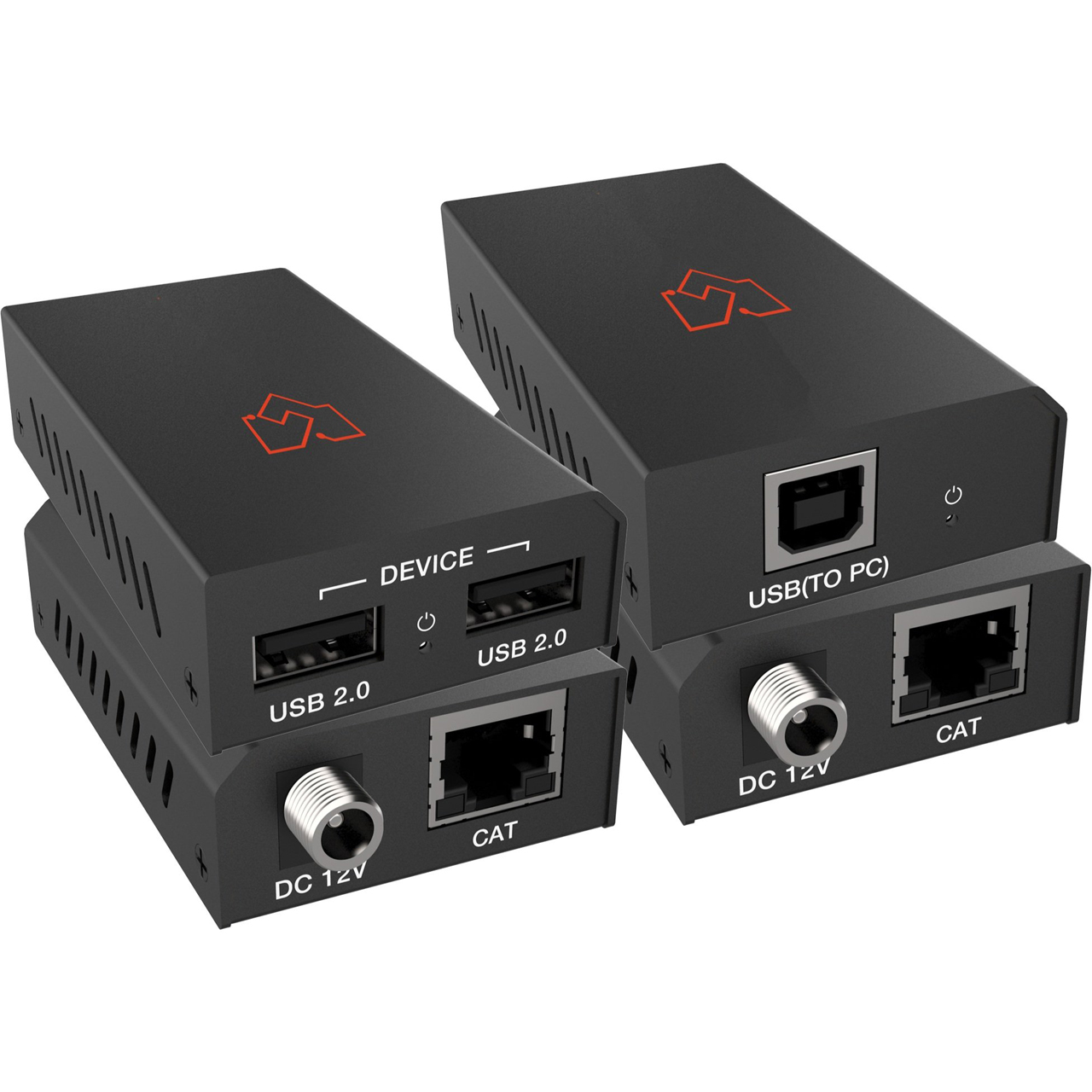

VigilLink VLEX-U2CT100-TR CAT Cable USB2.0 Extender - 200Mbps - 328 Foot/100m

ITEM #: VGL-VLEXU2CT100T MFG #: VLEX-U2CT100-TR

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

Our Price:

$353.00

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.


VLEX-U2CT100-TR - Overview

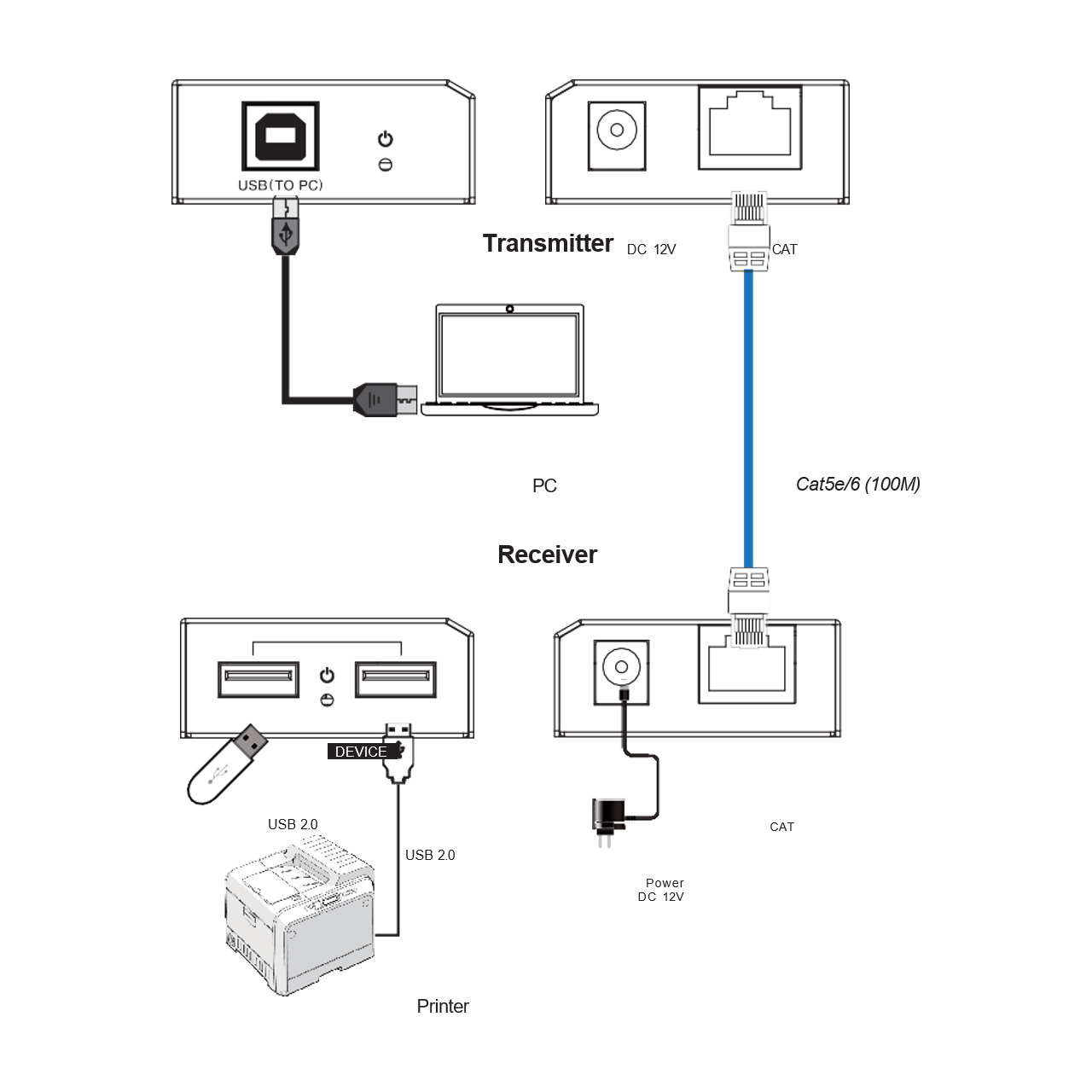

The VigilLink VLEX-U2CT100-TR USB 2.0 Extender can extend the USB signal to 100m / 328ft via a single Cat5e/6 cable. In the transmitter, the USB-B port is connected to a PC. In the receiver, you can connect a device with USB port (such as U disk or printer, etc.) through the two USB ports. The Transmitter and Receiver support the PoC (Power over Cable) function. The product can be widely used for long-distance signal transmission between a PC and a USB device. Simple plug and play, no drive, and installation setting required.

  • Features:

    • Supports USB 2.0 protocol; transmission rate is up to 200Mbps
    • Transmission distance is up to 100m / 328ft via a single CAT5e/6 cable
    • Supports one USB-B port input in the transmitter
    • Supports two USB 2.0 ports output in the receiver
    • Supports the PoC function, which means that the transmitter or receiver is powered through a 12V/1A power adapter. The other doesn't need a power supply
    • Simple plug and play, no drive and installation setting required
    • Compact design for easy and flexible installation

  • Specifications:

      Technical
    • USB Protocol: USB 2.0
    • Transmission Rate: Up to 480Mbps
    • Transmission Distance: 328ft (100m)
    • ESD Protection: Human Body Model: ±8kV (Air-gap discharge) & ±4kV (Contact discharge)

      Connections
    • Transmitter Inputs: 1x USB (USB-B, female)
    • Transmitter Outputs: 1x CAT (RJ45, female)
    • Receiver Inputs: 1x CAT (RJ45, female)
    • Receiver Outputs: 2x USB (USB-A, female)

      Mechanical
    • Housing: Metal Enclosure
    • Color: Black
    • Dimensions: 3.22" x 1.92" x 0.78" (82mm x 49mm x 20mm)
    • Weight: 0.22lbs (100g)
    • Power Supply:
      - Input: AC 100V - 240V, 50/60Hz
      - Output: DC 12V/1A (US/EU standards, CE/FCC/UL certified); Receiver: 5V USB power supply
    • Power Consumption:
      - Transmitter: 0.7W
      - Receiver: 1W
    • Operating Temperature: 32°F - 104°F (0°C - 40°°C)
    • Storage Temperature: -4°F - 140°F (-20°C - 60°C)
    • Relative Humidity: 20% - 90% RH (non-condensing)

  • Item Includes:

    • 1x USB 2.0 Extender (Transmitter)
    • 1x USB 2.0 Extender (Receiver)
    • 1x USB cable (USB-B male head to USB-A male head, 1 meter )
    • 1x 12V/1A Locking Power Adapter
    • 1x User Manual

  • Warranty:

    • 6 Years
