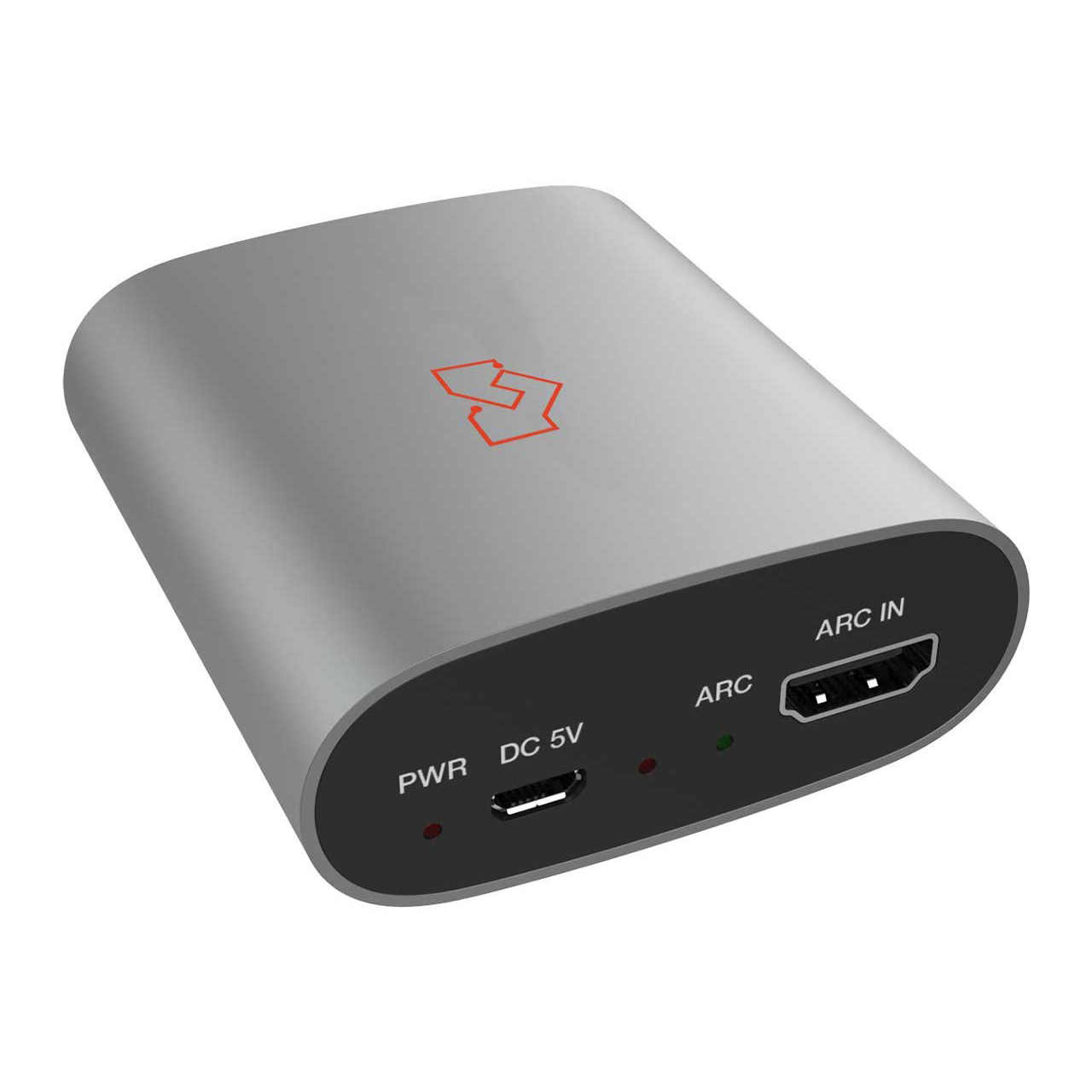

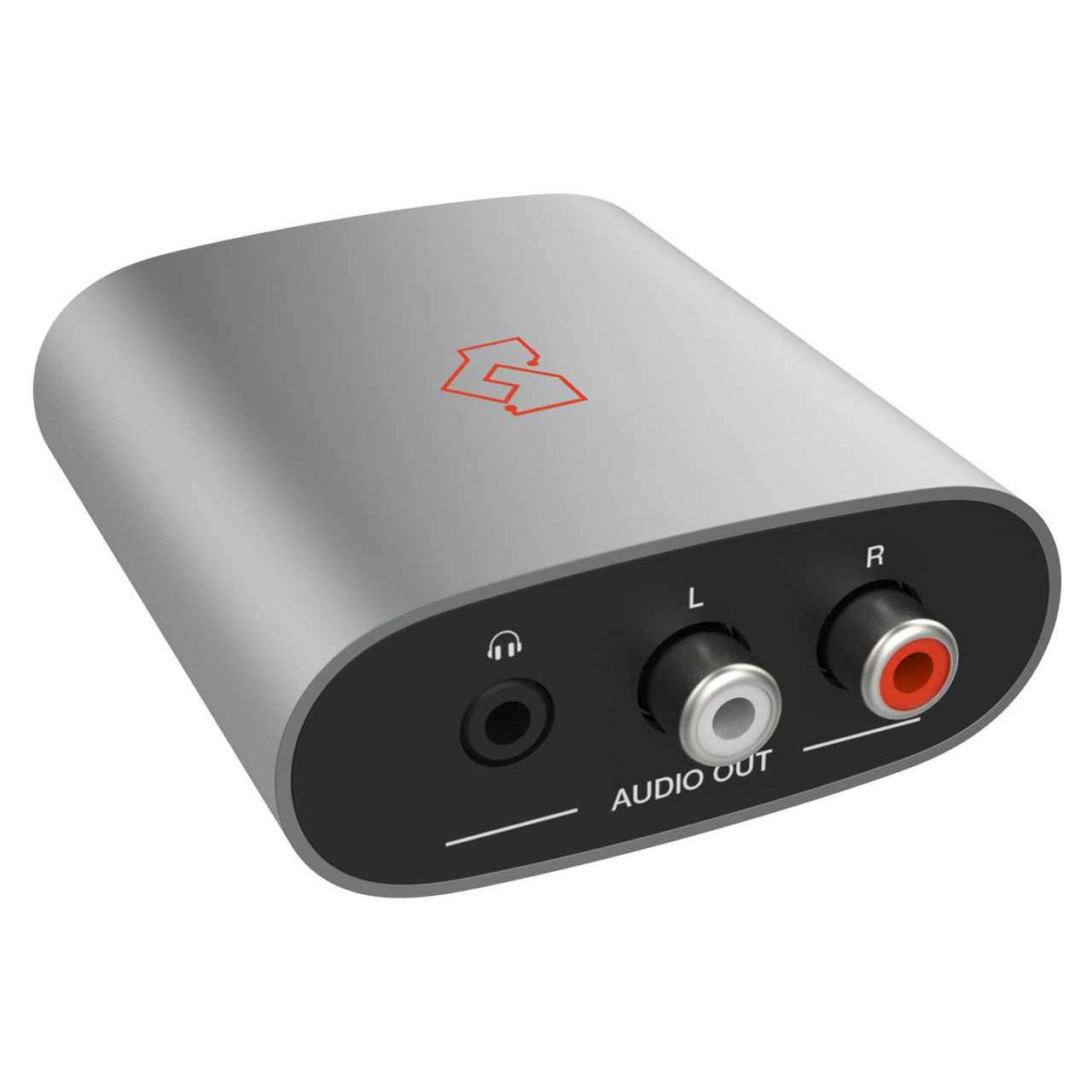

VigilLink VLHA-RCEX HDMI 2.0 ARC Audio Extractor - HDMI 1.4 Compliant

VLHA-RCEX - Overview

• Features:

  • HDMI 1.4 compliant
  • Input: HDMI x1
  • Output: 3.5mm L/R x1, RCA x2

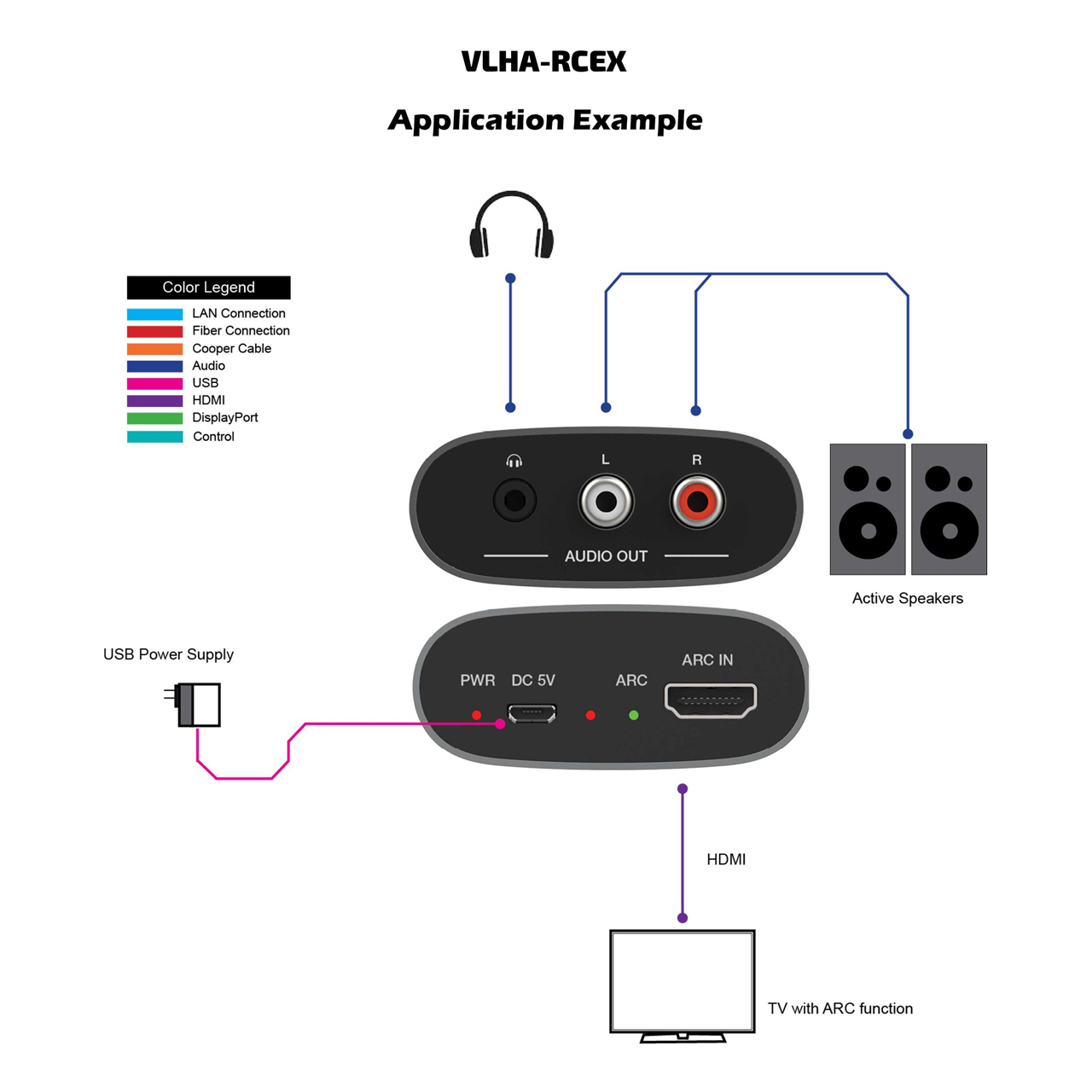

  • ARC Enabled: Extract audio signal from ARC (Audio Return Channel) enabled HDTV to analog
  • Stereo output, for audio receiver/amplifier/headphone applications
  • Supports PCM audio to 2-channel stereo audio output
  • Supports CEC function (TV remote can control the volume)


• Specifications:

  Technical
  • HDMI Compliance: HDMI 1.4
  • Vmax: 2Vrms
  • SNR: >90dB
  • THD+N Ratio:
    - <0.1% (V_max)
    - 0.001%~0.01% (V_best)
  • Crosstalk: >80dB
  • Frequency Response: 20Hz~20kHz±1dB
  • HDMI Audio Format: PCM 2.0
  • L/R Audio Formats: Analog Stereo 2CH

    Connection

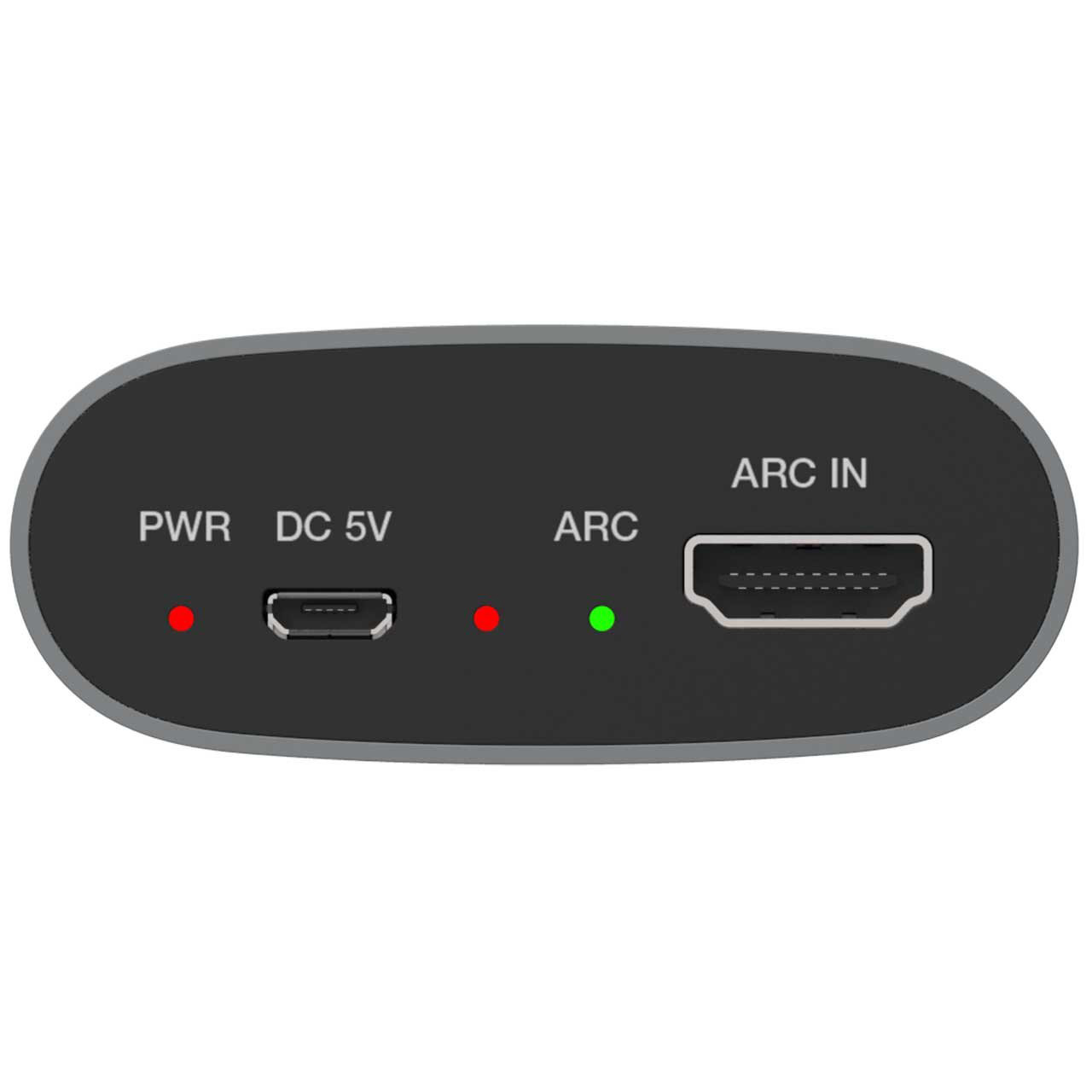

  • Inputs:
    - 1x HDMI Type A [19-pin female]
    - 1x Micro USB

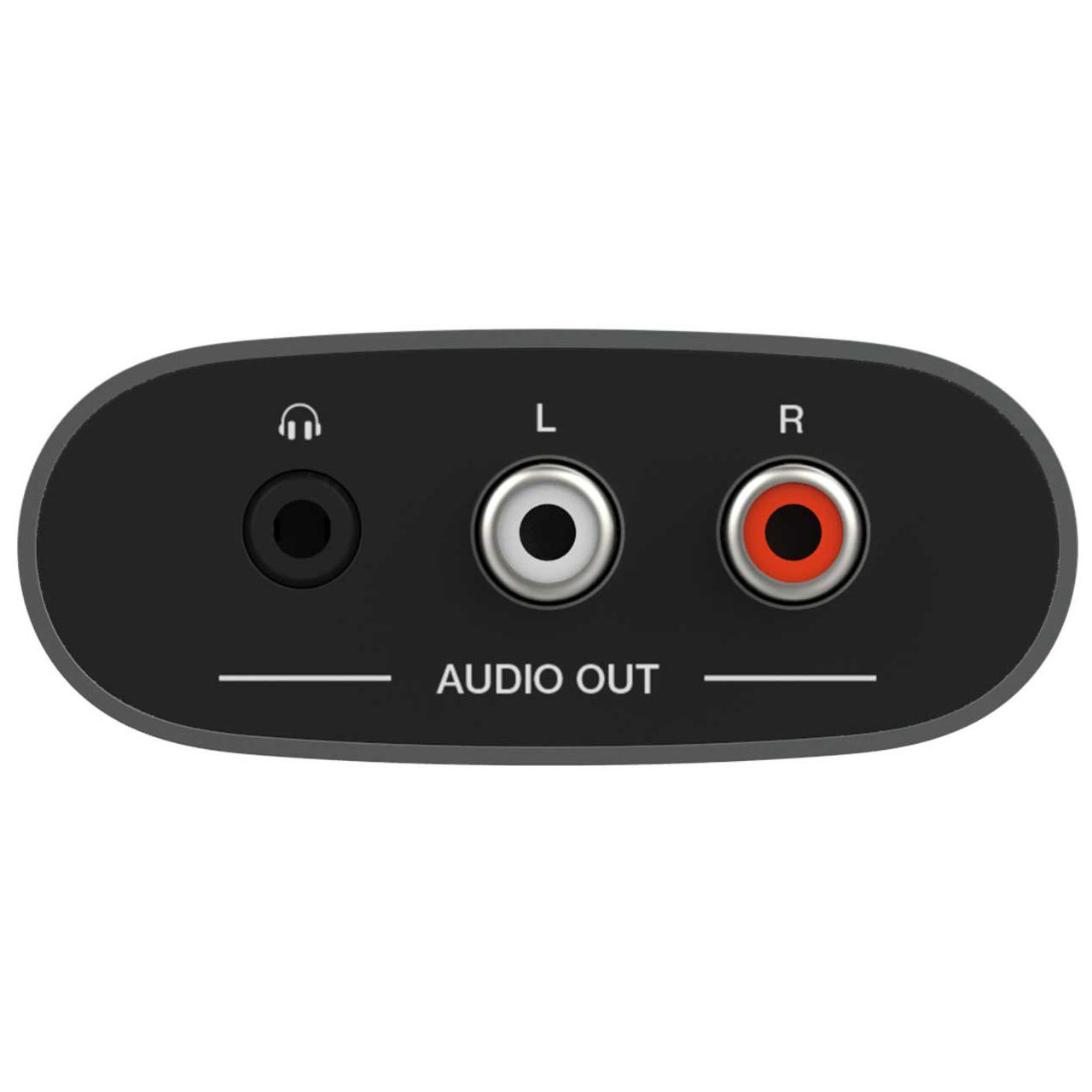

  • Outputs:
    - 1x L/R Audio Out [RCA]
    - 1x 3.5mm L/R

    Mechanical
  • Housing: Aluminum Enclosure
  • Color: Silver
  • Dimensions: 2.76" x 2.56" x 1.06" / 70mm x 65mm x 27mm
  • Weight: 0.18 lbs / 80g
  • Power Supply: USB 5V/500mA
  • Power Consumption: 0.86W (Max)
  • Operating Temperature: 32°F ~ 104°F / 0°C ~ 40°C
  • Storage Temperature: -4°F ~ 140°F / -20°C ~ 60°C
  • Relative Humidity: 20 - 90% RH (No condensation)


• Item Includes:

  • 1x HDMI ARC Audio Extractor
  • 1x USB Cable (USB-A to Micro USB)
  • 1x User Manual


• Warranty:

  • 6 Years
