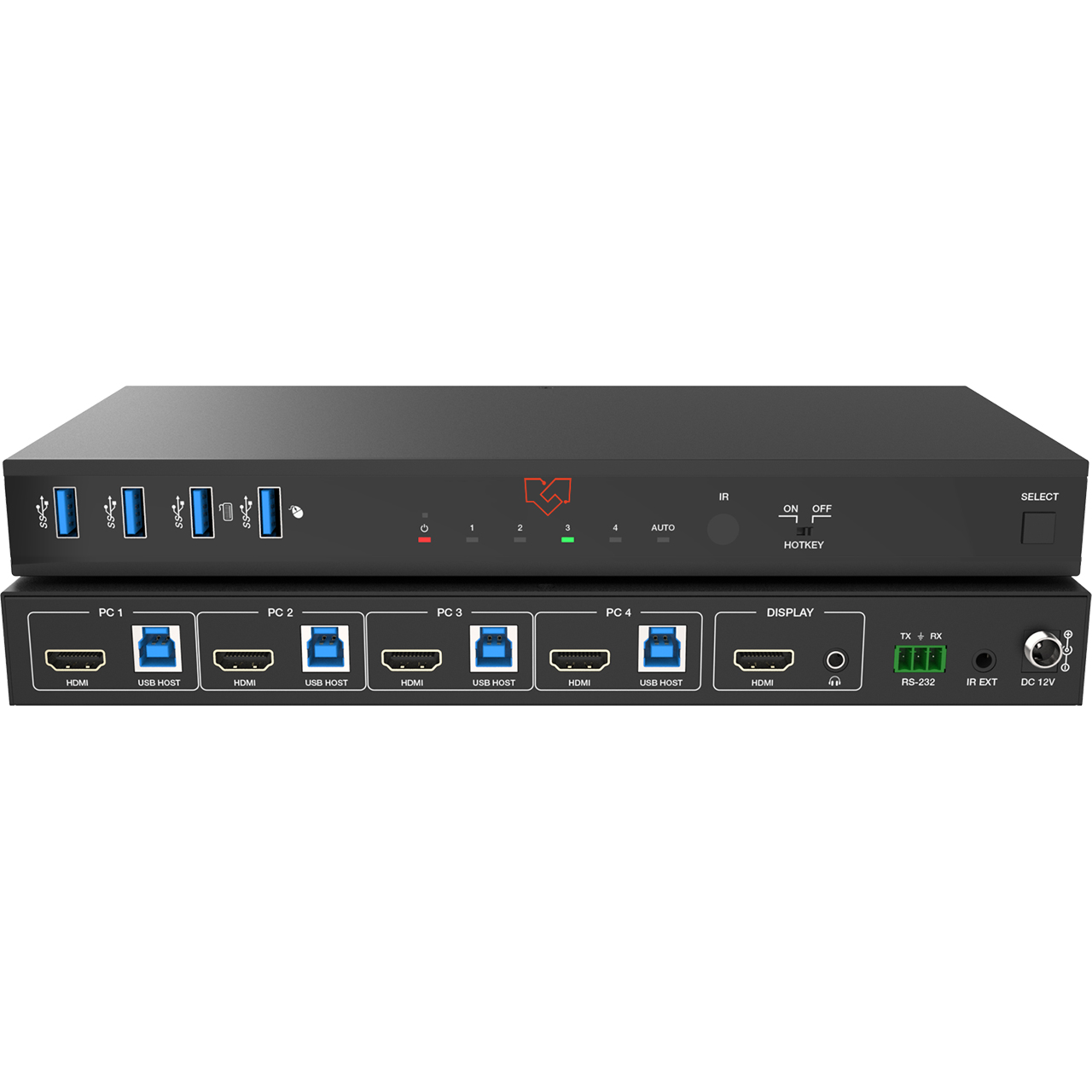

VigilLink VLKV-H2041 4x1 4K60 HDMI KVM Switcher with Hotkey Switching - HDCP 2.3 Compliant

VLKV-H2041 - Overview

• Features:

  • HDCP 2.3 compliant
  • Supports Ultra-wide Screen, resolution up to 4K@60Hz, 2K@60Hz/144Hz as specified in HDMI 2.1
  • HDR, HDR10, HDR10+, Dolby Vision, HLG pass-through

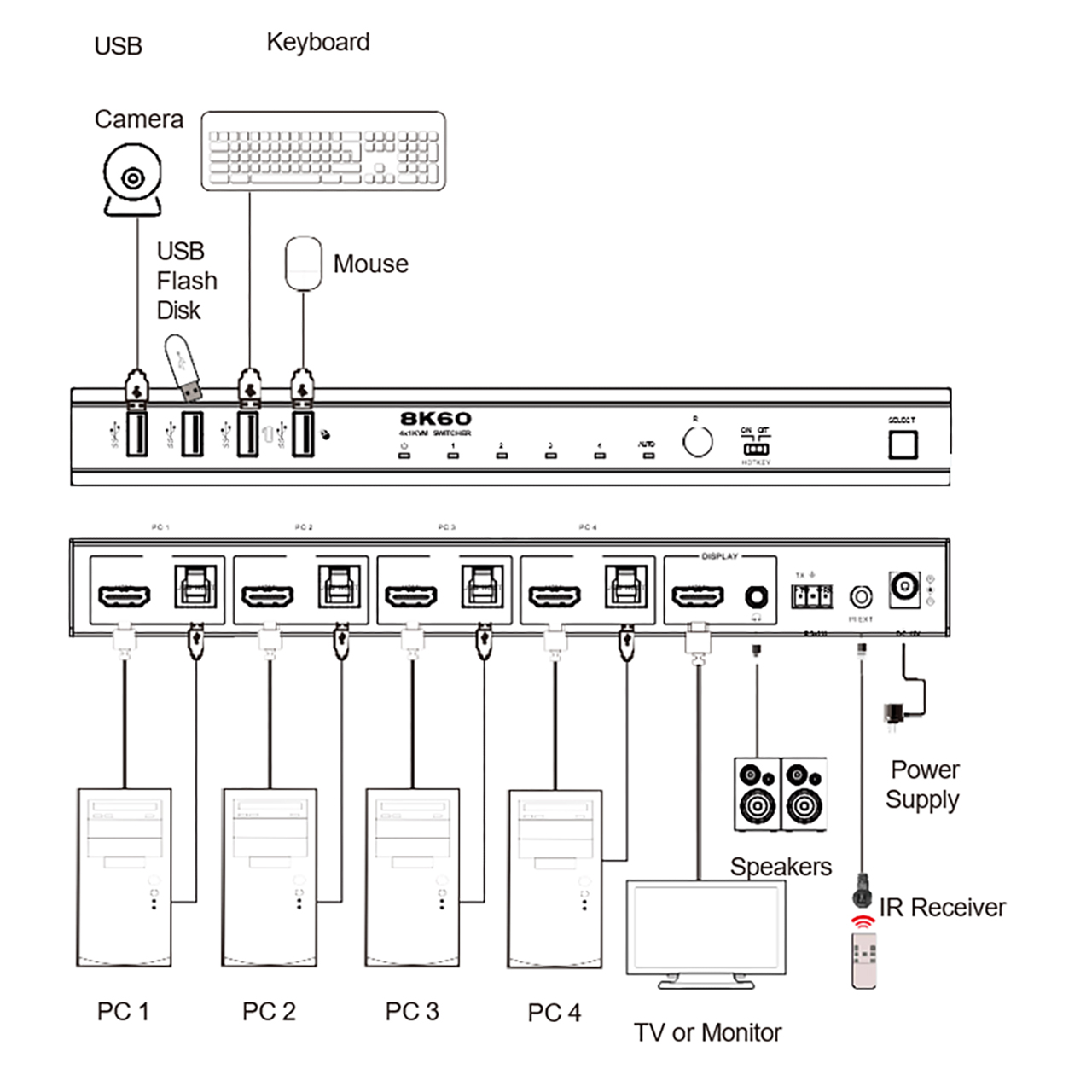

  • Using only 1 set of keyboard, mouse, and monitor to control 4 computers
  • Supports video fast switching and keyboard/mouse seamless switching
  • Each input port has an EDID emulator to provide the correct information for the PC
  • Supports hot plug, disconnect, or connect devices to the KVM at any time
  • Switching via front panel buttons, keyboard/mouse hotkeys, IR remote control, and RS-232 commands
  • Supports auto-switching
  • Advanced hardware/software design and production ensure zero latency
  • The integrated USB 3.0 ports allow you to share USB peripherals like printer, scanner, webcam, and hard disk between computers with data transfer rate up to 5Gbp/s
  • Compact design for easy and flexible installation


• Specifications:

  Technical
  • HDMI Compliance: HDMI 2.0
  • HDCP Compliance: HDCP 2.3
  • Video Bandwidth: 18Gbps
  • Audio Latency: No Latency
  • Video Latency: No Latency
  • Video Resolution: Up to 4K@60Hz, 2K@60Hz/144Hz
  • IR Level: 5Vp-p
  • IR Frequency: Fixed frequency 38KHz
  • Color Space: RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0
  • Color Depth: 8/10/12bit
  • HDR: HDR, HDR10, HDR10+, Dolby Vision, HLG
  • CEC: Support
  • Audio Formats:
    - HDMI IN/OUT: LPCM, Dolby Digital/Plus/EX, Dolby True HD, Dolby Atmos, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DTS:X, DSD
    - L/R OUT: PCM 2.0CH
  • ESD Protection: IEC 61000-4-2: ±8kV (Air-gap discharge) & ±4kV (Contact discharge)

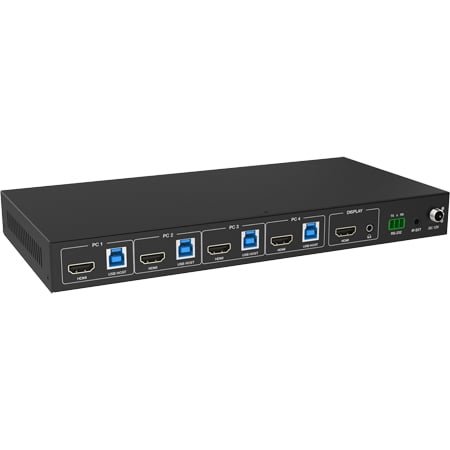

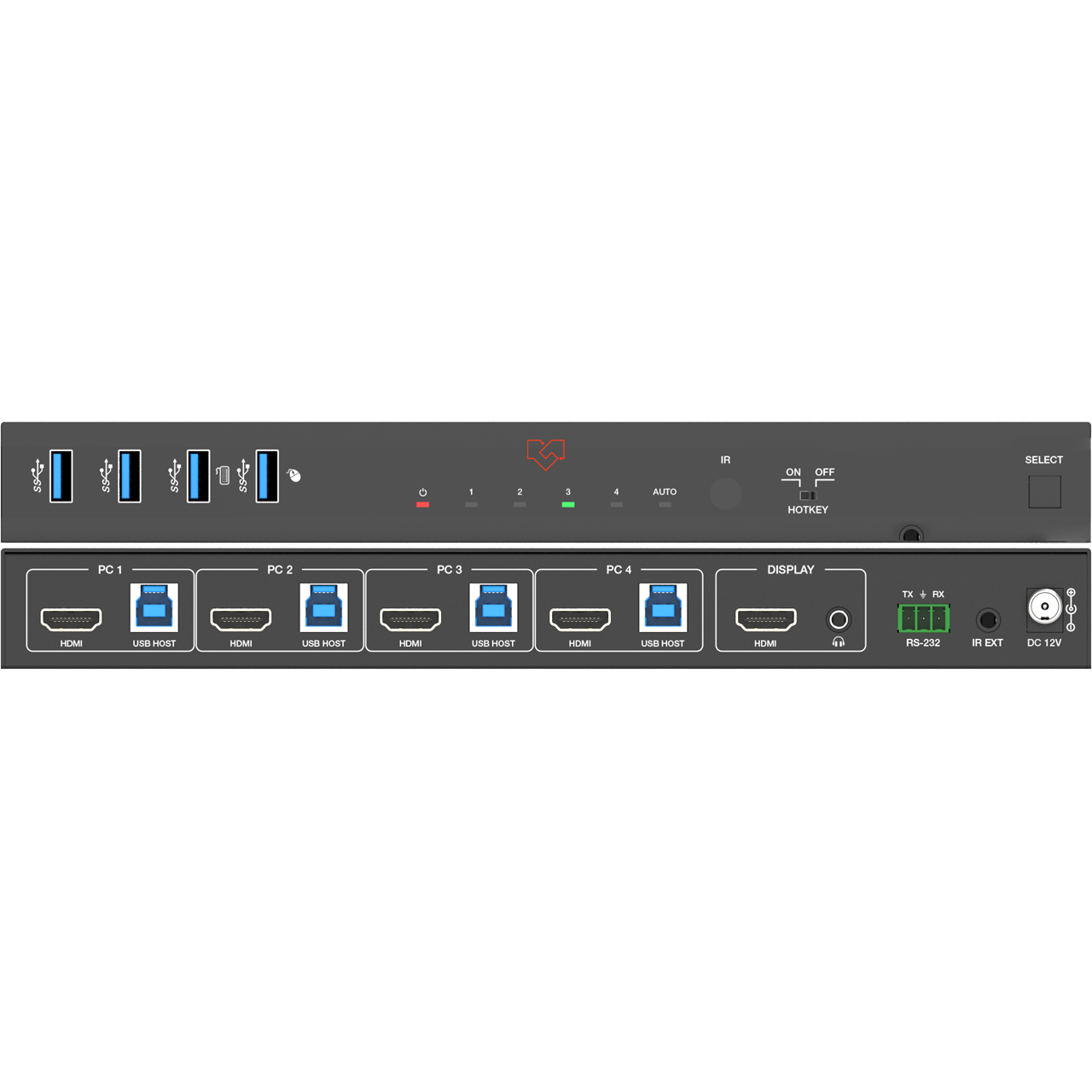

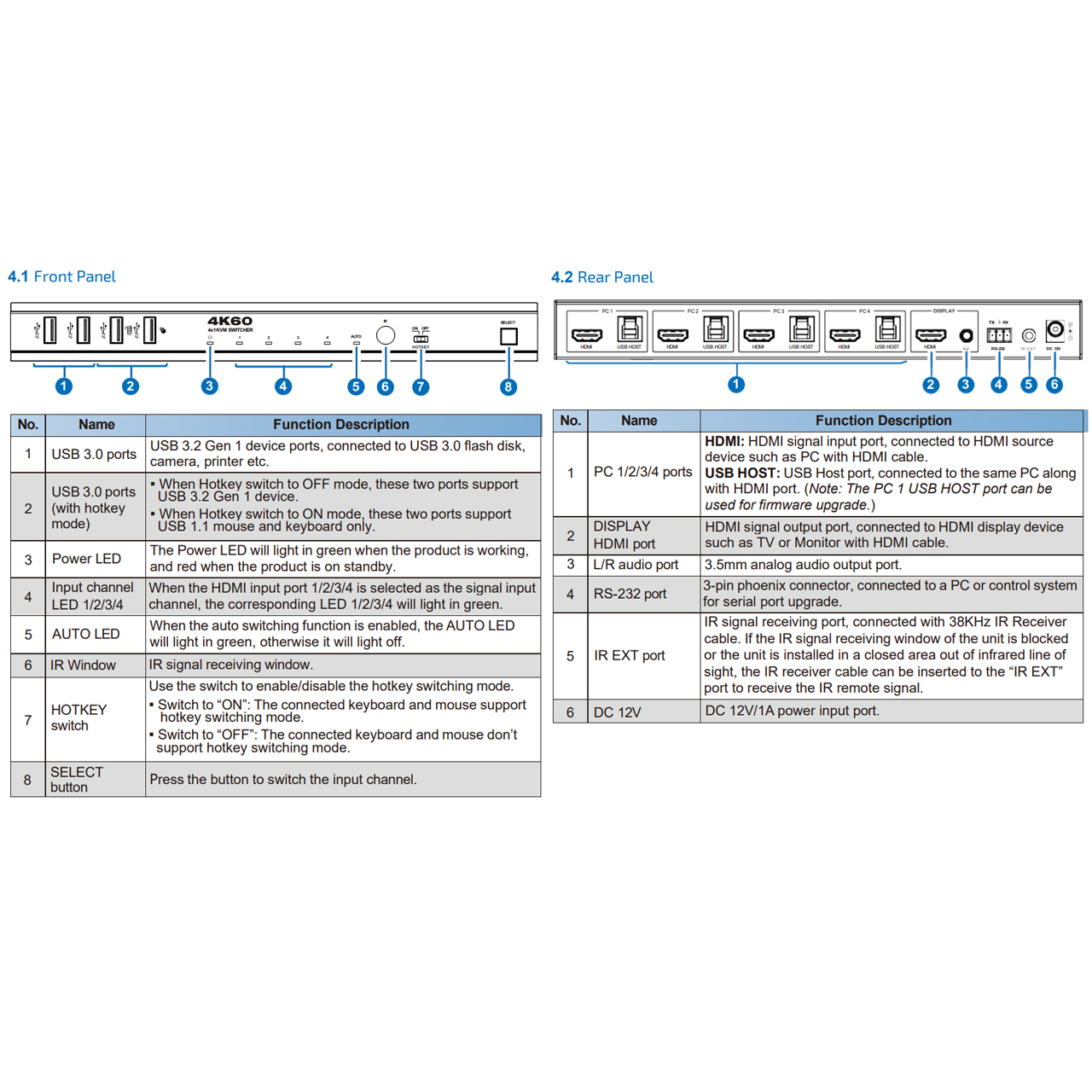

    Connections
  • Input: 4x HDMI input [Type A, 19-pin female]
  • Output:
    - 1x HDMI output [Type A, 19-pin female]
    - 1x L/R audio output [3.5mm Stereo Mini-jack]
  • Control ports:
    - 1x RS-232 [3pin-3.81mm phoenix connector]
    - 1x IR EXT [3.5mm Stereo Mini-jack]
    - 4x USB HOST [USB Type B]
    - 4x USB DEVICES [USB Type A]

    Mechanical
  • Housing: Metal Enclosure
  • Color: Black
  • Dimensions (WxDxH): 8.62" x 6.89" x 1.18" (270mm x 100mm x 30mm)
  • Weight: 1.66lbs (756g)
  • Power Supply:
    - Input: AC 100V - 240V 50/60Hz
    - Output: DC 12V/1A (US/EU standard, CE/FCC/UL certified)
  • Power Consumption:
    - Typical Value: 5.28W
    - Standby Mode: 0.72W
  • Operating Temperature: 32°F - 104°F (0°C - 40°C)
  • Storage Temperature: -4°F - 140°F (-20°C - 60°C)
  • Relative Humidity: 20% - 90% RH (No condensation)


• Item Includes:

  • 1x 4K60 4x1 KVM Switcher
  • 1x IR Remote
  • 1x 3pin-3.81mm Phoenix Connector (male)
  • 1x Fixed Frequency 38KHz IR Receiver Cable (1.5 meters)
  • 4x USB Cable (USB 3.0, AM to BM, 1.8 meters)
  • 4x HDMI Cable (male to male, 1.5 meters)
  • 2x Mounting Ears
  • 4x Machine Screws (KM3*4)
  • 1x 12V/1A Multinational Locking Power Supply
  • 1x User Manual


• Warranty:

  • 6 Years
