VigilLink VLML-2X1H20 2x1 4K60 18Gbps HDMI Switcher with Multiviewer

Name: VigilLink VLML-2X1H20 2x1 4K60 18Gbps HDMI Switcher with Multiviewer
Brand: VigilLink
SKU: VGL-VLML-2X1H20
Price: 514.00 USD
Availability: Backorder

ITEM #: VGL-VLML-2X1H20 MFG #: VLML-2X1H20

VigilLink

Our Price:

$514.00

Add to Wish List Leasing Options

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info

Notify when in stock

Special Order Item: non-cancelable, non-returnable, non-refundable.

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

VLML-2X1H20 - Overview

The VigilLink VLML-2X1H20 is a 4K60 2x1 Multiviewer Seamless UHD Video Switcher, designed to support higher output resolutions (4K@60) for multiple sources on a single screen. It can combine two video signals onto a single UHD or HD display. The user can manage each input and create combinations of the two inputs on a single display, as well as adjust the position of either input.

This product supports 4x display modes. Within the mode range, users can freely switch 2-channel HD input signals. It can display single-screen and multiview content on a single screen.

This device supports a full range of input video resolutions up to 4K@60 (RB) and features audio RCA/Optical de-embedding for external audio distribution systems.

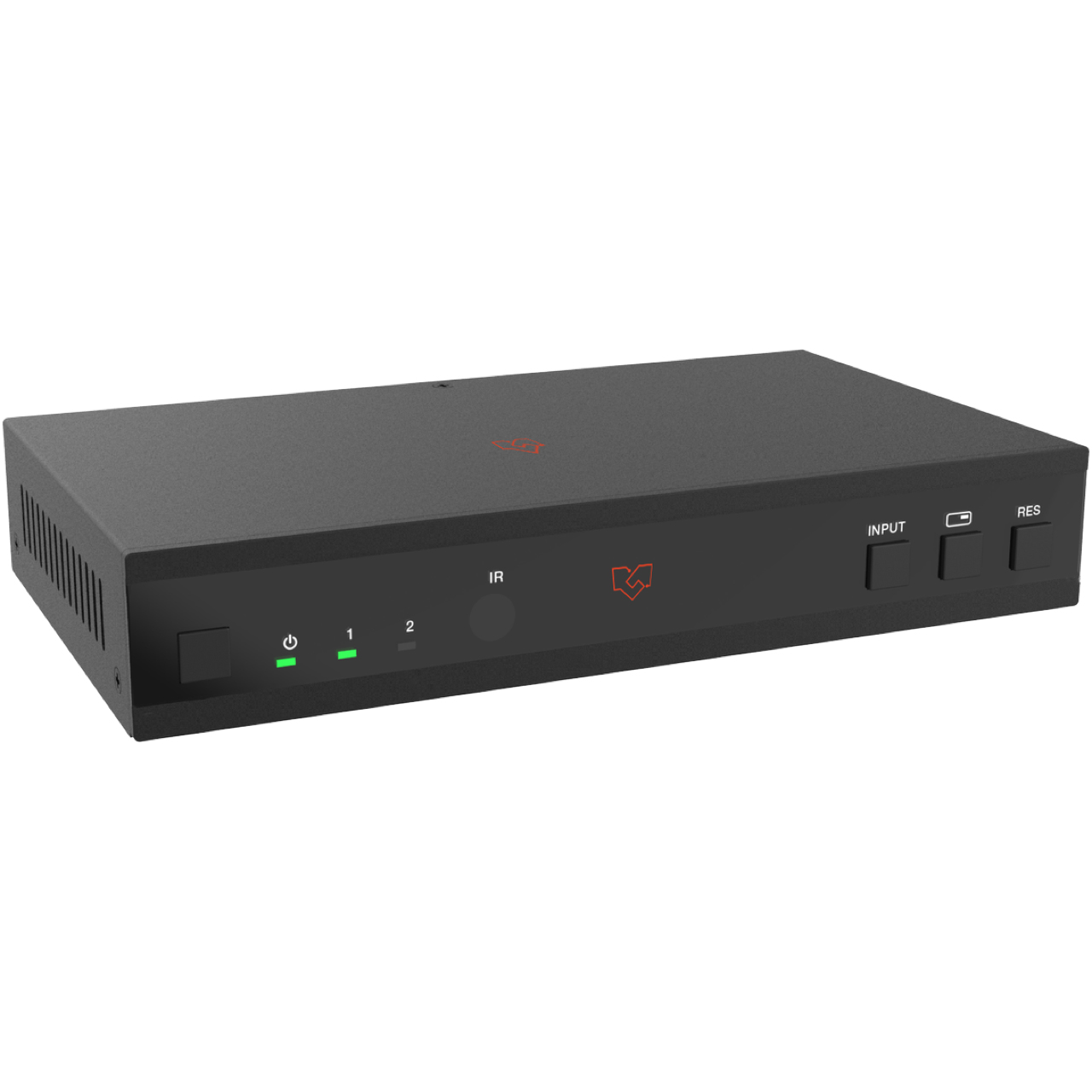

This device can be controlled via front panel buttons, IR remote, OSD menu navigation, Controller software, and RS-232 commands.

Features:
- HDMI 2.0b, HDCP 2.2, and HDCP 1.x compliant
- Support 18Gbps video bandwidth
- Input and output resolutions support up to 4K2K@60 4:4:4
- Support LPCM, AC3, DD+, DTS, DTS-HD, up to 7.1 audio channels
- Seamless switching between input channels and combining multiple images on a single UHD monitor
- Up to 4x display modes: SINGLE, PIP, PBP, PBP
- Audio de-embedding via analog and optical fiber audio ports
- Support volume control and independent audio selection
- Advanced EDID management
- Control via front panel buttons, IR remote, and OSD menu navigation,
- Controller software, RS-232 commands
- Compact design for easy and flexible installation
Specifications:
- HDMI Compliance: HDMI 2.0b
- HDCP Compliance: HDCP 2.2/1.x
- Video Bandwidth: 18Gbps
- Video Resolution: Up to 4K2K@60 4:4:4
- IR Level: 5Vp-p
- IR Frequency: 38kHz
- Color Space: RGB, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0
- Color Depth: 8-bit
- Audio Formats:
  - PCM2.0/5.1/7.1CH, Dolby Digital/Plus, DTS, DTS High Res
  - Analog Audio (3.5mm L/R): PCM2.0
  - SPDIF (Optical): Dolby Digital, DTS 5.1, PCM2.0
  *Note: It does not support HBR audio.
- ESD Protection: Human-body Model: ±8kV (Air-gap discharge), ±4kV (Contact discharge)

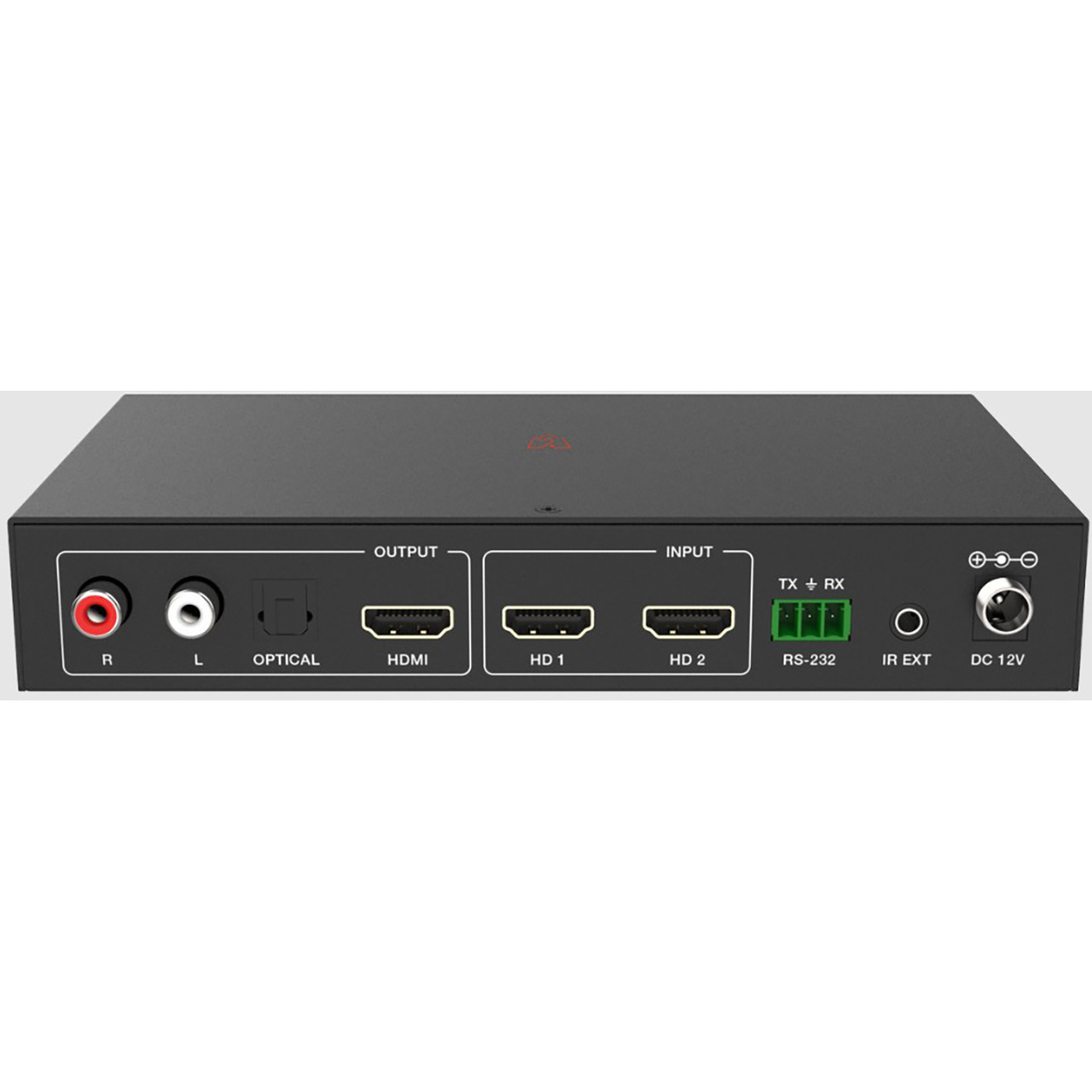

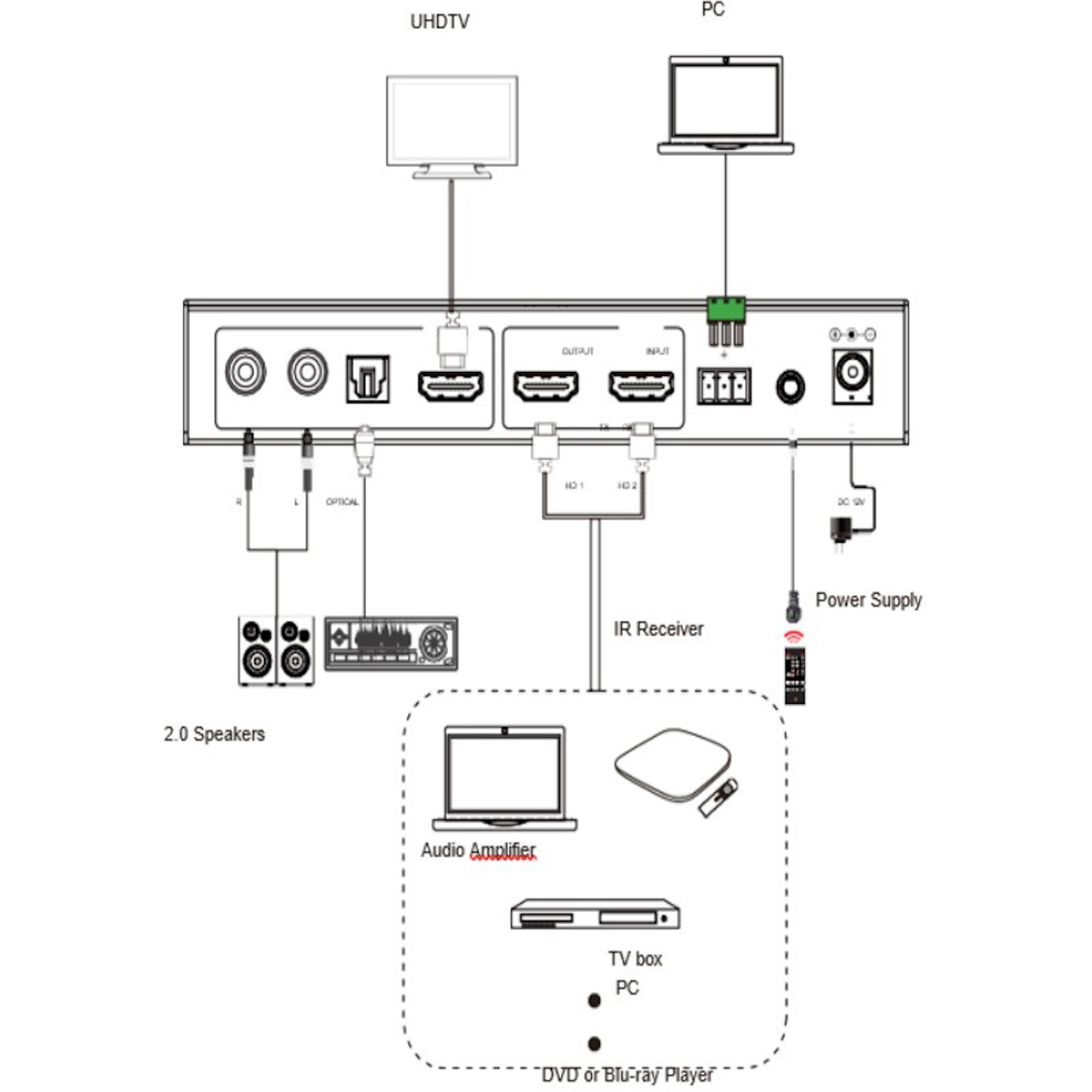

  Connection
- Input Ports: 2x HDMI In (Type A, 19-pin female)
- Output Ports:
  - 1x HDMI OUT (Type A, 19-pin female)
  - 1x L/R Output (RCA)
  - 1x Optical (S/PDIF)
- Control Ports:
  - 1x RS-232 (3-pin 3.81mm phoenix connector)
  - 1x IR EXT (3.5mm Stereo Mini-jack)

  Mechanical
- Housing: Metal Enclosure
- Color: Black
- Dimensions: 6.9" x 4" x 1.2" (175mm x 100mm x 30mm)
- Weight: 1.1lbs (497g)
- Power Supply: AC 100V - 240V, 50/60Hz
- Power Consumption: 4.56W (Max)
Item Includes:
- 1x 4K60 2x1 Multiviewer Seamless UHD Video Switcher
- 1x IR Remote
- 1x 3-pin 3.81mm Phoenix Connector (male)
- 1x 38KHz IR Wideband Receiver Cable (1.5m)
- 1x Mounting Ears
- 1x Machine Screws (KM3*4)
- 1x 12V/1A Locking Power Adapter
- 1x User Manual
Warranty:
- 6 Year Limited Warranty
GTIN:
0810119590329
