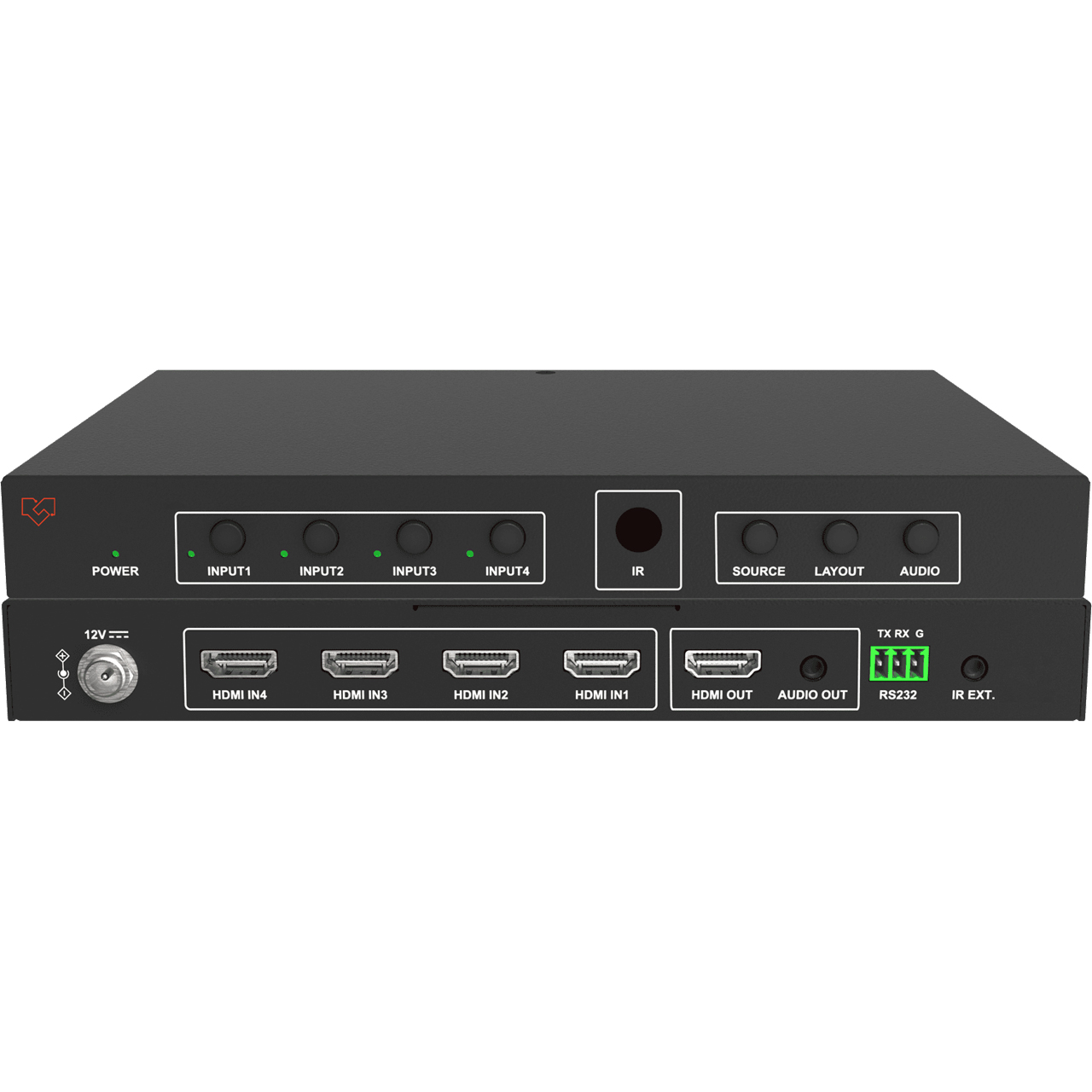

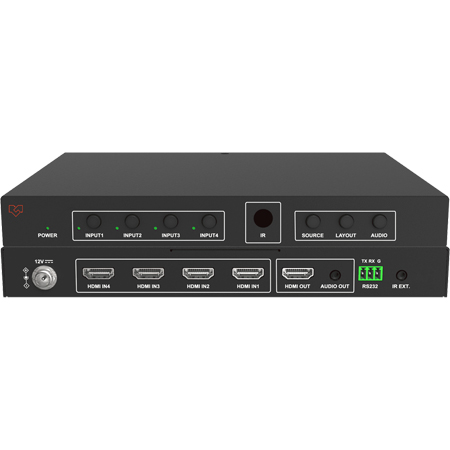

VigilLink VLML-4X1H20ET 4x1 HDMI 2.0 4K60 Multi Viewer with Seamless Switching

VLML-4X1H20ET - Overview

• Features:

  • True 4K @ 60HZ/UHD Video: Both HDMI input and HDMI output compliant HDMI 2.0b specification up to 4K @ 60Hz 4:4:4 8bit.
  • Rich Layout Mode: Support six screen layouts, such as Original, Dual-view, Master mode, H mode, PIP mode and Quad mode.
  • Seamless Switching: Supports seamless switching under the same layout.
  • Cascade Function: More inputs are displayed on the same display.
  • Image Stretching: Optional support fixed aspect ratio and image stretching mode.
  • Audio De-Embedding: Supports audio de-embedding from the HDMI output.
  • Multiple Control: Supports multiple control methods, including button, IR and RS232 control.


• Specifications:

  Technical
  • Video Input: 4x HDMI in
  • Input Video Signal: HDMI 2.0b up to 4K @ 60Hz 4:4:4 8bit and HDCP 2.2
  • Video Output: 1x HDMI out
  • Output Video Signal: HDMI 2.0b up to 4K @ 60Hz 4:4:4 8bit and HDCP 2.2
  • Audio Format: HDMI: Supports all audio formats in HDMI 2.0 spec. Audio Out: Stereo only.
  • Maximum Pixel Clock: 600MHz
  • Maximum Data Rate: 18Gbps
  • Control Method: Button, IR and RS232 and IP

    Mechanical
  • Operating Temperature: 32°F - 113°F (0°C - 45°C)
  • Storage Temperature: -4°F - 158°F (-20°C - 70°C)
  • Humidity: 10% - 90%, non-condensing
  • ESD Protection: Human-Body Model: ±8kV (Air-gap discharge)/±4kV (Contact discharge)
  • Power Supply: 12V/2A
  • Power Consumption (Max): 8W
  • Device Dimension (WxHxD): 9.06" x 0.98" x 5.59" (230mm x 25mm x 142mm)


• Item Includes:

  • 1x VigilLink VLML-4X1H20ET 4x1 HDMI 2.0 4K60 Multi Viewer with Seamless Switching


• Warranty:

  • 6 Years
