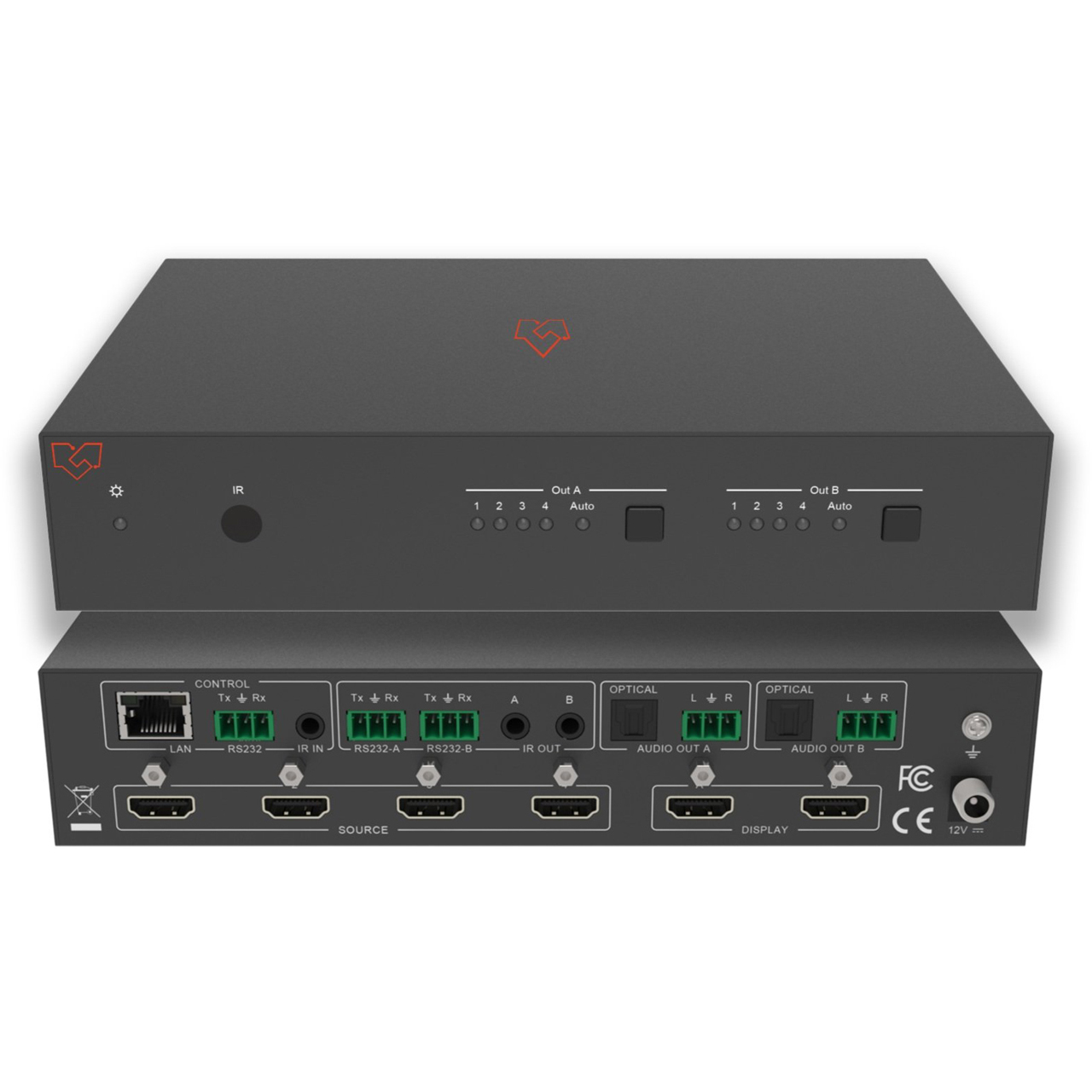

VigilLink VLMX-0402E 4x2 18Gbps HDMI 2.0 Matrix Switcher with 4K Output to 1080p Down Scaling and Display Control

VLMX-0402E - Overview

• Features:

  • HDMI 2.0, HDCP 2.2 / HDCP 1.4, and DVI 1.0 compliant
  • Four 18G HDMI 2.0 video inputs supporting up to 4K60 4:4:4 resolution
  • Two 18G HDMI 2.0 video outputs supporting up to 4K60 4:4:4 resolution
  • Both outputs can be individually scaled for 4K→1080p or HDBaseT mode
  • Automatic RS232, CEC, and IR control of the display device power state
  • Two sets of de-embedded audio analog and TosLink outputs, for both outputs
  • ARC decoding to the TosLink audio outputs only
  • Test Pattern mode for testing output signal integrity to the display
  • Built-in Web GUI for LAN control
  • Four methods of control: Front panel, RS232, IR, and LAN


• Specifications:

  Technical
  • HDMI Compliance: HDMI 2.0
  • HDCP Compliance: HDCP 2.2 and HDCP 1.4
  • Video Bandwidth: 18Gbps
  • Video Resolution:
    - 4K2K 50/60Hz 4:4:4
    - 4K2K 50/60Hz 4:2:0
    - 4K2K 30Hz 4:4:4
    - 1080p, 1080i, 720p, 720i, 480p, 480i
    - All HDMI 3D TV formats
    - All PC resolutions, including 1920 x 1200
  • Output Scaling:
    - 4K to 1080p
    - 4K to HDBaseT (Down-scale to no more than 10.2Gbps)
  • 3D Support: Yes
  • Color Space: RGB, YCbCr4:4:4, YCbCr4:2:2, YCbCr 4:2:0
  • Color Depth: 8-bit, 10-bit, 12-bit [1080P, 4K30Hz, 4K60Hz (YCbCr 4:2:0)], 8-bit [4K60Hz (YCbCr4:4:4)]
  • HDMI Audio Formats (Pass-through): PCM2.0/5.1/7.1CH, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD
  • L/R Audio Formats: PCM2.0CH (Note: If the ARC function is turned on, the audio port will mute.)
  • Optical Audio Formats: PCM2.0, Dolby Digital/Plus, DTS
  • Audio Frequency Response: 20Hz - 20kHz, ±3dB
  • RS232 Control: 57600, No parity, 8 data bits, 1 stop bit, No handshaking
  • RS232-A and: Configurable from 4800 to 115200 baud; 7 or 8 bits; none, (Contact discharge)
  • RS232-B: odd or even parity, and 1 or 2 stop bits.
  • ESD Protection: Human Body Model: ±8kV (Air-gap discharge) & ±4kV (Contact discharge)

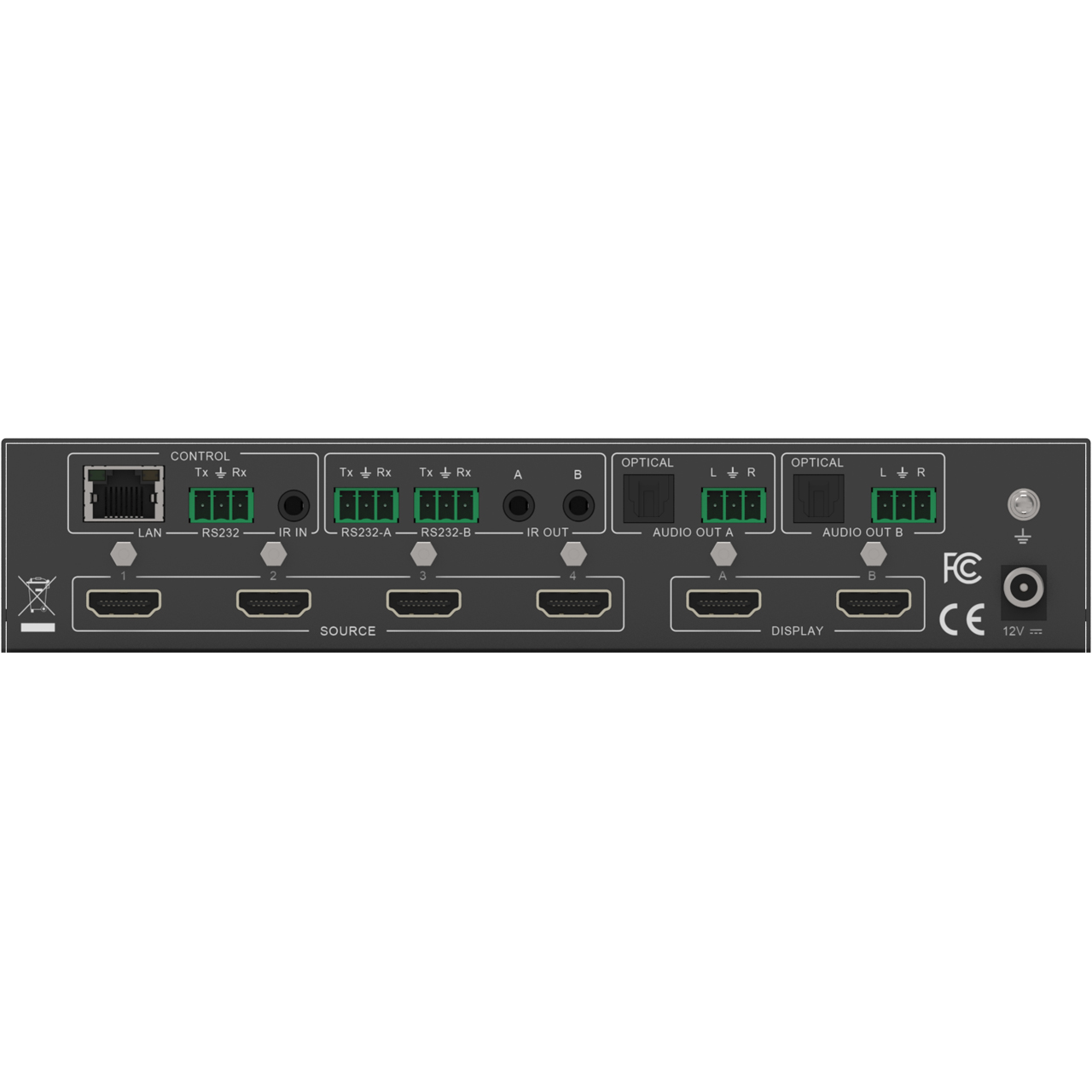

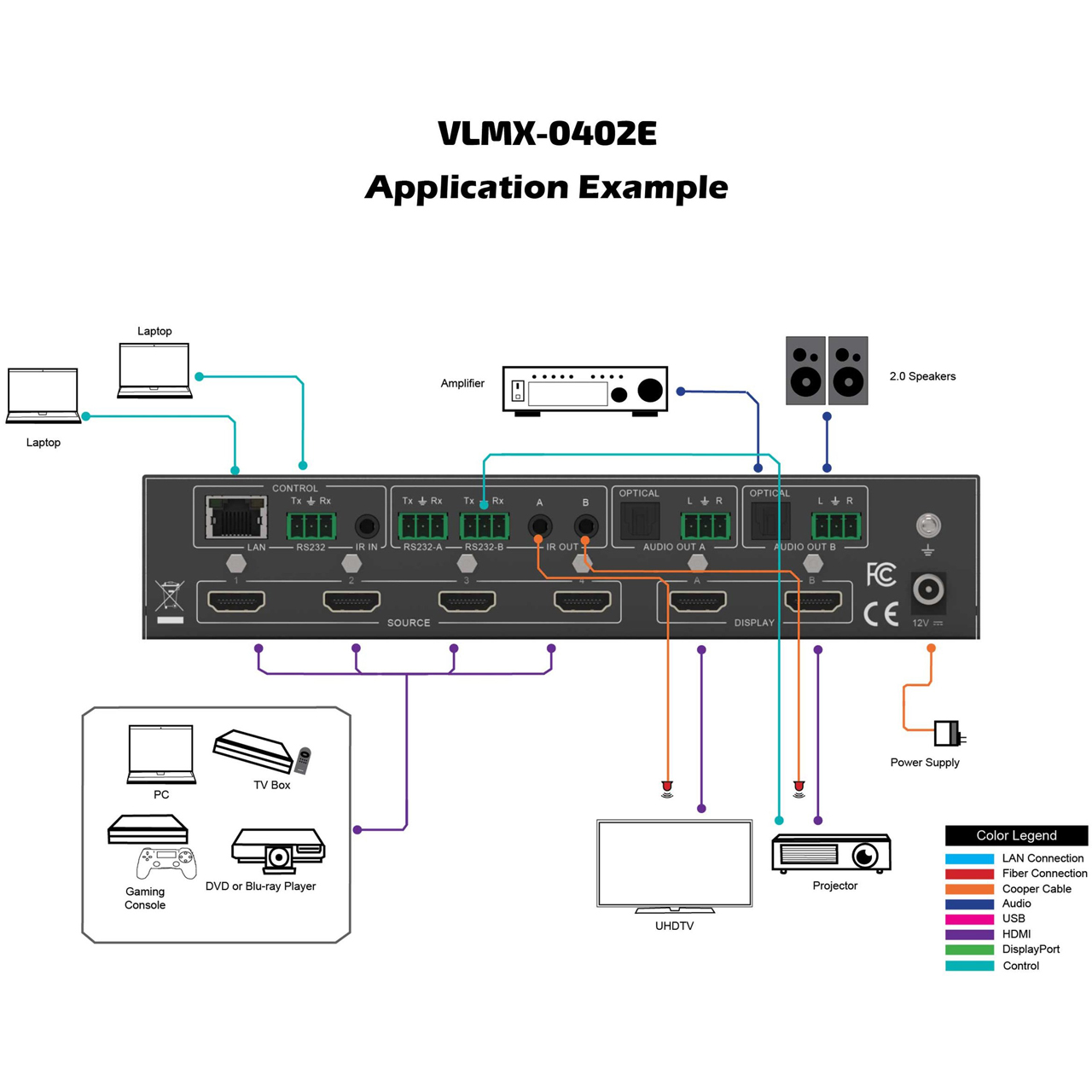

    Connections
  • Input Ports: 4x HDMI Type A (19-pin female)
  • Output Ports:
    - 2x HDMI Type A (19-pin female)
    - 2x L/R audio out (3-pin phoenix connector)
    - 2x OPTICAL audio out (S/PDIF)
    - 2x RS232 A/B (3-pin phoenix connector)
  • Control Ports:
    - 1x LAN (RJ45)
    - 3x RS232 (3-pin phoenix connector)
    - 1x IR IN (3.5mm Stereo Mini jack)
    - 2x IR OUT A/B (3.5mm Stereo Mini jack)

    Mechanical
  • Housing: Metal Enclosure
  • Color: Black
  • Dimensions: 9.88" x 4.13" x 0.78" (251mm x 105mm x 20mm)
  • Weight: 1.36lbs (620g)
  • Power Supply:
    - Input: AC 100V - 240V, 50/60Hz
    - Output: DC 12V/1A
  • Power Consumption: 3.8W (max)
  • Operating Temperature: 32°F - 104°F (0°C - 40°C)
  • Storage Temperature: -4°F - 140°F (-20°C - 60°C)
  • Relative Humidity: 20% - 90% RH (No condensation)


• Item Includes:

  • 1x 4x2 HDMI 2.0 18Gbps Matrix Switcher
  • 1x 12V/1A Locking Power Adapter
  • 1x IR Remote
  • 2x Mounting Ears
  • 2x IR Blaster Cables (1.5 meters)
  • 1x 20~60KHz IR Receiver Cable (1.5 meters)
  • 5x 3-pin Phoenix Connectors
  • 1x User Manual


• Warranty:

  • 6 Years
