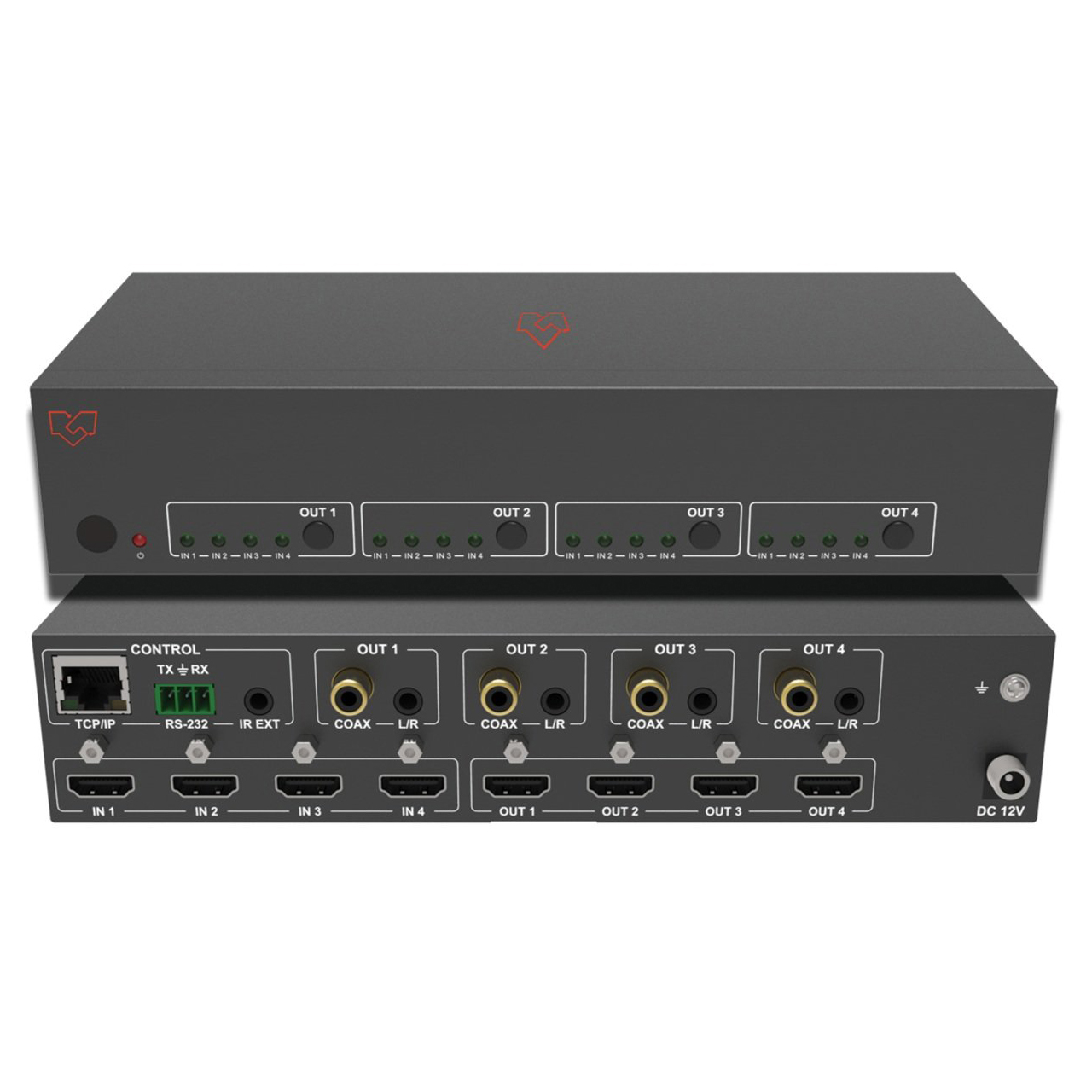

VigilLink VLMX-0404E 4x4 18Gbps HDMI 2.0 Matrix Switcher with 4K Output to 1080p Down Scaling and Display Control

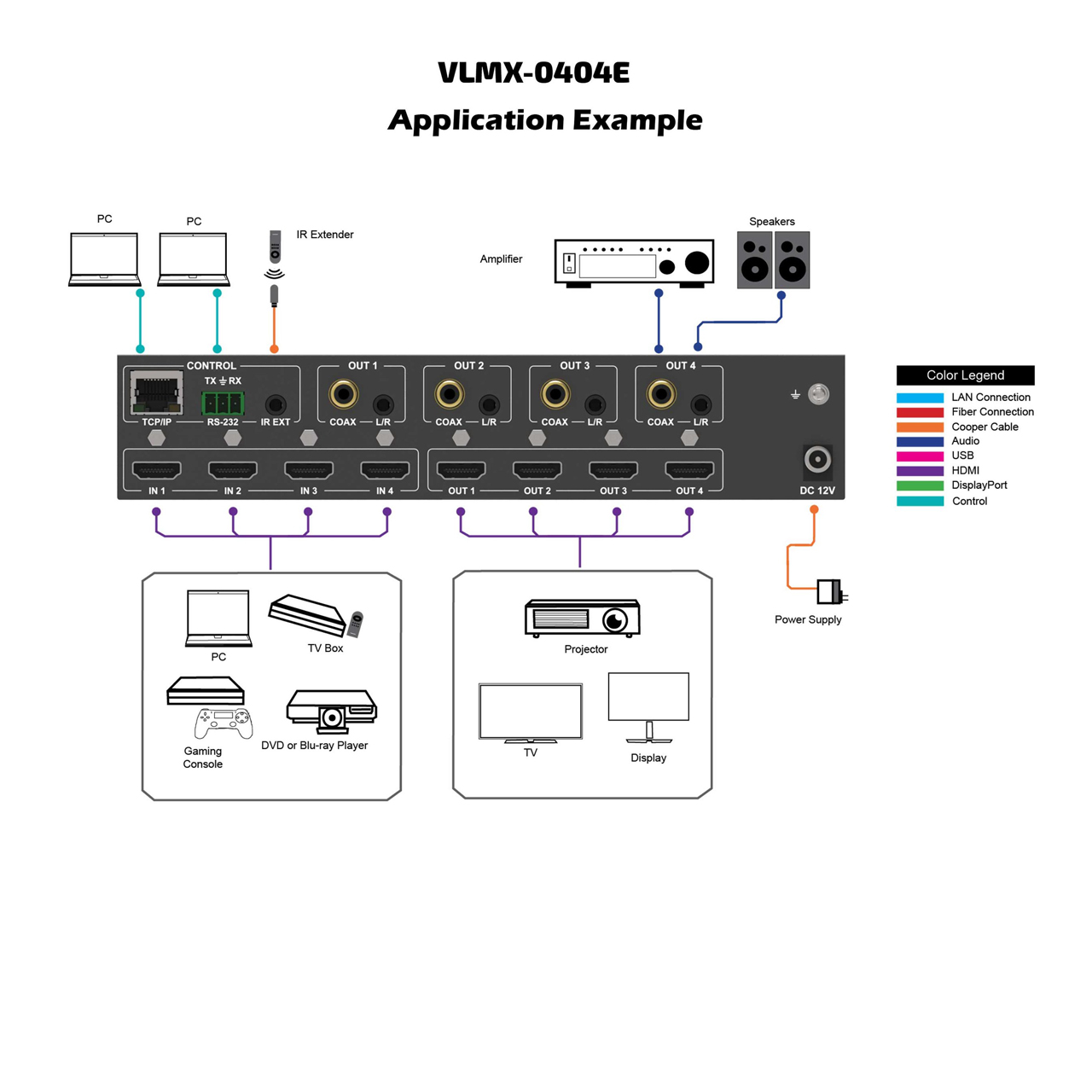

VLMX-0404E - Overview

• Features:

  • HDMI 2.0, HDCP 2.2 / HDCP 1.4, and DVI 1.0 compliant
  • Four 18G HDMI 2.0 video inputs support up to 4K60 4:4:4 resolution
  • Four 18G HDMI 2.0 video outputs support up to 4K60 4:4:4 resolution
  • Four outputs can be individually scaled for 4K→1080p
  • De-embedded audio to analog L/R and Coaxial ports output
  • ARC audio returns to the coaxial port's output only
  • Built-in Web GUI for TCP/IP control
  • Advanced EDID management supported

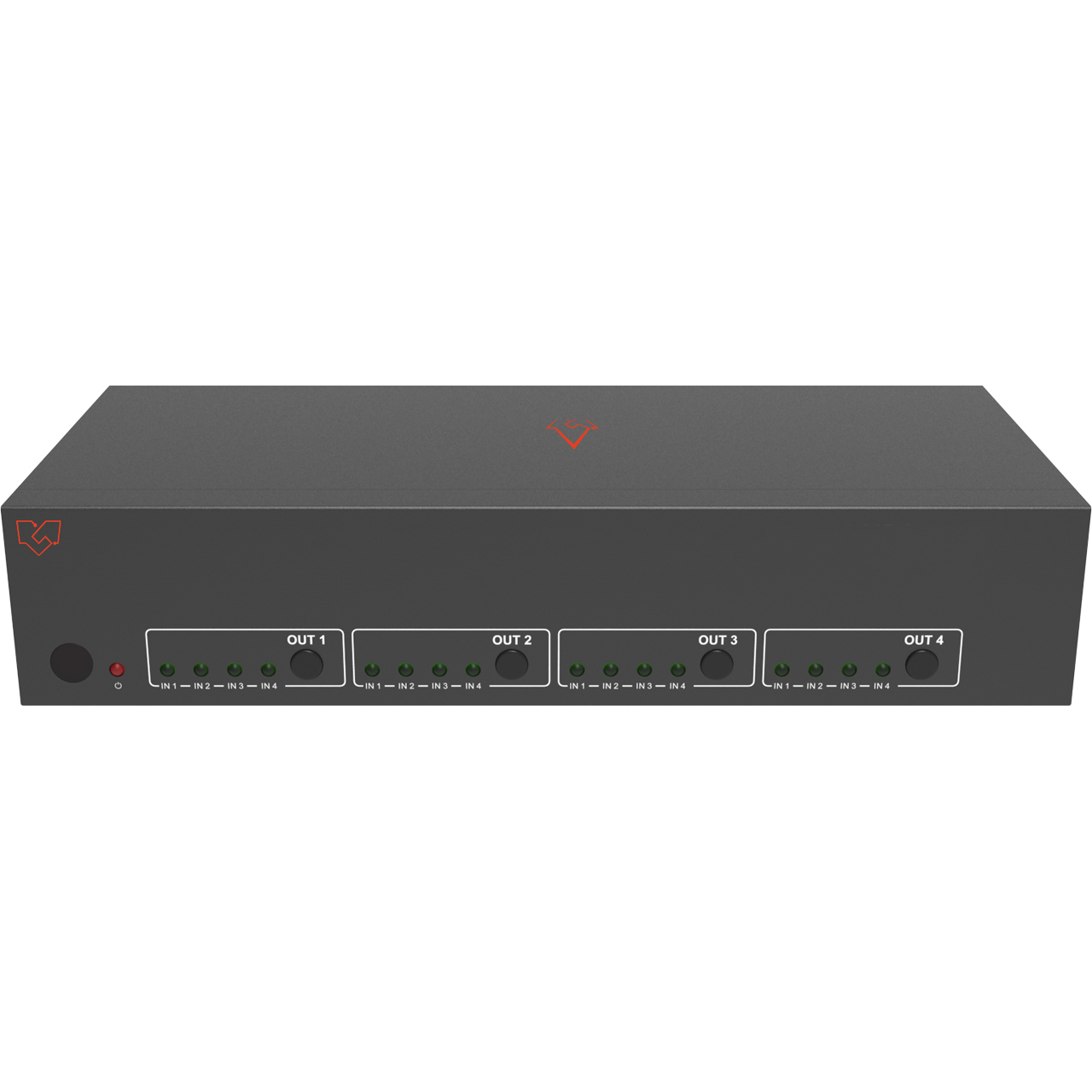

  • Four methods of control: Front panel, RS-232, IR remote, and TCP/IP
  • Compact design for easy and flexible installation


• Specifications:

  Technical
  • HDMI Compliance: HDMI 2.0
  • HDCP Compliance: HDCP 2.2 and HDCP 1.4
  • Video Bandwidth: 18Gbps
  • Video Resolutions:
    - 4K2K 50/60Hz 4:4:4
    - 4K2K 50/60Hz 4:2:0
    - 4K2K 30Hz 4:4:4
    - 1080p, 1080i, 720p, 720i, 480p, 480i
    - All HDMI 3D TV formats
    - All PC resolutions, including 1920 x 1200
  • Output Scaling: 4K to 1080p
  • 3D Support: Yes
  • Color Space: RGB, YCbCr4:4:4,YCbCr4:2:2, YCbCr 4:2:0
  • Color Depth:
    - 8-bit, 10-bit, 12-bit [1080P, 4K30Hz, 4K60Hz (YCbCr 4:2:0)]
    - 8-bit [4K60Hz (YCbCr 4:4:4)]
  • HDMI Audio Formats (Pass-through): PCM2.0/5.1/7.1CH, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD
  • Coaxial Audio Formats: PCM2.0, Dolby Digital / Plus, DTS 2.0/5.1
  • L/R Audio Formats: PCM2.0CH
  • HDR Support: HDR10, HDR10+. Dolby Vision, HLG
  • ESD Protection: Human Body Model: ±8kV (Air-gap discharge) & ±4kV (Contact discharge)

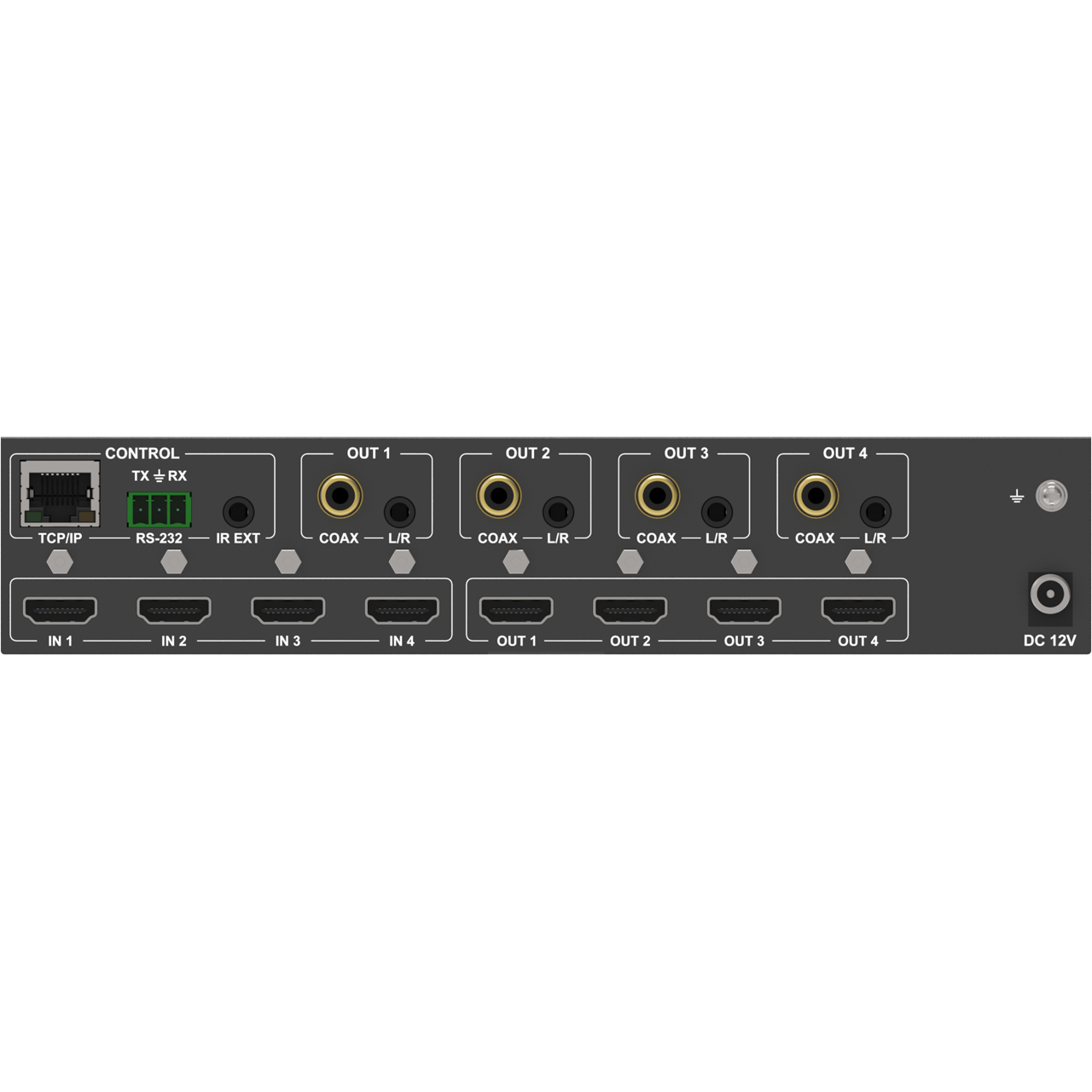

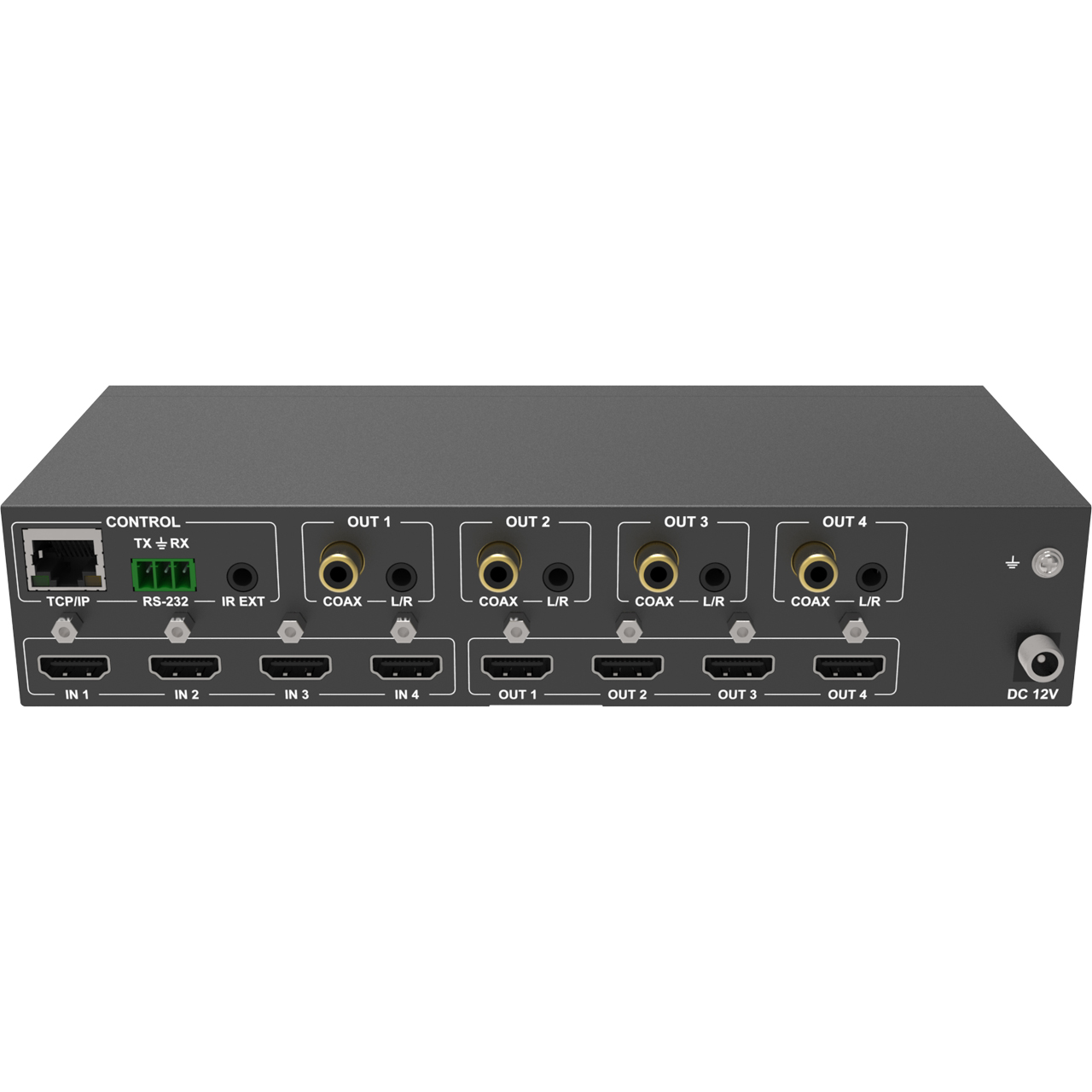

    Connections
  • Input Ports: 4x HDMI Type A (19-pin female)
  • Output Ports:
    - 4x HDMI Type A (19-pin female)
    - 4x L/R audio out (3.5mm Stereo Mini-jack)
    - 4x COAX audio out (RCA)
  • Control Ports:
    - 1x TCP/IP (RJ45)
    - 1x RS-232 (3-pin phoenix connector)
    - 1x IR EXT (3.5mm Stereo Mini-jack)

    Mechanical
  • Housing: Metal enclosure
  • Color: Black
  • Dimensions: 8.66" x 4.13" x 1.73" (220mm x 105mm x 44mm)
  • Weight: 1.75lbs (792g)
  • Power Supply:
    - Input: AC 100V - 240V, 50/60Hz
    - Output: DC 12V/2.5A (Locking connector)
  • Power Consumption: 10W (max), 1.56W (Standby)
  • Operating Temperature: 32°F - 104°F (0°C - 40°C)
  • Storage Temperature: -4°F - 140°F (-20°C - 60°C)
  • Relative Humidity: 20% - 90% RH (No condensation)

    Resolution/Distance
  • 4K2K: 394ft (120m)
  • 1080p: 492ft (150m)


• Item Includes:

  • 1x 4x4 HDMI 2.0 18Gbps Matrix Switcher
  • 1x 12V/2.5A Locking Power Adapter
  • 1x IR Remote
  • 2x Mounting Ears
  • 1x 38KHz IR Receiver Cable (1.5 meters)
  • 1x 3-pin Phoenix Connector
  • 1x User Manual


• Warranty:

  • 6 Years
