VigilLink VLMX-0808E 8x8 18Gbps HDMI 2.0 Matrix Switcher - Video up to 4k2k@60Hz & Multi-Channel High-Res Digital Audio

VLMX-0808E - Overview

• Features:

  • HDMI 2.0b, HDCP 2.2 compliant
  • Up to 4K / 2K @60Hz with 24bit RGB / YCbCr (4:4:4)
  • HDR, HDR10, HDR10+, Dolby Vision pass-through
  • Supports LPCM 7.1CH, Dolby TrueHD, and DTS-HD Master Audio
  • Each output supports 4K to 1080p downscale independently
  • Each output supports digital and analog audio de-embedded
  • Advanced EDID management
  • Source and Display control via CEC

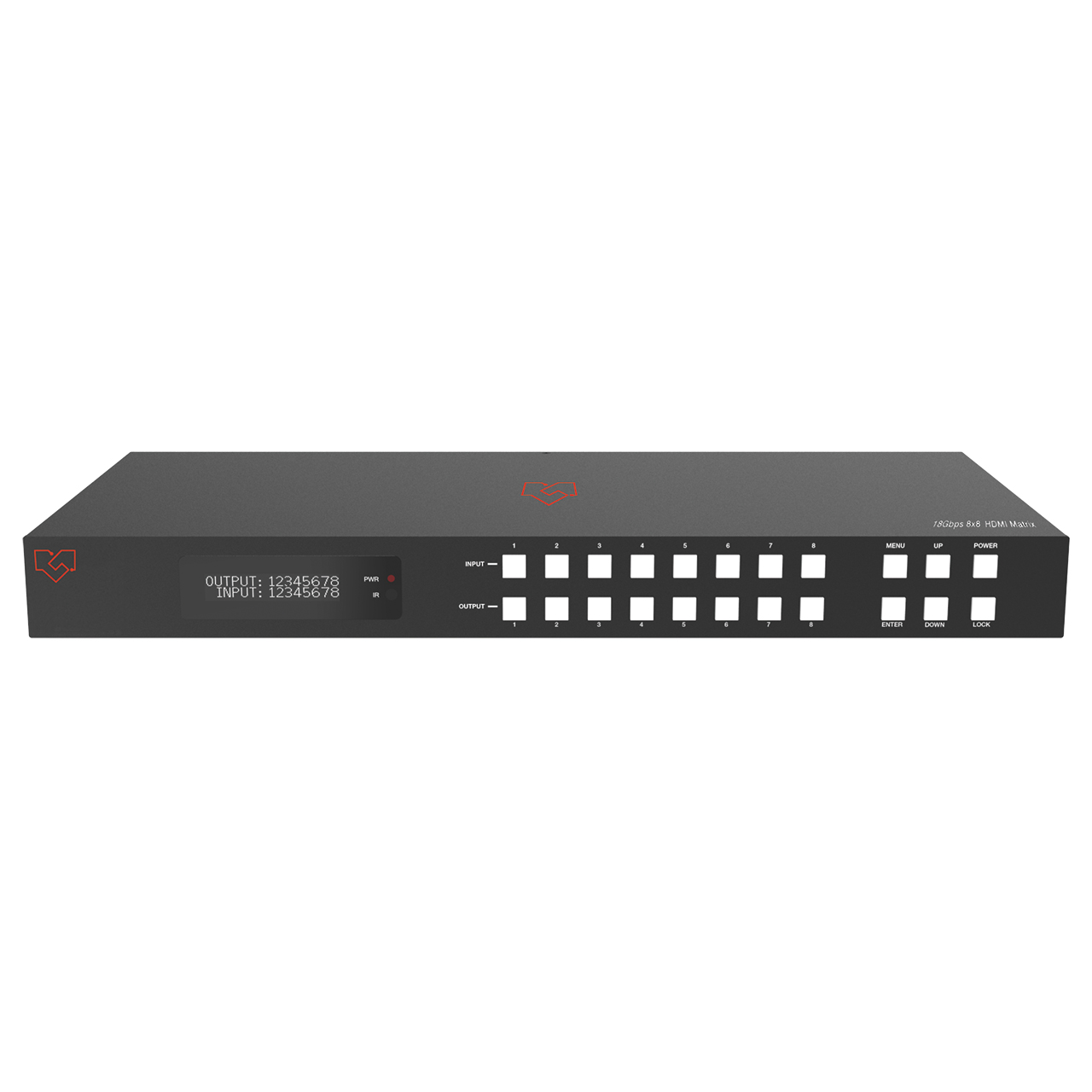

  • Front panel button, IR, RS-232, TCP/IP and Web GUI control


• Specifications:

  Technical
  • HDMI Compliance: HDMI 2.0b
  • HDCP Compliance: HDCP 2.2 and HDCP 1.4
  • Video Bandwidth: 18Gbps
  • Video Resolution: Up to 4K2K @ 50/60Hz (4:4:4)
  • Color Space: RGB, YCbCr 4:4:4/4:2:2/4:2:0
  • Color Depth: 8-bit, 10-bit, 12-bit
  • HDMI Audio Formats (Pass-through): LPCM 2/5.1/7.1, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos, DTS:X
  • Coax Audio Formats: LPCM 2.0, Dolby Digital/Plus, DTS 5.1
  • L/R Audio Formats: PCM2.0
  • HDR formats: HDR10,HDR10+,Dolby Vision, HLG
  • ESD Protection: Human Body Model: ±8kV (Air-gap discharge) & ±4kV (Contact discharge)

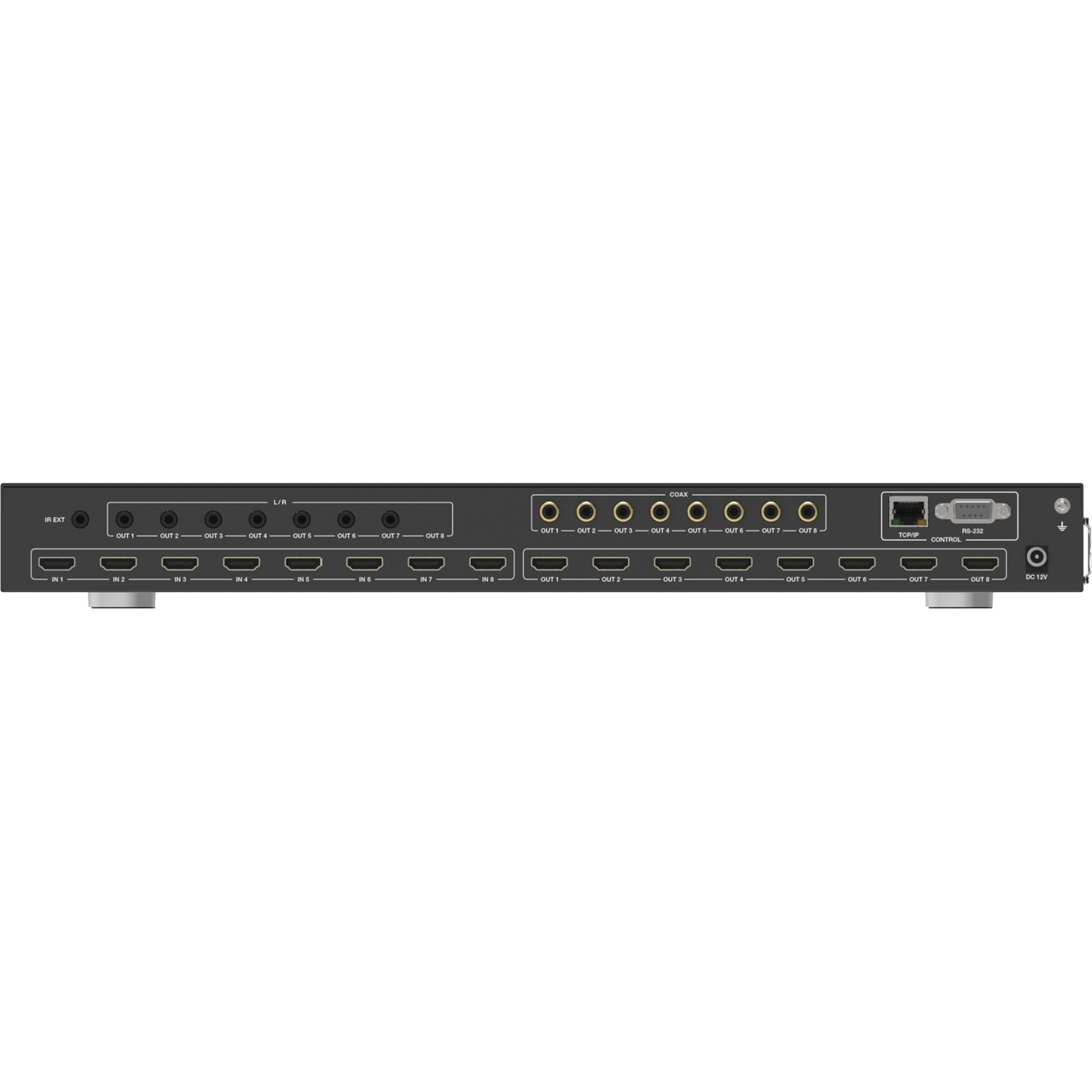

    Connections
  • Input Ports:
    - 8x HDMI Type A (19-pin female)
    - 1x IR EXT (3.5mm Stereo Mini-jack)
  • Output Ports:
    - 8x HDMI Type A (19-pin female)
    - 8x Coax Audio (RCA)
    - 8x L/R Audio (3.5mm Stereo Mini-jack)
  • Control Ports:
    - 1x TCP/IP (RJ45)
    - 1x RS-232 (D-Sub 9)

    Mechanical
  • Housing: Metal enclosure
  • Color: Black
  • Dimensions: 17.32" x 7.87" x 1.75" (440mm x 200mm x 44.5mm)
  • Weight: 6.17lbs (2.8kg)
  • Power Supply:
    - Input: AC 100V - 260V, 50/60Hz
    - Output: DC 12V/5A (US/EU standards, CE/FCC/UL certified)
  • Power Consumption: 43W
  • Operating Temperature: 14°F - 113°F (-10°C - 45°C)
  • Storage Temperature: -4°F - 140°F (-20°C - 60°C)
  • Relative Humidity: 20% - 90% RH (No condensation)

    Resolution/Cable Length (HDMI In/Out)
  • 4K60: 16ft (5m)
  • 4K30: 32ft (10m)
  • 1080p60: 50ft (15m)
    **The use of the "Premium High-Speed HDMI" is highly recommended.


• Item Includes:

  • 1x 18Gbps 8 x 8 HDMI Matrix
  • 1x 12V/5A Power Adapter
  • 1x IR Remote
  • 1x IR Receiver cable (1.5 meters)
  • 1x RS-232 serial cable (1.5 meters, male to female head)
  • 2x Mounting Ear
  • 1x User Manual


• Warranty:

  • 6 Years
