VigilLink VLMX-1616E 16x16 4K2K 60Hz HDMI 2.0 18Gbps Matrix Switcher - HDMI 2.0b/HDCP 2.2/1.x and DVI 1.0 Compliant

VLMX-1616E - Overview

• Features:

  • HDMI 2.0b, HDCP 2.2/1.x, and DVI 1.0 compliant
  • Video resolution up to 4K2K@60Hz (YUV 4:4:4) on all HDMI ports
  • Supports 18Gbps video bandwidth
  • HDR, HDR10, HDR10+, Dolby Vision, and HLG are supported.
  • Supports 4K->1080P Down Scaler for each output port
  • HDMI audio pass-through up to 7.1CH HD audio (LPCM, Dolby TrueHD, and DTS-HD Master Audio)
  • Audio de-embedded is supported via coax ports
  • ARC, CEC, and smart EDID management are supported

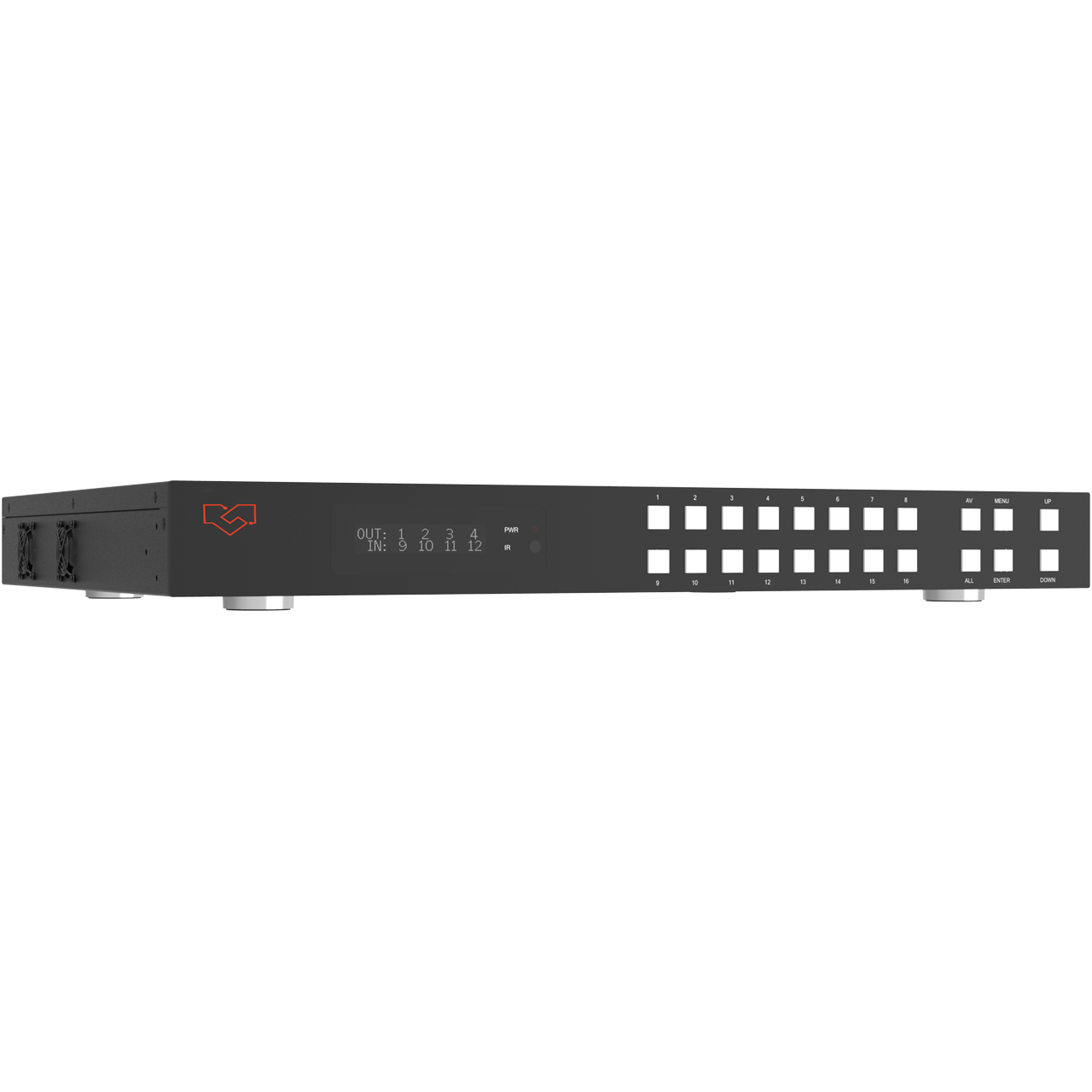

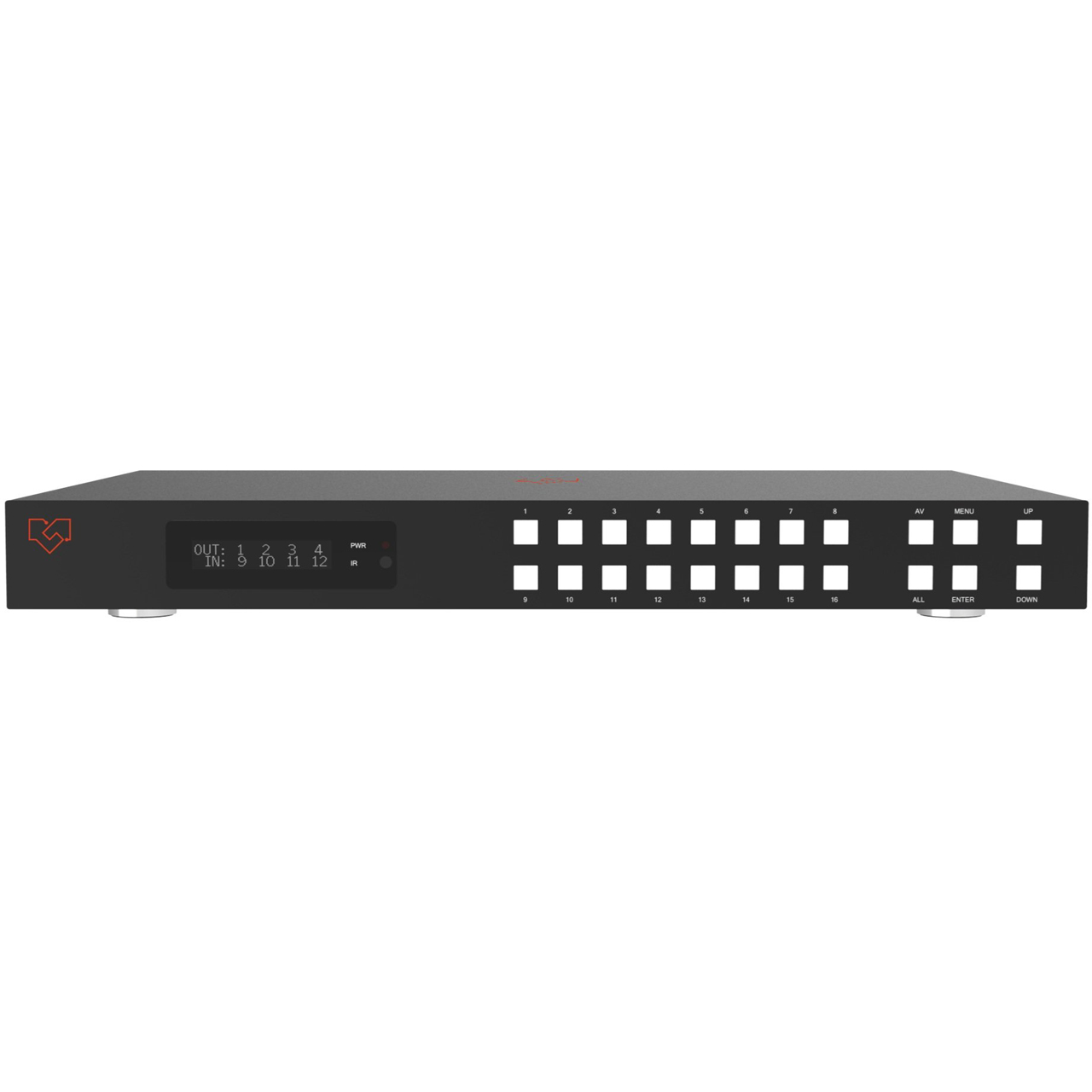

  • 1RU rack-mounted design with front panel OLED display
  • Control via front panel buttons, IR remote, RS-232, LAN, and Web GUI


• Specifications:

  Technical
  • HDMI Compliance: HDMI 2.0b
  • HDCP Compliance: HDCP 2.2/1.x
  • Video Bandwidth: 18Gbps
  • Video Resolution: Up to 4K2K @ 50/60Hz (4:4:4)
  • Color Space: RGB, YCbCr 4:4:4/4:2:2/4:2:0
  • Color Depth: 8-bit, 10-bit, 12-bit
  • HDMI Audio Formats (Pass-through): LPCM 2/5.1/7.1, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos, DTS:X
  • Coax Audio Formats: LPCM 2.0, Dolby Digital/Plus, DTS 5.1
  • HDR formats: HDR10,HDR10+, Dolby Vision, HLG
  • ESD Protection: Human Body Model: ±8kV (Air-gap discharge) & ±4kV (Contact discharge)

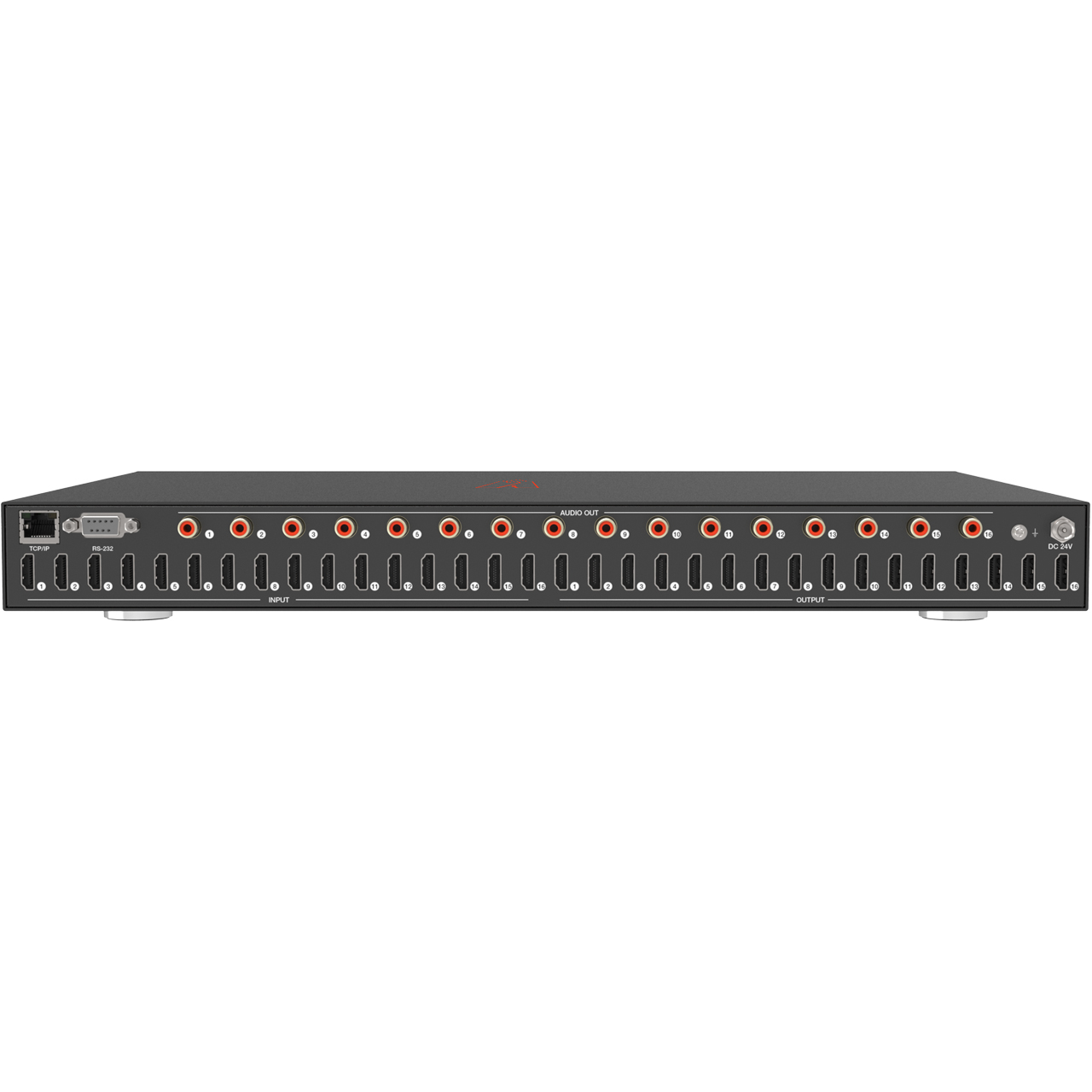

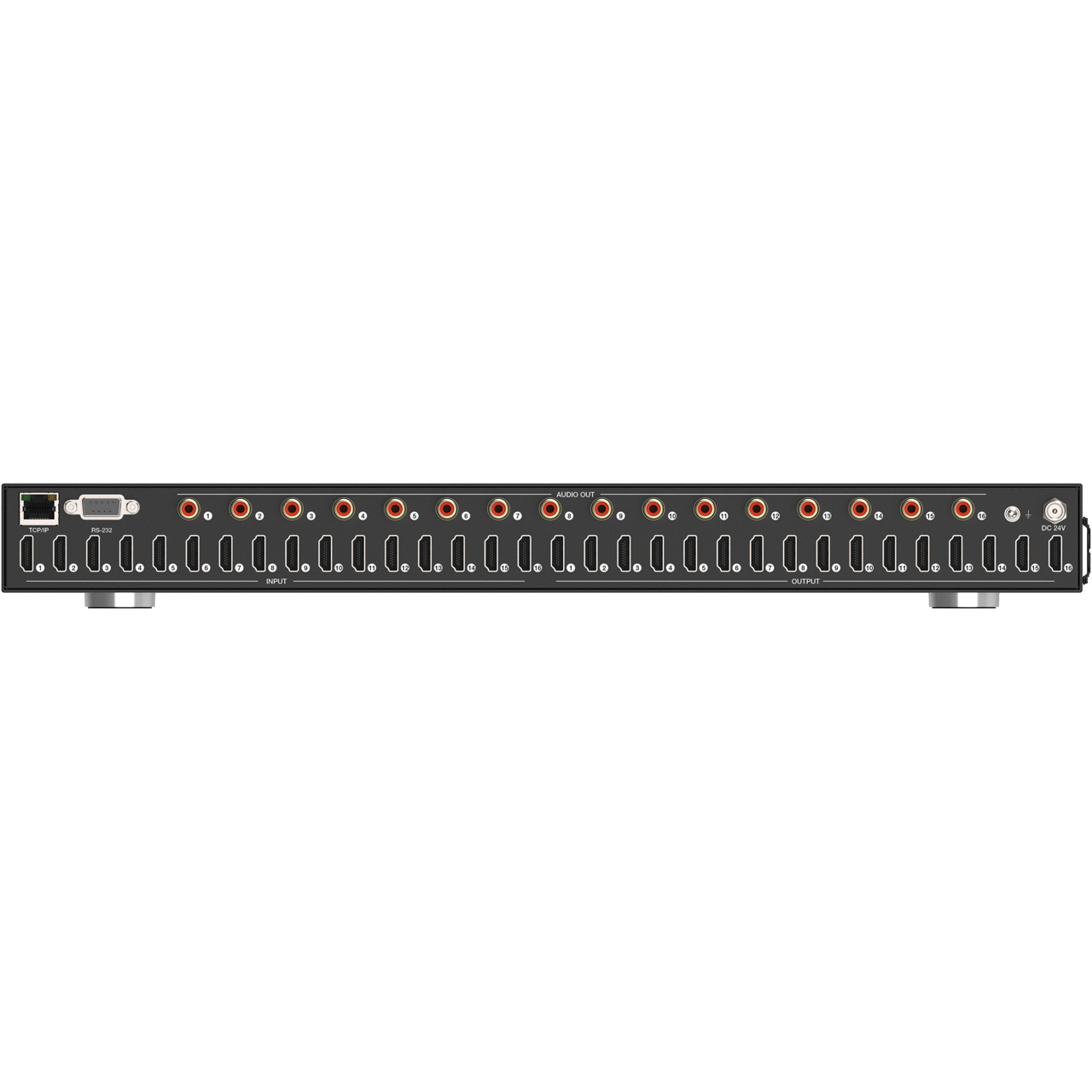

    Connections
  • Input Ports: 16x HDMI Type A (19-pin female)
  • Output Ports:
    - 16x HDMI Type A (19-pin female)
    - 16x Coax Audio (RCA)
  • Control Ports:
    - 1x TCP/IP (RJ45)
    - 1x RS-232 (D-Sub 9)

    Mechanical
  • Housing: Metal enclosure
  • Color: Black
  • Dimensions: 17.32" x 7.87" x 1.73" (440mm x 200mm x 44mm)
  • Weight: 6.83lbs (3.1kg)
  • Power Supply:
    - Input: AC 100V - 240V, 50/60Hz
    - Output: DC 24V/3.75A (US/EU standards, CE/FCC/UL certified)
  • Power Consumption: 76.8W
  • Operating Temperature: 14°F - 113°F (-10°C - 45°C)
  • Storage Temperature: -4°F - 140°F (-20°C - 60°C)
  • Relative Humidity: 20% - 90% RH (No condensation)

    Resolution/Cable Length
  • 4K60: 16ft (5m)
  • 4K30: 32ft (10m)
  • 1080p60: 50ft (15m)
    **The use of the "Premium High-Speed HDMI" is highly recommended.


• Item Includes:

  • 1x 18Gbps 16x16 HDMI Matrix
  • 1x 24V/3.75A Power Adapter
  • 1x IR Remote
  • 1x RS-232 serial cable (1.5 meters, male to female head)
  • 2x Mounting Ear
  • 1x User Manual


• Warranty:

  • 6 Years
